Kinugawa Billet Turbocharger 4" TD06H TE06H w/ Garrett T04R wheel T3 V-Band 10cm

 Product Information

Item Name

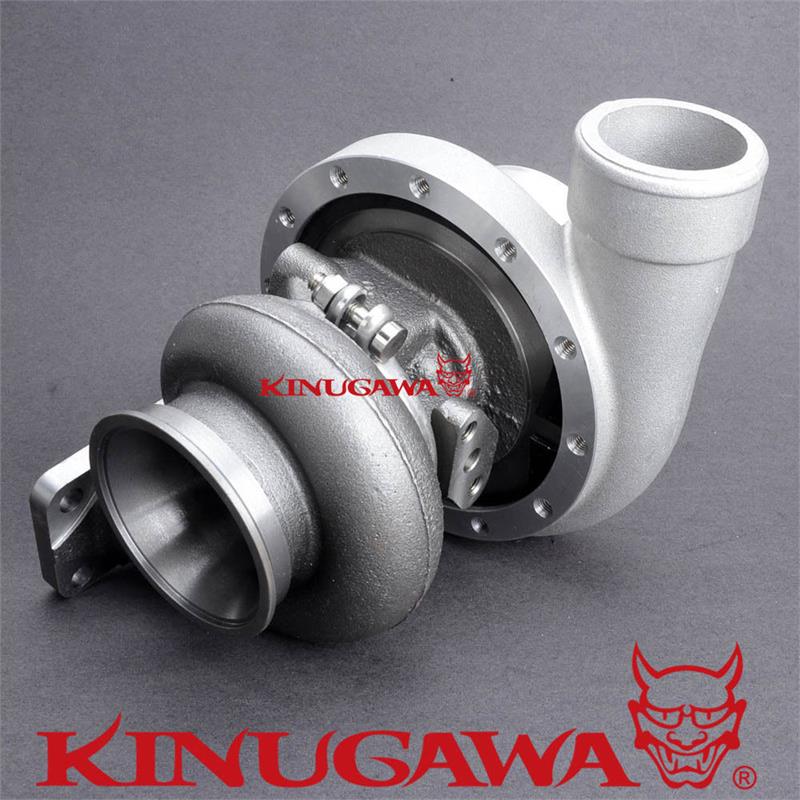

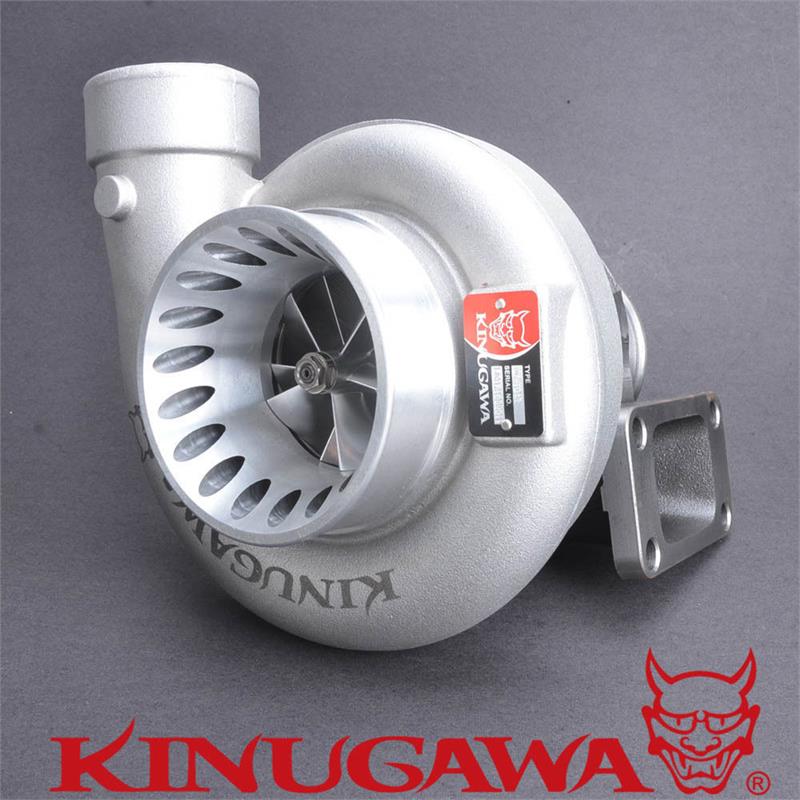

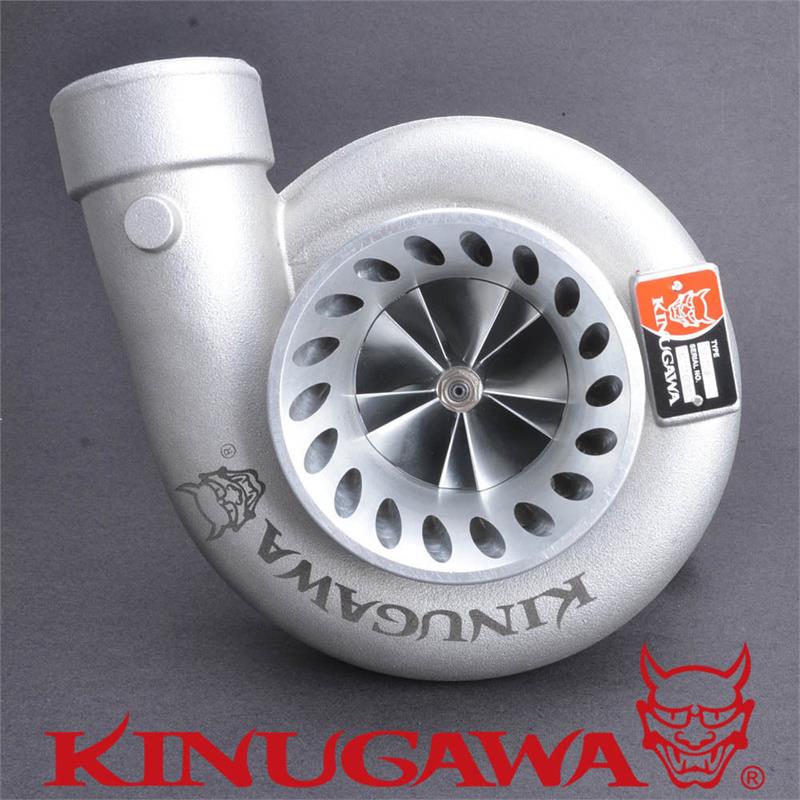

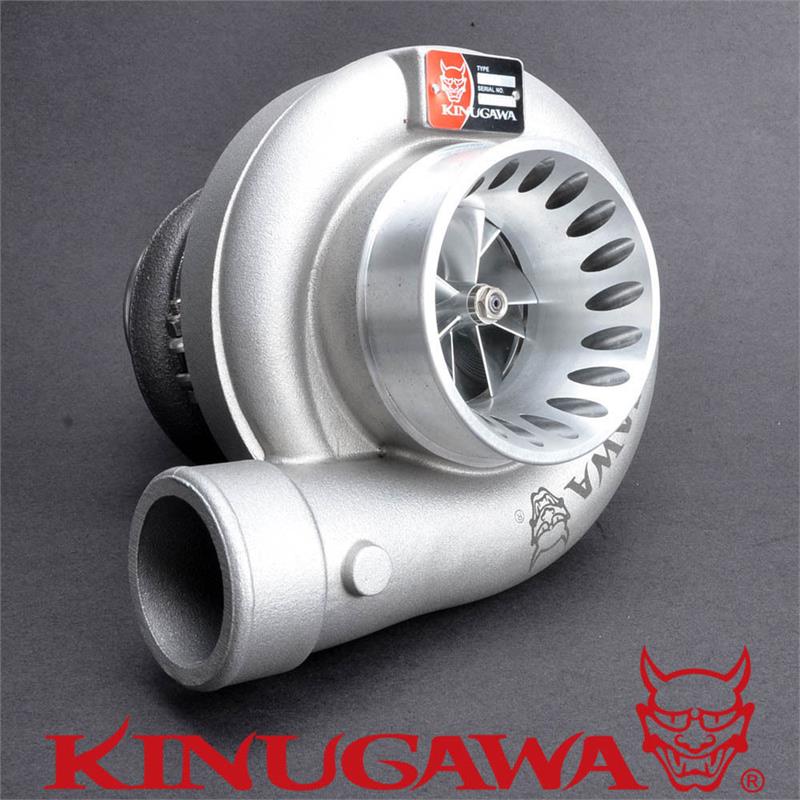

Kinugawa Hybrid TE06H Monster Turbocharger with Billet Garrett T04R compressor wheel, 4” Anti Surge Cover and T3 / 10cm / V-Band Turbine Housing

P/N.

321-02001-269

Application

Universal Type

2500~4000cc

Wheel spec

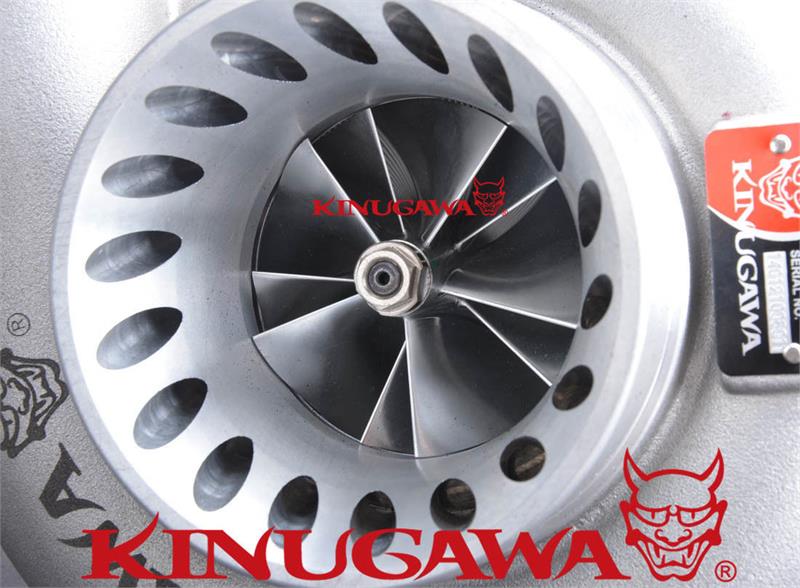

Compressor wheel: 66.5/84 mm (Billet Garrett T04R)

Turbine wheel: 58.8 / 67 mm (TE06H / 11 Blades Inconel Wheel)

Compressor

 Housing

- A/R .70

Inlet : 4”

Outlet: 2.5”

Turbine

Housing A/R

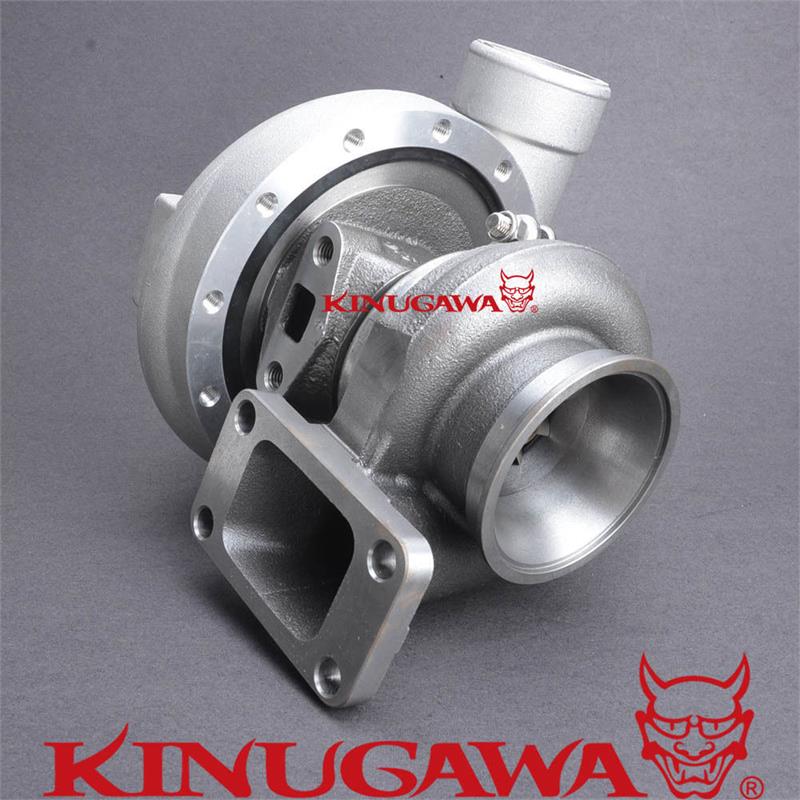

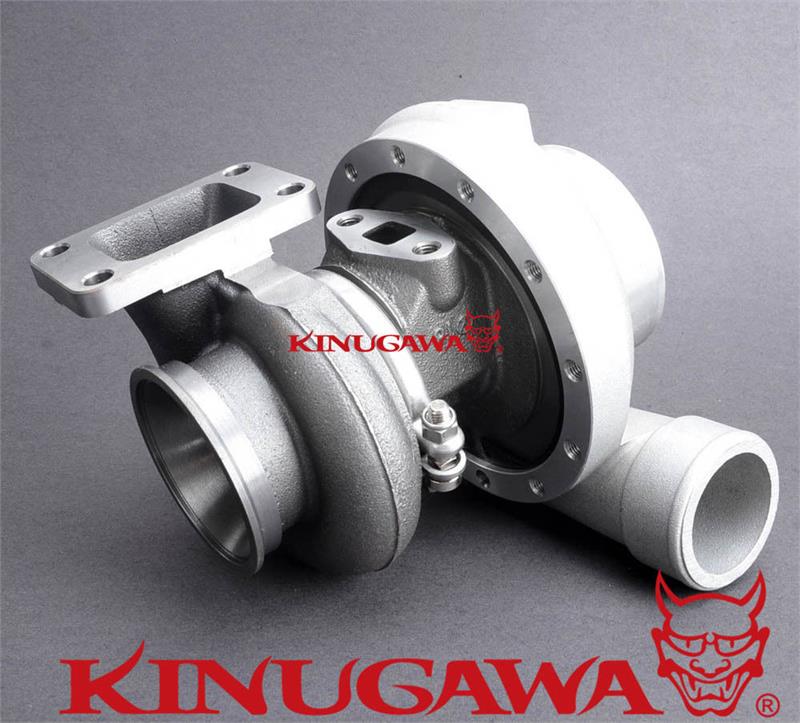

10cm / AR73 T3 Flanged V-Band turbine housing

Bearing Type

Journal Bearing

Cooling Type

Oil-Cooled

Max Hp

400~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

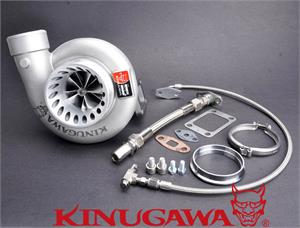

Kit Includes

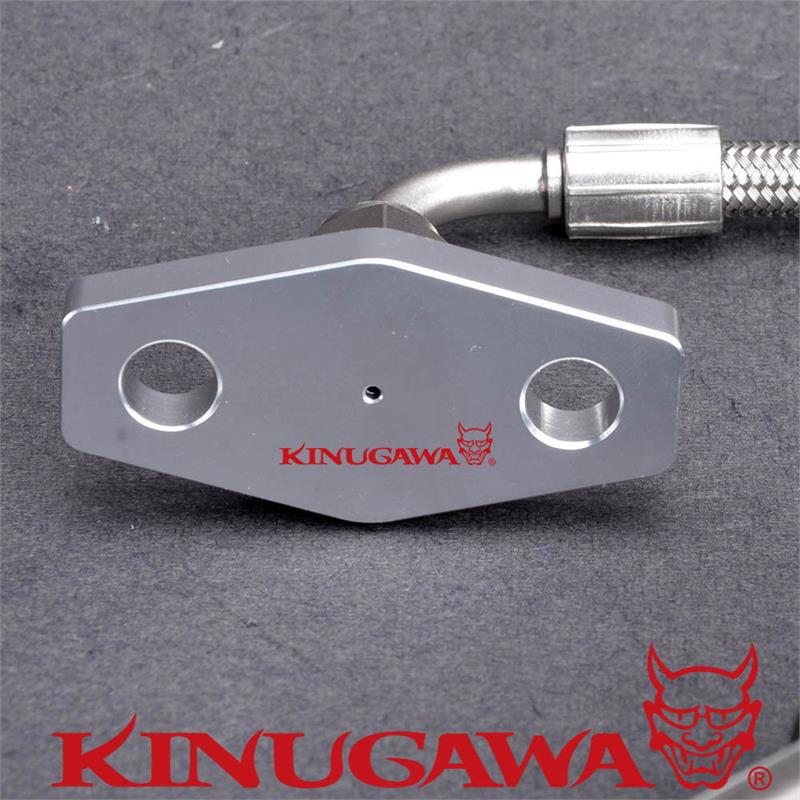

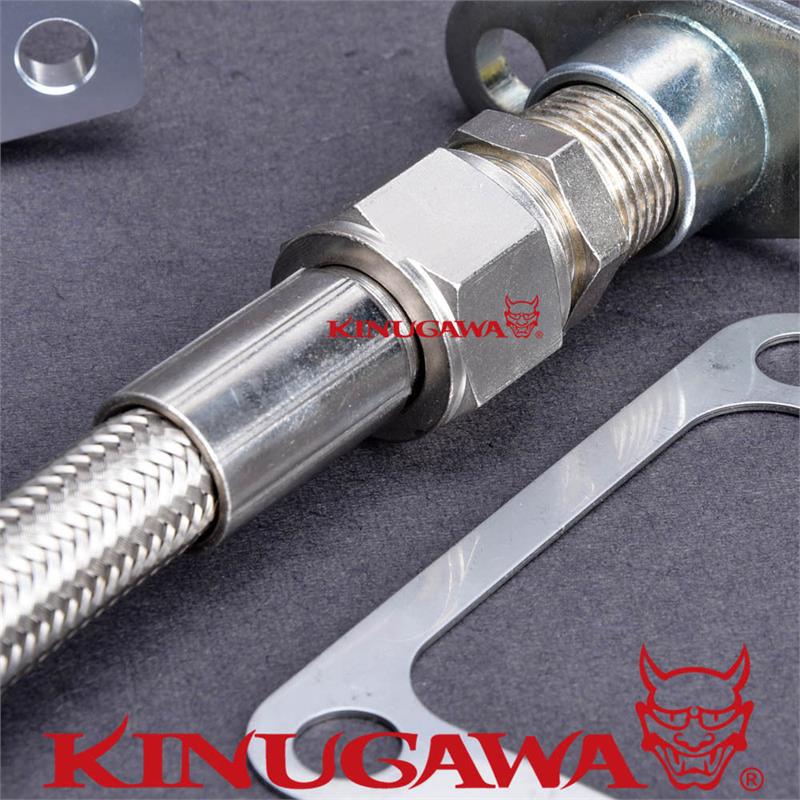

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

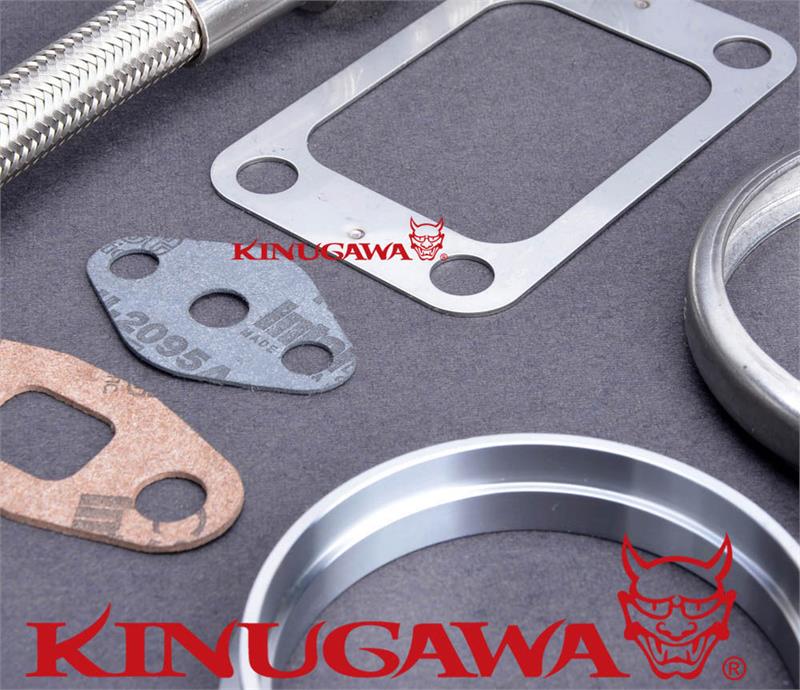

1 x T3 Turbine Gasket Inlet Gasket

1 x V-Band Pipe Adapter Kit

Made By

Kinugawa Turbo

Warranty

One Year
