Kinugawa Billet Turbocharger 4" TD07S w/ Garrett T04R wheel T3 V-Band 12cm 750PS
|
* Whole number only
|
|
|
Product Information
|
|
Item Name
|
Kinugawa TD07S Turbocharger with Garrett T04R compressor wheel, 4” Anti Surge Cover and T3 / 12cm / V-Band Turbine Housing
|
|
P/N.
|
|
|
Application
|
- Universal Type
- 4000~6000 cc Gasoline Engine
|
|
Wheel spec
|

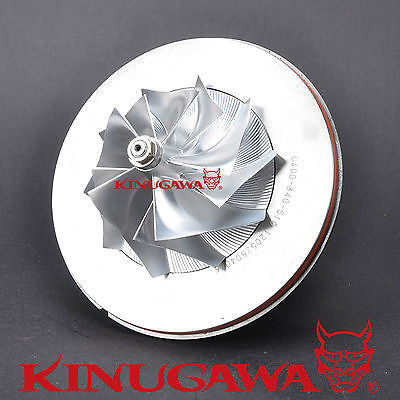

- Compressor wheel: 66.5/84 mm (Billet Garrett T04R)
- Turbine wheel: 62.9 / 74 mm (TD07S Inconel Wheel)
|
|
Compressor
Housing
|
- A/R .70
- Inlet : 4”
- Outlet: 2.5”
|
|
Turbine Housing
AR
|
12cm ( A/R 0.82) T3 V-Band Turbine Housing
|
|
Bearing Type
|
- Journal Bearing
|
|
Cooling Type
|
- Oil-Cooled
|
|
Max Hp
|
600~750 BHP
|
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
|
Product
Situation
|
Brand New
|
|

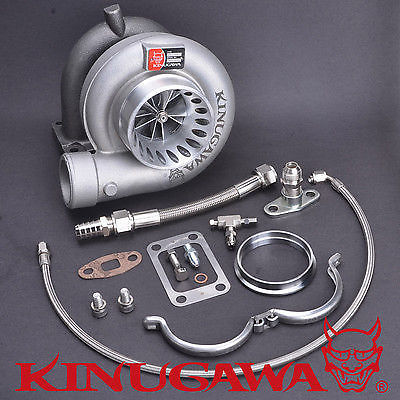

Kit Includes
|
1 x Oil feed line kit ( 70cm Braided Line )
1 x Oil Return Pipe Kit
1 x T3 Turbine Gasket Inlet Gasket
1 x V-Band Pipe Adapter Kit
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
