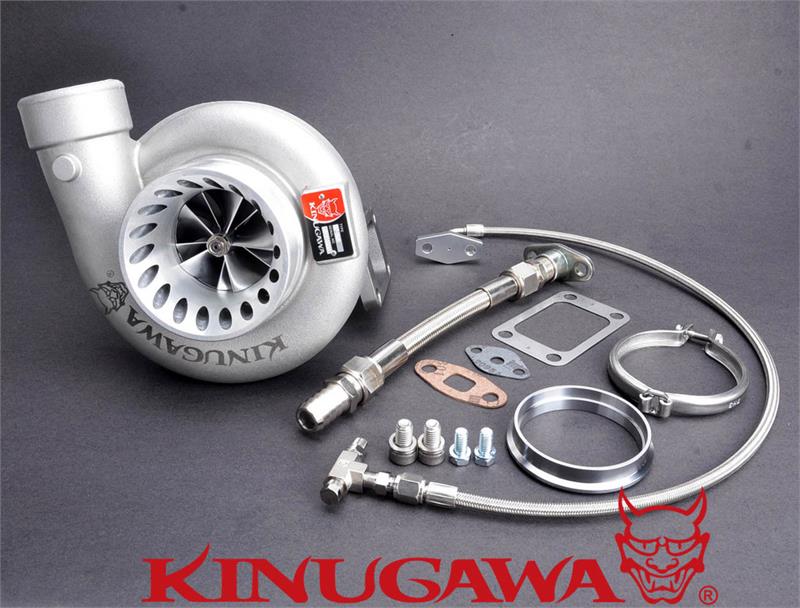

Kinugawa Billet Turbocharger 4" TE06H-25G with T3 10 cm / V-band External Gate
|
Item Number: 321-02001-163
* Whole number only
|
|
|
KINUGAWA TD06SH-25G / 06H-25G / TE06H-25G

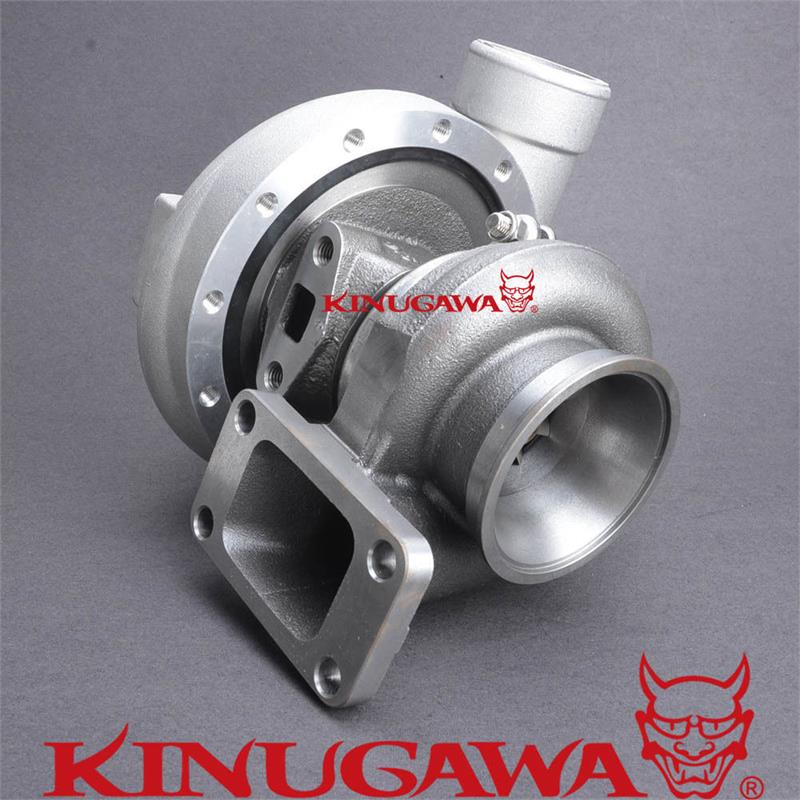

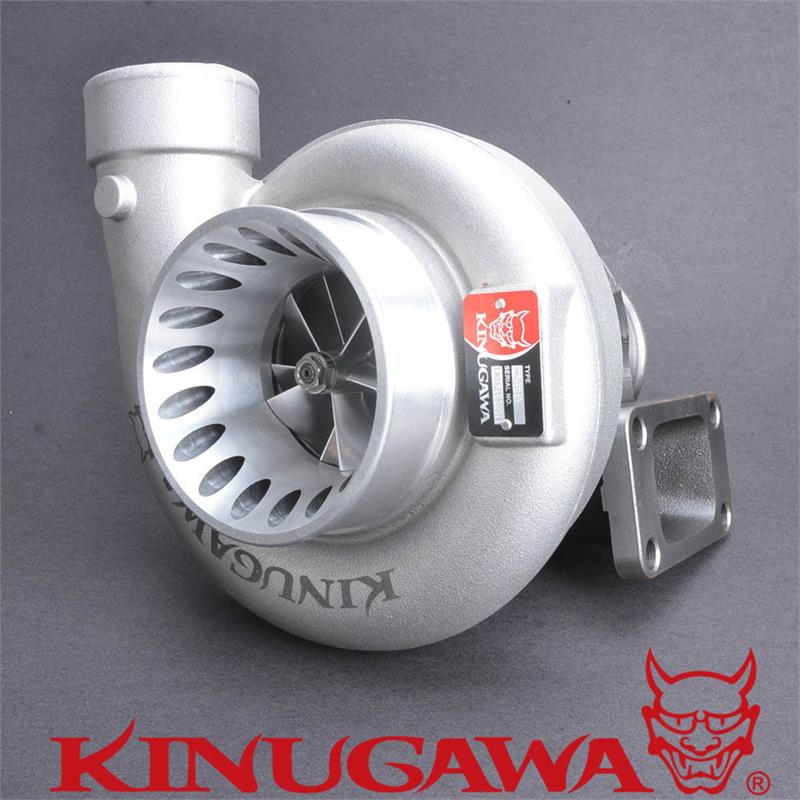

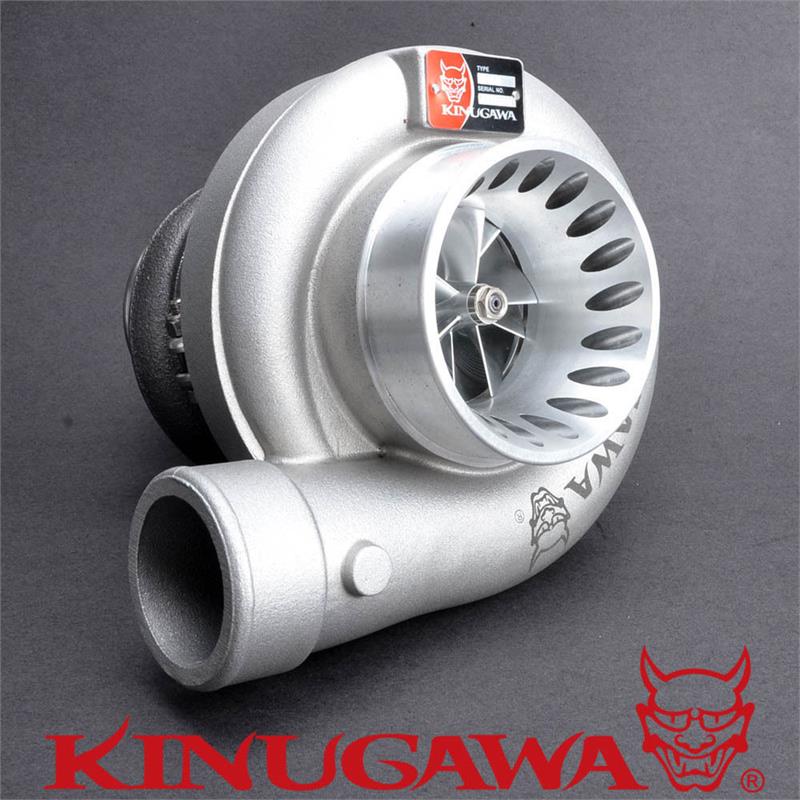

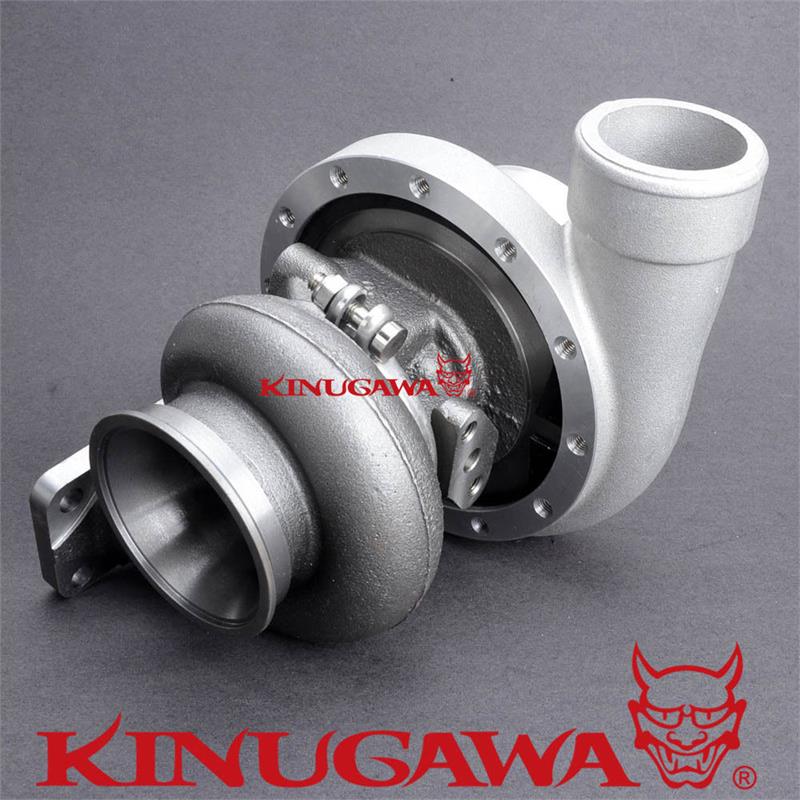

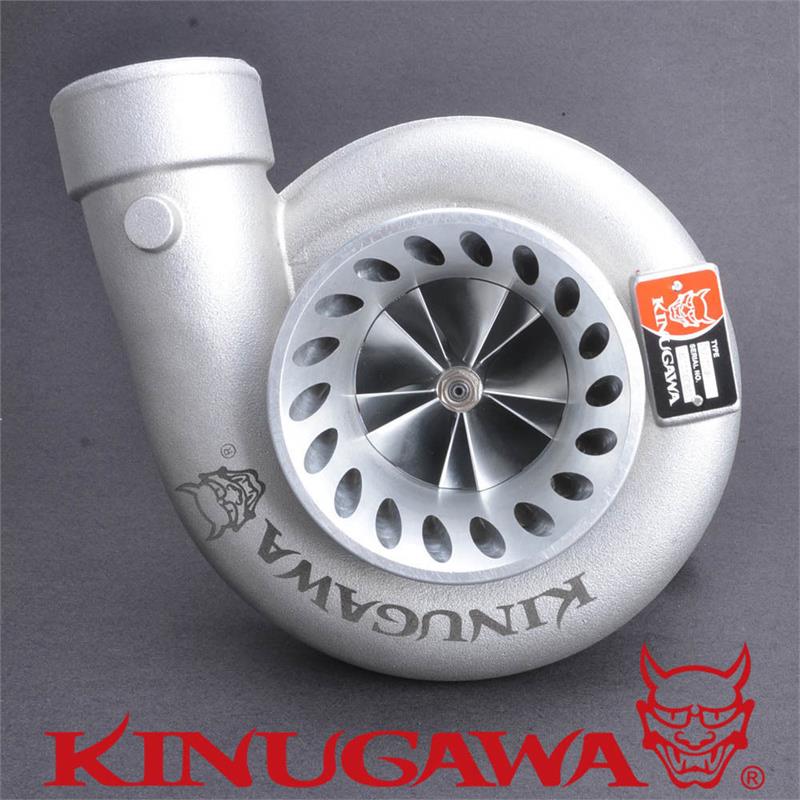

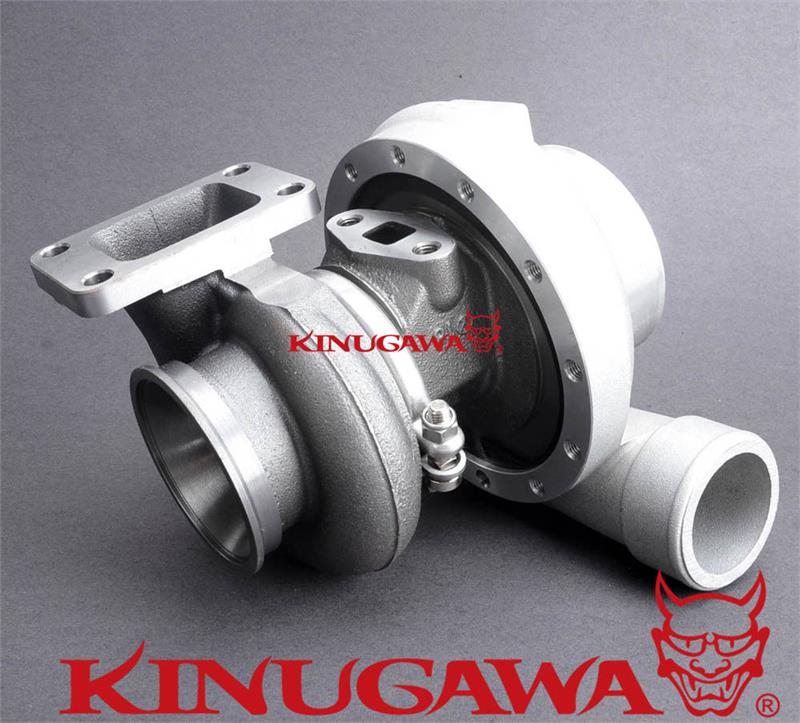

Turbocharger with Billet Compressor wheel + T3 10cm V-Band Turbine Housing
|
|
P/N.
|
321-02001-163
|
|
Item Name
|
Mitsubishi / KINUGAWA TE06H-25G-10 Turbocharger with Billet Compressor wheel + 4” Cover, T3/10cm / V-Band Turbine Housing
|
|
Application
|
2.5L~4L
|
|
Max HP
|
350~550P
|
|
CHRA Size:
|

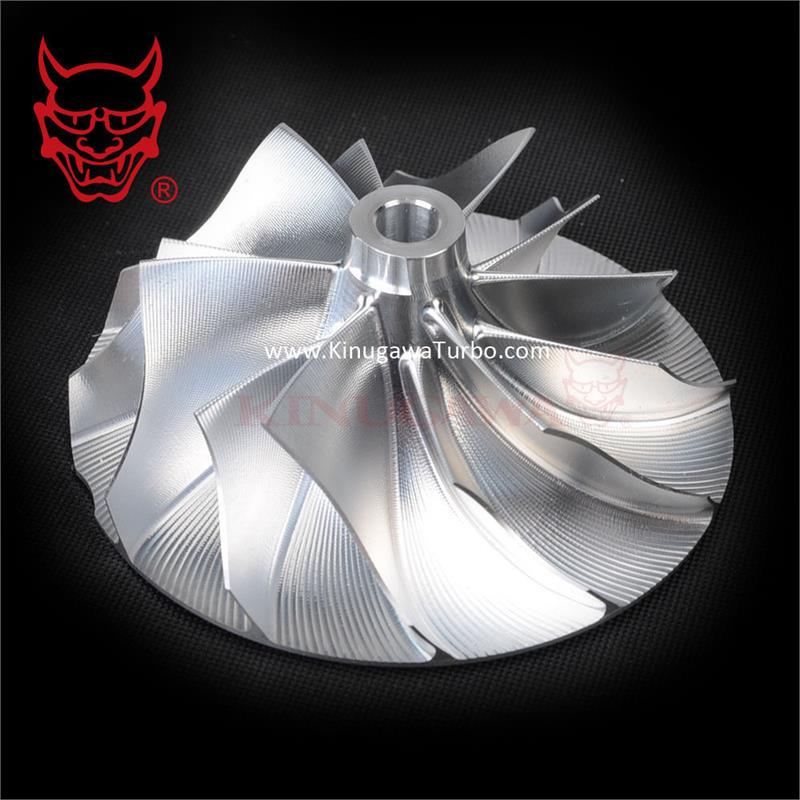

Comp. Whee: 60.2/78mm (25G Billet compressor wheel)
Turbine Wheel: 58.8 / 67 mm (TE06H / 12 blades)
|
|
Housing A/R
|
Compressor housing: AR70
Turbine Housing: AR 73 (10cm^2)
|
|
Bearing
Type
|
Journal Bearing
|
|
Cooling Type
|
Oil-Cooled
|
|
Turbine
Flange
|
STD T3
|
|

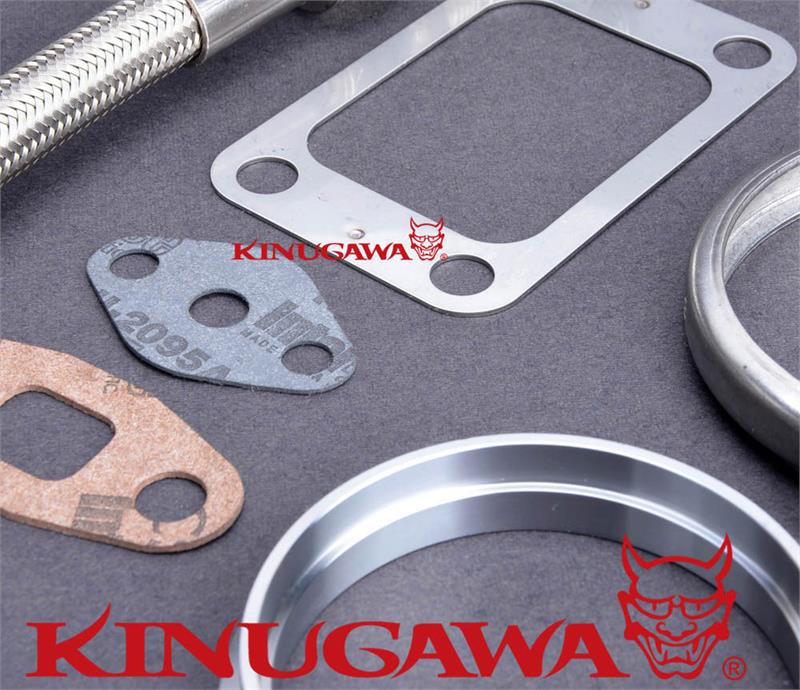

Kit Includes
|

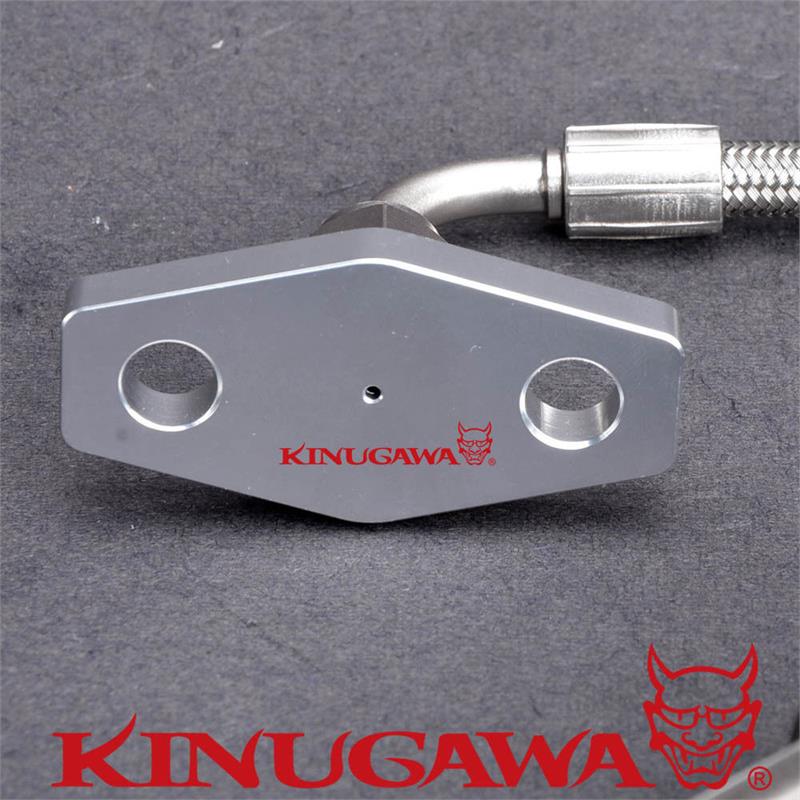

1 x Oil feed flange kit
1 x Oil drain flange kit
2 x Turbine Housing Gasket
1 x V-Band Flange Kit
Other fitting as shown on shop.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
