Kinugawa Billet Turbocharger Bolt-On 3" Anti Surge RB20 RB25DET TD05H-16G 8cm

Product Information

Item Name

Kinugawa Bolt-On 3” Billet Anti Surge TD05H-16G RB20DET RB25DET Turbocharger with 8cm Turbine Housing

P/N.

321-02035-051

Application

-       Nissan RB20DET / RB25DET Skyline

-       Universal application: 2000~3500cc

CHRA Size:

-       TD05H-Big16G

Wheel spec

Compressor wheel: 48.3/68 mm (EVO3-16G Wheel)

Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

Compressor

Housing

-       A/R 60

-       Compressor Inlet : 80.5mm / 3.25

-       Compressor Outlet : 51mm / 2”

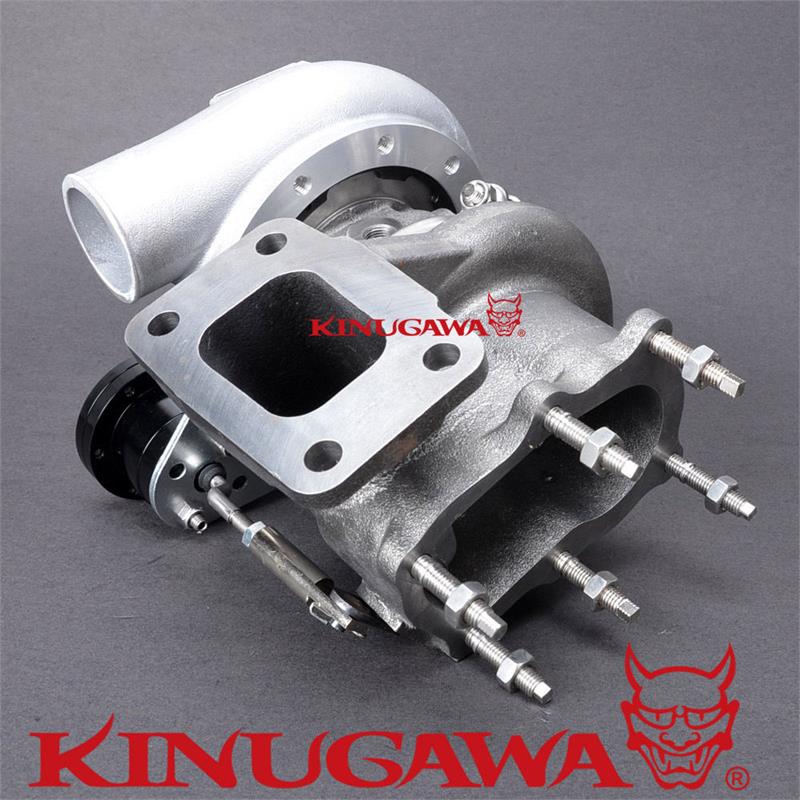

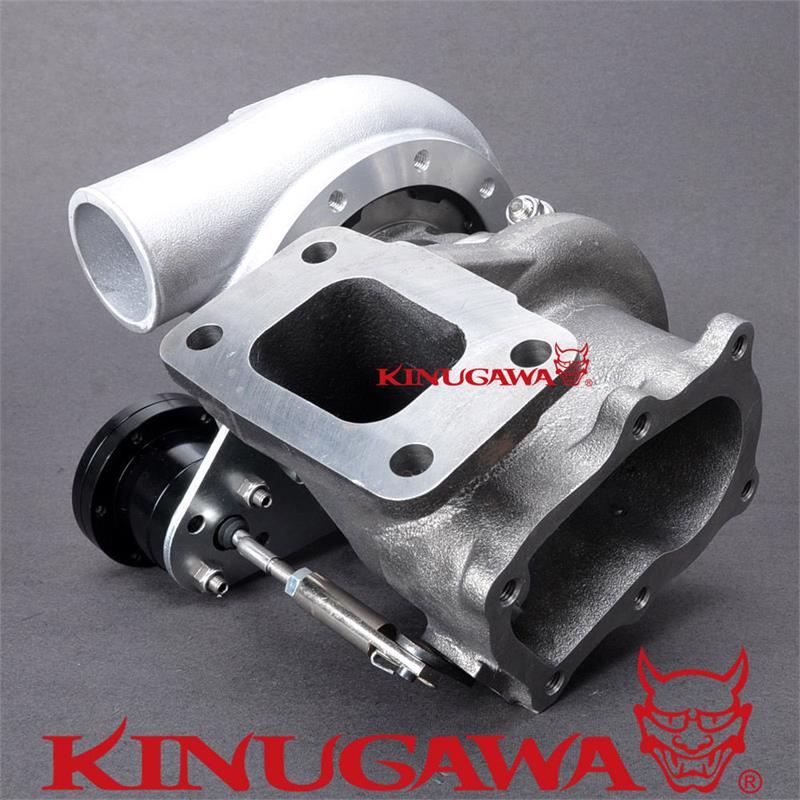

Turbine

Housing

-       8cm (A/R .57)

-       T3 Inlet Flange

-       Internal Gate

-       Bolt on to fit stock exhaust manifold and dump pipe.

-       Cover inlet and outlet needs to be modified.

-     W/G Diameter : 28.0 mm

Bearing

Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling

Type

-       Oil and water-Cooled

Actuator

Pressure

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

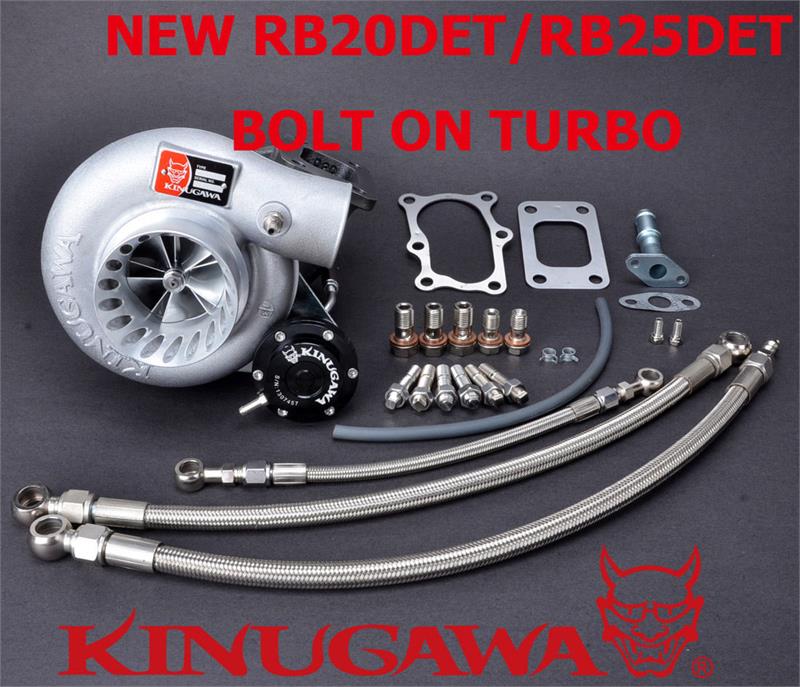

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

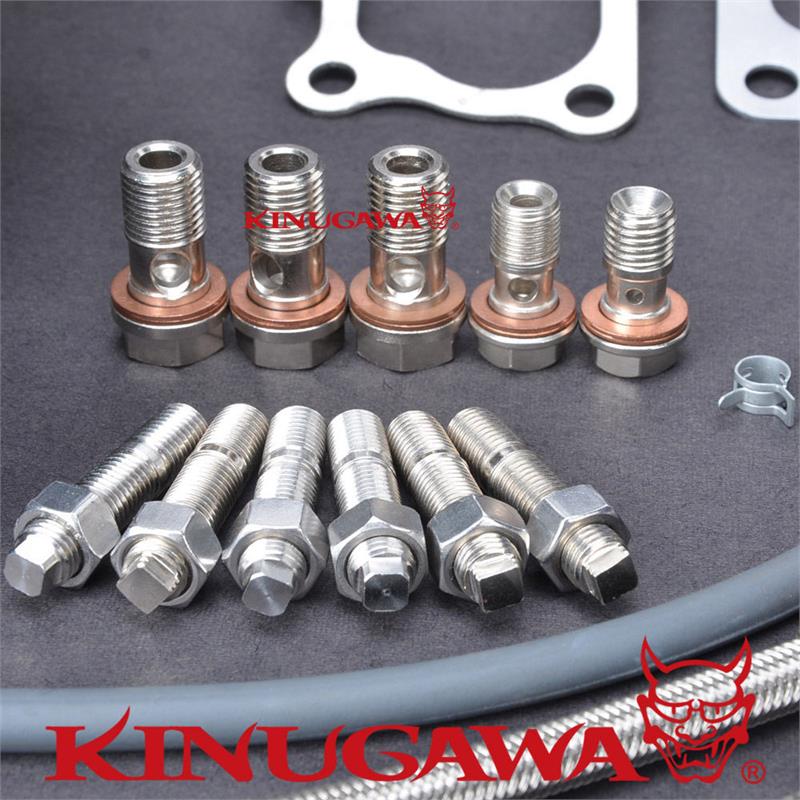

6 x Stud Kit

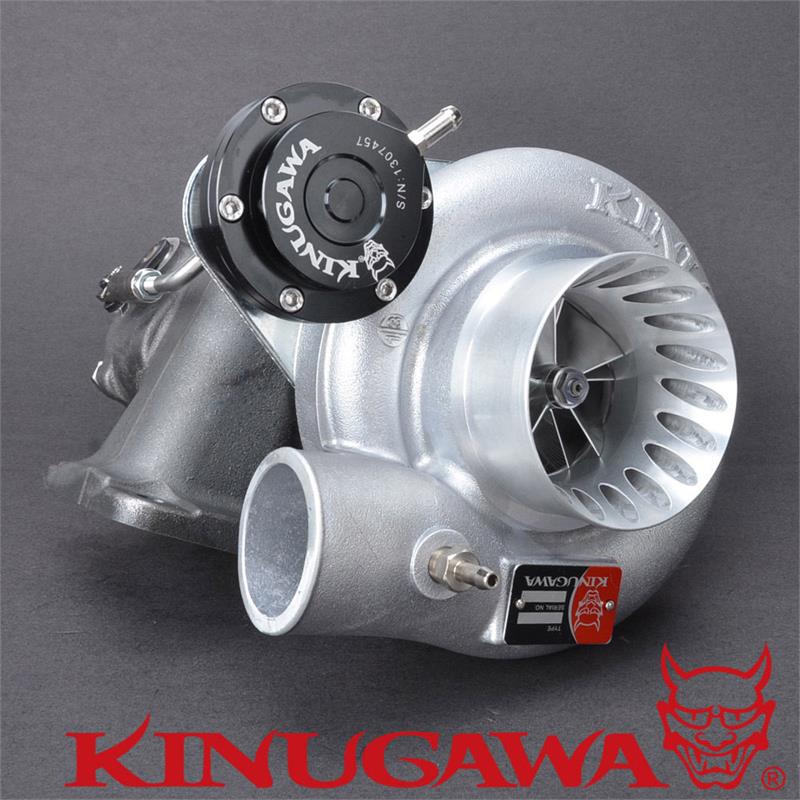

(Everything shown on picture is included)

Made By

Kinugawa Turbo

Warranty

One Year
