Kinugawa Billet Turbocharger Bolt-On 3" Anti Surge RB20 RB25DET TD06H-20G 10cm

Product Information

Item Name

Kinugawa Bolt-On 3” Billet Anti Surge TD06H-20G RB20DET RB25DET Turbocharger with 10cm Turbine Housing

P/N.

321-02035-049

Application

-       Nissan RB20DET / RB25DET Skyline

-       Universal application: 2000~3500cc

CHRA Size:

-       TD06H Turbine Wheel + 20G Billet Compressor Wheel

Wheel spec

-       Compressor wheel: 52.5/68 mm (20G Billet Wheel)

-       Turbine wheel: 58.8 / 67.2 mm (TD06H 11 blade high Flow wheel)

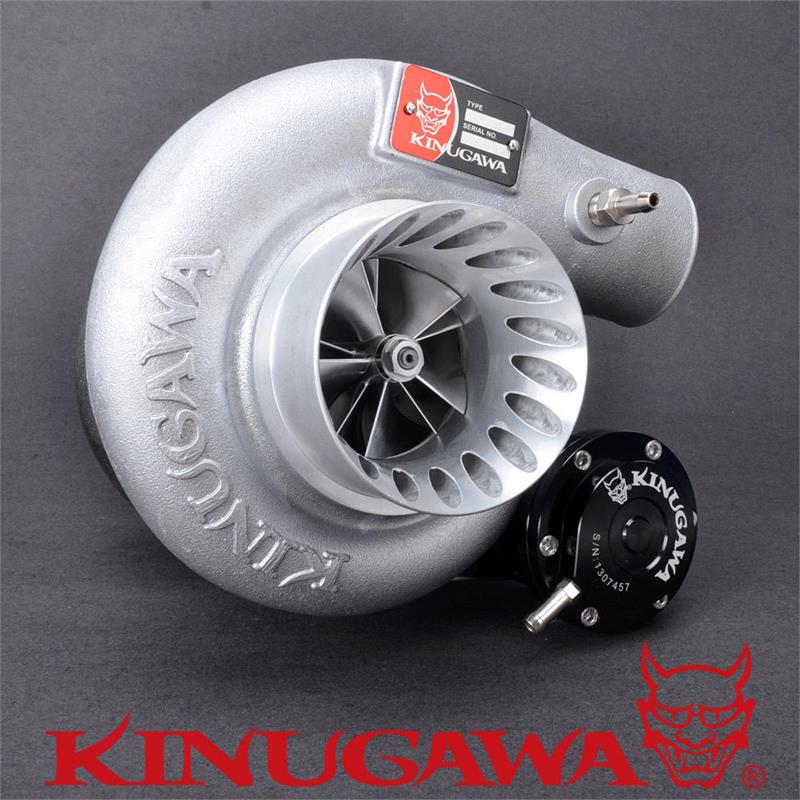

Compressor

Housing

-       A/R 60

-       Compressor Inlet : 80.5 mm / 3.25”

-       Compressor Outlet : 51mm / 2”

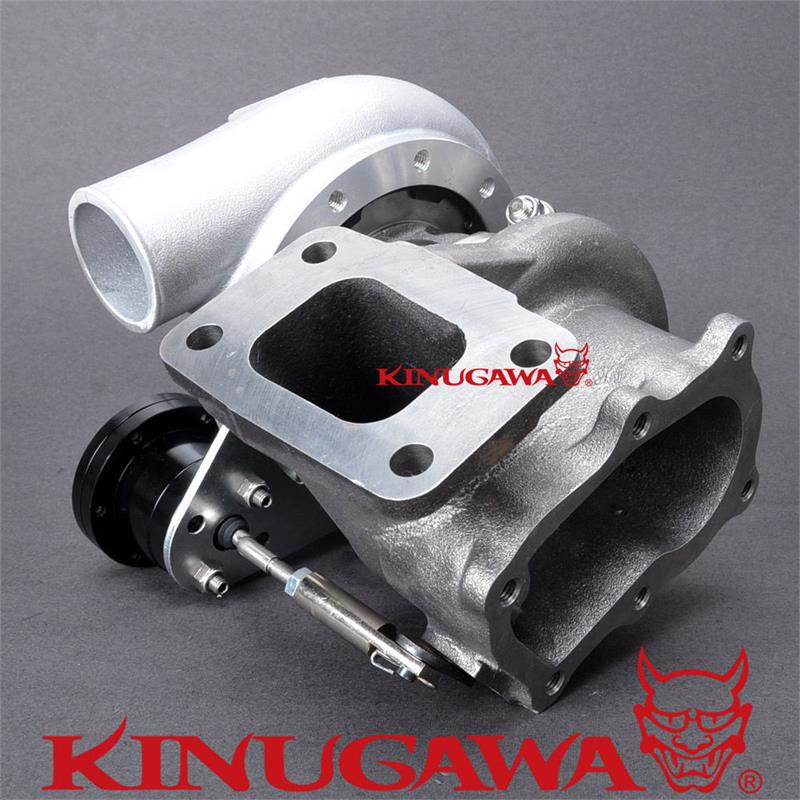

Turbine

Housing

-       10cm (A/R .73)

-       T3 Inlet Flange

-       Internal Gate

-       Bolt on to fit stock exhaust manifold and dump pipe.

-       Cover inlet and outlet needs to be modified.

Bearing

Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling

Type

-       Oil and water-Cooled

Actuator

Pressure

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

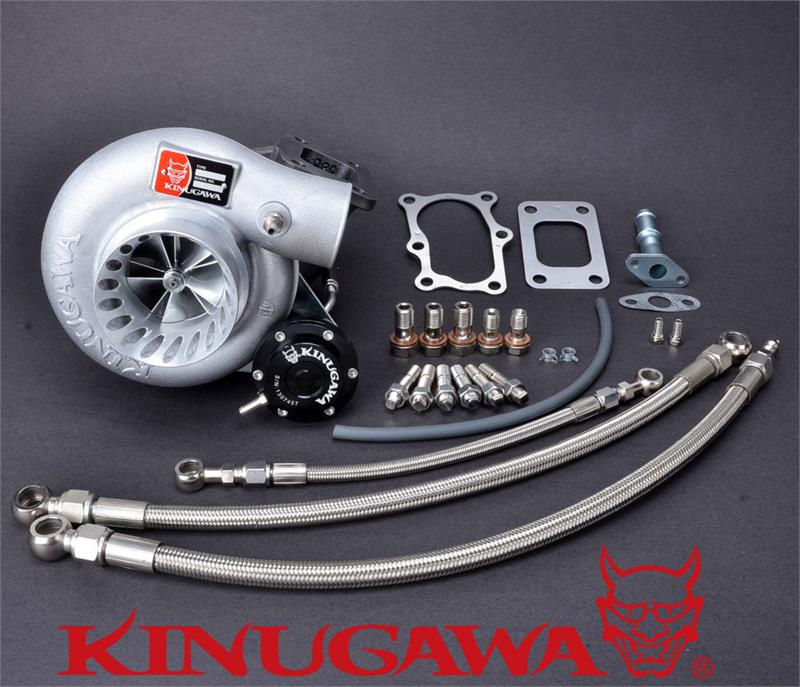

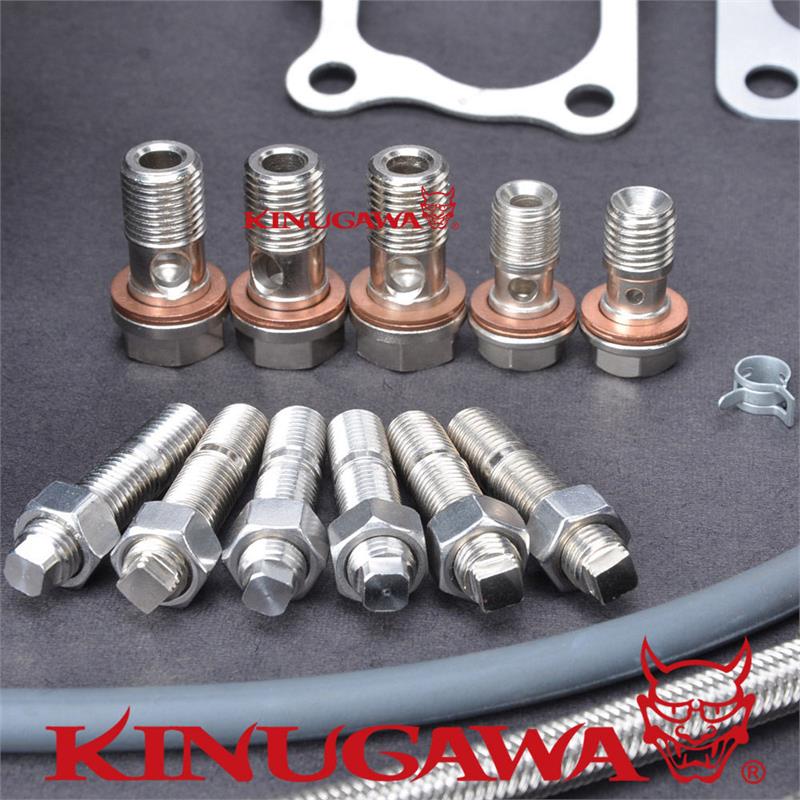

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

6 x Stud Kit

(Everything shown on picture is included)

Made By

Kinugawa Turbo

Warranty

One Year
