Kinugawa Billet Turbocharger Ford XR6 BA BF 4" Anti Surge TE06H-25G w/ 1.05 Hsg

Product Information

Item Name

Kinugawa 2002~2005 Ford BA / BF XR6 TE06H-25G Turbocharger with 4” Anti-Surge Compressor Housing & 14cm / A/R 1.05 T3 Internal Gate Turbine Housing

P/N.

 321-02016-001

Application

2002~2005 Ford BA / BF XR6 Falcon

Wheel spec

-       Compressor Wheel : 60.5 / 78 mm (25G Billet Wheel)

-       Turbine wheel: 58.8 / 67.2 mm (TE06H / 06SH Inconel Wheel)

Compressor

Housing

A/R .70 / 4” Inlet / 2.5” Outlet

Turbine Housing

AR

14cm / A/R 1.05 T3 Internal Gate Turbine Housing fit Factory Dump pipe directly without Modification

Bearing Type

Journal Bearing

Cooling Type

Oil-Cooled

Max Hp

450~600 HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Actuator Pressure

-       1.0 bar spring will be pre-installed on this adjustable actuator.

-       0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar springs are available on our shop and we will combine shipping when we receive order.

Product

Situation

Brand New

Kit Includes

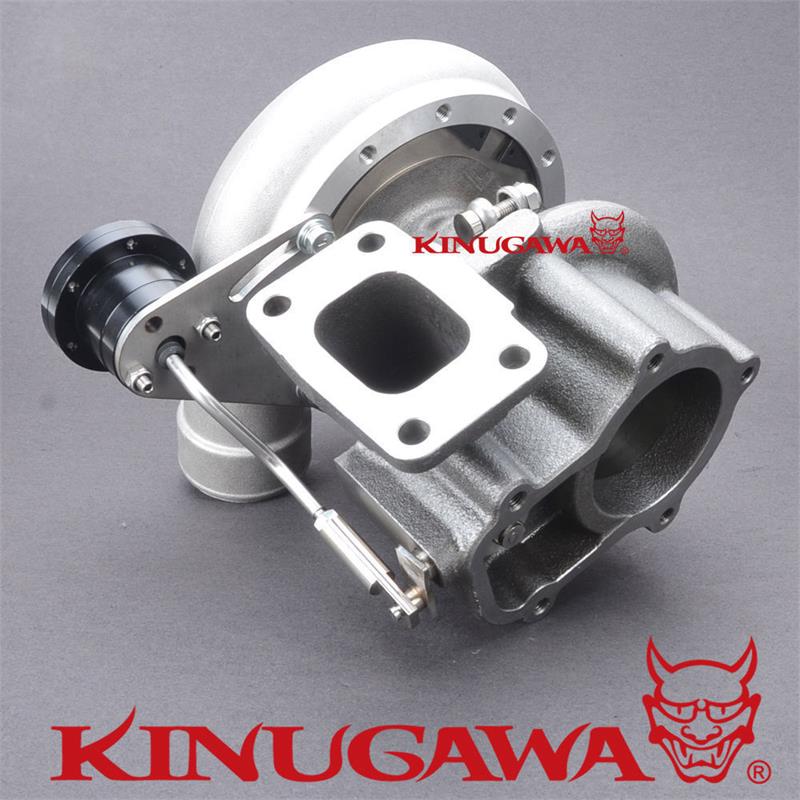

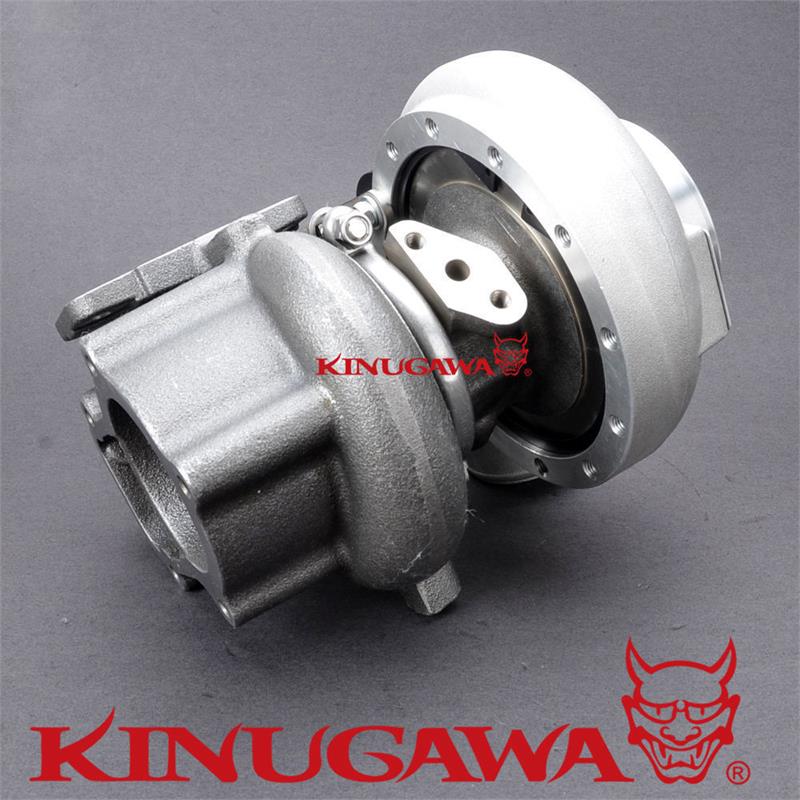

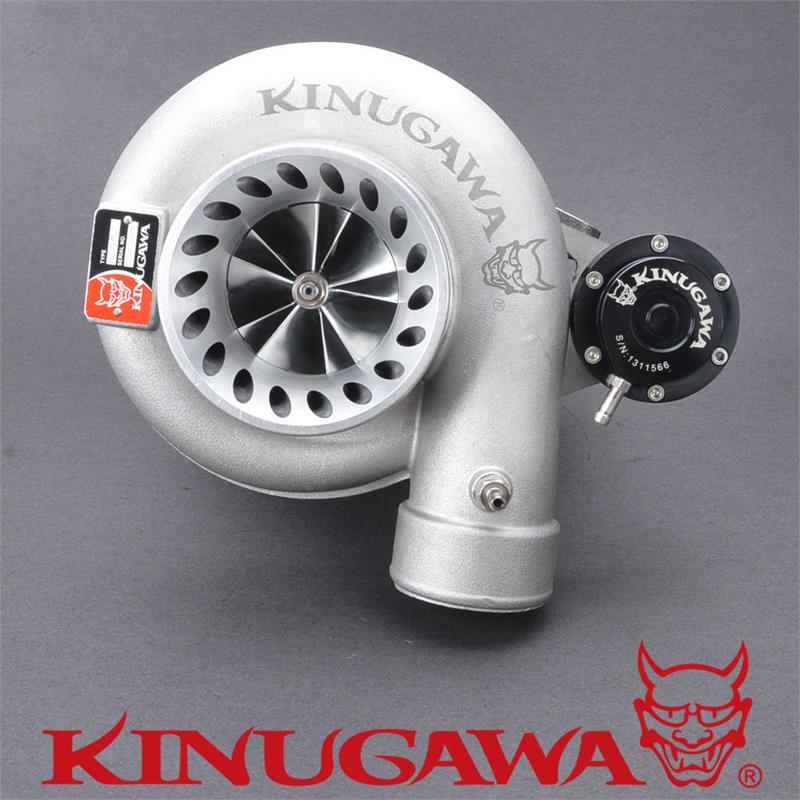

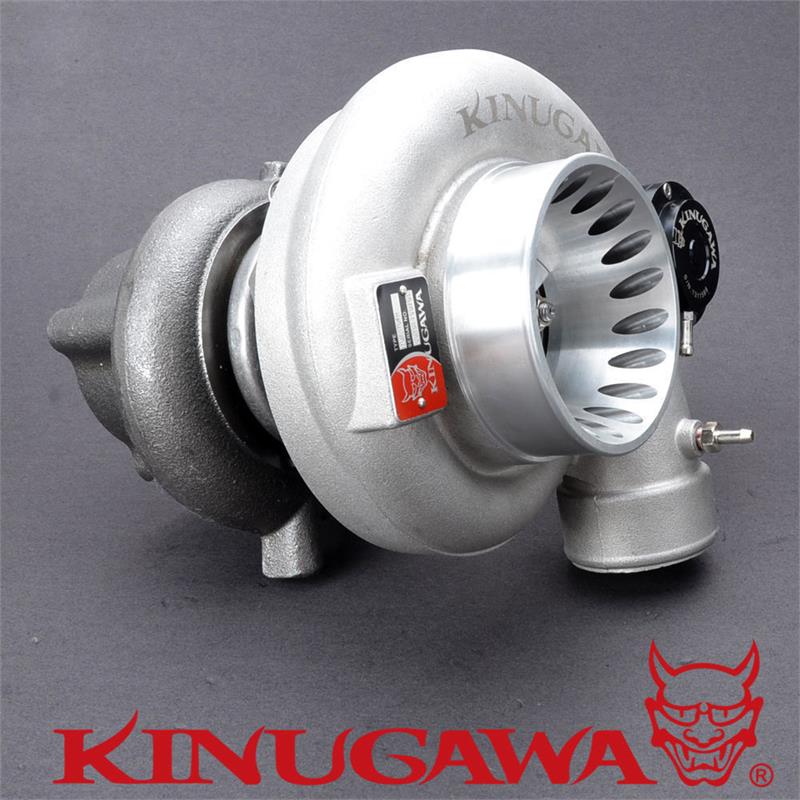

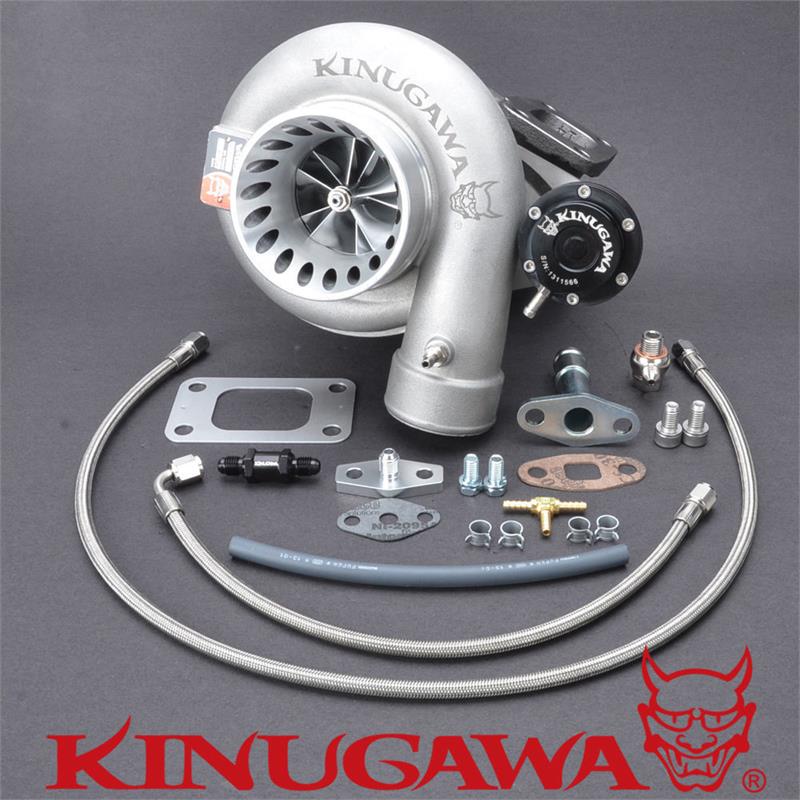

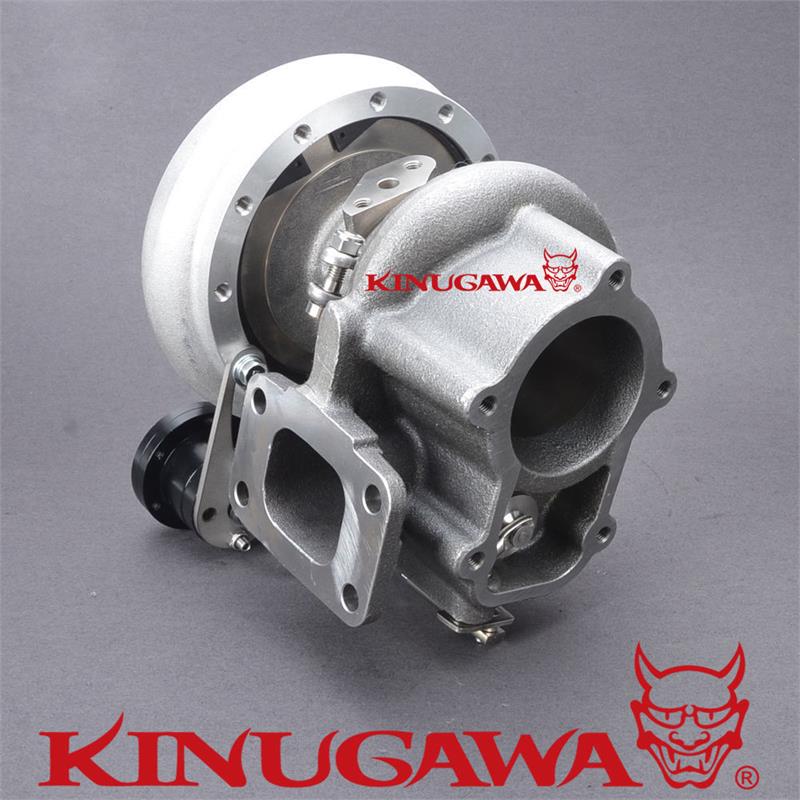

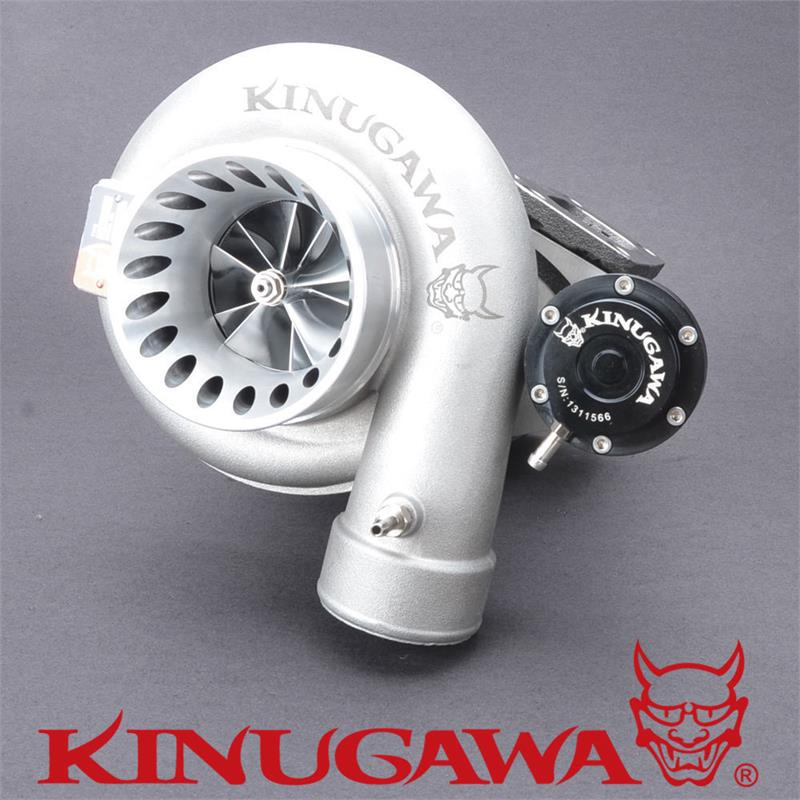

Everything shown on picture is included

Made By

Kinugawa Turbo

Warranty

One Year
