Kinugawa Billet Turbocharger Ford XR6 BA BF 4" Anti Surge TE06H Billet 25G

Price: $999.00

Manufacturer: Kinugawa

Quantity:

Application	2002~2005 Ford BA / BF XR6 Falcon
Bearing Type	Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
Cooling System	Oil cooled
Compressor Housing	- Compressor Inlet : 4 inch - Compressor Outlet : 2.5inch
Compressor Wheel	60.2 / 78 mm (25G Billet Wheel)
Turbine Wheel	58.8 / 67.2 mm (TE06H / 06SH Inconel Wheel)
Turbine Housing	14cm / A/R 1.05 T3 Internal Gate External Gated Turbine Housing fit Factory Dump pipe directly without Modification
Wastegate Actuator	- 1.0 Bar / 15 psi - 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it. - Actuator position can be 360 Deg moved easily.
Turbo Boost Limit	2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

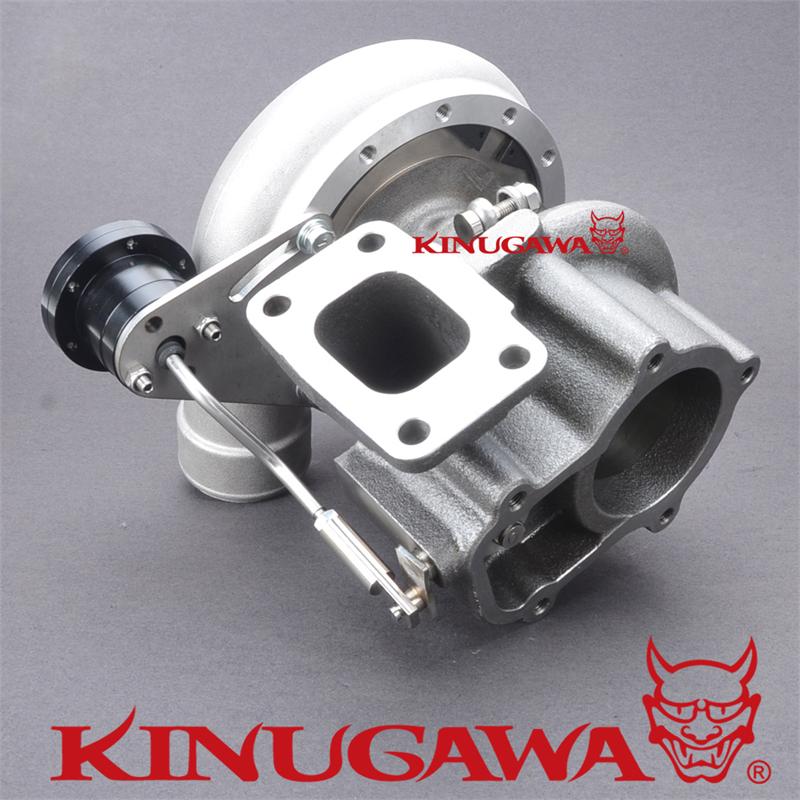

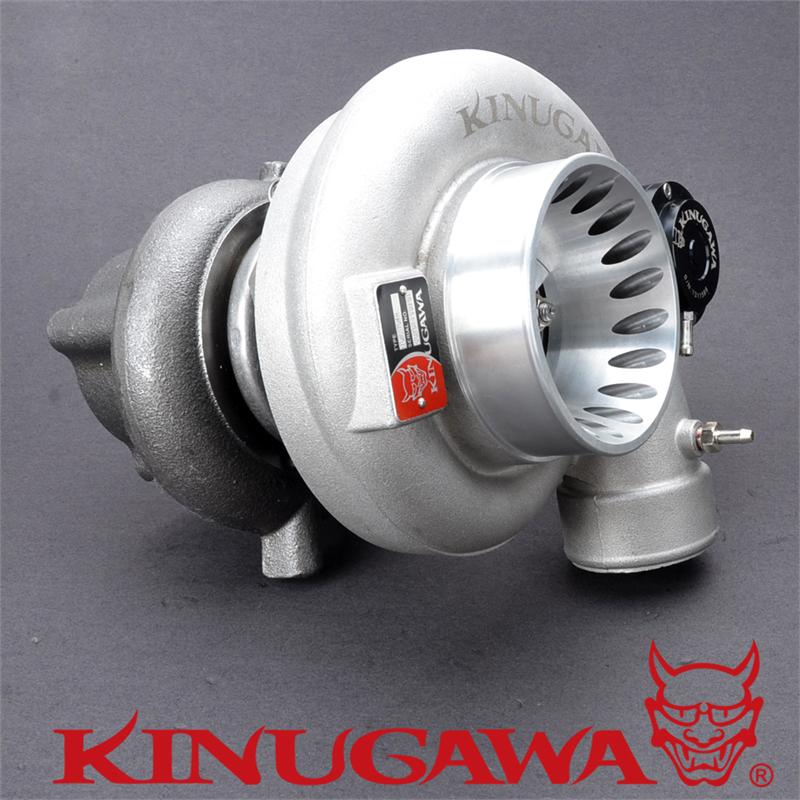

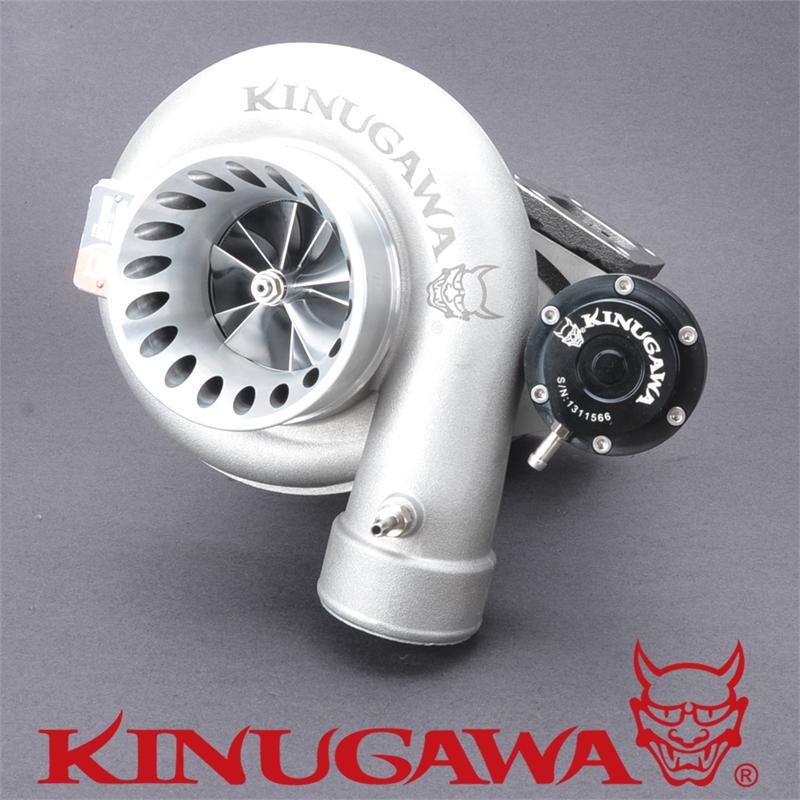

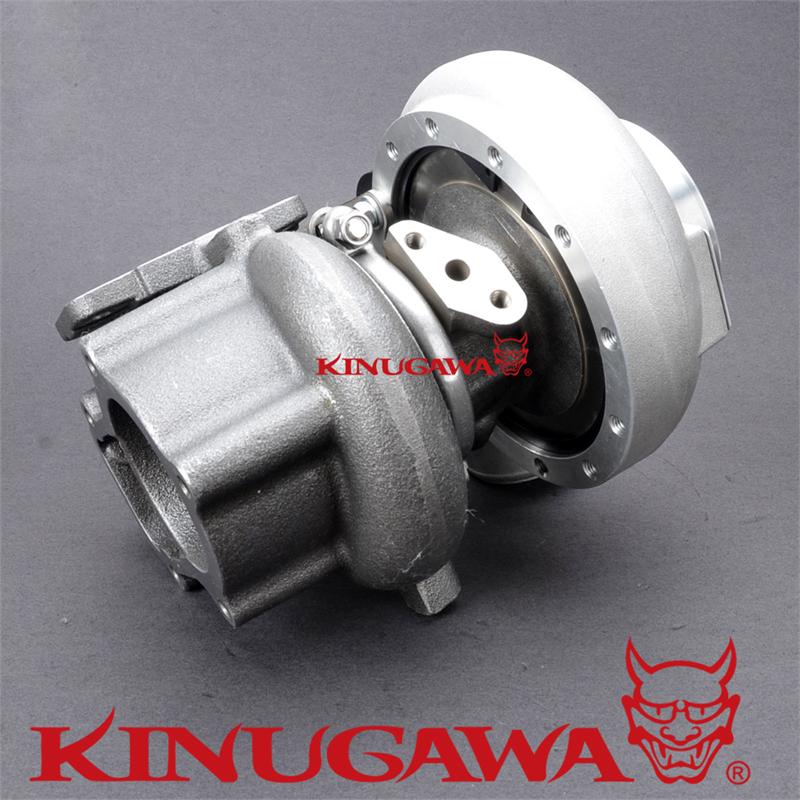

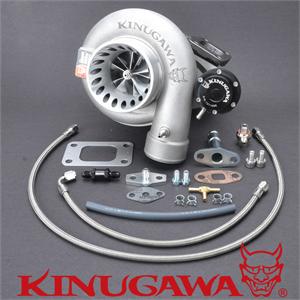

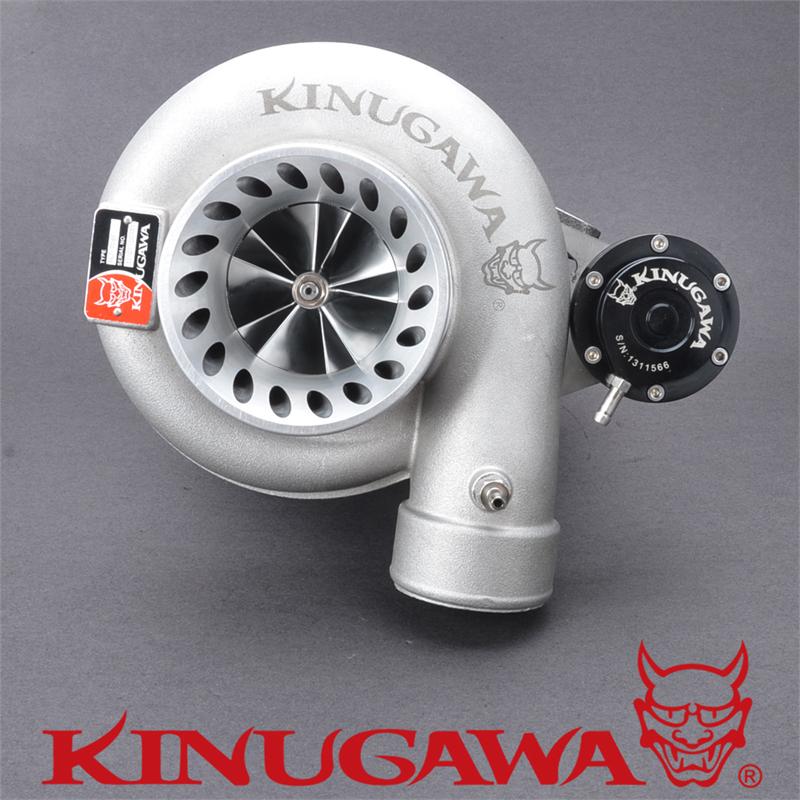

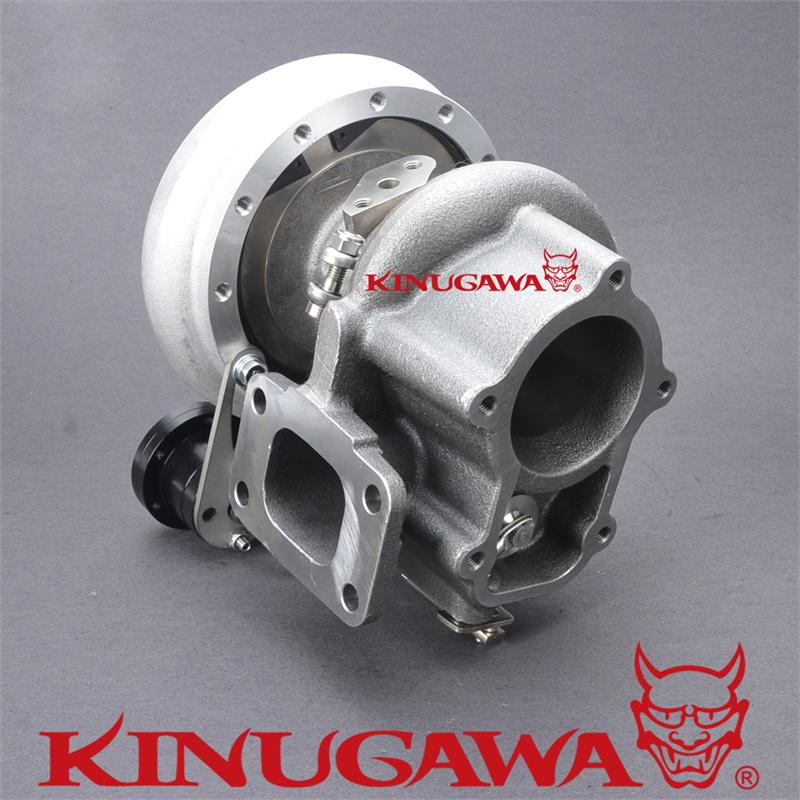

Kit Incl.	Everything shown on picture is included.
Condition	Brand New
