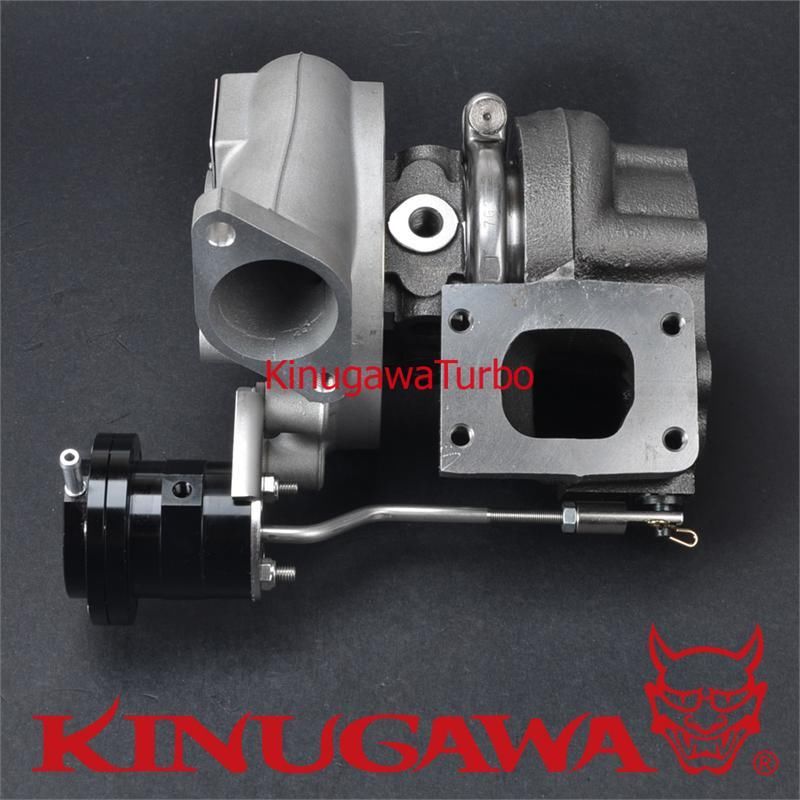

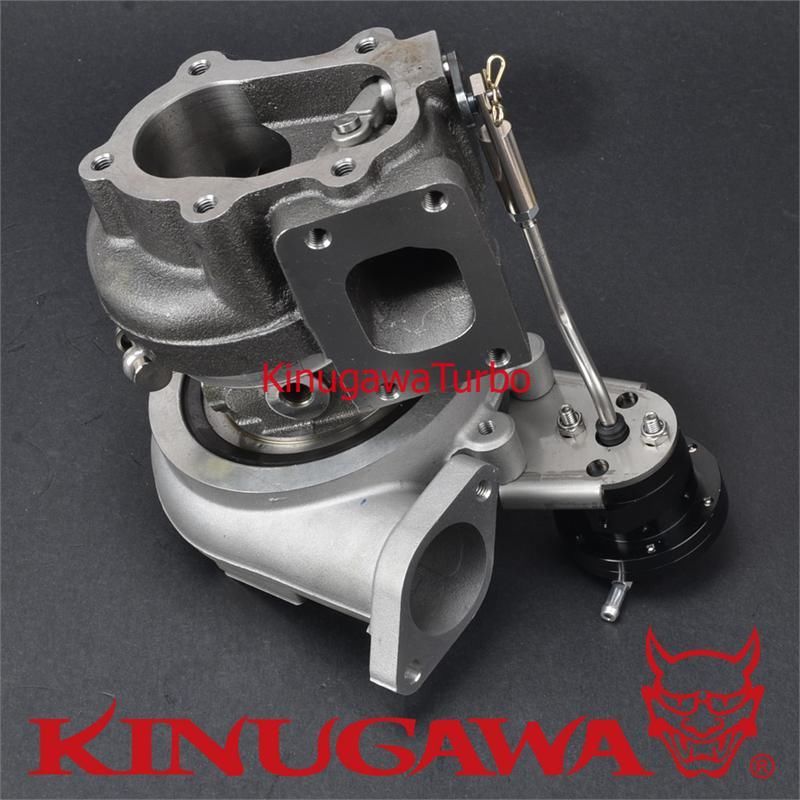

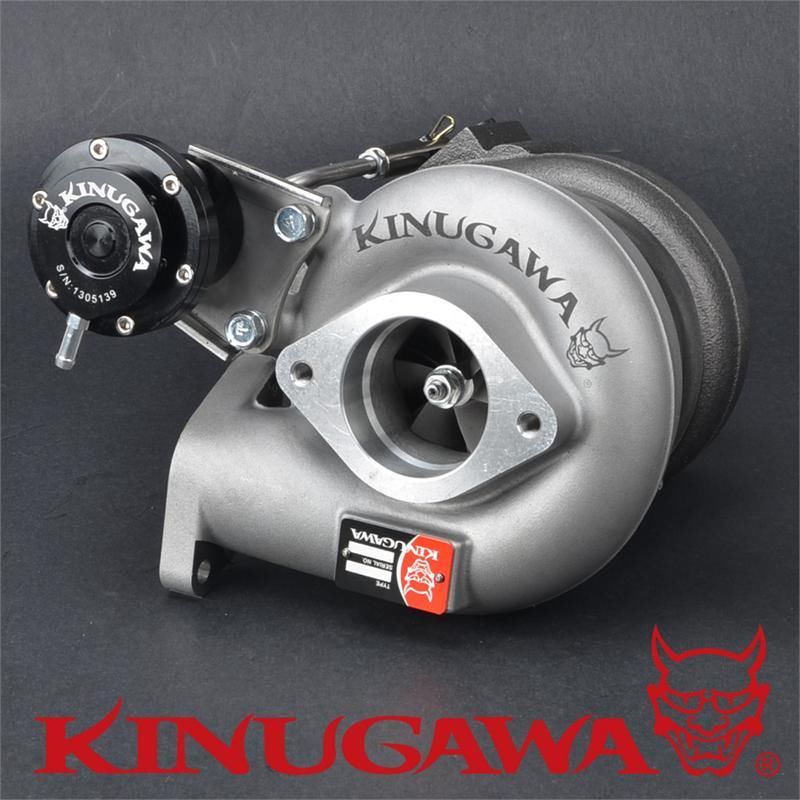

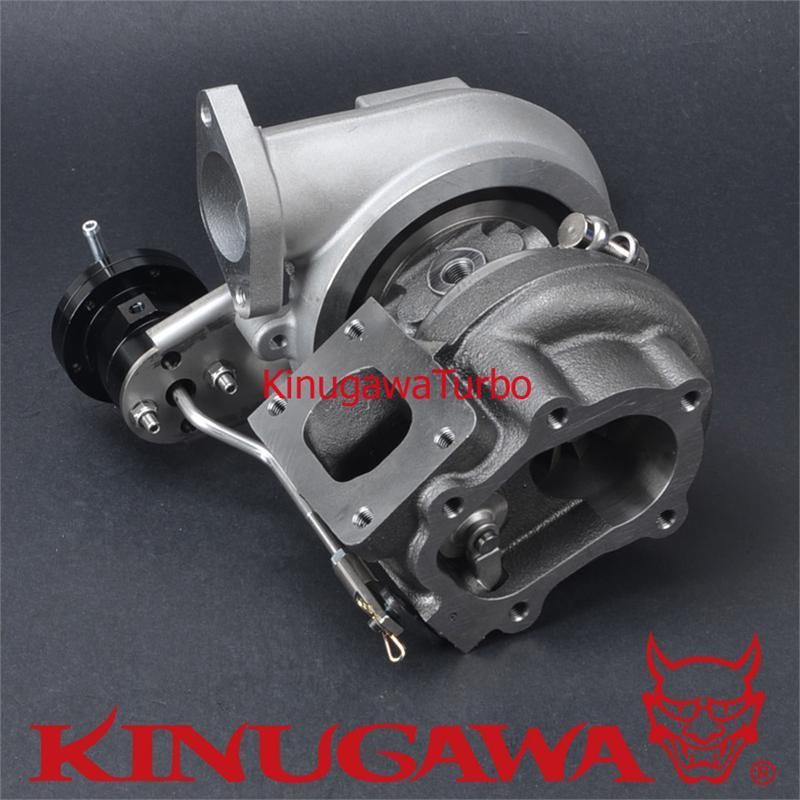

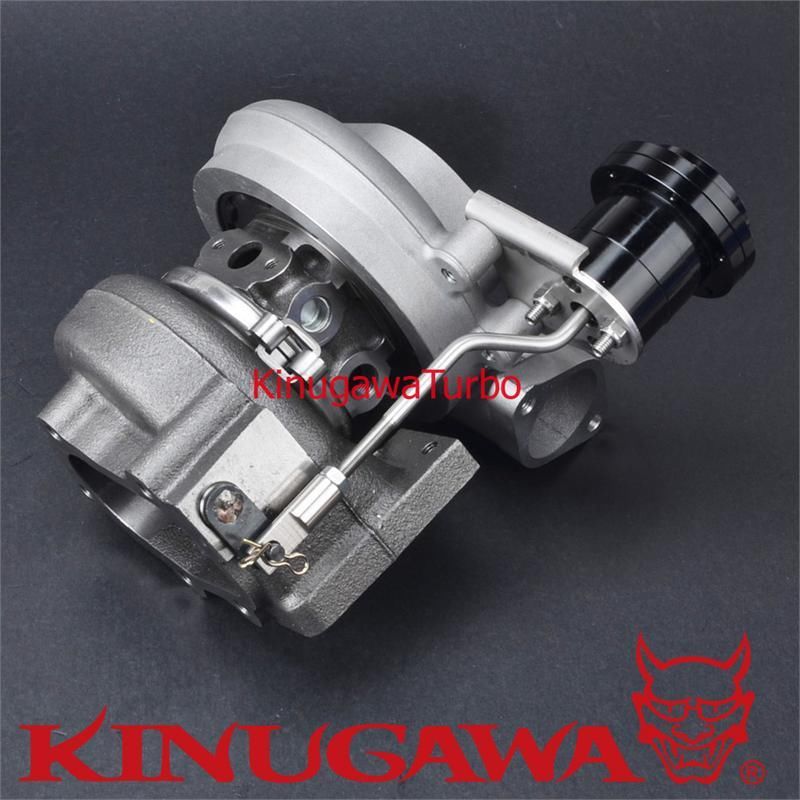

Kinugawa Billet Turbocharger Kit Bolt-On TD05H-18G Nissan Skyline GT-R RB26DETT

NISSAN SKYLINE GT-R RB26DETT TD05H-18G

Twin Turbocharger with Billet Wheel

Item Name

Kinugawa Nissan Skyline GT-R TD05H-18G Twin Turbo with Billet wheel

P/N.

 322-02035-003

Application

Nissan Skyline GT-T RB26DETT Twin Turbo

Replace Turbo

- Replace and upgrade stock Garrett T25 turbo without modification.

- Stock cover inlet & Outlet pipe and dump pipe can be re-used.

CHRA Size:

- TD05H-18G

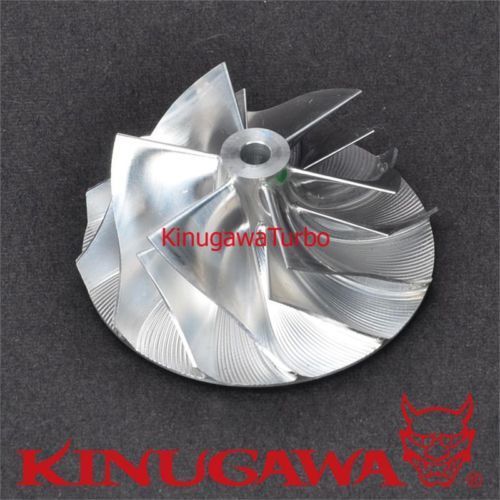

- Compressor wheel : 50.3 / 68mm (18G Billet Wheel)

- Turbine Wheel : 56 / 49.2mm (TD05H Hi-Inconel wheel)

Turbine Housing

AR

8 cm / .57

Bearing Type

- Journal Bearing

-  Performance Thrust Bearing Kit w/ larger thrust ring and flinger

Cooling Type

- Oil and Water-Cooled

Actuator

Pressure

- 0.8bar Spring will be installed on this adjustable actuator.

- 0.5bar, 0.8bar 1.0bar, 1.2 bar, 1.5bar, 1.8bar spring are available on our ebay shop, we will combine shipping when we receive your order.

Max Hp

400~600HP

Turbo Boost

Limit

2.8 Bar ( Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 Bar

Extra parts

Includes

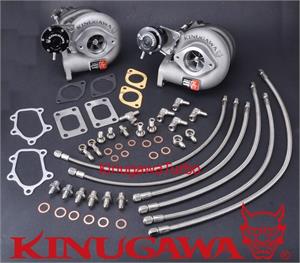

Everything shown on first picture is included.

Product

Situation

-  Brand New in Box.

-  Complete CHRA was balanced by SCHENCK MBRS 110 Germany.

-  Competition ready

Net Weight

8 KG

Made By

Kinugawa Turbo

Warranty

One year
