Kinugawa Billet Turbocharger Mitsubishi 4B11T EVO 10 TD05H-18G Bolt-On w/ Kit

Product Information

Item Name

Kinugawa EVO X / 10 TD05H-18G Bolt-On & Upgraded Twin Scroll Turbocharger with Billet Compressor Wheel

P/N.

321-02034-062

Application

4B11T Mitsubishi EVO 10 / EVO X

CHRA Size:

Comp. Wheel: 50.5 / 68 mm (18G Billet Wheel w/ Small Central)

Turbine Wheel: 49.2 / 56 mm ( Stock TD05H)

Turbine

Housing AR

12   cm^2 Twin Scroll Turbine Housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit with larger thrust ring d flinger

Cooling Type

Oil and Water-Cooled

Actuator

Pressure

-  1.2 Bar / 18 psi spring will be installed on this adjustable actuator.

-  0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring is available on our ebay shop.

Product

Situation

Brand New

Kit Includes

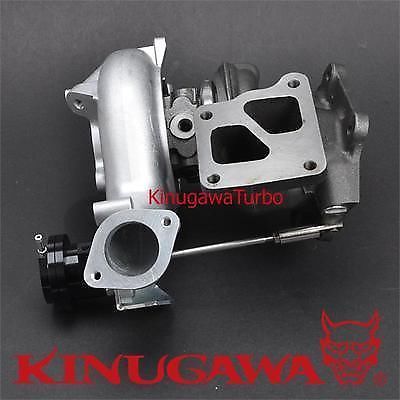

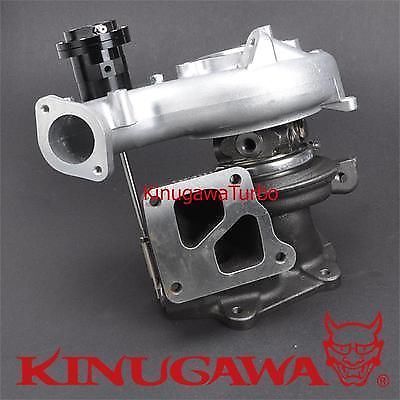

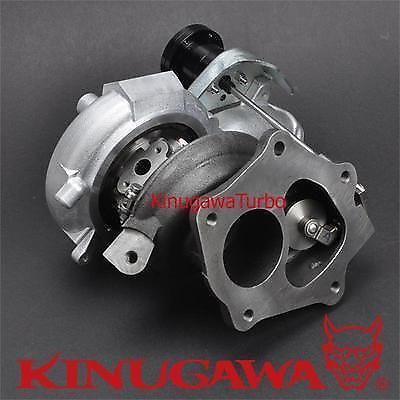

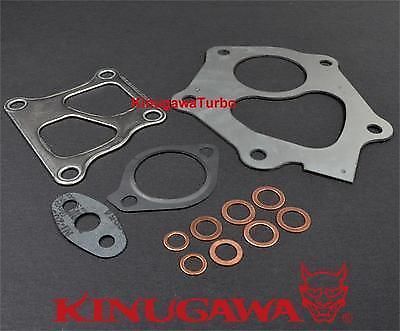

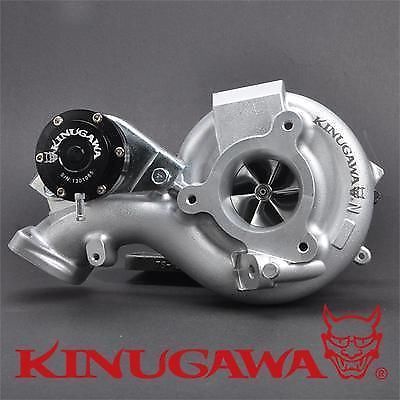

Everything shown on picture is included

Made By

Kinugawa Turbo

Warranty

One Year
