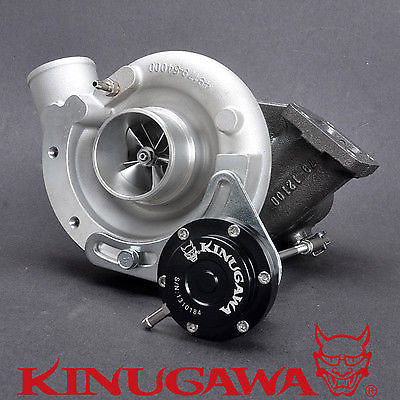

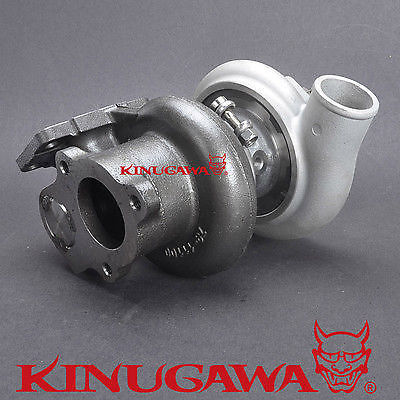

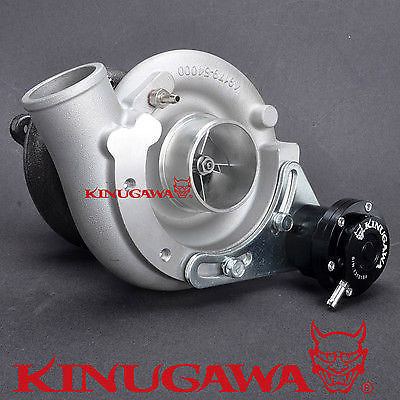

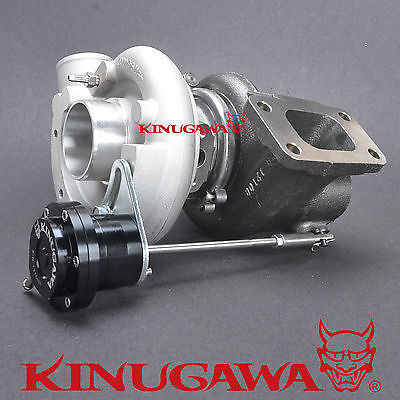

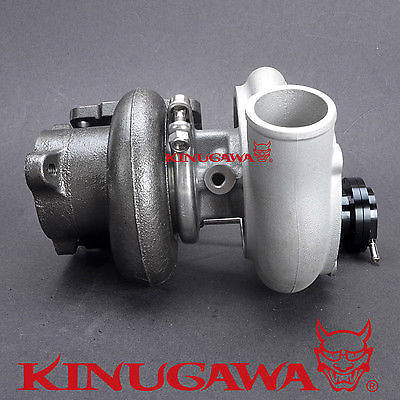

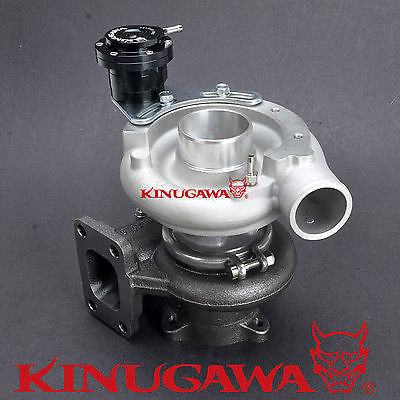

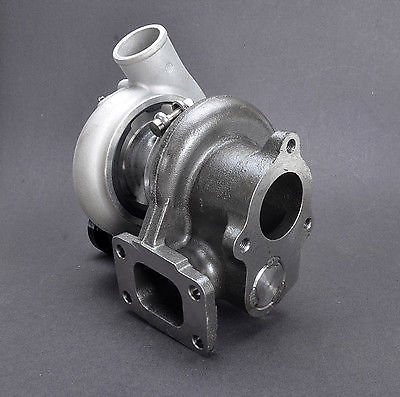

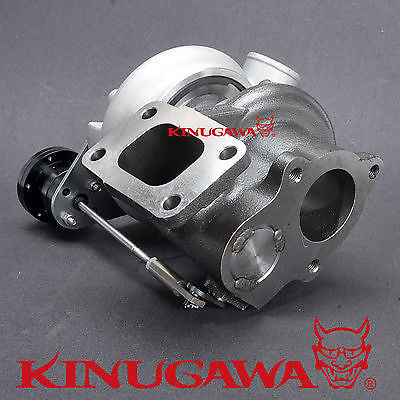

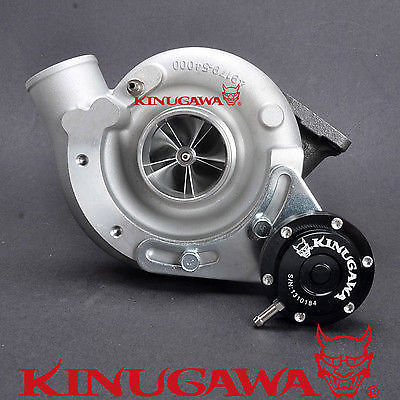

Kinugawa Billet Turbocharger Mitsubishi TD06H-16G T3 / 10cm / Internal Gate Hsg
|
* Whole number only
|
|
|
Kinugawa Mitsubishi / FUSO TD06H-16G-10
49392-66601 T3 / Internal Gate Turbocharger
|
|
PART NO.
|
|
|
Item Name
|
Kinugawa MITSUBISHI / FUSO TD06H-16G Turbocharger with 10cm T3 Internal Gate Turbine Housing
|
|
MFD NO.
|
49392-66601
|
|
P/N
|
ZA164324
|
|
Wheel Spec
|
Compressor Wheel : 48.3 / 68mm ( Billet Wheel)
Turbine Wheel : 58.8 / 67.2 mm (TD06H 11 Blade High Flow Wheel)
|
|
Application
|
Unknown
|
|
Product
Situation
|
Brand New
|
|
Bearing system
|
Journal Bearing
KAMAK Performance Thrust Bearing Kit installed.
|
|
Cooling System
|
Oil-cooled system
|
|
Turbine Housing
|
10cm / T3 Flange / Internal Gated Housing
|
|
Actuator Pressure
|
1.0bar spring is installed.
0.5bar, 0.7bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring are available on our shop and we can combine shipping when we receive all the order.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
