Kinugawa Billet Turbocharger Nissan Silvia S13 CA180DET TD06H Garrett 60-1 / 8cm
|
Item Number: 301-02035-013
* Whole number only
|
|
|
Product Information
|
|
Item Name
|
Kinugawa Nissan CA180DET TD06H Turbocharger with Garrett 60-1 Billet Compressor Wheel and 8cm T25 Turbine Housing
|
|
P/N.
|
301-02035-013 |
|
Application
|
Nissan S13 CA180DET with aftermarket Stainless Exhaust Manifold
|
|
Note
|
- This turbo comes with larger compressor housing that will hit stock exhaust manifold.
So it needs a aftermarket stainless exhaust manifold.
|
|
CHRA Size:
|
Compressor Wheel: 59.5 / 76 mm (Garrett 60-1 Billet Wheel)
Turbine Wheel : 58.8 / 67 mm (11 Blade High Flow Wheel)
|
|
Turbine Housing
A/R
|
8 cm^2 Ported Turbine Housing
|
|
Bearing
Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling
Type
|
Oil and Water-Cooled
|
|
Actuator
Pressure
|
- 1bar / 14 psi spring will be installed on this adjustable actuator.
- We can offer 0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring on our ebay shop.
|
|
Max Hp
|
400~460HP
|
|
Turbo Boost
Limit
|
2.8 Bar ( Performance bearing kit with larger thrust bearing )
|
|
Extra parts
Includes
|

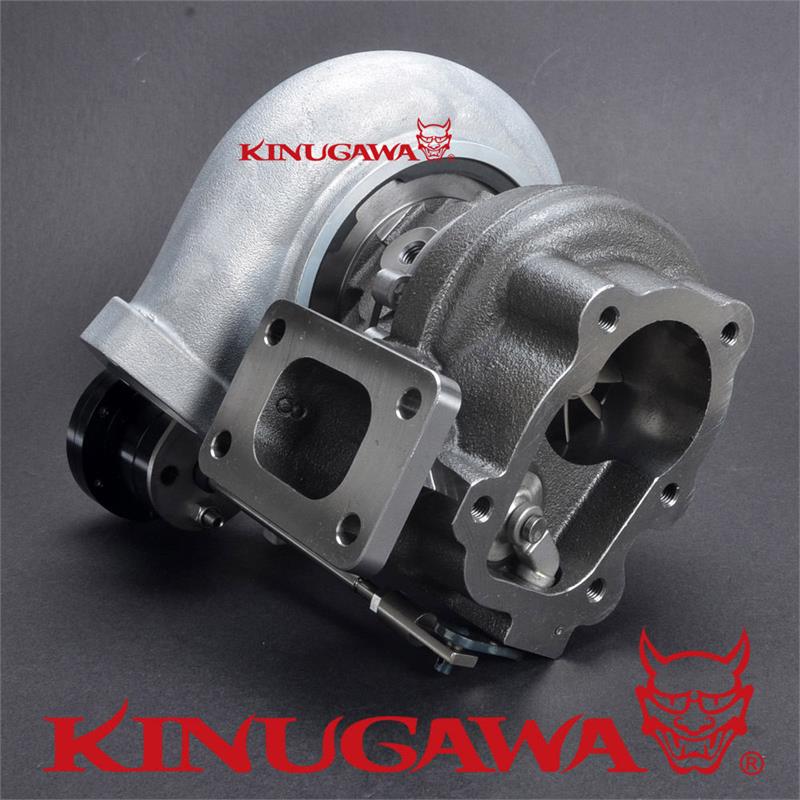

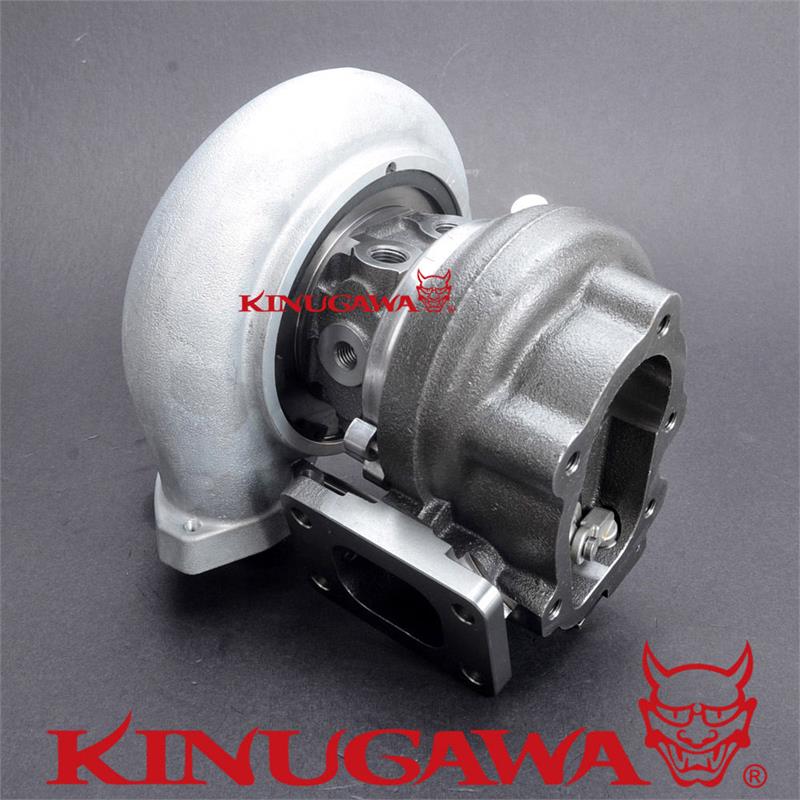

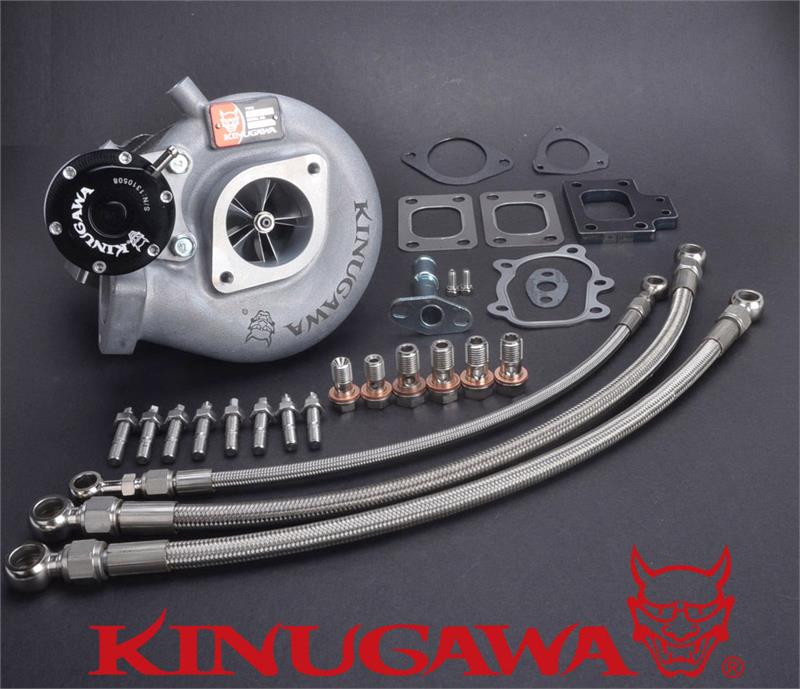

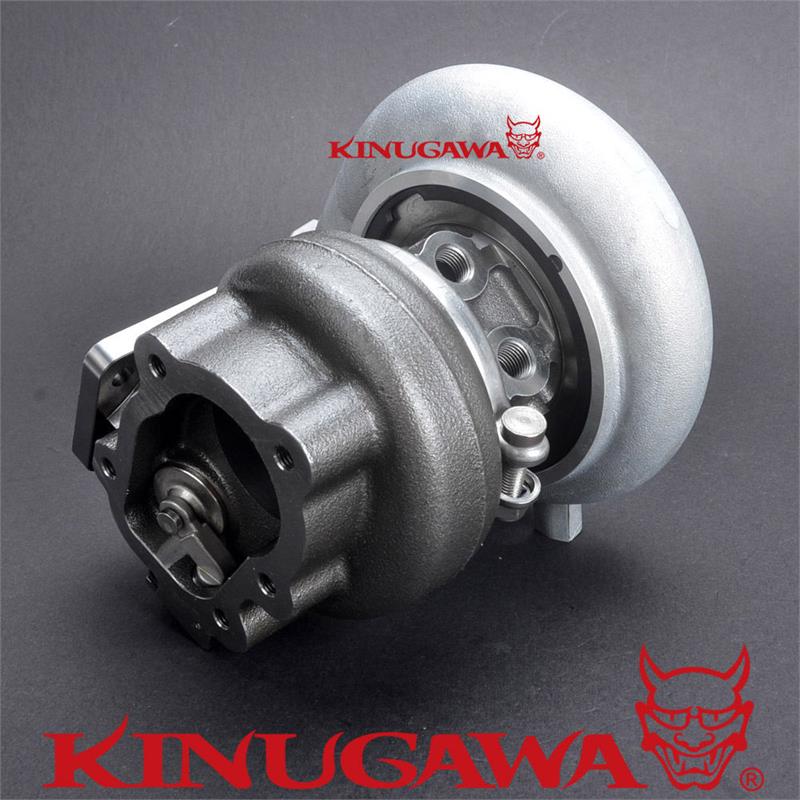

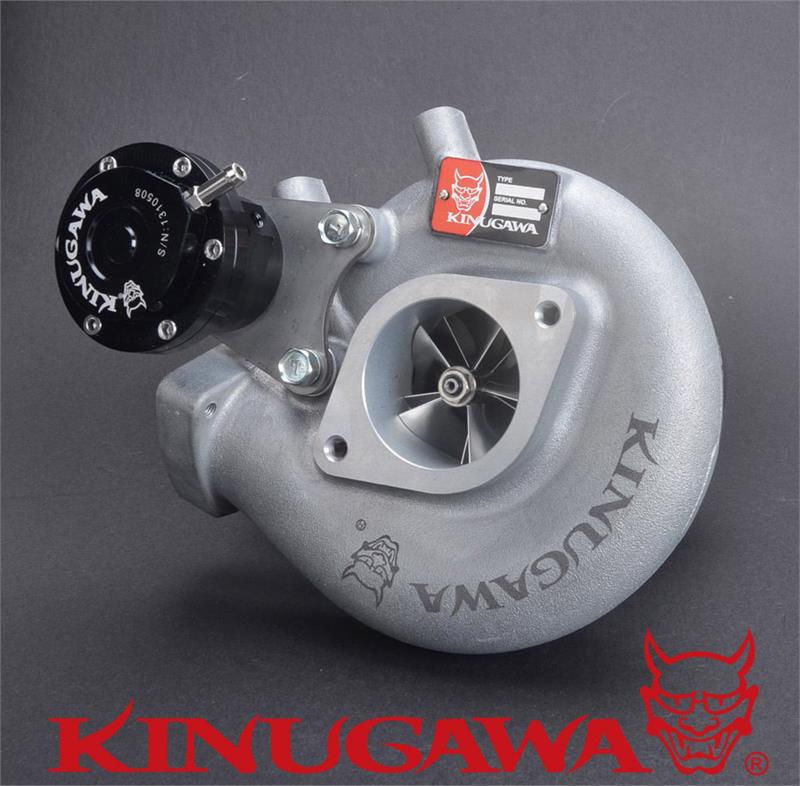

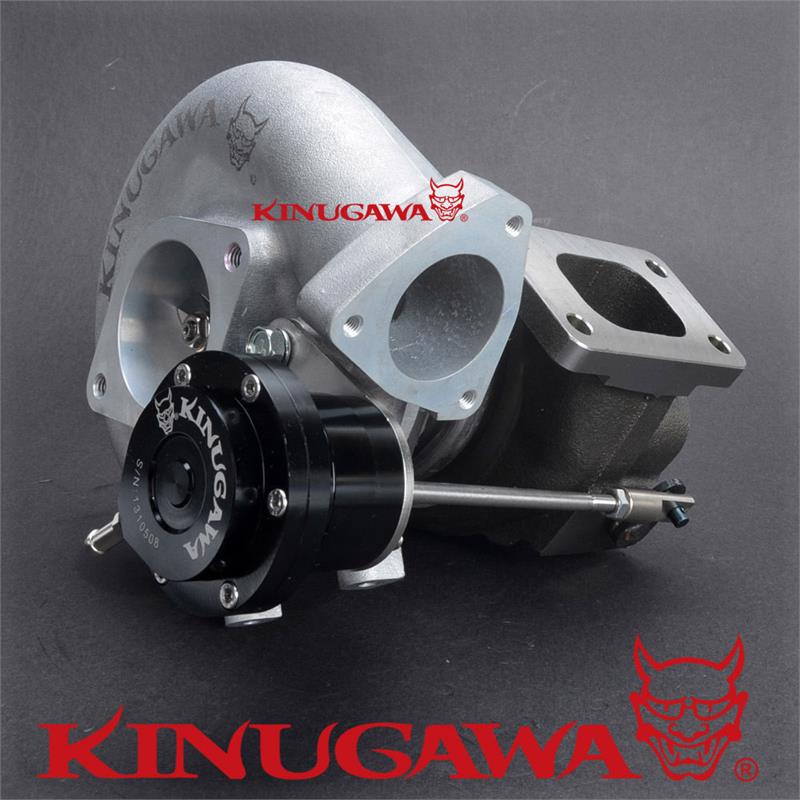

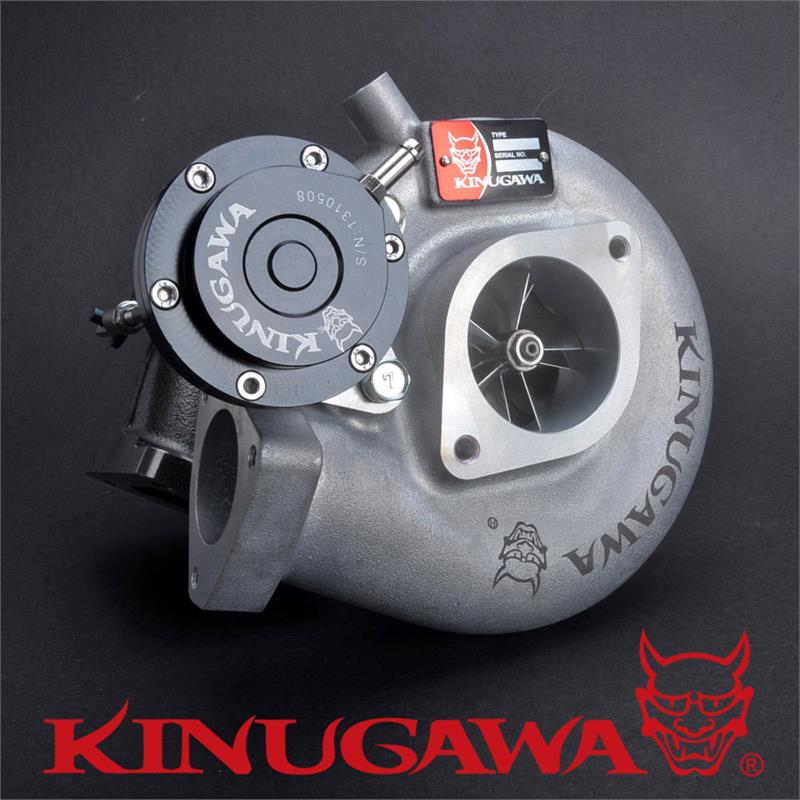

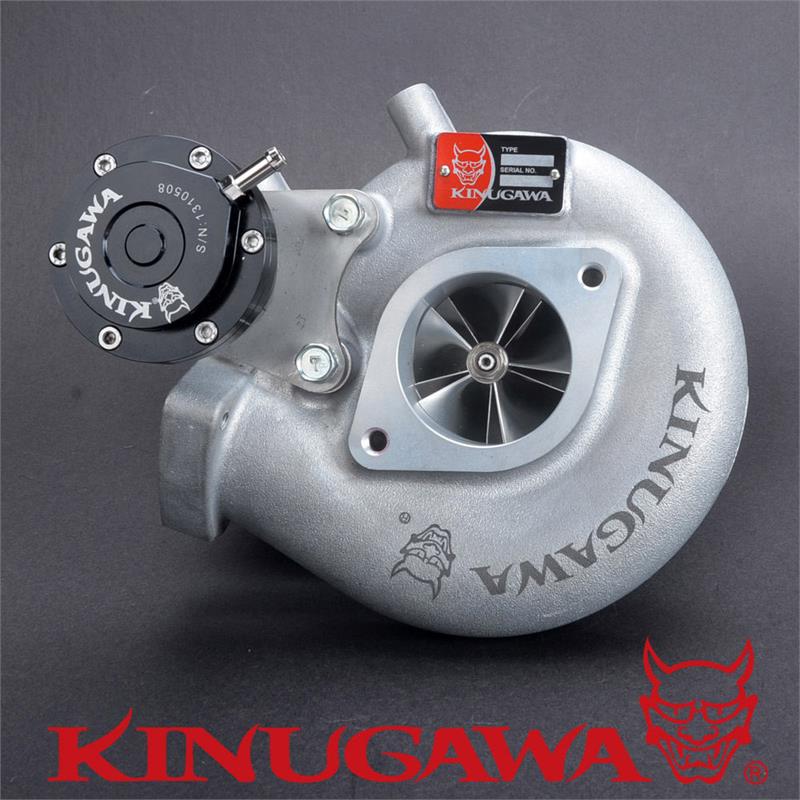

Everything shown on picture is included.
|
|
Product
Situation
|
Brand New in box.
|
|
Balance
|
- Complete Cartridge was balanced on Schenck MBRS 110 Germany.
- Ready to work.
|
|
Net Weight
|
8 KG
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One year.
|
|
|
|
|
