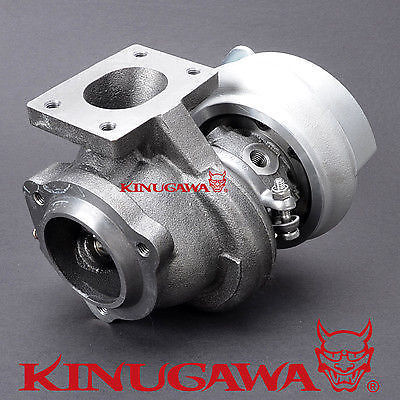

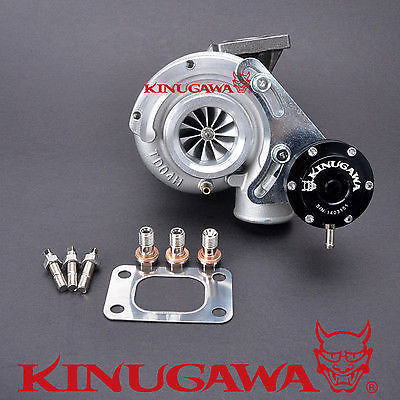

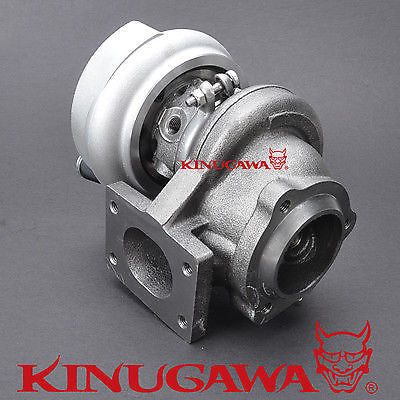

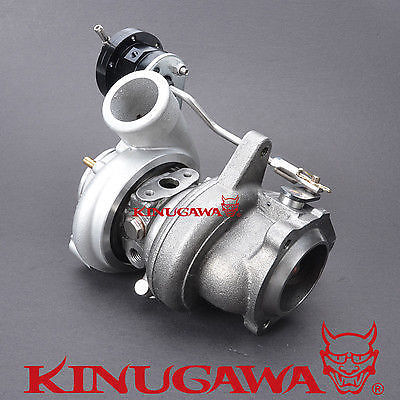

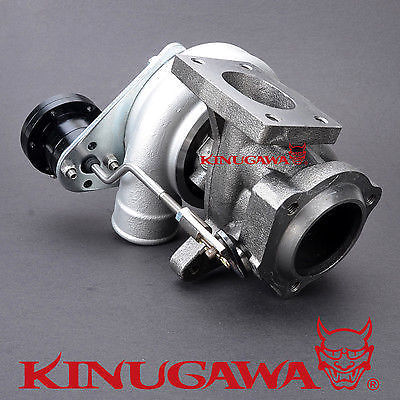

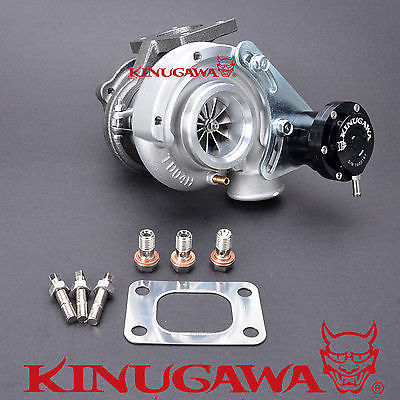

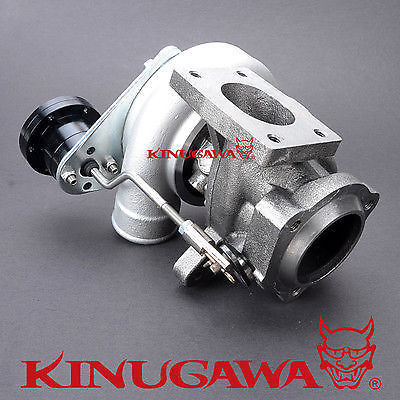

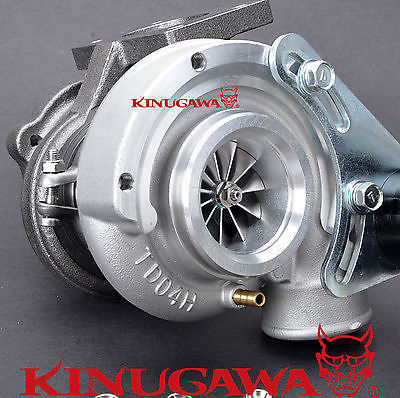

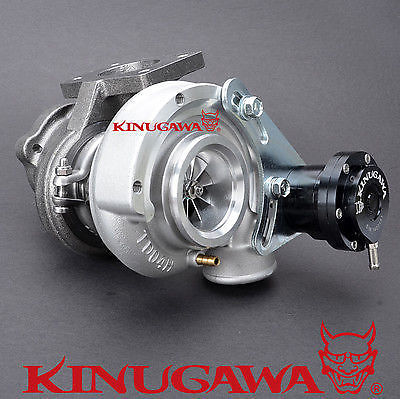

Kinugawa Billet Turbocharger SAAB 9-3 9-5 B235R TD04HL-20T w/ 9 Blade + 6cm Hsg

Product Information

P/N

331-02043-012

Item Name

Kinugawa SAAB 9-3 / 9-5 B235R TD04HL-20T Upgrade Turbocharger with Billet Compressor Wheel + 9 Blade Turbine Wheel + 6cm Turbine Housing

Application

Replace and Upgrade 49189-01800 / 49189-01830 / 49189-01850 Factory Turbocharger directly

Wheel Spec

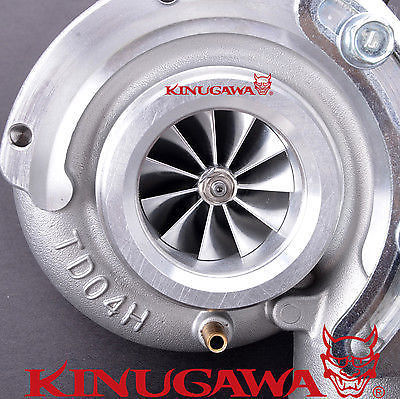

Comp. wheel:47 /58 mm( TD04-20T/11 Blade GTX Billet Compressor Wheel)

Turbine Wheel: 45.6 / 52 (TD04HL / 9 Blade Satosi Special Turbine Wheel)

Turbine Housing

Nozzle Area : 6 cm^2

Turbine Inlet : T25

Balance

Complete CHRA was Balanced on Schenck 110 balance machine to make sure it can work in perfect condition.

Bearing/Cooling

system

Journal Bearing with Performance thrust bearing kit.

Oil and Water-cooled

Actuator

- 0.5bar / 8psi actuator will be pre-installed in this adjustable actuator.

- 0.5bar, 0.8bar, 1.0bar, 1.2bar and 1.5bar spring is available on our shop and we will

combine shipping for additional spring when we receive your order.

Product Situation

Brand New / Ready to competition

Made by

Kinugawa Turbo

Warranty

One Year
