Kinugawa Billet Turbocharger SAAB 900 9000 STD TD05H-16G w/ T3 6cm Replace Garrett
|
Item Number: 301-02043-010
* Whole number only
|
|
| Application |

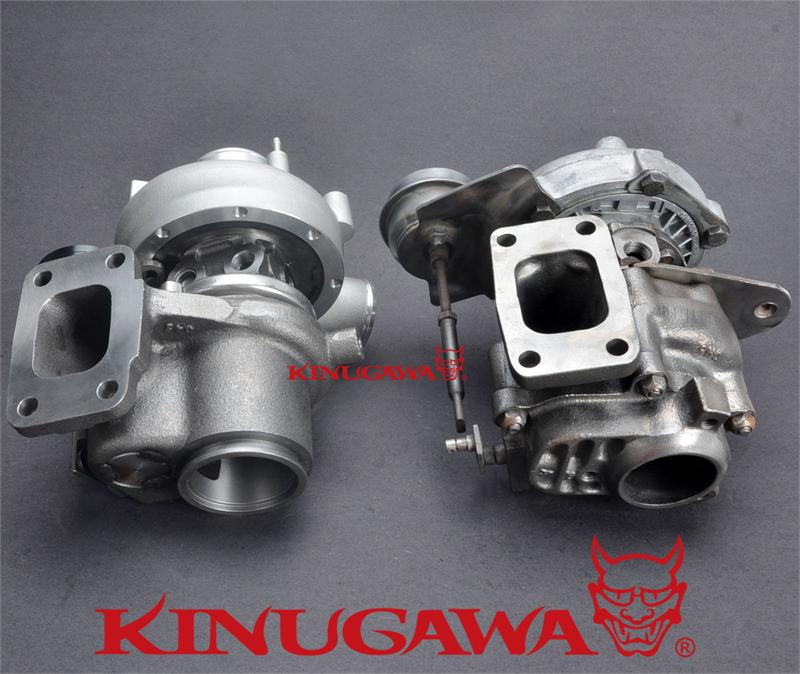

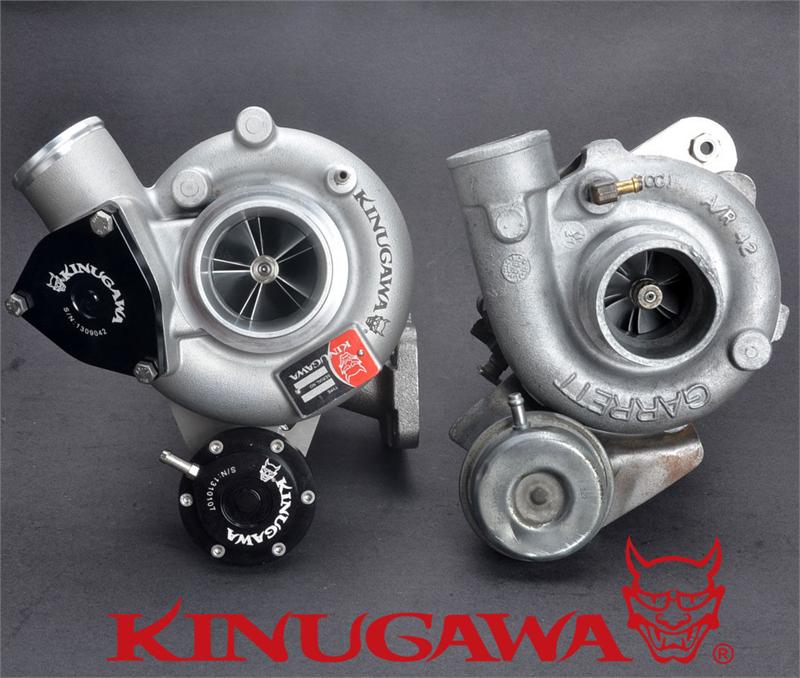

- Replace and Upgrade Stock SAAB 900 9000 Garrett T3 TB03 Turbocharger
- Replace Garrett TB0312, TB0339, TB0357, TB0382, TB0321, TB0358, TB0356, TB0343,
- SAAB B201, B202, B202F, B202E, B202F |
| HP Range |
300~350HP |
| Bearing Type |
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger. |
| Cooling System |
Water cooled |

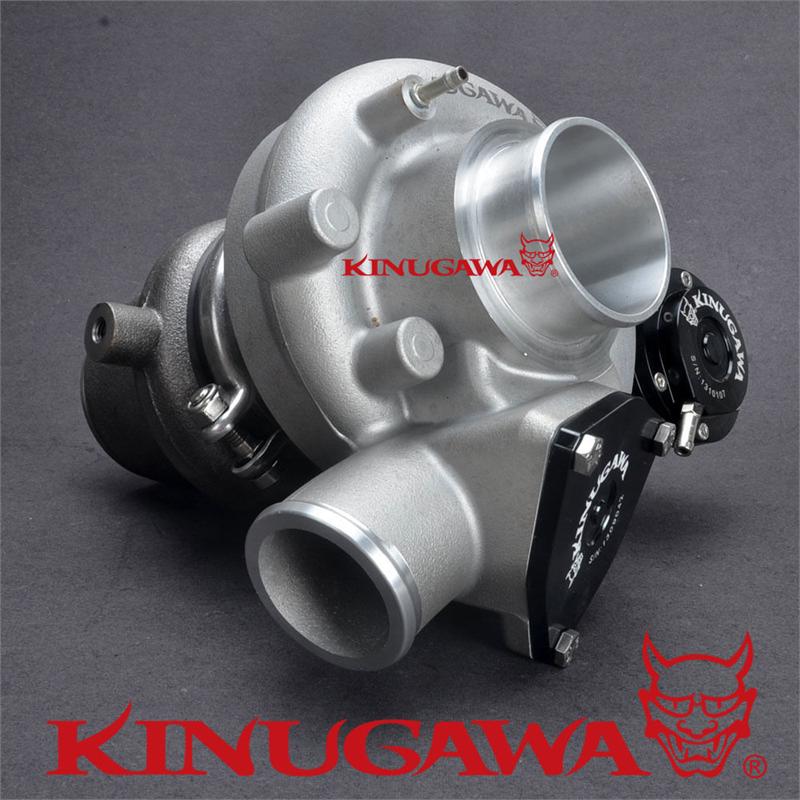

| Compressor Wheel |
48.3 / 68 mm ( TD05-16G Billet Wheel) |
| Turbine Wheel |
49.2 / 56 mm ( TD05H Turbine wheel) |

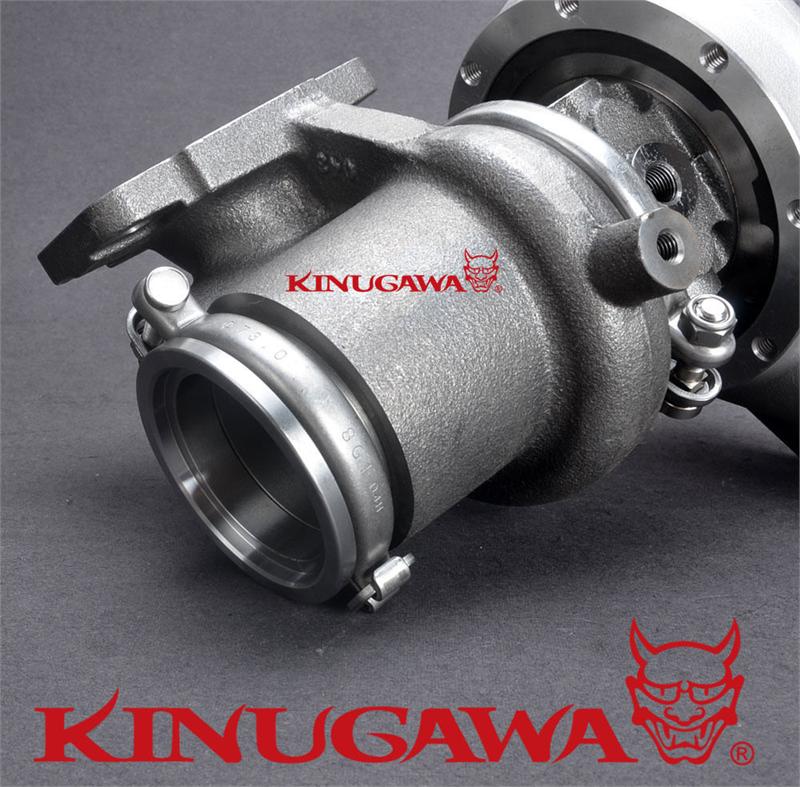

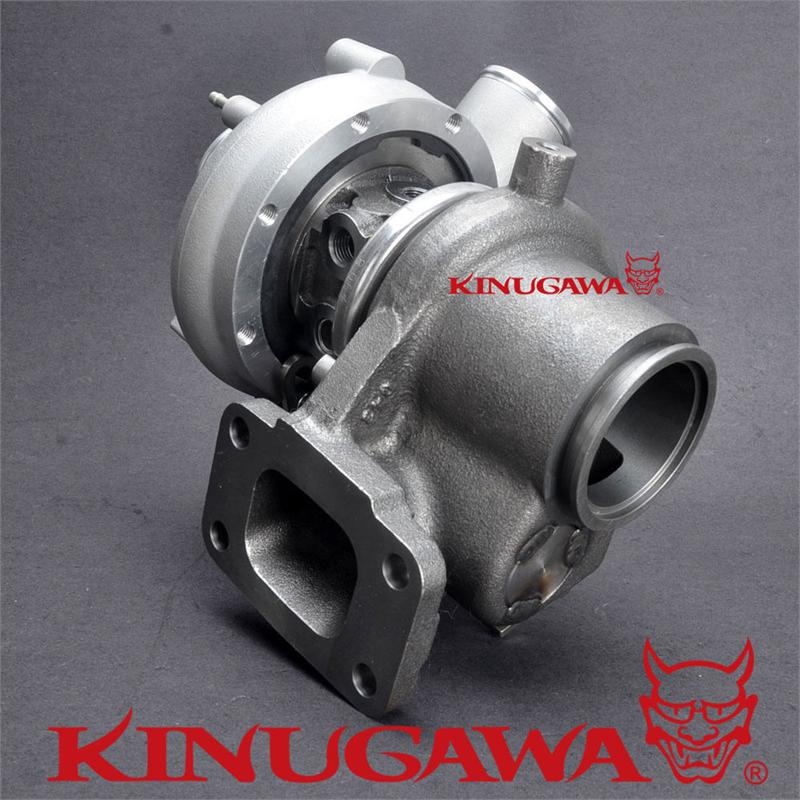

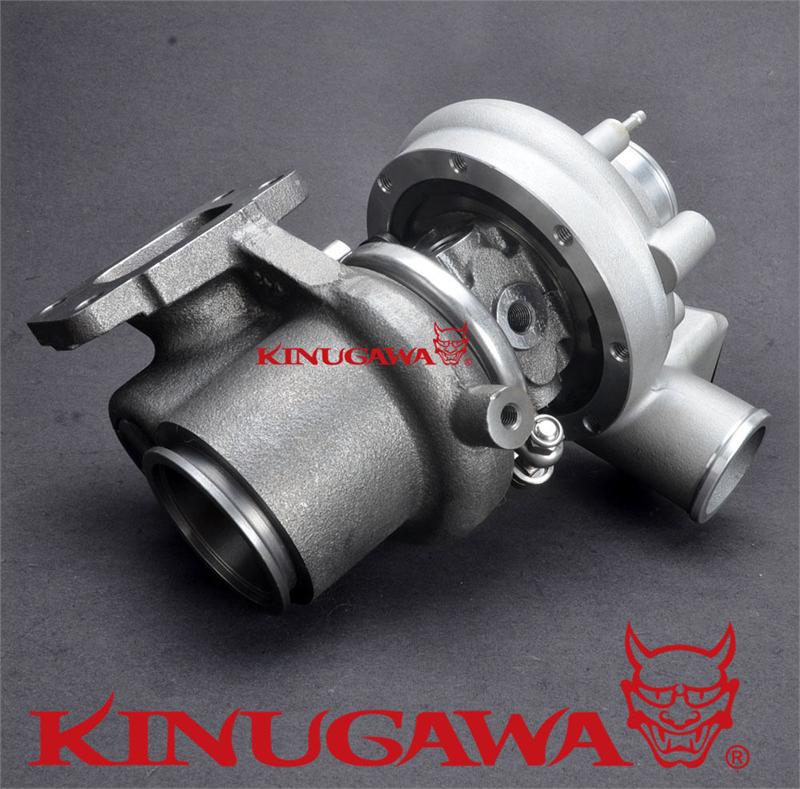

| Turbine Housing |
- T3 Inlet Flange
- Internal Gate
- Nozzle Area : 6 cm^2 (A/R .41)
|
| Wastegate Actuator |
- 0.8bar / 12 psi spring will be pre-installed on this actuator.
- 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.
|
| Turbo Boost Limit |
2.8 Bar (Based on Performance bearing kit with larger thrust bearing ) |
| Kit Incl. |

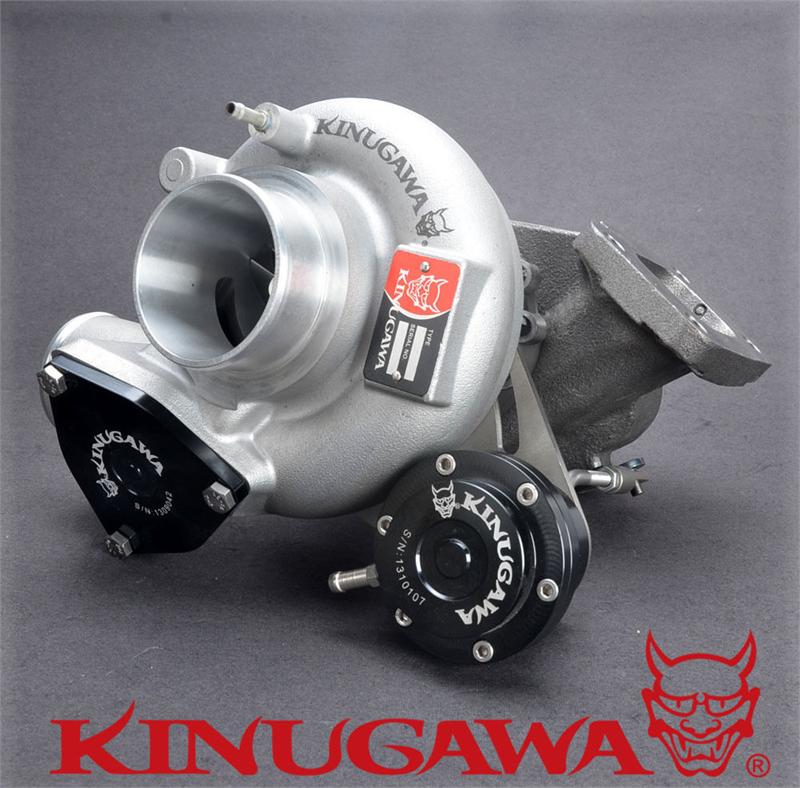

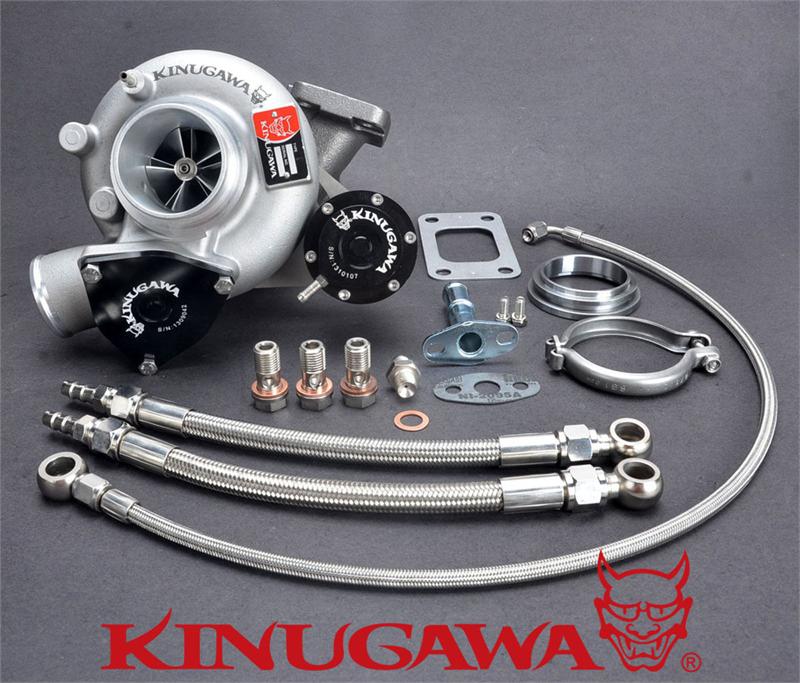

Everything shown on picture is included. |
| Condition |
- Brand New
|
|
|
|
|
