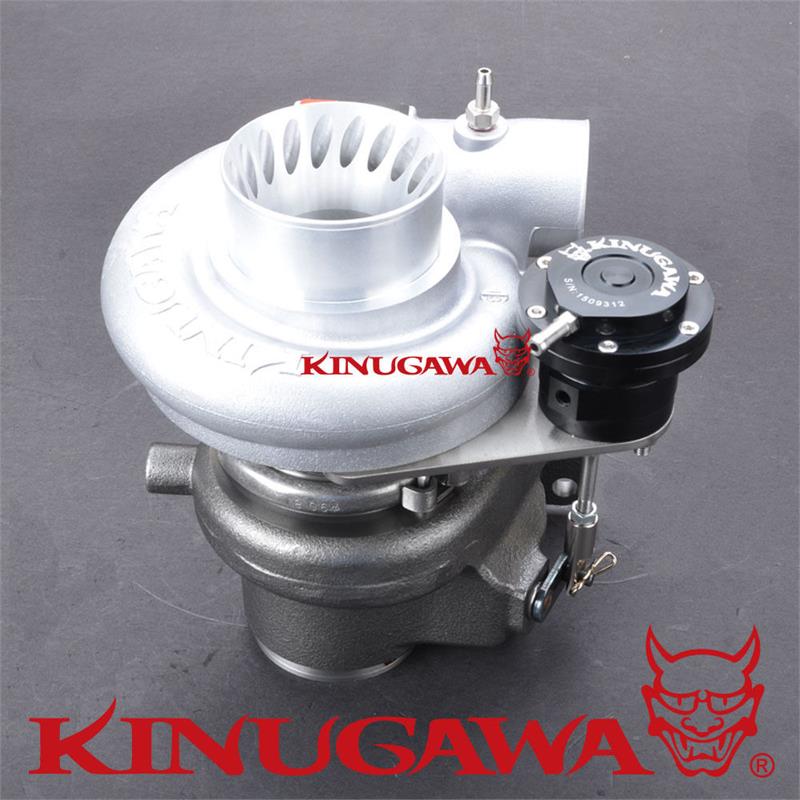

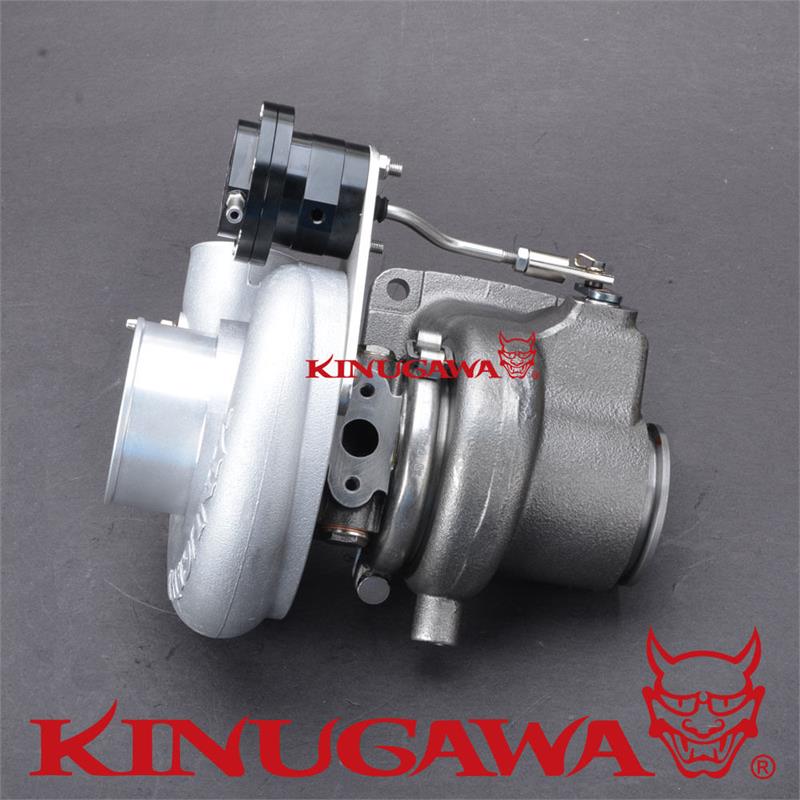

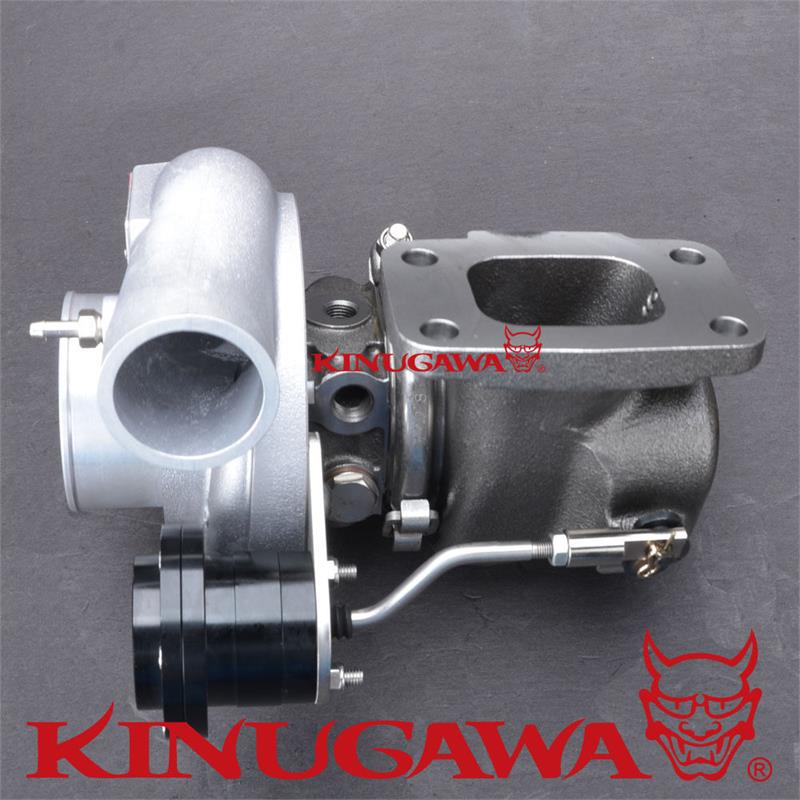

Kinugawa Billet Turbocharger TOYOTA 1HZ Land Cruiser TD05H-20G or 18G w/ 6cm T3 V-Band

Item Information

Item Name

Kinugawa TOYOTA 1HZ 4.2L Diesel 75/78/79/80/100 series TD05H-20G or 18G with 6cm T3 V-Band Turbine housing

P/N.

Application

-  TOYOTA 1HZ 4.2L Diesel 75/78/79/80/100 series

-  You need an exhaust manifold with T3 flange if

   you want install this turbocharger on 1HZ Engine.

CHRA Size:

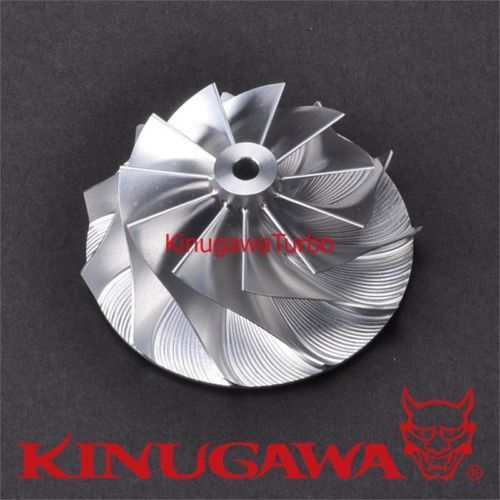

Compressor wheel: 52.3 / 68.0 mm (MHI 20G)

(GTX 11+0 Blades with Extend Tip)

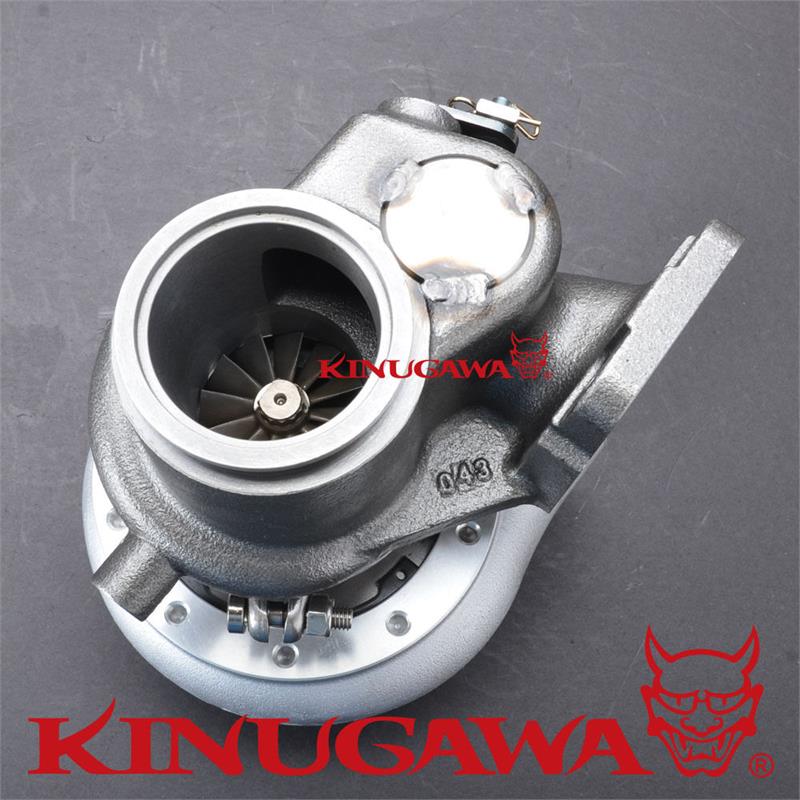

Turbine Wheel: 49.2 / 56.0 mm ( MHI TD05H)

Bearing Type

Journal Bearing

Cooling Type

 Water-Cooled

Actuator

Pressure

-  1.0 bar, 1.2 bar, 1.5bar actuator available, please contact us if you need different actuator.

-    0.8bar stock actuator will go with turbo if buyer doesn’t contact us to change it before we send the turbo.

Product

Situation

-   Brand New

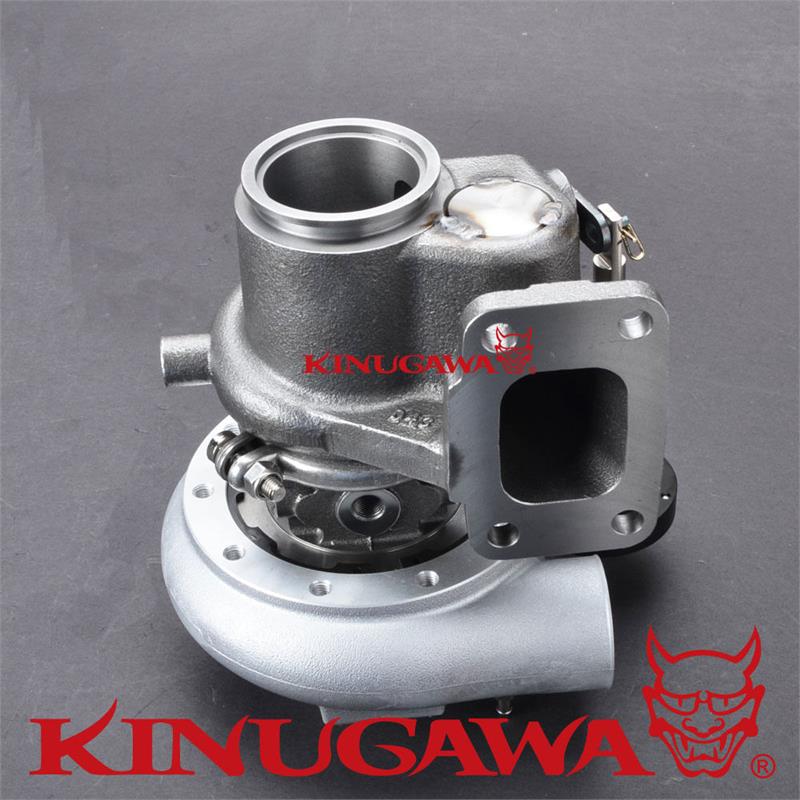

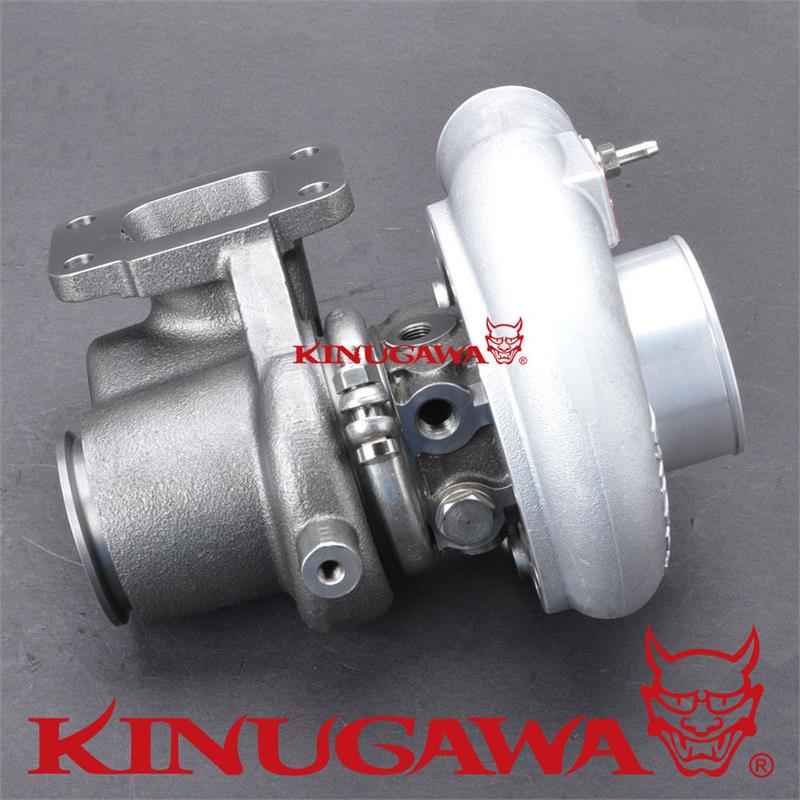

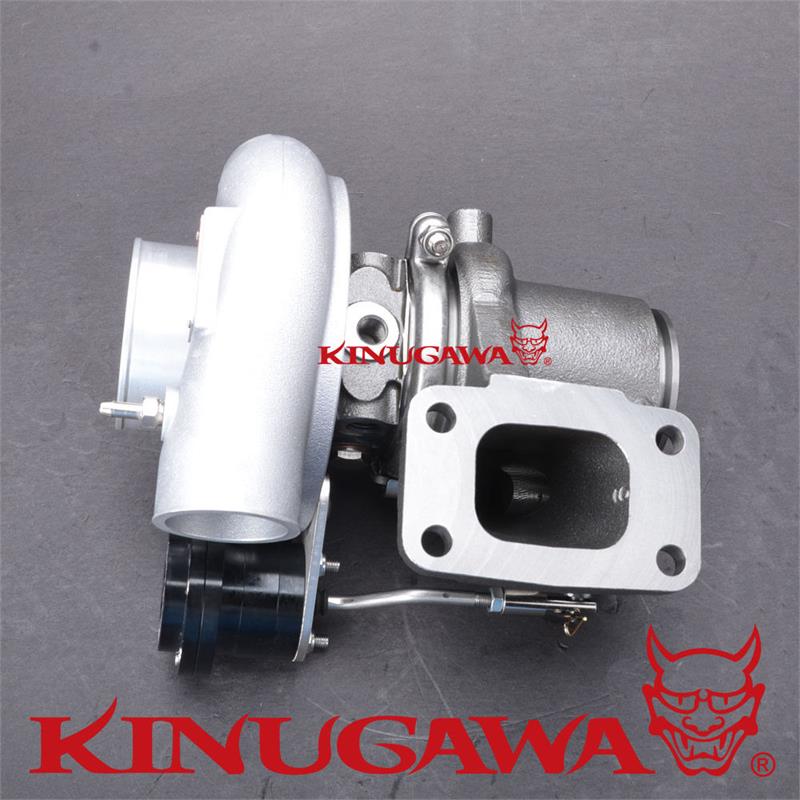

-   This Turbocharger with 6cm (A/R .41) T3 internal

   Gate turbine housing, it will quicker spool up.

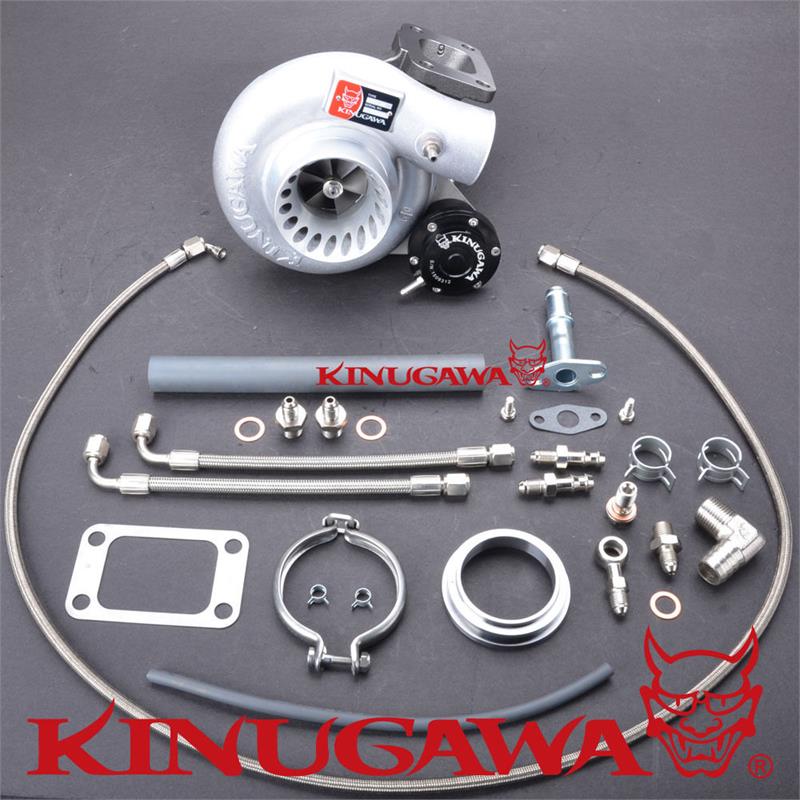

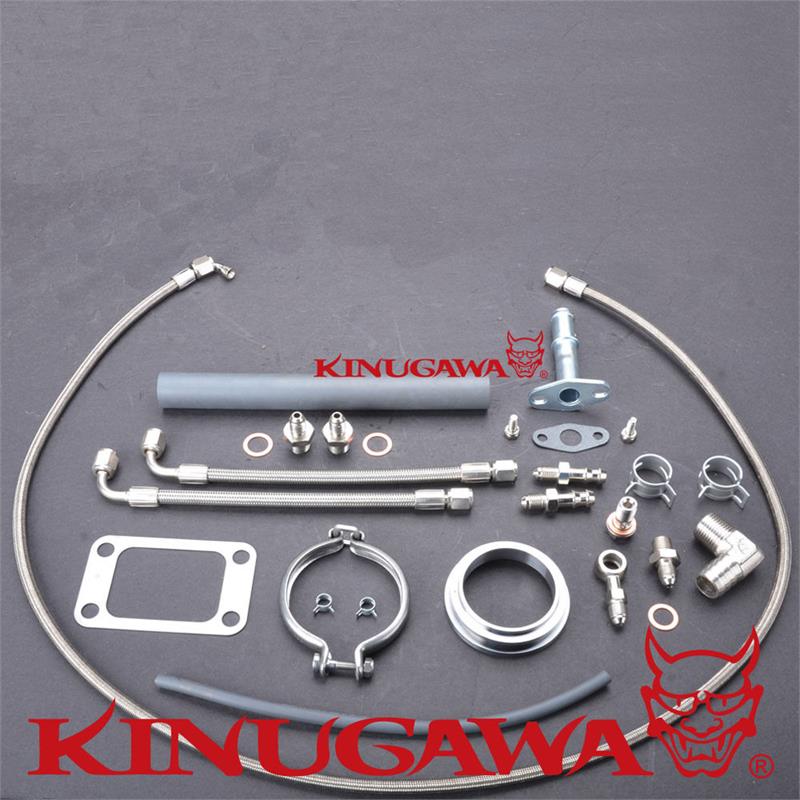

Kit Includes

-  1 x TD05H-20G or 18G-6cm Turbocharger

-  1 x 120cm Oil Feed Line Kit

-  1 x Oil Return Pipe kit

-  2 x 25cm Water Line Kit

-  1 x Turbine Inlet Gasket

-  1 x 3” Turbine Outlet V-Band Adapter (For Dump Pipe)

( Everything shown on picture is included).

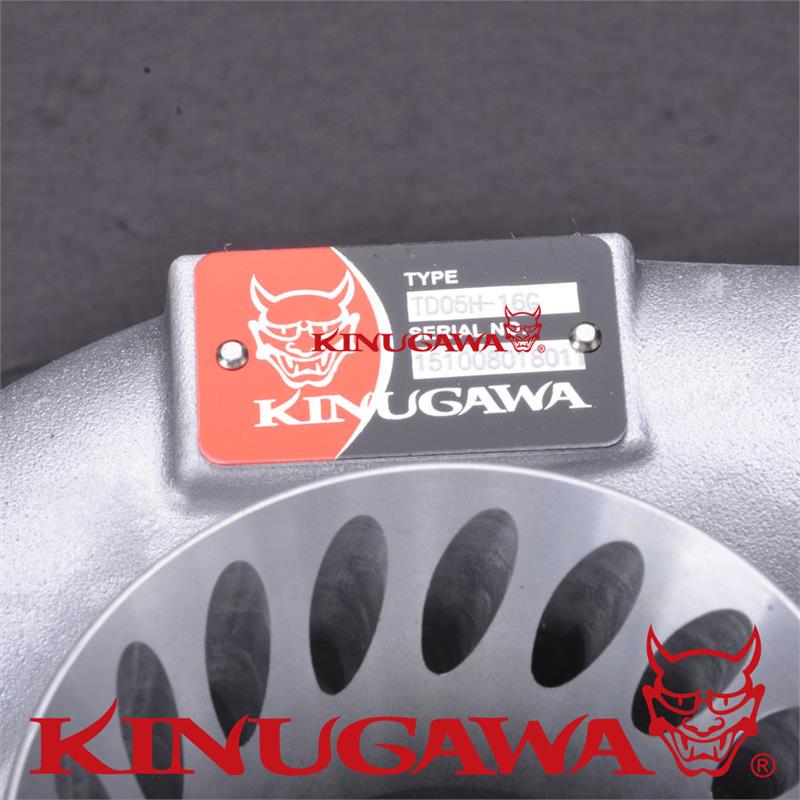

Brand

-       Kinugawa Turbo

Warranty

-       One Year
