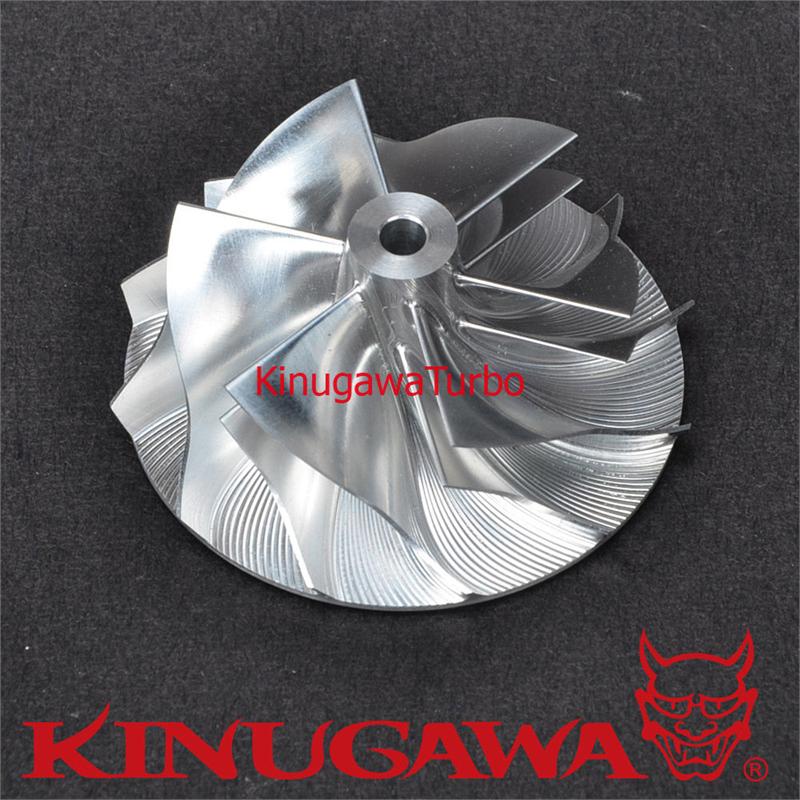

Kinugawa Billet Turbo Compressor Wheel K03-083 Ford Transit 2.4L (39.9/51) 4+4

Product Information

P/N.

405-9901K-303

Item Name

Kinugawa KKK K03 K04 Turbo Billet Compressor Wheel 39.86 / 50.96 mmTrim 61 / 4+4 Blade

Application

Replace wheel number: 5304-123-2024

Fit CHRA: K03-2076 / 5303-710-0522

Fit Turbo # : 5303-988-0046 (VM), 5303-988-0081 / 5303-988-0054 / 5303-988-081 / 5303-988-082 (IVECO), 5303-988-0083, 5303-988-0084 / 5303-988-0096 (Ford)

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 39.86 mm

Exducer Dia. : 50.96 mm

Trim: 61

Extend Tapered Tip Exducer dia : 54.87 mm

Tip Height: 4.39 mm

Super Back Height: 1.80 mm

Bore: 4.61 mm

Blade : 4+4

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
