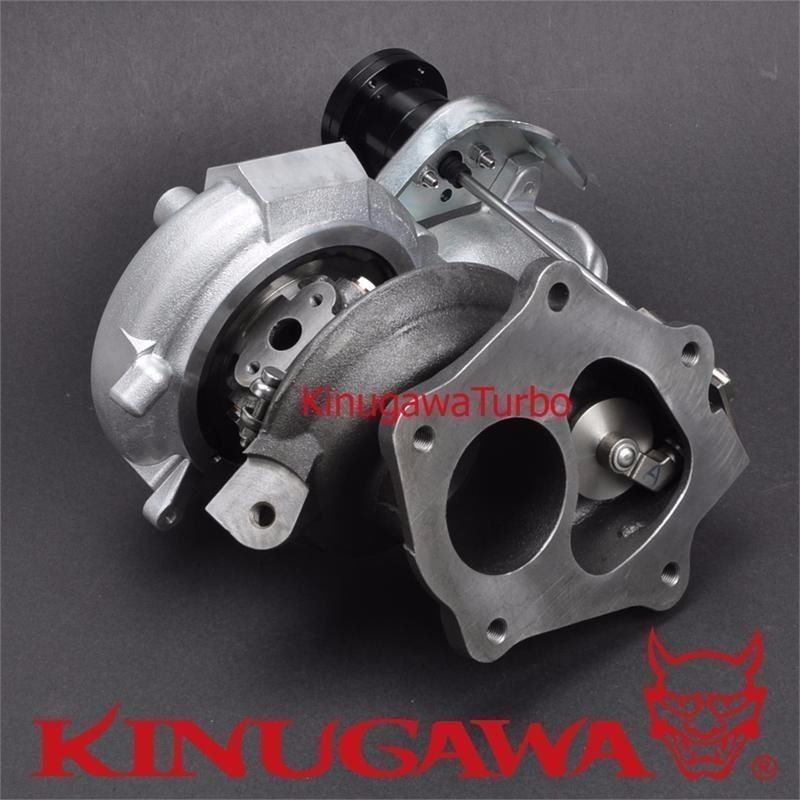

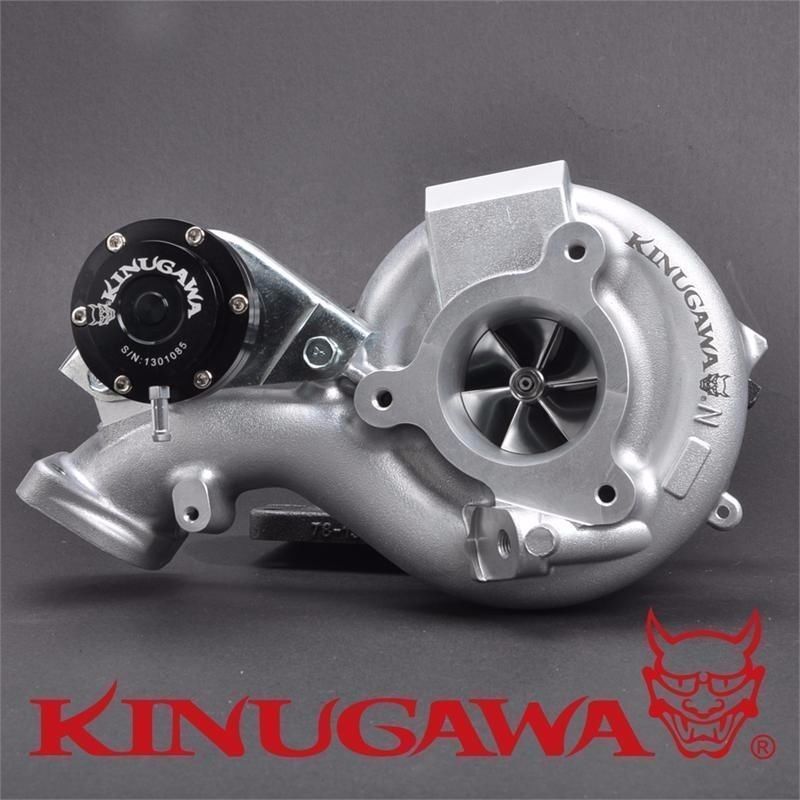

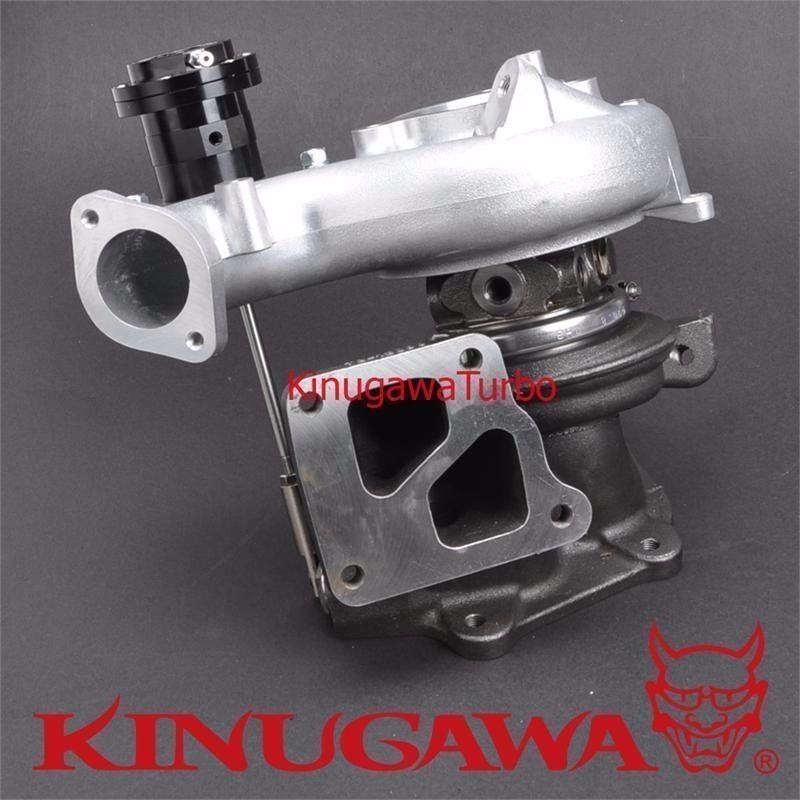

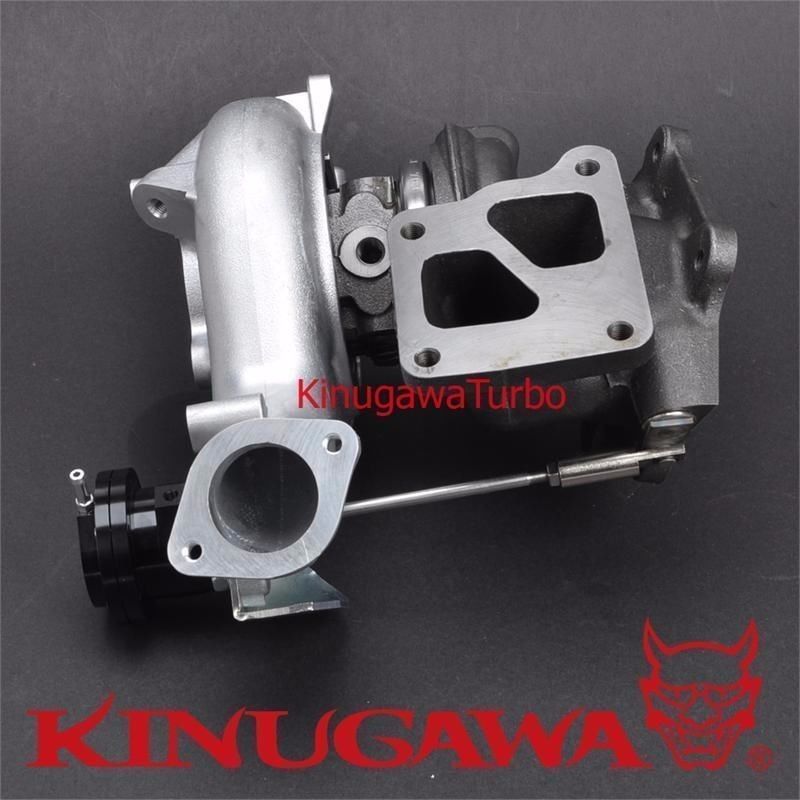

Kinugawa Billet Turbo for Mitsubishi 4B11T EVO 10 TD05H-18G Bolt-On w/ Kit

Product Info

Item  Name

Kinugawa Billet Turbocharger For Mitsubishi 4B11T EVO 10 TD05H-18G Bolt-On w/ Kit

Item No.

Application

4B11T Mitsubishi EVO 10 / EVO X

Wheel Spec.

- Comp. Wheel: 50.5 / 68 mm

  (Billet 18G Wheel w/ Small Nose Dia)

- Turbine Wheel: 49.2 / 56 mm

  (Light weight 9 blades TD05H/High Flow)

Compressor Housing

Turbine  Housing

12   cm^2 Twin Scroll Turbine Housing

Bearing  System

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit with larger thrust ring d flinger

Cooling  System

Oil & Water cooled system　

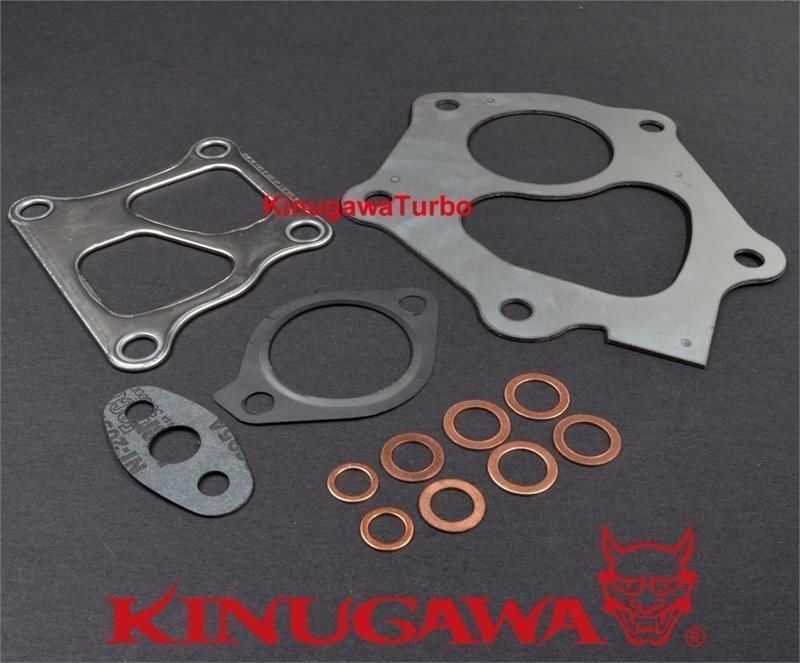

KIT INCLUDES

- 1 x turbine inlet/outlet gasket

- 1 x oill return gasket

- 1 x compressor outlet gasket

- 8 x washer

- 1 x Kinugawa sports towel (free gift)

Kit includes

(Everything shown on picture included)

- 1.2 Bar / 18 psi  spring installed.

- 0.5Bar, 0.8Bar, 1.0Bar, 1.2Bar, 1.5bar, 1.7bar and 2.0bar       spring are available on our ebay shop, we will combine       shipping when we receive the order.

- Actuator position can be 360 Degree rotated easily.

Made by

Notes

Kinugawa Turbo

ONE YEAR WARRANTY
