Kinugawa Billet Turbo TD04HL-Big 16G-HYBRID 6cm T25 External Gate 280HP- Monster
MSRP: $899.00
Price: $799.00
You Save: $100.00
Item Number: 321-02001-339
* Whole number only
|
|
|
Product Information
|
|
Item Name
|
Kinugawa TD04HL-Big 16G Monster Turbo with 6cm T25 inlet / external gate turbine housing
|
|
P/N.
|
321-02001-339 |
|
Application
|
- Universal Type
- 1500~0000cc
|
|
CHRA Size:
|
- TD04HL-16G
|
|
Wheel spec
|

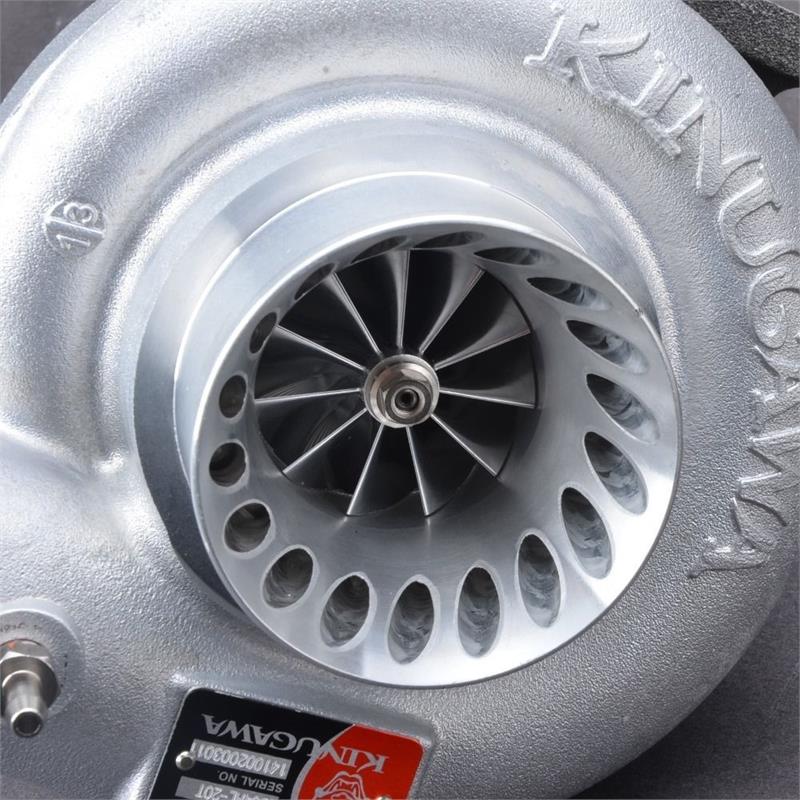

Compressor wheel: 48.3 / 68 mm (16G Wheel)
Turbine wheel: 45.6/52 mm (TD04HL / 11 Blades of Inconel Wheel)
|
|
Compressor
Housing
|
- A/R 60
- Compressor Inlet : 76mm / 3”
- Compressor Outlet : 51mm / 2”
|
|

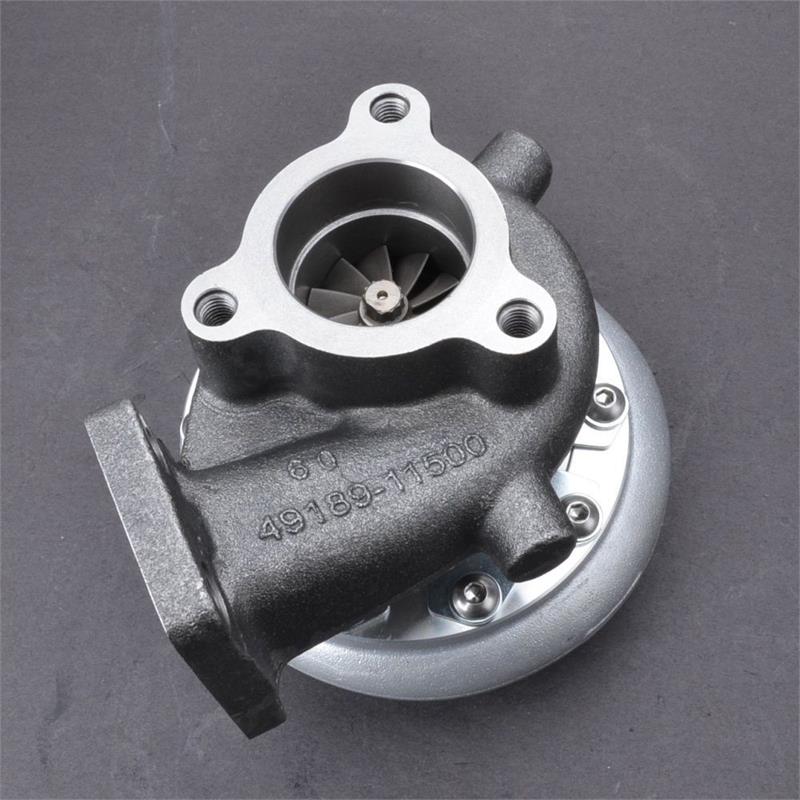

Turbine
Housing
|
- 6cm
- T25 Inlet Flange
- External Gate
|
|
Bearing
Type
|
- Journal Bearing
- KAMAK Performance Thrust Bearing Kit
|
|
Cooling
Type
|
- Oil and Water-Cooled
|
|
Watergate
Actuator
|
|
|
Max Hp
|
250~320HP
|
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
|
Product
Situation
|
Brand New
|
|

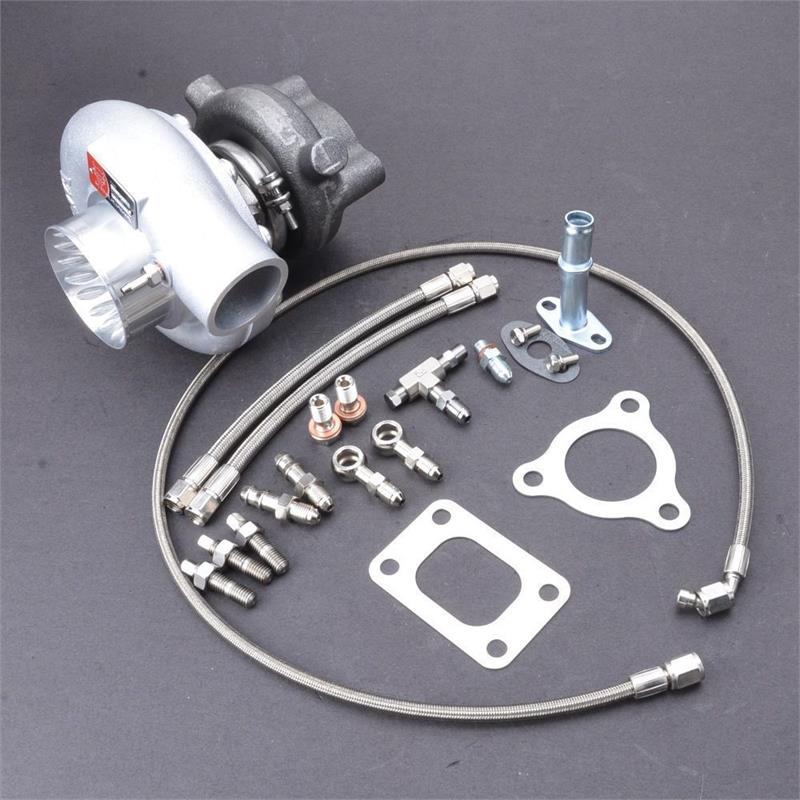

Kit Includes
|
1 x Oil feed line kit ( 100cm Braided Line )
1 x Oil drain pipe kit
2 x Coolant line Kit
2 x Turbine Gasket ( Inlet + Outlet )
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
