Kinugawa In & Out V-Band AR.61 Turbine Housing Garrett GT35R GT3582R GTX3582R Ball Bearing Reverse

Kinugawa Turbine In & Out V-Band AR.61 Turbine Housing for Garrett GT35R GT3582R Ball Bearing

 P/N

- 307-38001-936

APPLICATION

- Garrett GT582R Ball bearing turbo Reverse turbo

- Turbo P/N :  856803-5005S

- CHRA P/N : 844626-5004S

- Turbine Kit PN：740902-0057

TURBINE SPEC

- Turbine wheel  : 68.0 mm / Trim 84

- A/R .61

- Turbine inlet/outlet : V-Band Type

- Wastegate : External Gated

ITEM SITUATION

- Brand New

KIT INCLUDES

- 1 x Turbine housing

- 1 x Turbine inlet / outlet V-clamp

- 1 x Turbine inlet /  outlet adapter Ring

- 1 x Lock plate and bolt set

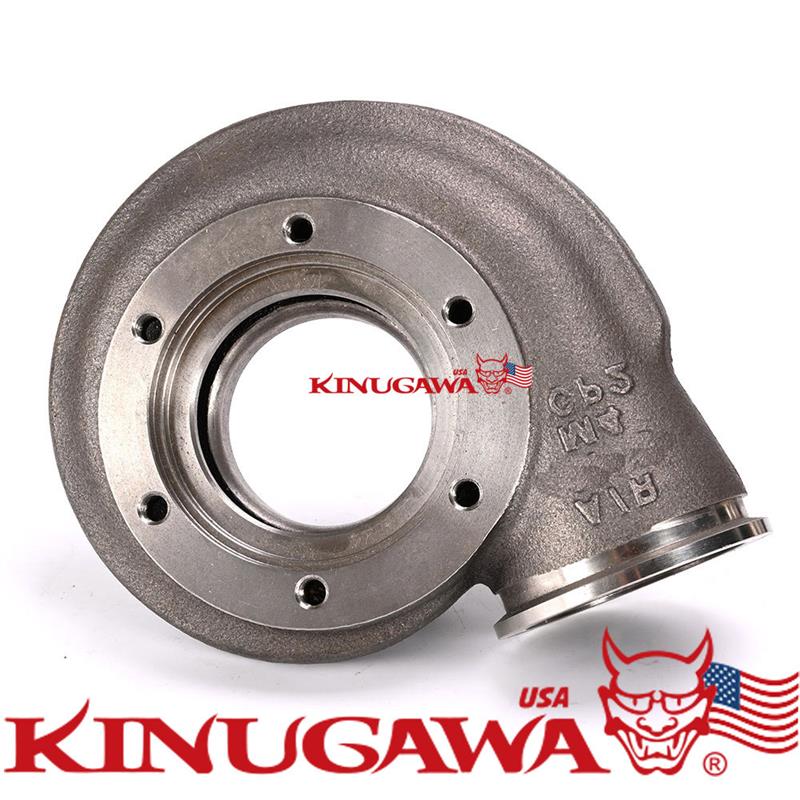

Everything shown on picture included

MATERIAL

- Hi Si-Mo Ductile Iron
