Kinugawa Monster Turbocharger Hyundai D4DB County TD05H-20G Extra 50% Torque
|
* Whole number only
|
|
|
Kinugawa Upgrade Hyundai D4DB 3.9L / TD05H-20G Turbocharger
(EXTRA 50% Torque and HP)
|
|
PART NO.
|
|
|
Item Name
|
Kinugawa Upgrade Hyundai D4DB County 4D34T TD05H-20G Turbocharger
|
|
Product Situation
|
- Brand New
|
|
Application
|
- Hyundai D4DB County 3.9L Engine.
- Replace TD05-4 49178-02320 / 49178-02380, TD05-3 / 49178-02340, 49178-03129 / 28230-45100 ,
|
|
CHRA Spec
|
- Compressor wheel : 52.5 / 68 mm (20G)
- Turbine wheel : 49.2 / 56 mm (TD05H)
|
|
Compressor
Housing
|
- A/R 60
- Cover Inlet Dia. : 60mm / 2.4”
- Cover Outlet Dia : 50mm / 2”
|
|
Turbine Housing
|
- 10cm ( A/R 73 )
|
|
Bearing system
|
- Journal Bearing
- Performance thrust bearing installed.
|
|
Cooling System
|
- Oil and Water cooled system
|
|
Balance
|
- Complete core balanced on SCHENCK MBRS 110 to make sure it would work well.
|
|
Actuator
|
- 1 bar / 14.7 Psi actuator will go with turbo if buyer doesn’t contact us to change it.
- 0.5bar, 0.8bar, 1.0bar, 1.2 bar, 1.5 bar actuator is available. Please contact us if you need to change it.
|
|
Install Kit
|

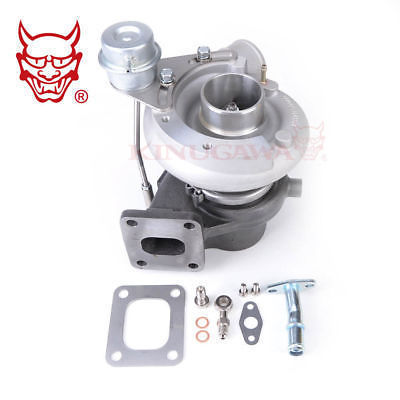

Everything on picture is included.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
