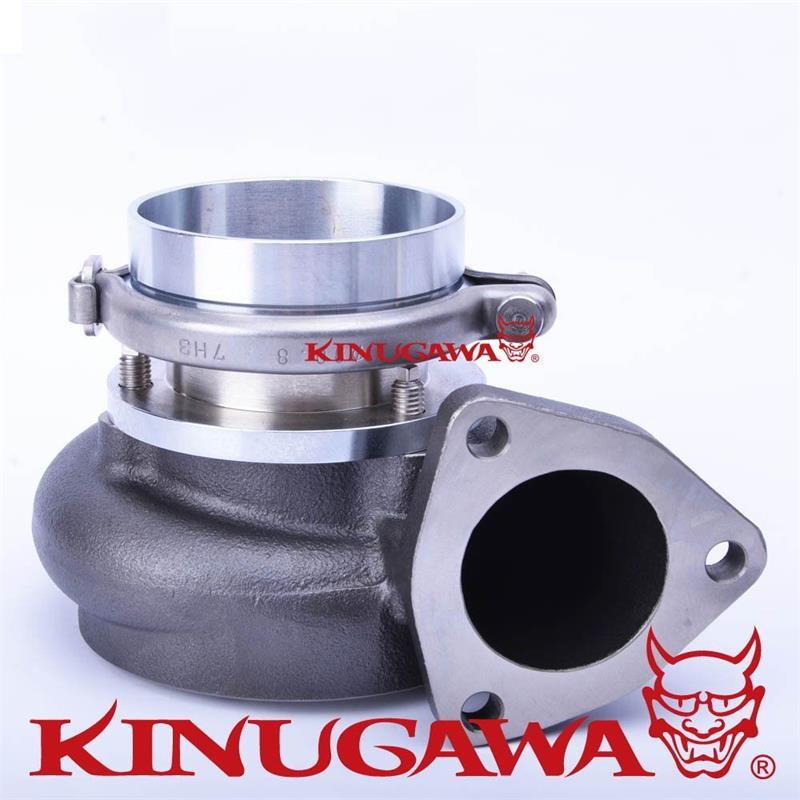

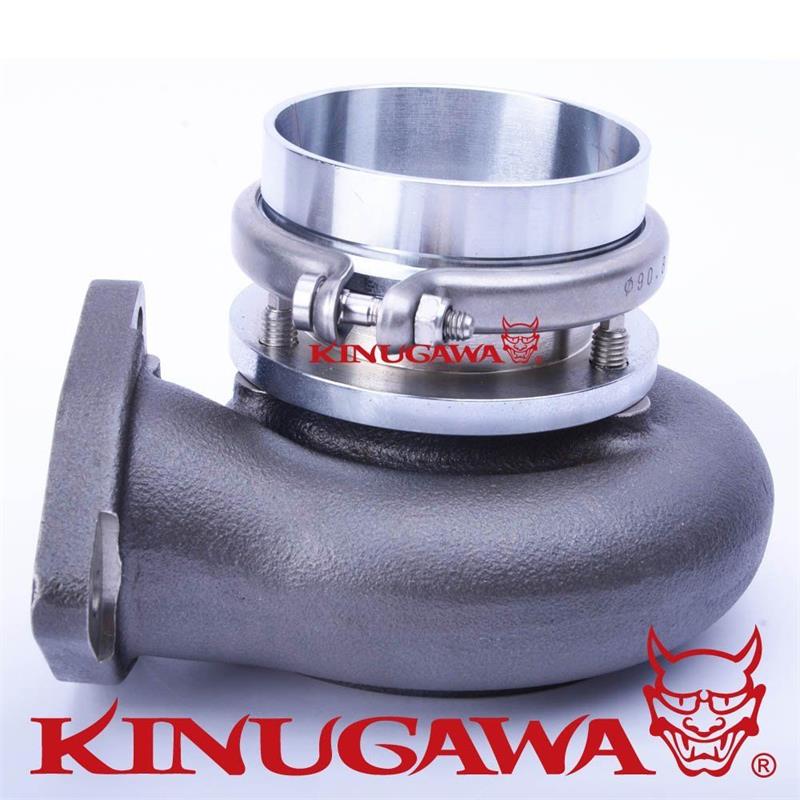

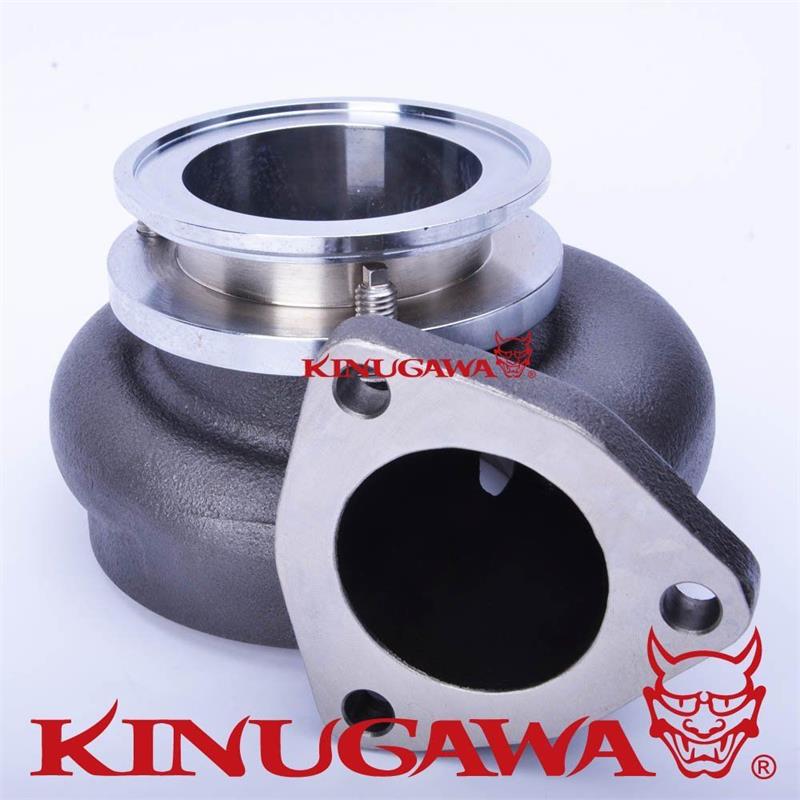

Kinugawa Turbine Housing for Garrett GT35R GT3582R 68/Trim 84 External / V-Band

 P/N

- 307-37001-023

APPLICATION

- Garrett GT582R Ball bearing turbo.

- Turbo P/N : 714568-1, 714568-2, 714568-3,

                    714568-7, 714568-8, 714568-9,

                    714568-10, 714568-11, 714568-12

- CHRA P/N : 706451-5

TURBINE SPEC

- Turbine wheel  : 68.0 mm / Trim 84

- A/R .82 (11 cm^2)

- Turbine inlet/outlet : Triangle Flange

- Wastegate : External Gated

ITEM SITUATION

- Brand New

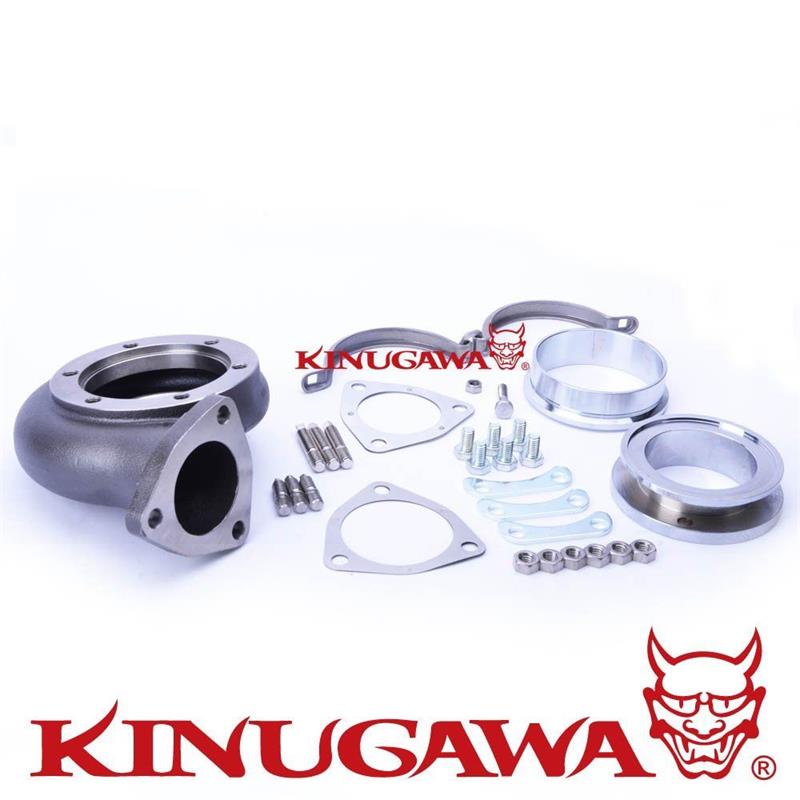

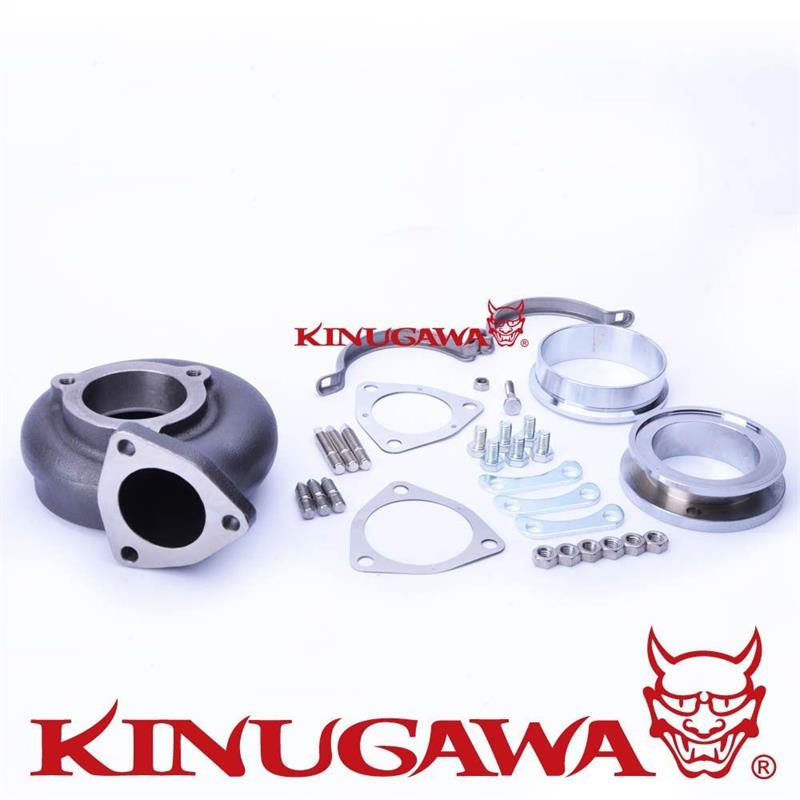

KIT INCLUDES

- 1 x Turbine housing

- 1 x Turbine inlet / outlet gasket set

- 1 x Lock plate and bolt set

- 1 x V-Clamp

- 1 x Clamp ring and V-band adapter set

Everything shown on picture included

SUPPLIER

- Kinugawa turbo
