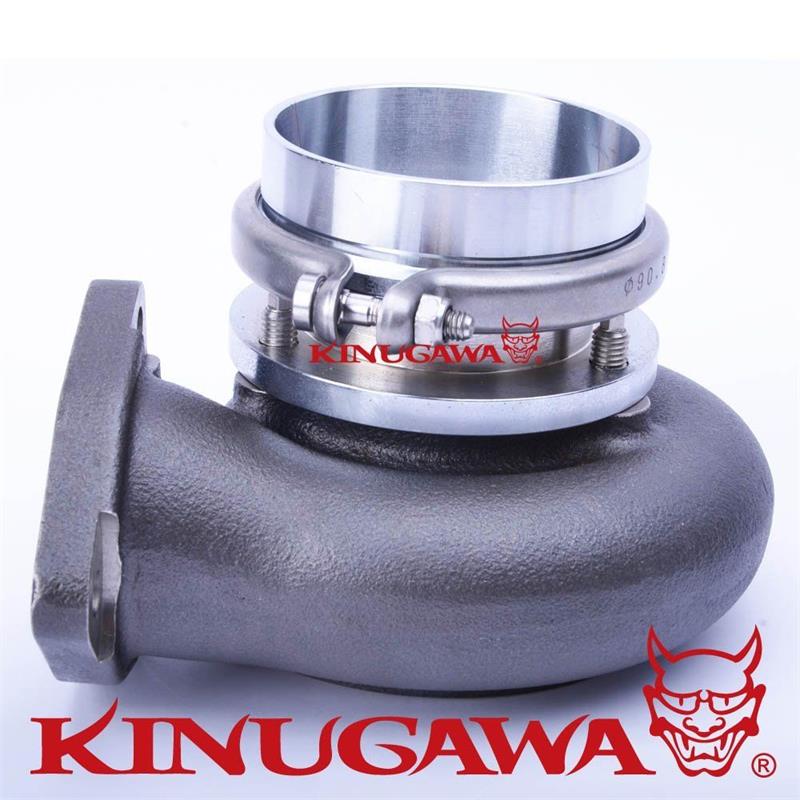

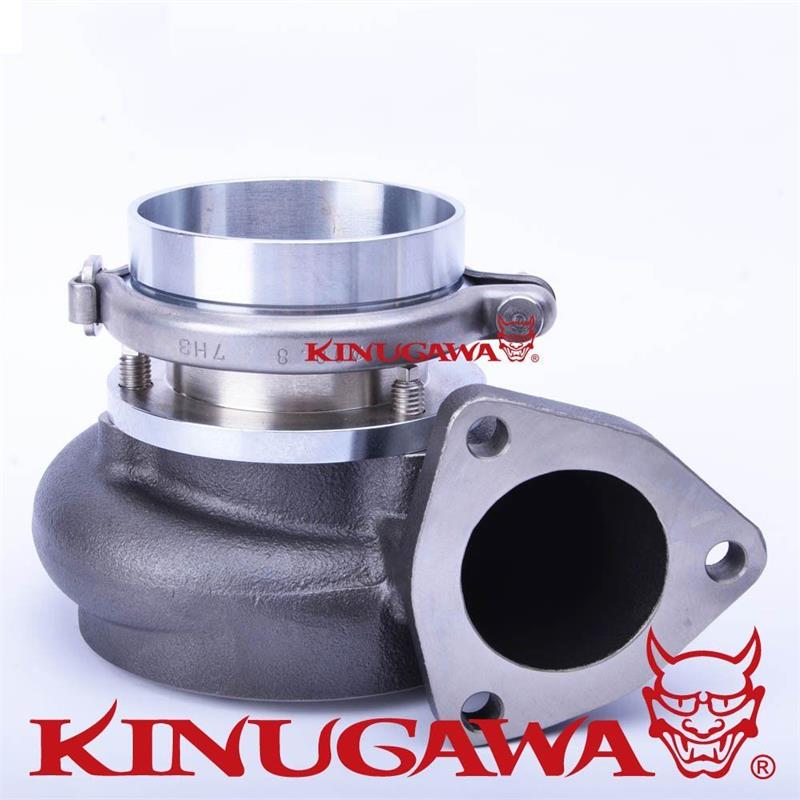

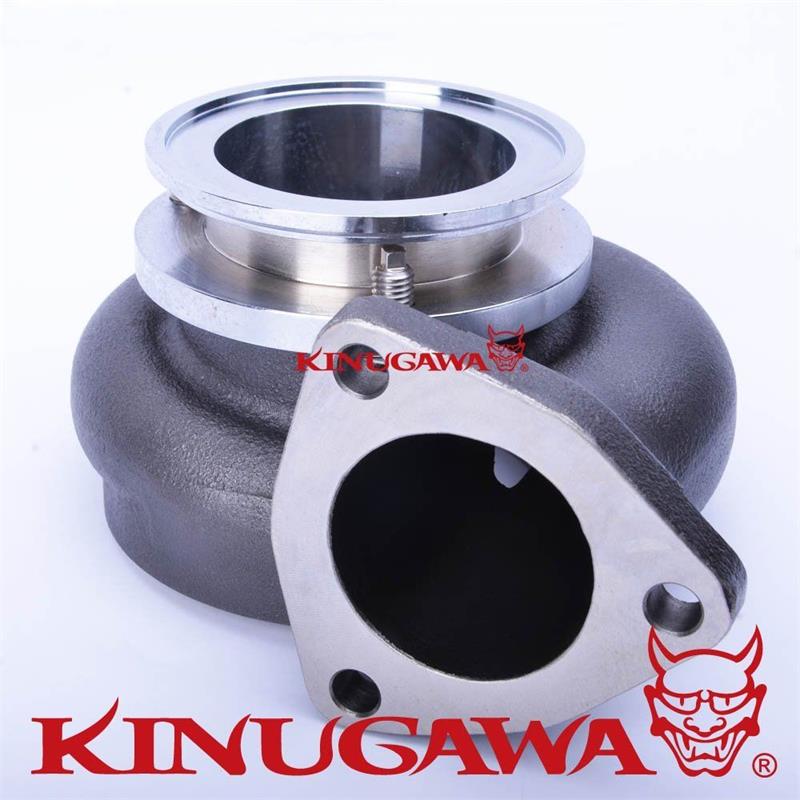

Kinugawa Turbine Housing for Garrett GT3037 GT3076R 60.0/Trim 84 External V-Band

- P/N

- 307-37001-024

APPLICATION

- Garrett GT3071R, GTX3071R, GT3076R, GTX3076R

  Ball bearing turbo.

- HKS GT3037 Ball bearing turbo.

- Turbo P/N : 803712-1, 700382-12, 803713-1

- CHRA P/N : 700177-23, 700177-46, 700177-7,

                   700177-42

TURBINE SPEC

- Turbine wheel  : 60.0 mm / 55.0 mm / Trim 84

- A/R .82 (11 cm^2)

- Turbine inlet/outlet : Triangle Flange

- Wastegate : External Gated

ITEM SITUATION

- Brand New

KIT INCLUDES

- 1 x Turbine housing

- 1 x Turbine inlet / outlet gasket set

- 1 x Lock plate and bolt set

- 1 x V-Clamp

- 1 x Clamp ring and V-band adapter set

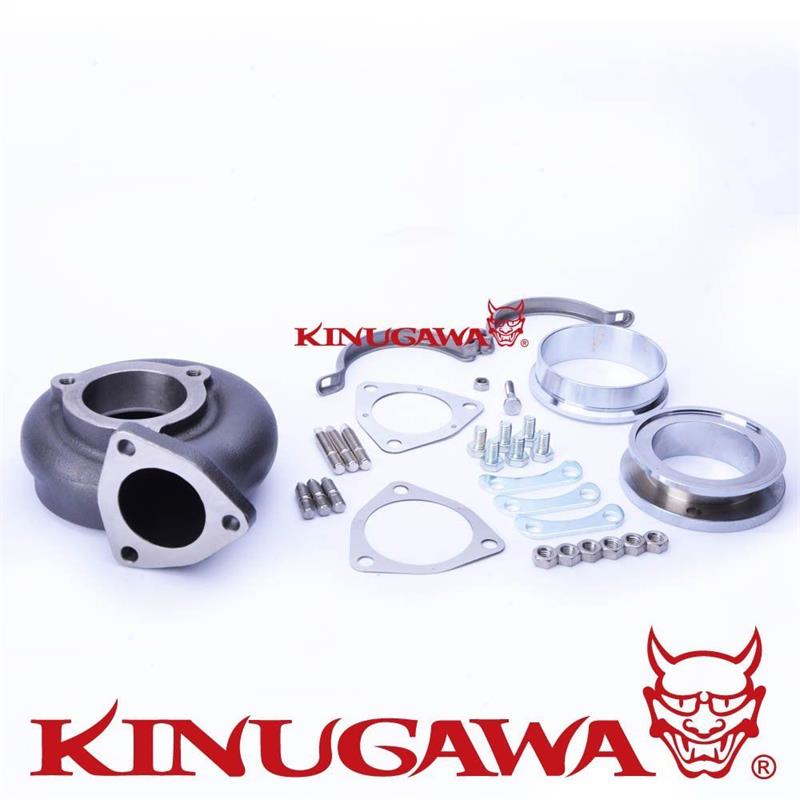

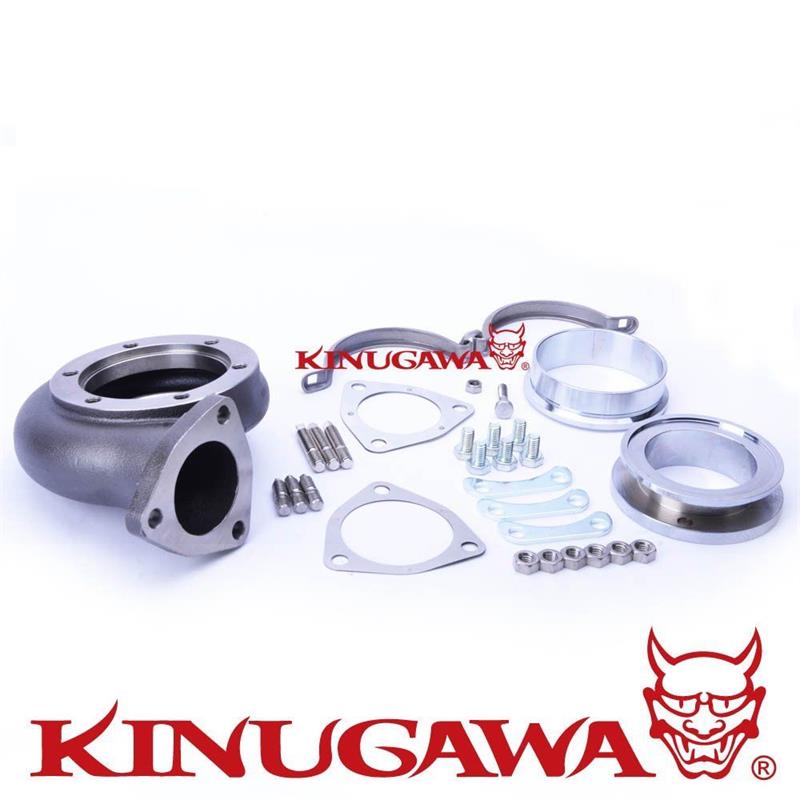

Everything shown on picture included

SUPPLIER

- Kinugawa turbo
