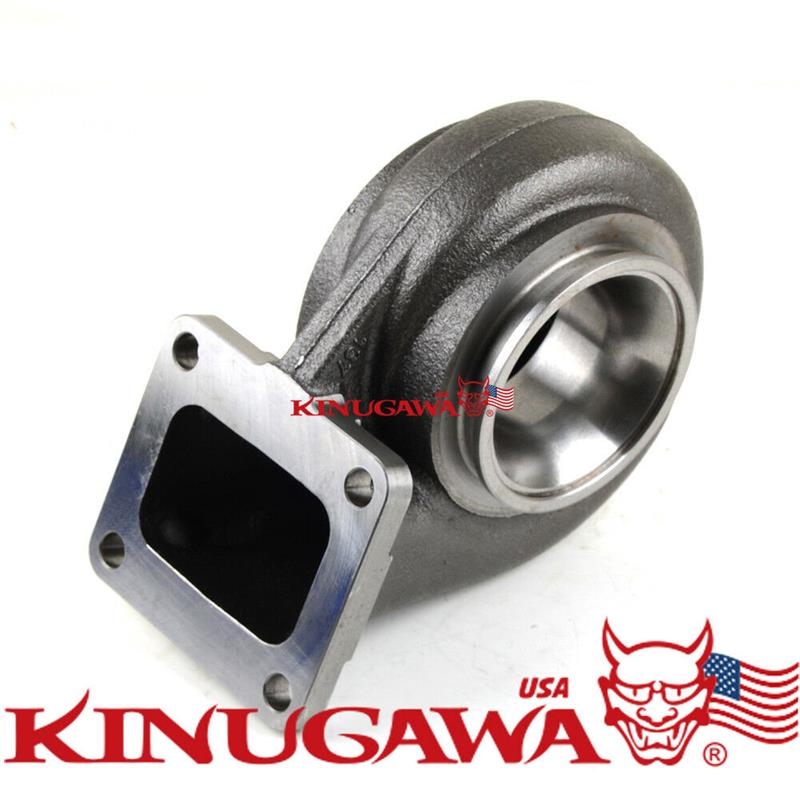

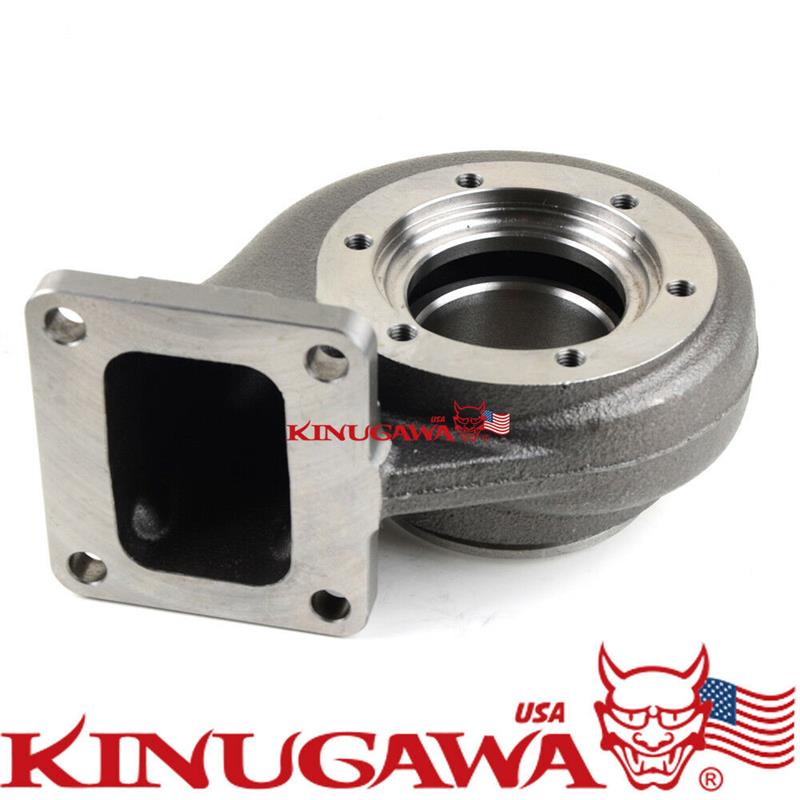

Kinugawa Turbine Housing Garrett GTX3584RS T4 V-Band 1.05 / Inconel 22%

Kinugawa Garrett Garrett GTX3584RS T4 V-Band 1.05 Turbo Turbine Housing

APPLICATION

Garrett GTX3584RS Turbo

846098-5001S / 856804-5001S / 856804-5002S / 856804-5003S / 856804-5004S

TURBINE SPEC

- Turbine wheel  : 68mm / 62mm Trim 84

- A/R1.05

- Turbine inlet/outlet :T4 / V-Band Type

- Wastegate : External Gated

ITEM SITUATION

- Brand New

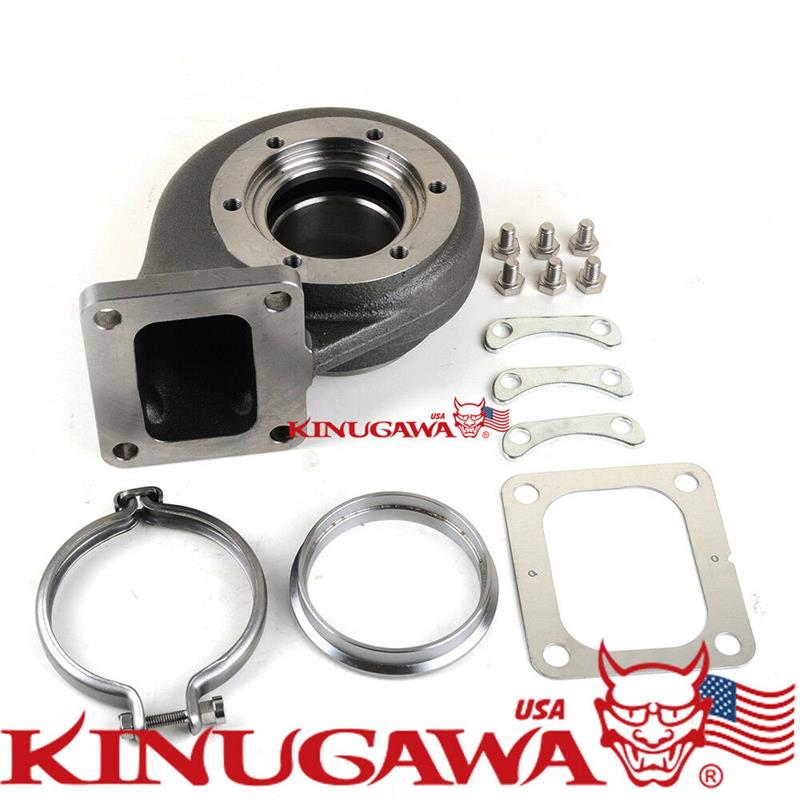

KIT INCLUDES

- 1 x Turbine housing

- 1 x Turbine inlet T4 Gasket

- 1 x Turbine outlet adapter Ring / Flange

- 1 x Lock plate and bolt set
