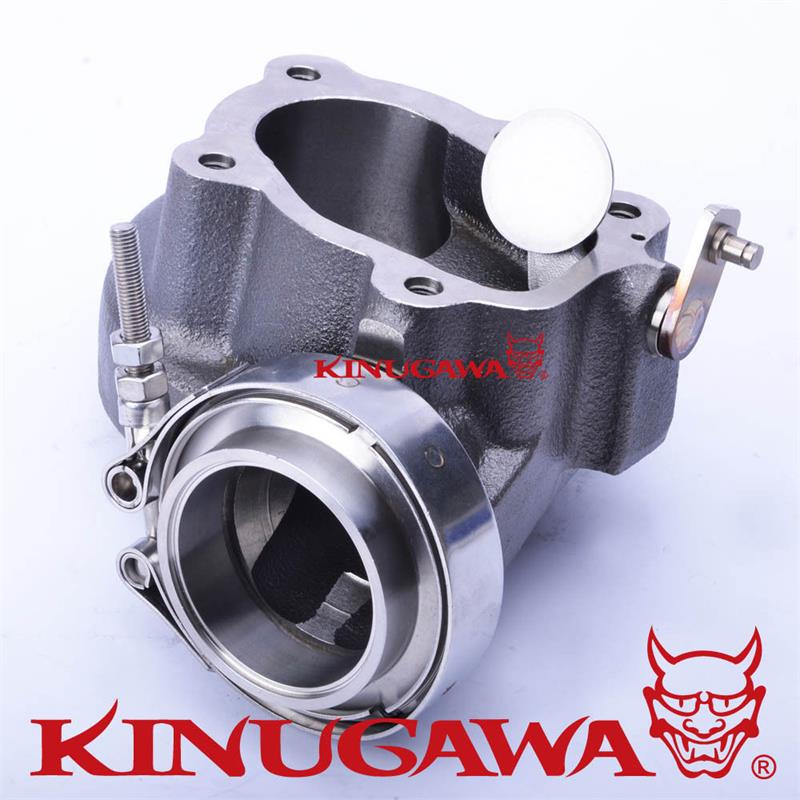

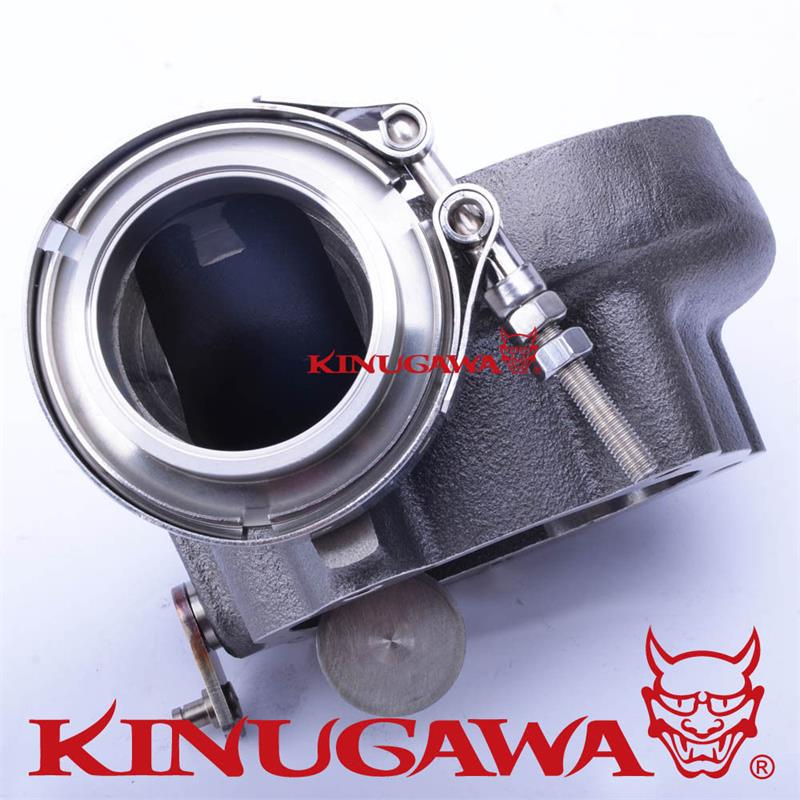

Kinugawa Turbine Hsg Garrett GT2860R GT2871R A/R .64 / 53.9 mm Tirm 76 Wastegate

Kinugawa Garrett GT2860R GT2860RS GT2871R GT2876R Turbo Turbine Housing

 (53.9 mm / Trim 76 / AR.64)w/ Install Kit

(V-band Turbine Inlet / 5 Bolt Internal Gated Turbine Outlet)

P/N.

Item Name

Garrett GT28R / GT2860R / GT2871R / GT2876R / GTX28R Turbine Housing w/ Install Kit

Application

-      Garrett GT2860R Turbocharger

     -   Turbo P/N : 707160-5, 739548-9

     -   CHRA P/N : 446179-51, 446179-66

-      Garrett GT2860RS Turbocharger

     -   Turbo P/N : 739548-1, 739548-5

     -   CHRA P/N : 446179-66

-      Garrett GTX2860R Turbocharger

     -   Turbo P/N : 816364-2, 816364-1

     -   CHRA P/N : 823061-1, 446179-92

-      Garrett GTX2863R Turbocharger

     -   Turbo P/N : 816365-1

     -   CHRA P/N : 446179-93

-      Garrett GTX2867R Turbocharger

     -   Turbo P/N : 276366-1

     -   CHRA P/N : 446179-94

-      Garrett GT2871R Turbocharger

     -   Turbo P/N : 707160-10, 743347-1 / 2 / 3 / 4

     -   CHRA P/N : 446179-67, 44617931 / 32

-      Garrett GT2876R Turbocharger

     -   Turbo P/N : 705330-1, 705330-2

     -   CHRA P/N : 446179-18

Wheel Spec

53.9 mm / Trim 76

Turbine A/R

0.64

Turbine Inlet

V-Band Type

Turbine Outlet

5 Bolt / Internal Gated

Product

Situation

Brand New

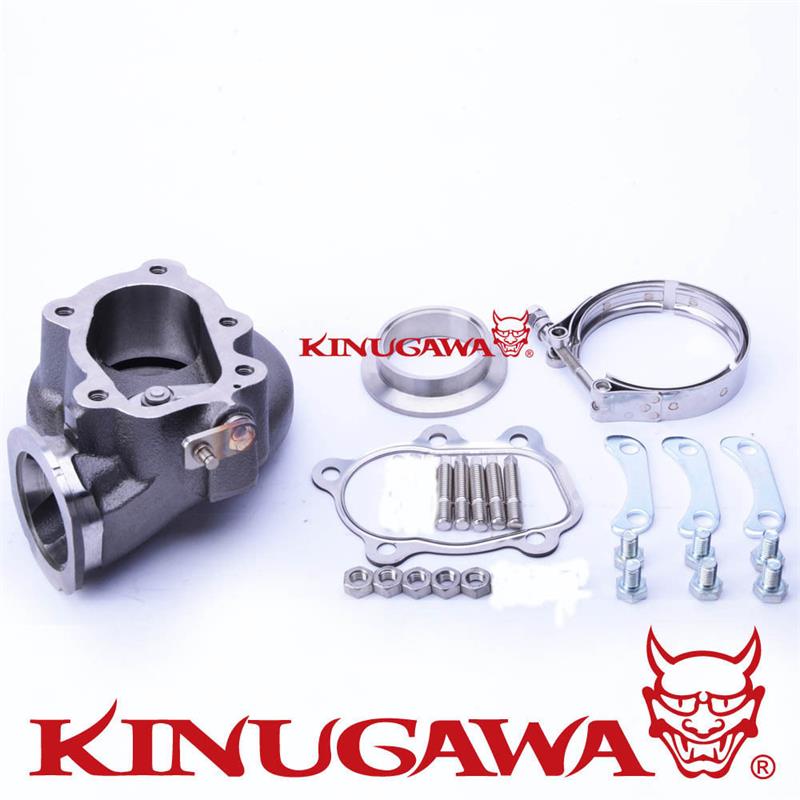

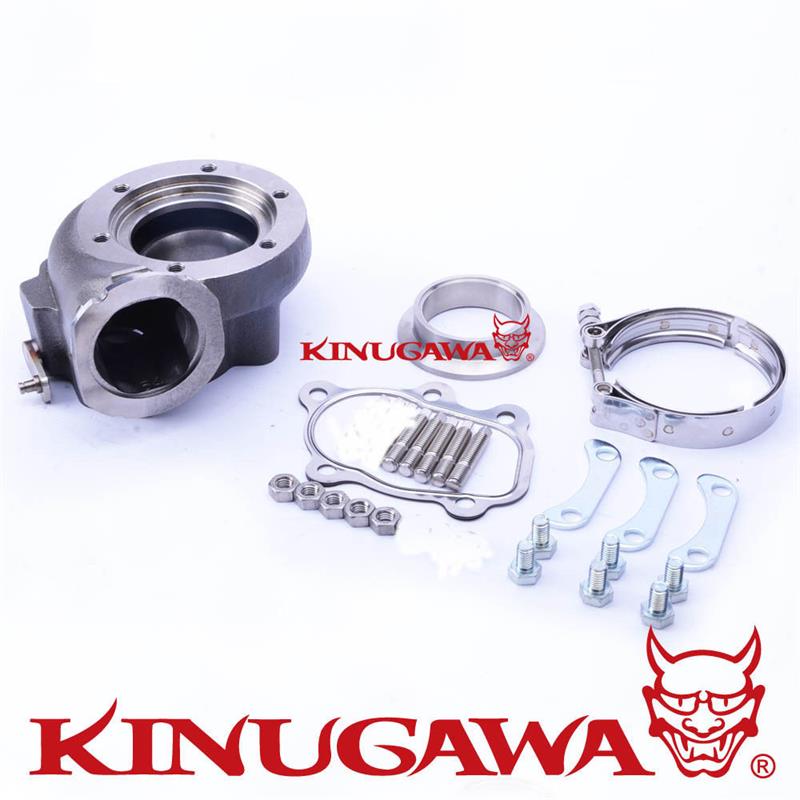

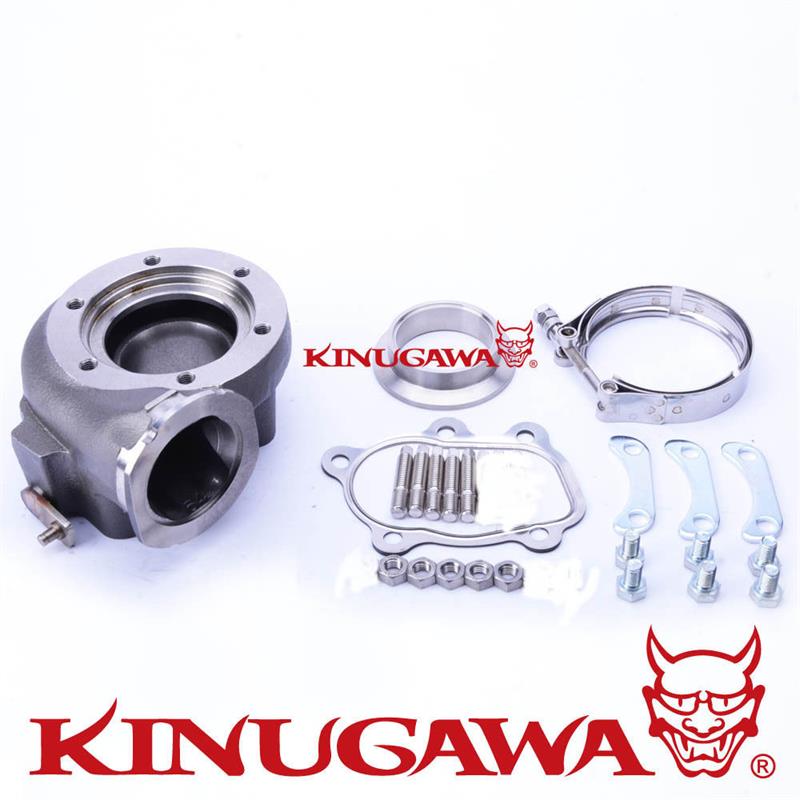

Included

-      1 x Turbine Housing

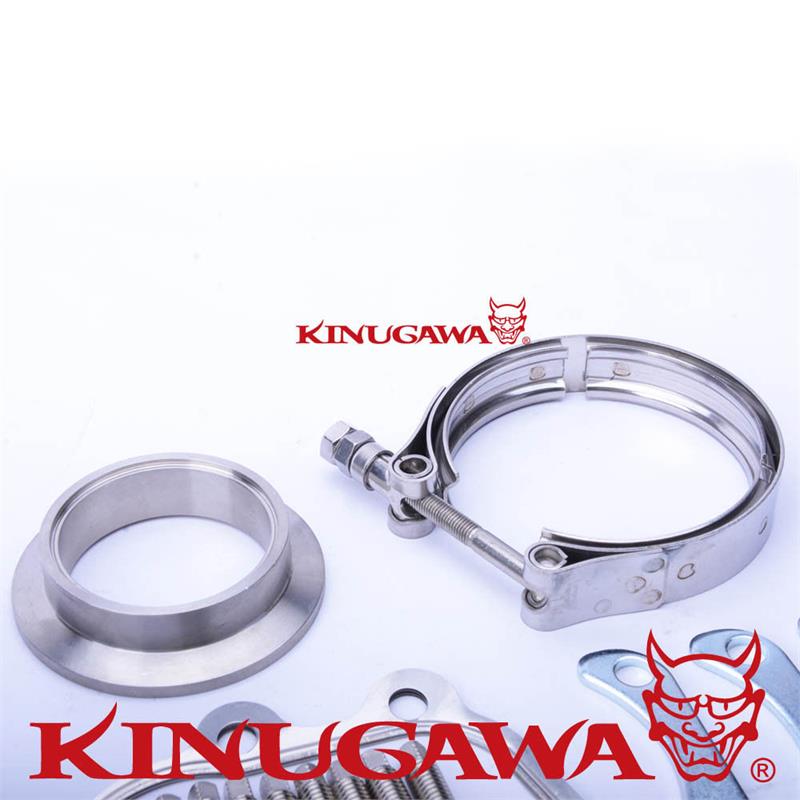

-      1 x Turbine Inlet Clamp & Adapter Set

-      1 x Turbine Outlet Gasket

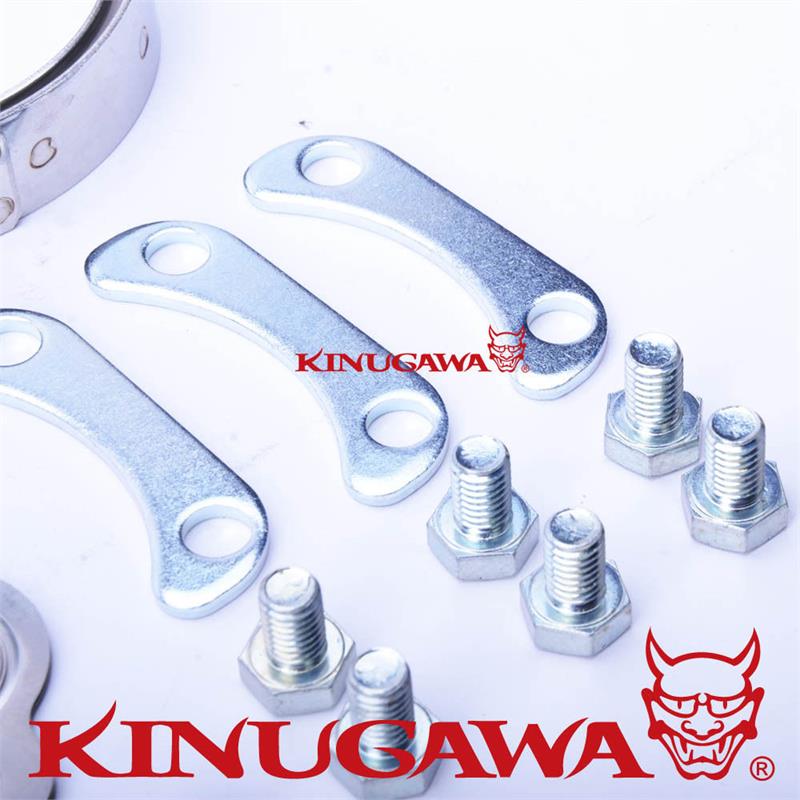

-      3 x Lock Plate

-      6 x Bolt for Lock Plate

-      5 x Stud

-      5 x Nut for Stud

Made By

Kinugawa Turbo
