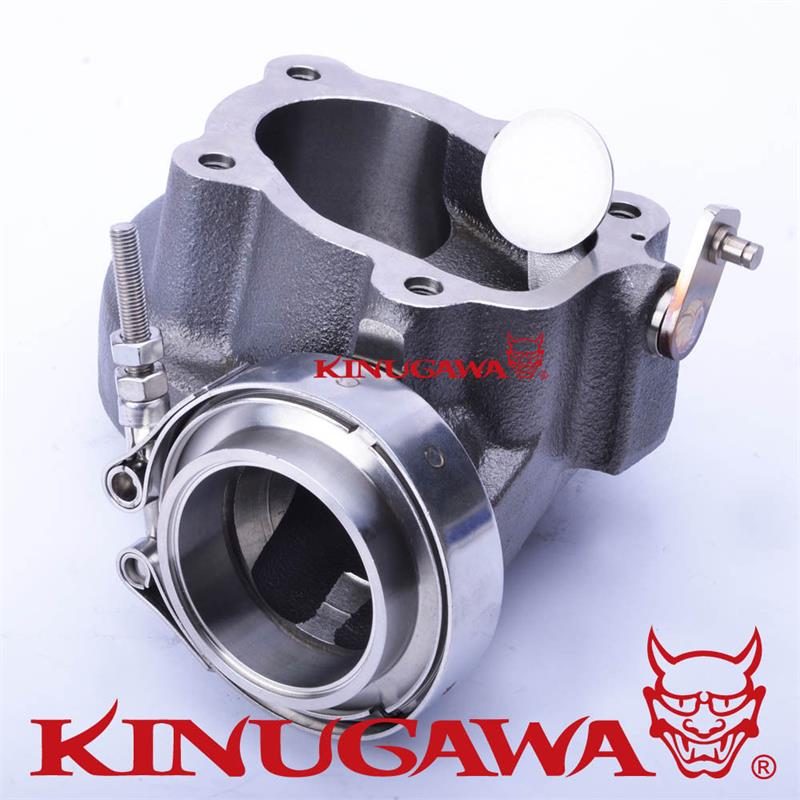

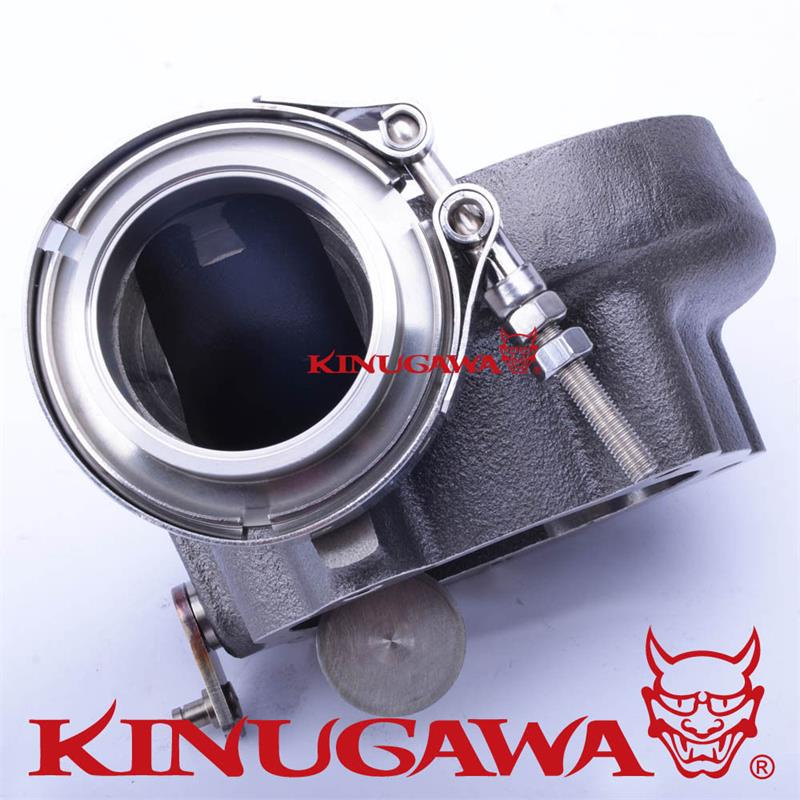

Kinugawa Turbine Hsg Garrett GT3071R GT3076R A/R .64 / 60 mm Tirm 84 Wastegated

Kinugawa HKS GT2835 / Garrett GT3071R GTX3071R Turbo Turbine Housing

 (60.0 mm / Trim 84 / AR.64)w/ Install Kit

(V-band Turbine Inlet / 5 Bolt Internal Gated Turbine Outlet)

P/N.

Item Name

HKS GT2835 / Garrett GT3071R / GTX3071R / GTX3067R / GT3076R / GTX3076R Turbine Housing w/ Install Kit

Application

-      Garrett GT3071R / HKS GT2835 Turbocharger

     -   Turbo P/N :

     -   CHRA P/N : 700177-23

-      Garrett GTX3067R Turbocharger

     -   Turbo P/N : 824727-1

     -   CHRA P/N : 700177-47

-      Garrett GTX3071R Turbocharger

     -   Turbo P/N : 803712-1

     -   CHRA P/N : 700177-46

-      Garrett GT3076R Turbocharger

     -   Turbo P/N : 700382-12

     -   CHRA P/N : 700177-7

-      Garrett GTX3076R Turbocharger

     -   Turbo P/N : 803713-1

     -   CHRA P/N : 700177-42

Wheel Spec

60.0 mm / Trim 84

Turbine A/R

0.64

Turbine Inlet

V-Band Type

Turbine Outlet

5 Bolt / Internal Gated

Product

Situation

Brand New

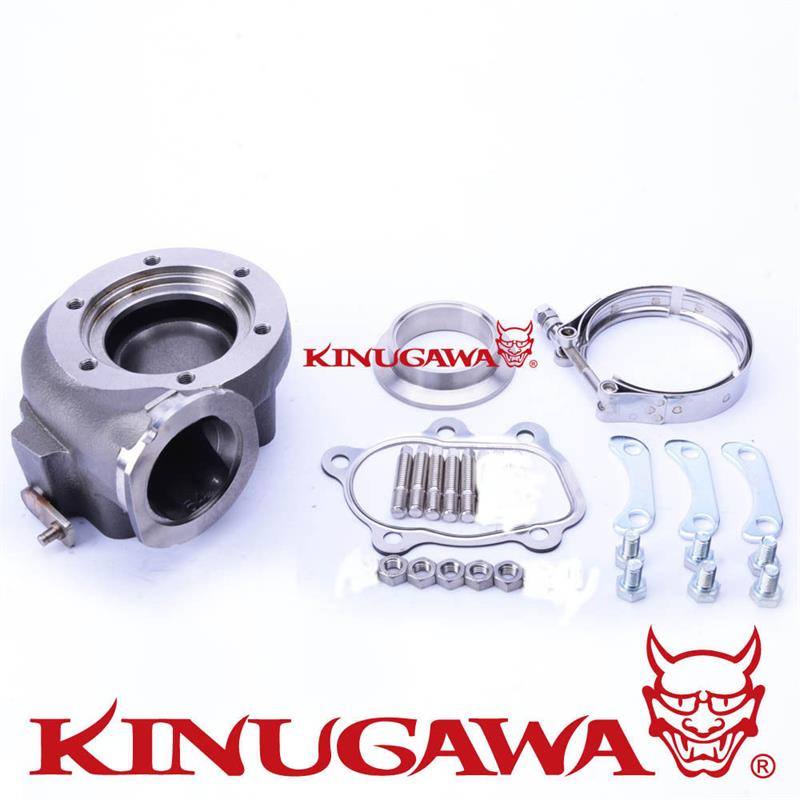

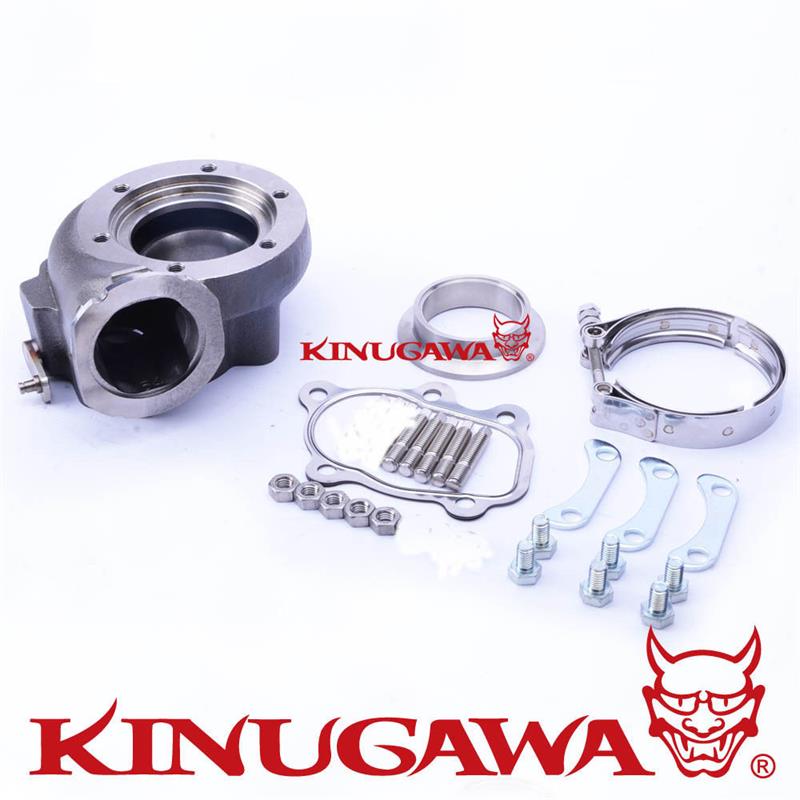

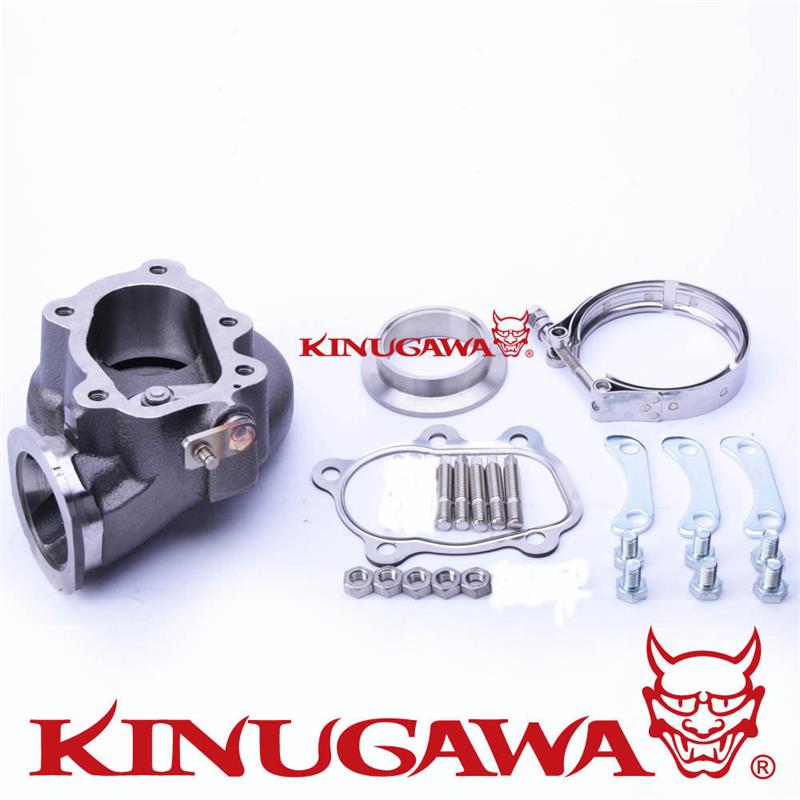

Included

-      1 x Turbine Housing

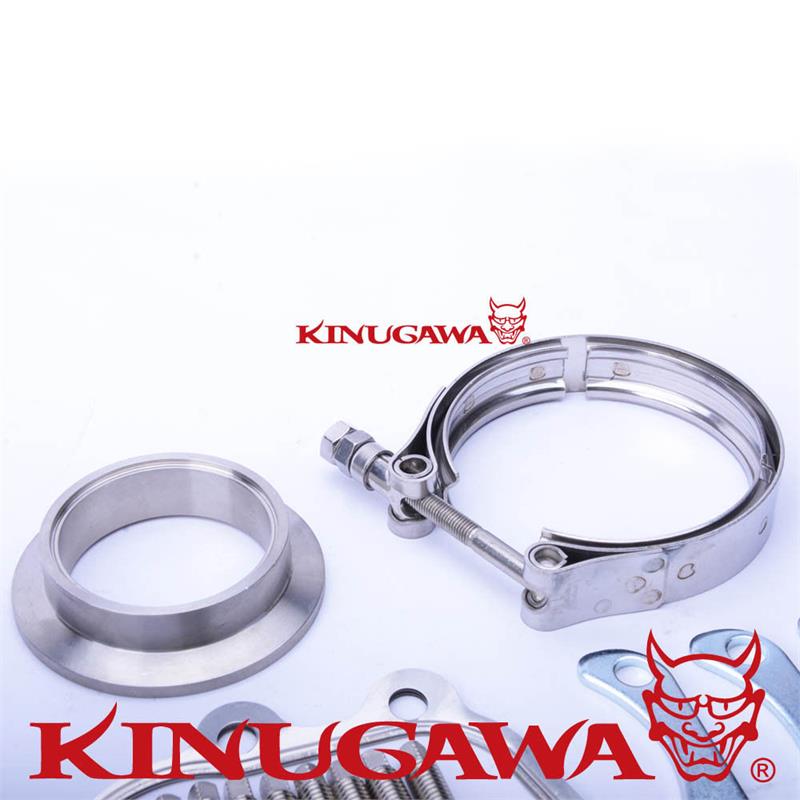

-      1 x Turbine Inlet Clamp & Adapter Set

-      1 x Turbine Outlet Gasket

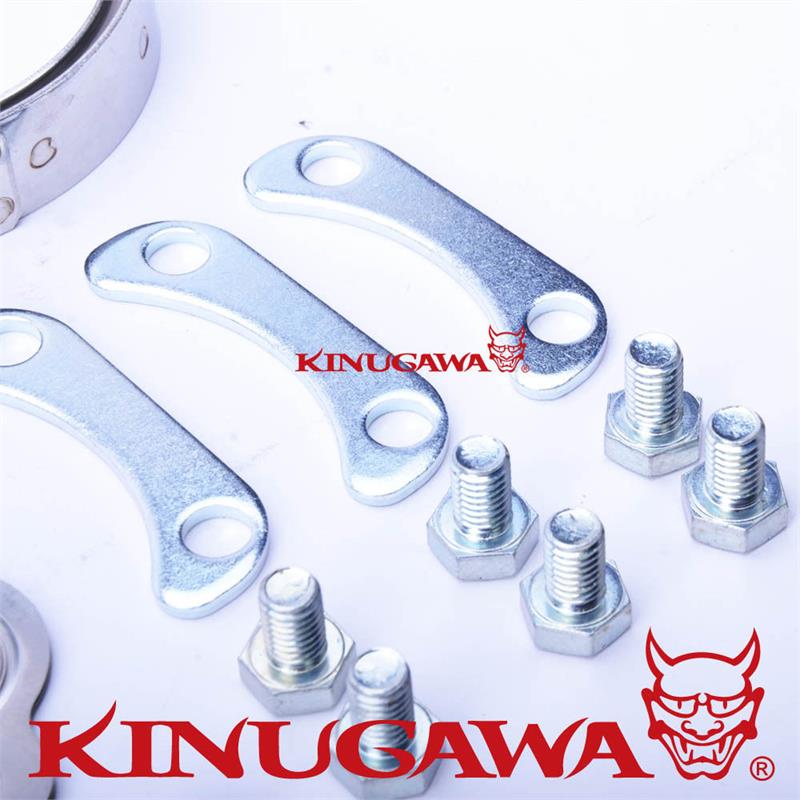

-      3 x Lock Plate

-      6 x Bolt for Lock Plate

-      5 x Stud

-      5 x Nut for Stud

Made By

Kinugawa Turbo
