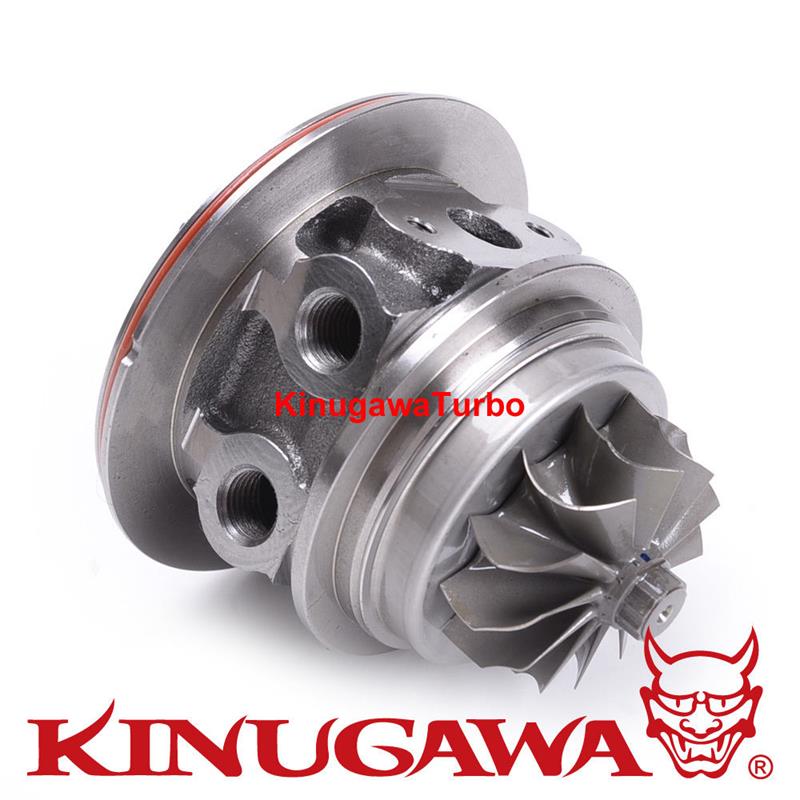

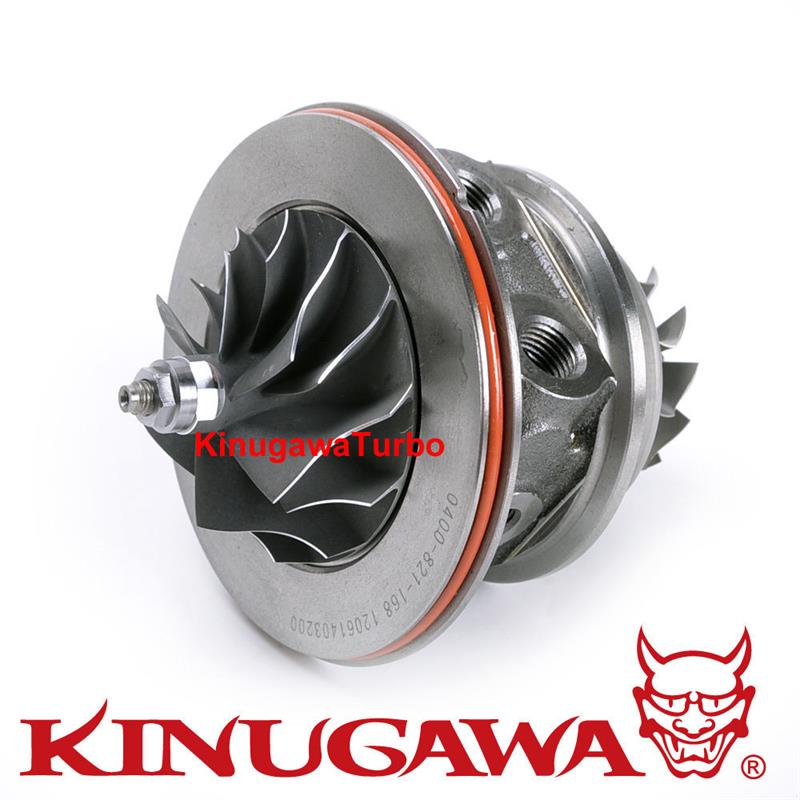

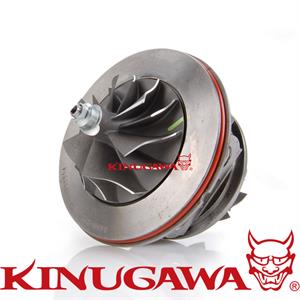

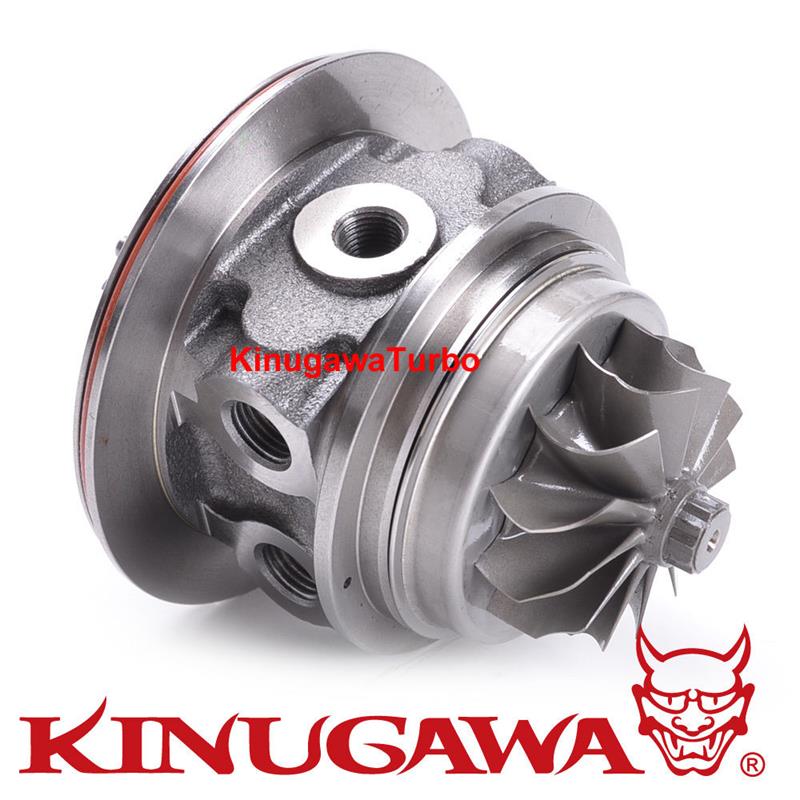

Kinugawa Turbo Cartridge CHRA SUBARU WRX STI TD05H-Small 16G 49178-06300 /-06310
MSRP: $499.00
Price: $449.00
You Save: $50.00
Item Number: 303-02102-046
* Whole number only
|
|
|
Product Information
|
|
Item Name
|
Kinugawa TD05H-Small 16G Turbo Cartridge For Subaru GT555 49178-06300 / 49178-06310 Turbocharger
|
|
P/N
|
303-02102-046
|
|
Application
|
- SUBARU GT555 TD05H-Small 16G Turbocharger.
- 49178-06300, 49178-06310
|
|
Compressor
wheel Spec
|
46 / 60 mm ( Small 16G Cast wheel)
Inducer / Exducer Diameter
|
|
Turbine
Wheel Spec
|
56 / 49.2 mm (TD05H Turbine Wheel)
Inducer / Exducer Diameter
|
|
Balanced
|
Complete CHRA was balanced By SCHENCK MBRS 110
Ready to Competition.
|
|
Thrust Bearing
System
|
Performance Thrust Bearing system
(Double Oil feed hole with larger thrust ring and flinger)
|
|
Cooling System
|
Oil and Water-cooled system
|
|
Extra parts
|
All Parts showed on my item page will go within the same package
|
|
Instruction
|
Installing instruction will be emailed to those who request it
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
