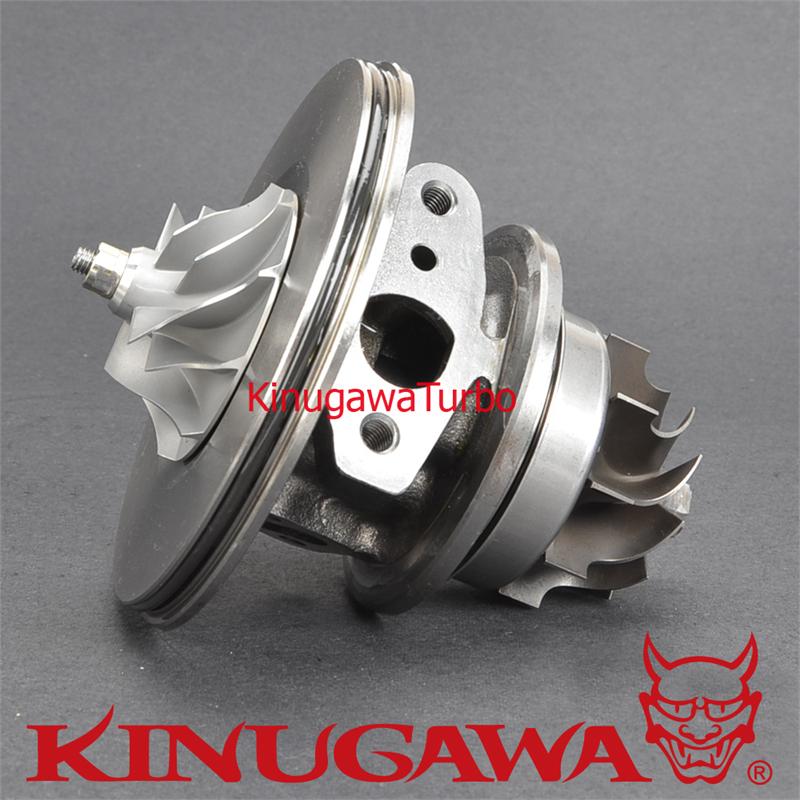

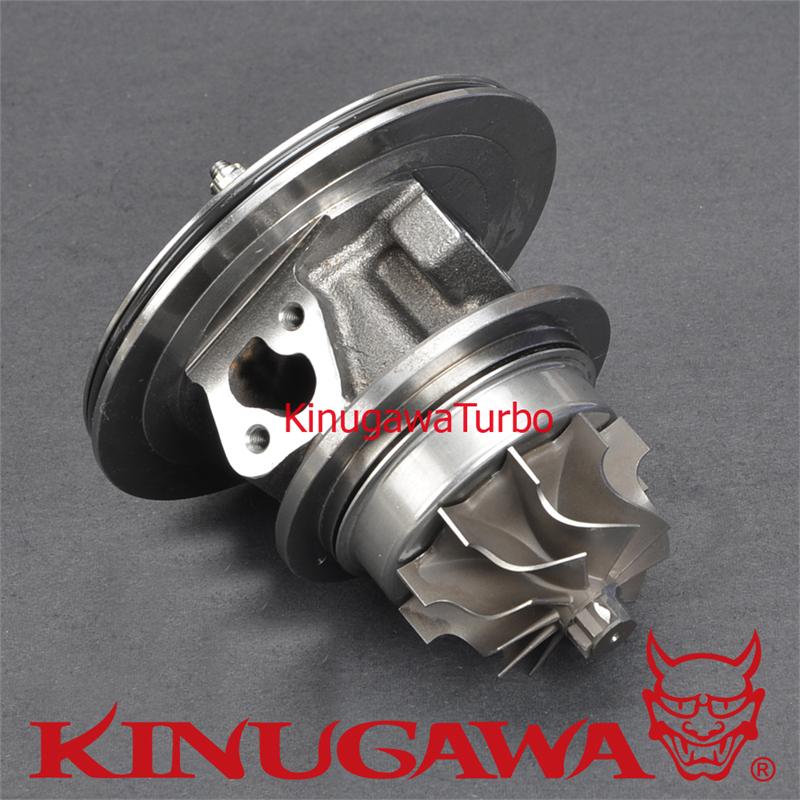

Kinugawa Turbo Cartridge TOYOTA CT26 1HD 12HT 4L Diesel Land Cruiser 17201-17010
|
Item Number: 303-02107-003
* Whole number only
|
|
| TOYOTA PN |
17201-17035 |
| Application |
- 17201-17010 / 17201-17020 / 17201-17030 TOYOTA 1HD 4.2L Diesel turbocharger.
- 17201-58010, 17201-58020, 17201-58011 3.4L Diesel 13B Turbo.
- 17201-68010 12HT / 4L Diesel turbocharger.
- 17201-74030, 17201-74040, 17201-74060 3SGTE MR2
- 17201-42020, 17201-42011 Supra 7MGTE
|
| Compressor Wheel |
- Inducer Dia.: 41.8 mm
- Exducer Dia. 65 mm
|
| Turbine Wheel |
- Inducer Dia.: 67.9 mm
- Exducer Dia. 51.9 mm |
| Thrust bearing kit |
360 Deg Kamak Performance Thrust Bearing Kit |
| Cooling system |
Cooling System |
| Note |
- This CHRA was balanced and ran 180,000 on Schenck 110 VSR machine to make sure it is in good condition.
- CHRA is ready to work.
- This turbo can NOT fit 49185-xxxxx turbo.
|
|
|
|
|
