Kinugawa Turbocharger 3" Anti-Surge TD05H-18G w/ 3 bolt / 8cm/Triangle / V-Band
|
Item Number: 301-02001-353
* Whole number only
|
|
|

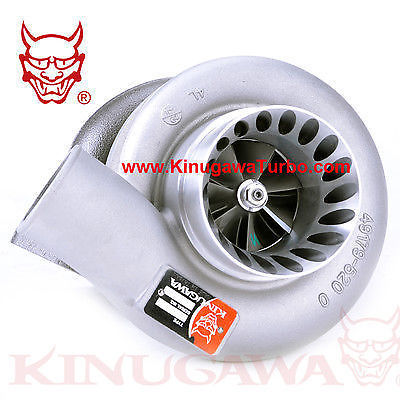

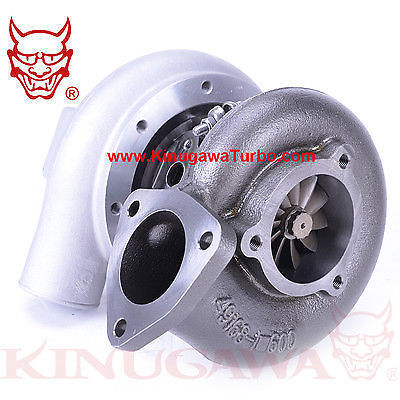

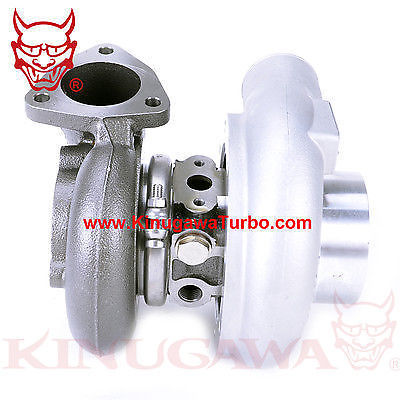

3” Kinugawa Anti-Surge TD05H-18G Water-Cooled Turbocharger 8cm Triangle Turbine Housing
|
|
Item Name
|
3” Kinugawa TD05H-18G Turbo with 18m / 3 bolt Turbine Housing with V-Band dump pipe Adapter
|
|
P/N.
|
|
|
Application
|
- Universal Type
- 2000~3000cc
|
|
CHRA Size:
|
Compressor wheel: 50.3 / 68 mm ( 18G)
Turbine Wheel: 49.2/56.0 mm ( TD05H / 12 Blade)
|
|
Turbine
Housing AR
|

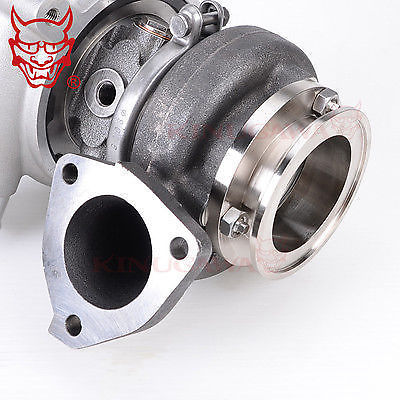

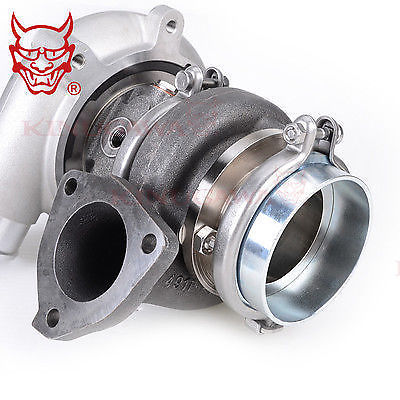

3 bolt / 8cm Triangle Turbine Housing
|
|
Bearing Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling Type
|
Water-Cooled
|
|
Actuator
Pressure
|
No Actuator
|
|
Product
Situation
|
Brand New
|
|

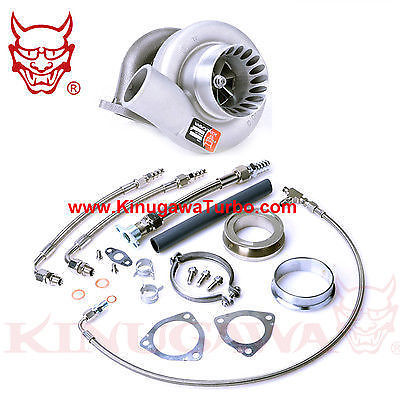

Kit Includes
|
Complete install kit as picture
|
|
Upgrade
Supplier
|
Kinugawa Turbo, Japan
|
|
Warranty
|
One Year
|
|
|
|
|
