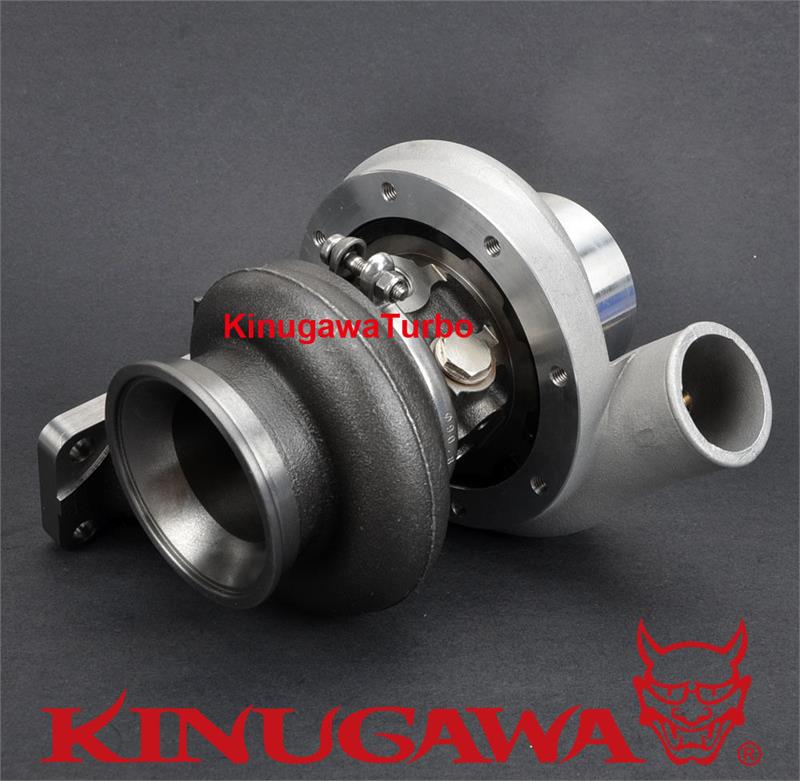

Kinugawa Turbocharger 3" Anti-Surge TD05H w/ Garrett 60-1 wheel + T3/8cm/V-Band
Item Number: 301-02001-244
* Whole number only
|
|
Kinugawa TD05H Turbocharger with Garrett 60-1 Compressor wheel,
3” A/R60 Anti-Surge Cover / T3 Flanged 8cm Turbine Housing
|
Item Name
|
Kinugawa TD05H Turbocharger with Garrett 60-1 Compressor wheel, 3” Anti-surge compressor housing and T3 / 8cm V-Band Turbine Housing.
|
P/N.
|
301-02001-244
|
Application
|
- Universal Type
- 1800~2500cc
|
CHRA Size:
|
- TD05H turbine wheel with Garrett 60-1 compressor wheel.
|
Wheel spec
|
Compressor wheel: 60 / 76 mm (Garrett 60-1)
Turbine wheel: 55.8 / 49.1 mm (TD05H Inconel Wheel)
|
Compressor
Housing
|

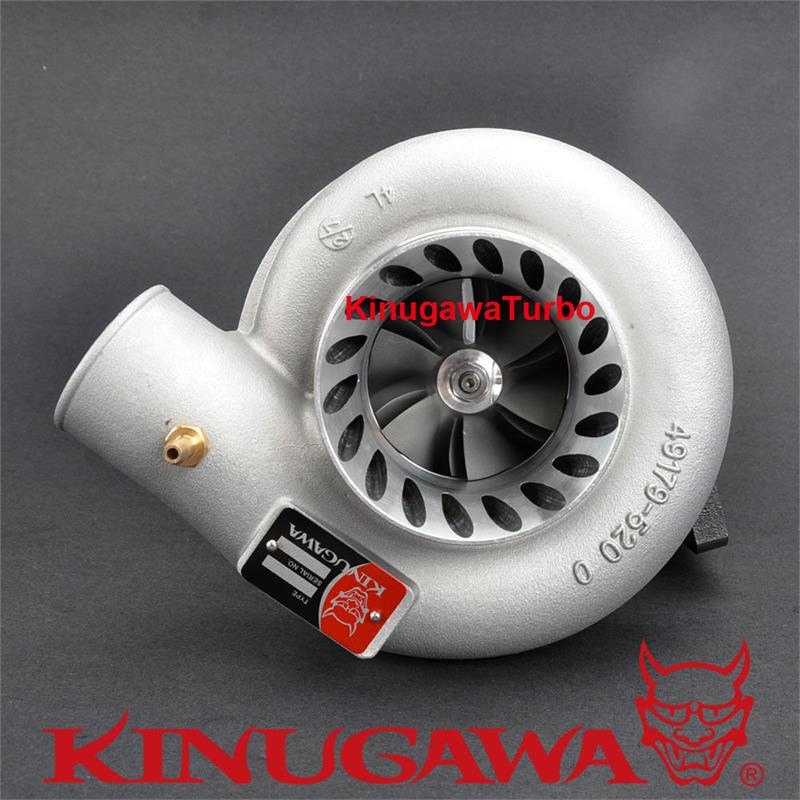

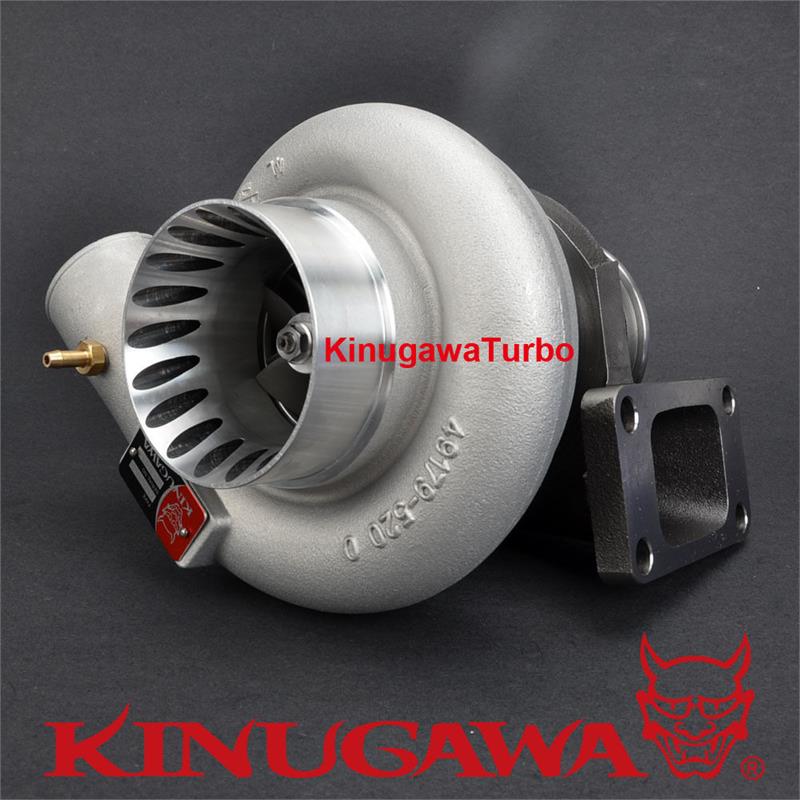

AR60 / 3” Inlet / 2” Outlet
|
Turbine Housing
AR
|

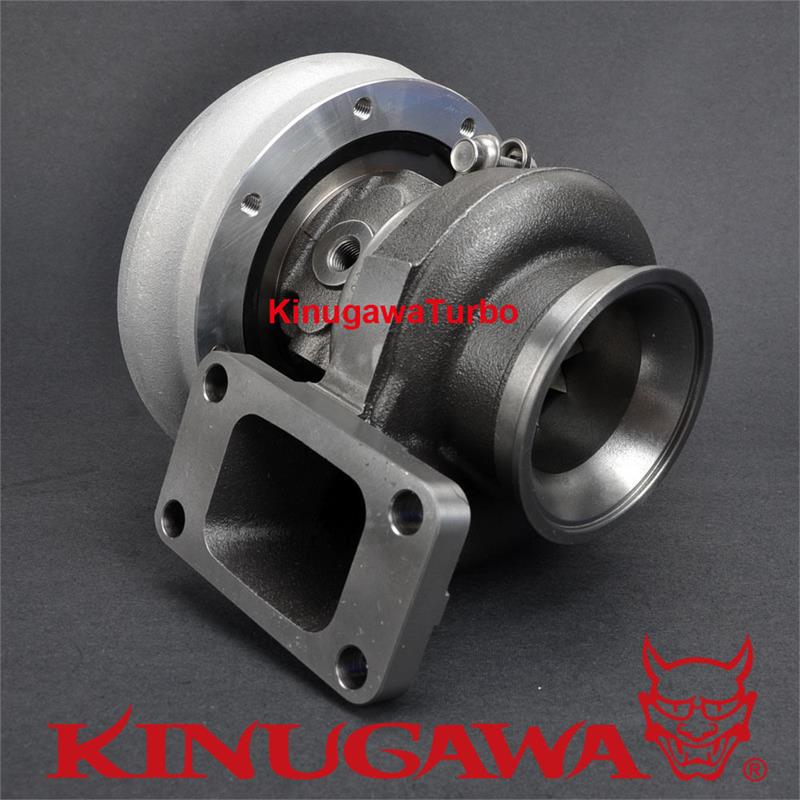

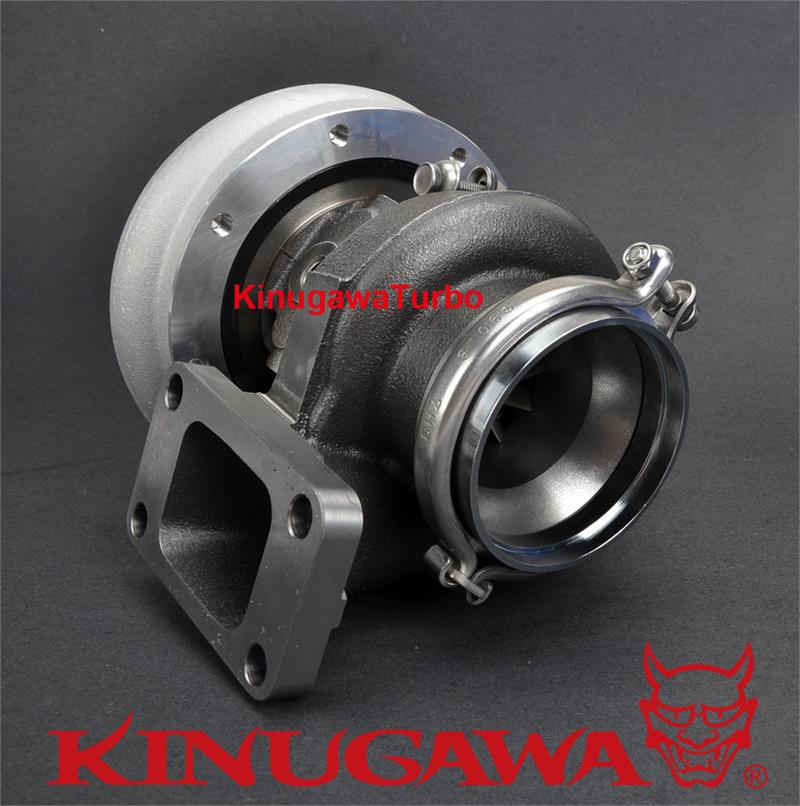

8cm / AR61 T3 Flanged External Gated turbine housing
|
Bearing Type
|
Journal Bearing / KAMAK Performance Thrust Bearing Kit
|
Cooling Type
|
Water-Cooled
|
Max Hp
|
300~400HP
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
Product
Situation
|
Brand New
|

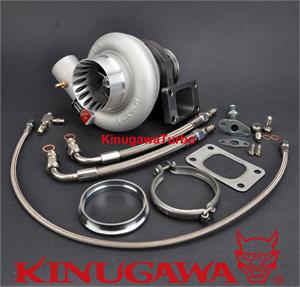

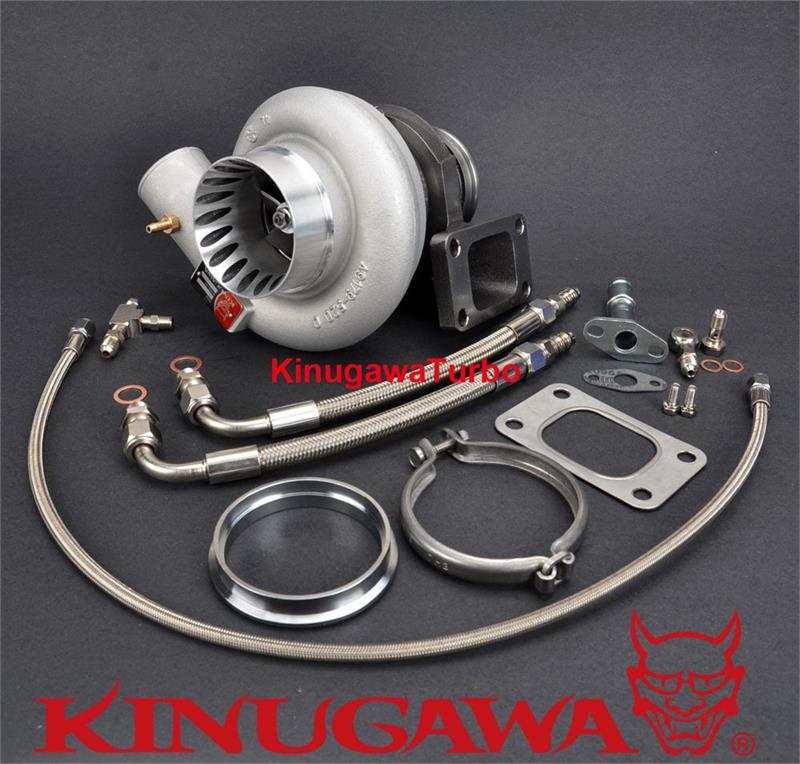

Kit Includes
|
1 x Oil feed line kit ( 70cm Braided Line )
1 x Oil drain pipe kit
1 x T3 Turbine Inlet Gasket
2 x 20cm 6AN Water Line Kit

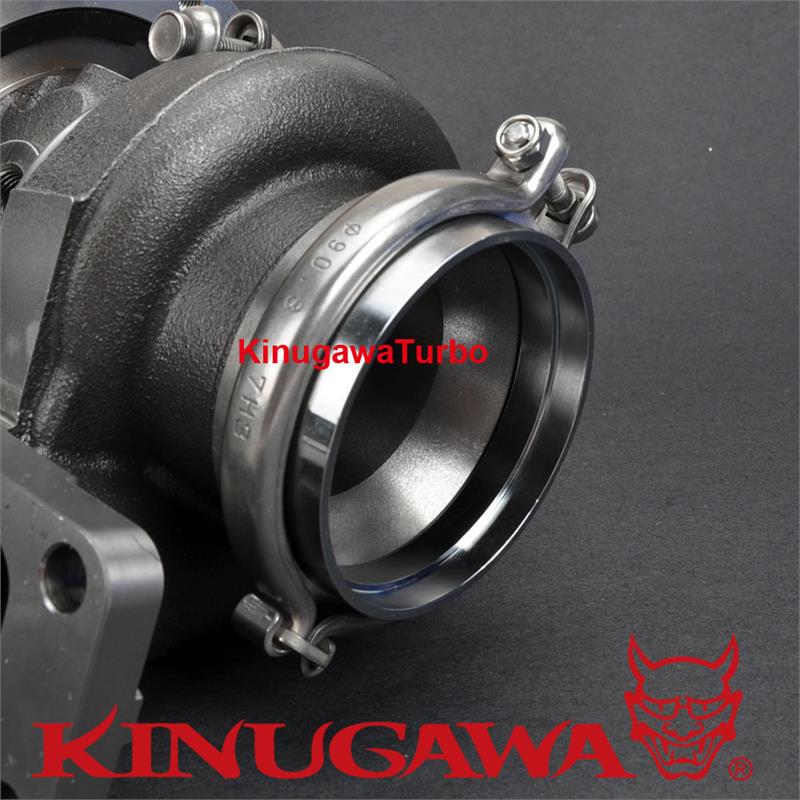

1 x V-Band Pipe Adapter
(Everything shown on picture included)
|
Upgraded By
|
Kinugawa Turbo
|
Warranty
|
One Year
|
|
|
|
|
