Kinugawa Turbocharger 3" Anti-Surge TD06H-25G / 12cm Triangle Flange
|
* Whole number only
|
|
|
Kinugawa TD06H-25G Turbocharger
(3” TD07 -25G Anti-Surge Cover / 12cm Triangle Turbine Housing)
|
|
Item Name
|
Kinugawa TD06H-25G Turbocharger with 3” TD07 Cover and triangle 12cm Turbine Housing
|
|
P/N.
|
|
|
Application
|
- Universal Type
- 2000~3000cc
|
|
Wheel spec
|
- Compressor wheel: 60.5/78 mm (25G Wheel)
- Turbine wheel: 58.8 / 67.2 mm (TD06H / 11 Blades High Flow Inconel Wheel)
|
|
Turbine Housing
AR
|
- 12cm / AR89 Triangle turbine housing
|
|
Bearing Type
|
- Journal Bearing
- KAMAK Performance Thrust Bearing Kit
|
|
Cooling Type
|
- Water-Cooled
|
|
Max Hp
|
400~650 BHP
|
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
|
Product
Situation
|
Brand New
|
|

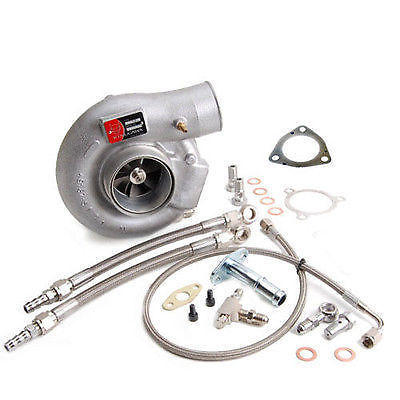

Kit Includes
|
1 x Oil feed line kit ( 100cm Braided Line )
1 x Oil Return Pipe Kit
2 x 24cm 6AN Water Line Kit
1 x Turbine Gasket Inlet Gasket
1 x Turbine outlet Gasket
|
|
Made By
|
Kinugawa Turbo, Japan
|
|
Warranty
|
One Year
|
|
|
|
|
