Kinugawa Turbocharger 3" Anti-Surge TD06H-25G T3 / 12cm
|
* Whole number only
|
|
|
Kinugawa TD06H-25G Turbocharger with
3” Anti-Surge Cover & 12cm T3 Turbine Housing
|
|
Item Name
|
Kinugawa TD06H-25G Anti-Surge Turbocharger with 12cm T3 Turbine Housing
|
|
P/N.
|
|
|
Application
|
- Universal Type
- 2200~3000cc
|
|
CHRA Size:
|
- TD06H-25G
|
|
Wheel spec
|
Compressor wheel: 60.2 / 78 mm (25G Wheel)
Turbine wheel: 58.8 / 67.2 mm (TD06H / 12 Blades Inconel Wheel)
|
|

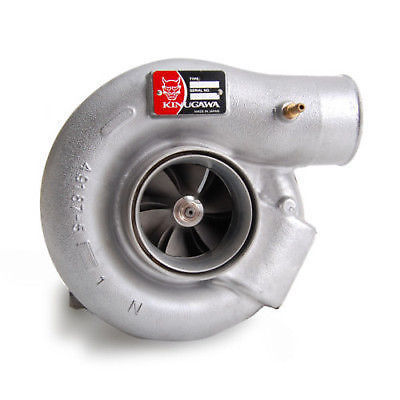

Comp. Housing
AR
|
AR 60
|
|

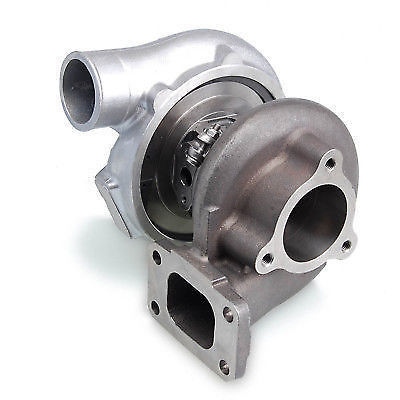

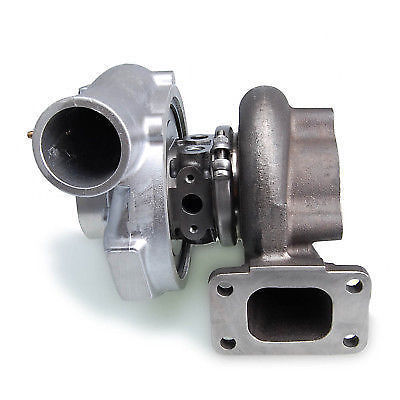

Turbine Housing
AR
|
12cm / AR89 T3 Flanged turbine housing
|
|
Bearing Type
|
Journal Bearing / KAMAK Performance Thrust Bearing Kit
|
|
Cooling Type
|
Water-Cooled
|
|
Max Hp
|
350~480HP
|
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
|
Product
Situation
|
Brand New
|
|

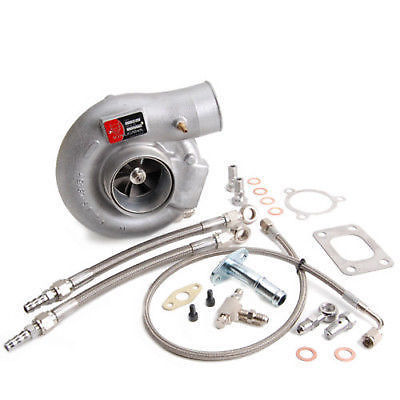

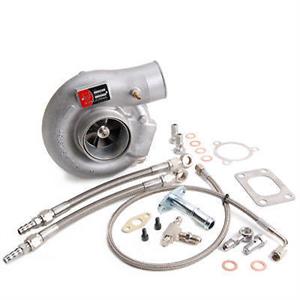

Kit Includes
|
1 x Oil feed line kit ( 104cm Braided Line )
1 x Oil drain pipe kit
2 x Turbine Gasket ( Inlet + Outlet )
2 x 6AN Water Line Kit with barb.
|
|
Upgraded By
|
Kinugawa Turbo, JAPAN
|
|
Warranty
|
One Year
|
|
|
|
|
