Kinugawa Turbocharger 3" Anti-Surge TD06H-25G w/ 3 bolt/12cm/Triangle / V-Band
|
* Whole number only
|
|
|
3” Kinugawa Anti-Surge TD06H-25G Water-Cooled Turbocharger 12cm Triangle Turbine Housing
|
|
Item Name
|

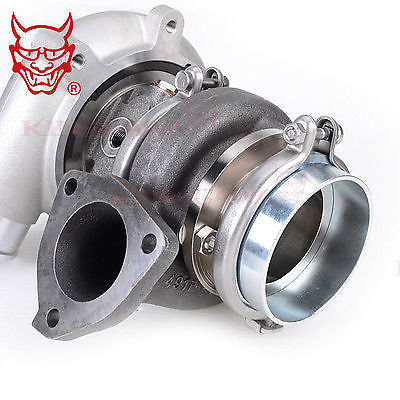

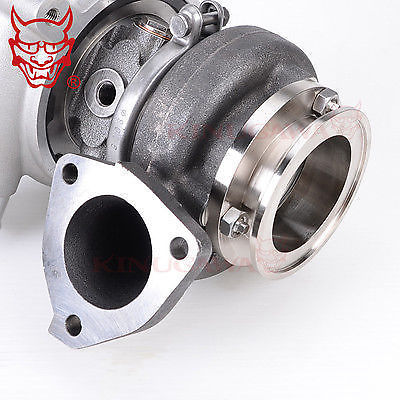

3” Kinugawa TD06H-25G Turbo with 12cm / 3 bolt Turbine Housing with V-Band dump pipe Adapter
|
|
P/N.
|
|
|
Application
|
l 1.8~3L patrol engine / 450~480 HP
l Replace TRUST TD06SL2-20G turbo
|
|
CHRA Size:
|
Compressor wheel: 60.5 / 78mm ( 25G)
Turbine Wheel: 58.8/67.2 mm ( TD06H4 / 11 Blade)
|
|
Turbine
Housing AR
|
3 bolt / 12cm Triangle Turbine Housing
|
|
Bearing Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling Type
|
Water-Cooled
|
|
Actuator
Pressure
|
No Actuator
|
|
Product
Situation
|
Brand New
|
|
Kit Includes
|

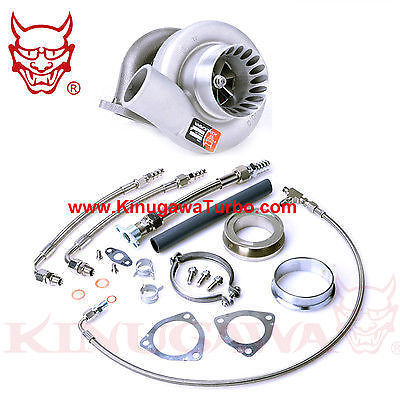

Complete install kit as picture
|
|
Upgrade
Supplier
|
Kinugawa Turbo, Japan
|
|
Warranty
|
One Year
|
|
|
|
|
