Kinugawa Turbocharger 3" Anti-Surge TD06SL2-18G w/ 3 bolt/8cm/Triangle / V-Band
|
Item Number: 301-02001-050
* Whole number only
|
|
|

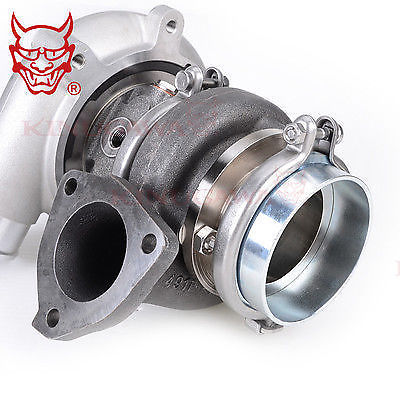

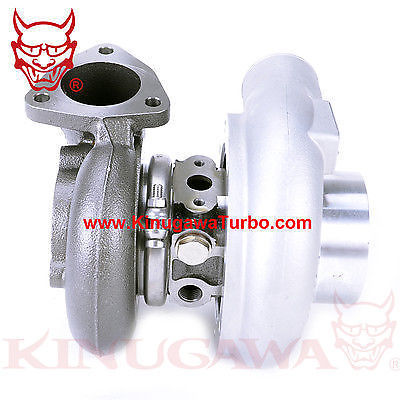

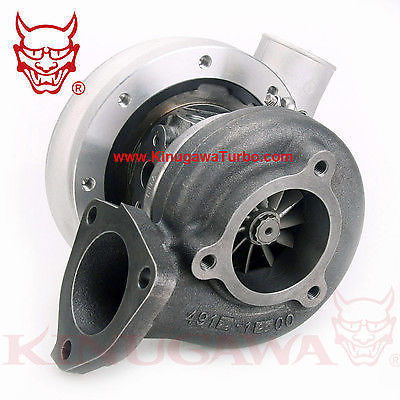

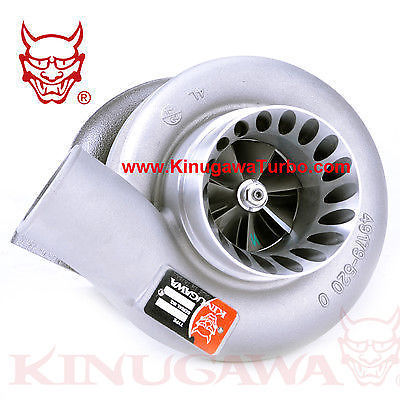

3” KINUGAWA Anti-Surge TD06SL2-18G Water-Cooled Turbocharger with 3 bolt 8cm Triangle Turbine Housing
|
|
Item Name
|
3” Kinugawa Anti-Surge TD06SL2-18G-8 Turbocharger with 3 bolt Triangle turbine Housing.
|
|
P/N.
|
301-02001-050
|
|
Application
|
l 1.8~2.5L patrol engine / 350~450 HP
l Replace TRUST TD05H-18G turbo
|
|
CHRA Size:
|
Compressor wheel: 50.3 / 68mm ( 18G wheel)
Turbine Wheel: 54.1 / 61mm ( 11 blade TD06SL2)
|
|
Turbine
Housing AR
|
8cm Triangle Turbine Housing
|
|
Bearing Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling Type
|
Water-Cooled
|
|
Actuator
Pressure
|
No Actuator
|
|
Product
Situation
|
Brand New
|
|
Kit Includes
|

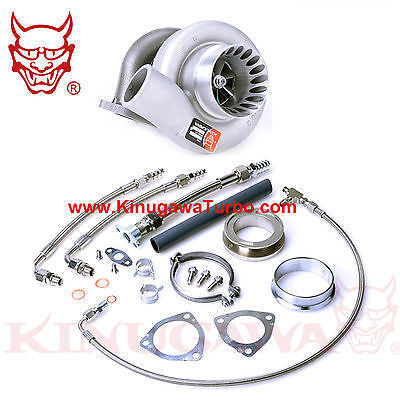

Complete install kit as picture
|
|
Upgrade
Supplier
|
Kando_Dynamic JAPAN
|
|
Warranty
|
- One Year warranty
- Life time service
|
|
|
|
|
