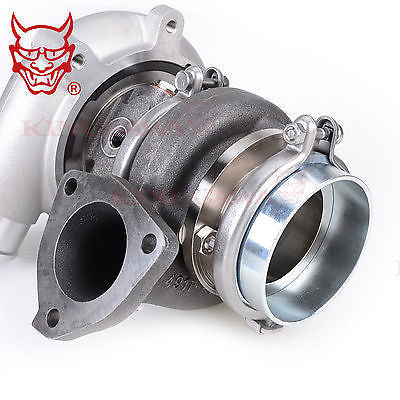

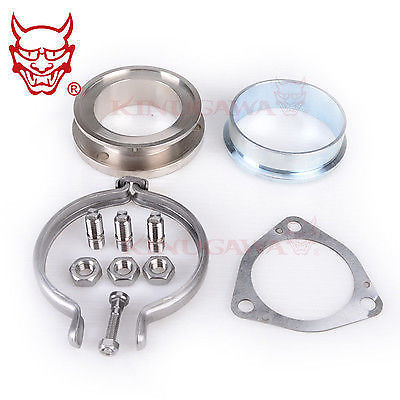

Kinugawa Turbocharger 3" Anti-Surge TD06SL2-25G T25/8cm Housing / V-band Adapter
|
* Whole number only
|
|
|

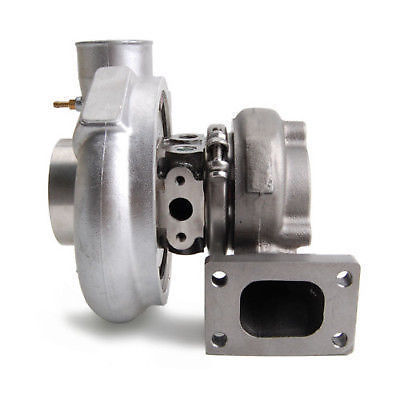

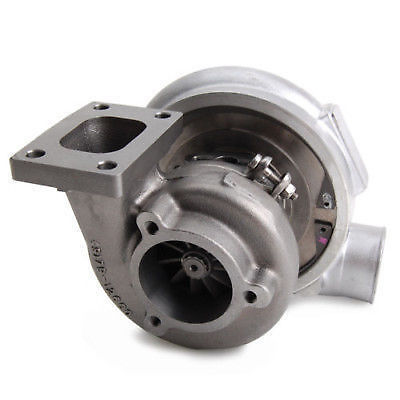

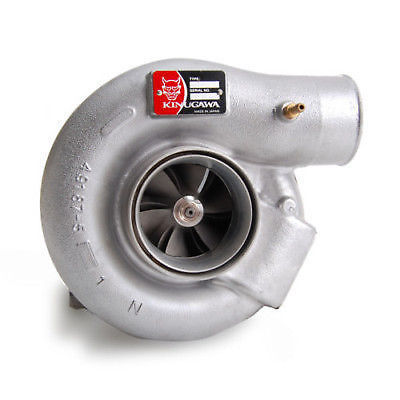

Kinugawa 3” Anti-Surged Cover / T25 Flange Turbocharger
TD06SL2-25G with 8cm Turbine Housing
|
|
Item Name
|
Kinugawa 3” TD06SL2-25G Anti-Surge Turbocharger with T25 Flange
|
|
P/N.
|
|
|
Application
|
- Universal Type
- 1800~2500cc
|
|
CHRA Size:
|
- TD06SL2-25G
|
|
Wheel spec
|
- Compressor wheel: 60.2 / 78 mm (25G Wheel)
- Turbine wheel: 54.1 / 61 mm (TD06SL2 / 11 Blades
Inconel Wheel)
|
|
Comp. Housing
AR
|
AR 60
|
|
Turbine Housing
AR
|
8cm / AR57 T25 Flanged turbine housing
|
|
Bearing Type
|
Journal Bearing / KAMAK Performance Thrust Bearing Kit
|
|
Cooling Type
|
Water-Cooled
|
|
Max Hp
|
350~480HP
|
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
|
Product
Situation
|
Brand New
|
|

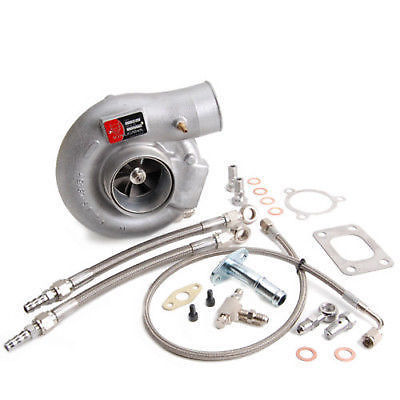

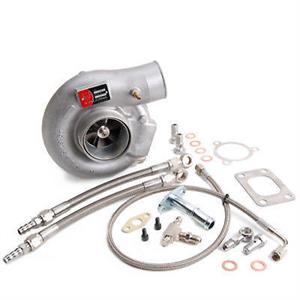

Kit Includes
|
1 x Oil feed line kit ( 104cm Braided Line )
1 x Oil drain pipe kit
2 x Turbine Gasket ( Inlet + Outlet )
2 x 6AN Water Line Kit with barb.
|
|
Upgraded By
|
Kinugawa Turbo, JAPAN
|
|
Warranty
|
One Year
|
|
|
|
|
