Kinugawa Turbocharger 3" Anti-Surge TD06SL2-25G Triangle / 8cm / Oil-Cooled

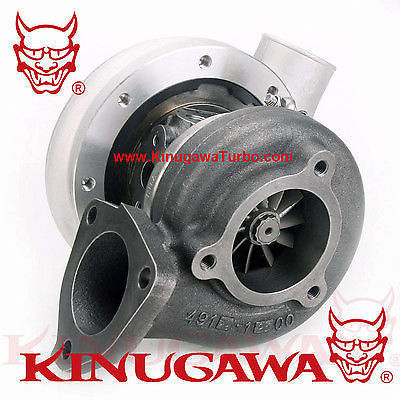

Kinugawa TD06SL2-25G Turbocharger

(3” Cover / 8cm Triangle Greddy Turbine Housing / Oil-Cooled)

Item Name

Kinugawa TD06SL2-25G Turbocharger with 3” Cover and Greddy Triangle / 8cm Turbine Housing

P/N.

Application

-       Universal Type

-       1800~3000cc

Wheel spec

-       Compressor wheel: 60.5/78 mm (25G Wheel)

-       Turbine wheel: 54.1/61 mm (TD06SL2 / 11 Blades Inconel Wheel)

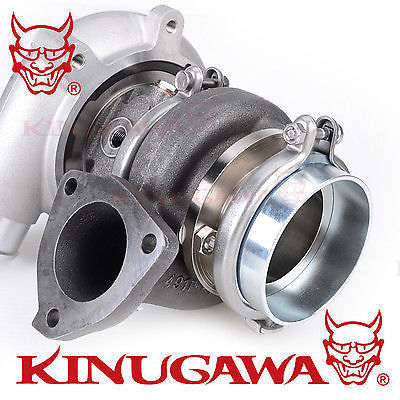

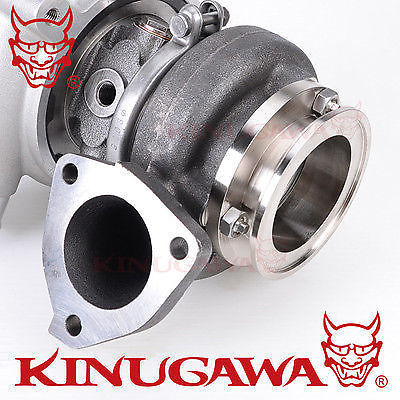

Turbine Housing

AR

<!--[if !supportLists]-->-       <!--[endif]-->8cm / AR57 Triangle Flanged Turbine Housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil-Cooled

Max Hp

400~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

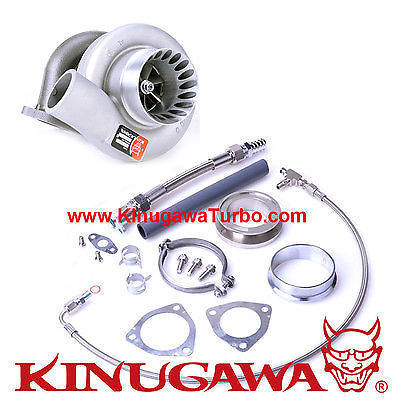

Kit Includes

1 x Oil feed line kit ( 100cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

Made By

Kinugawa Turbo, Japan

Warranty

One Year
