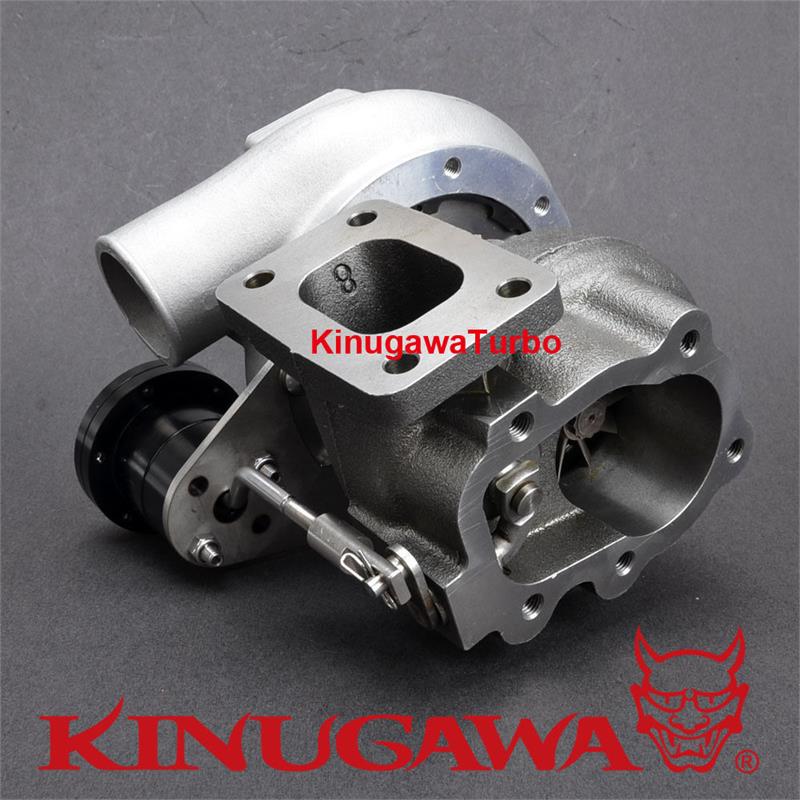

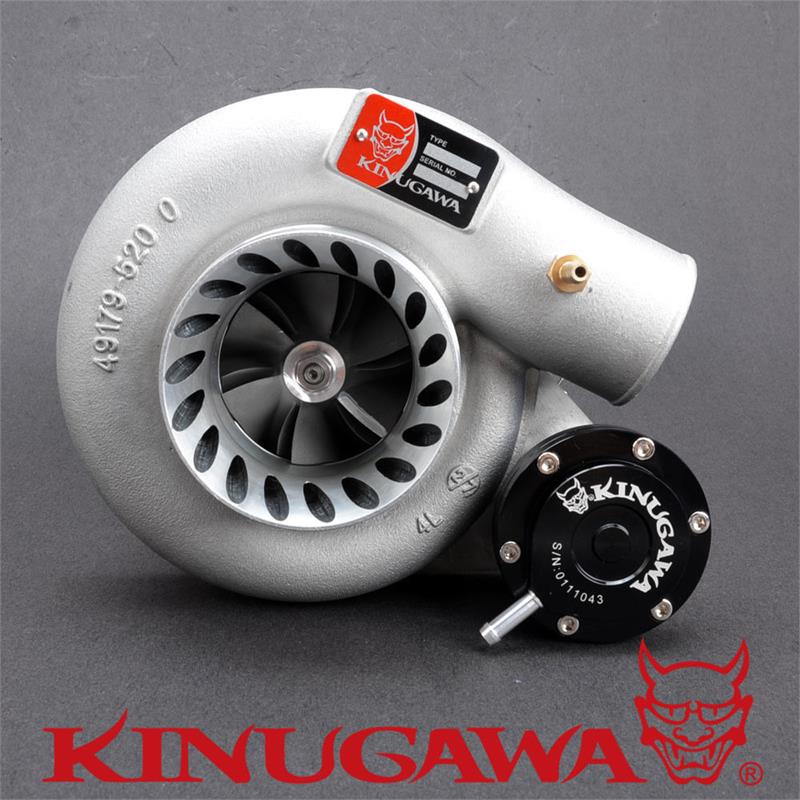

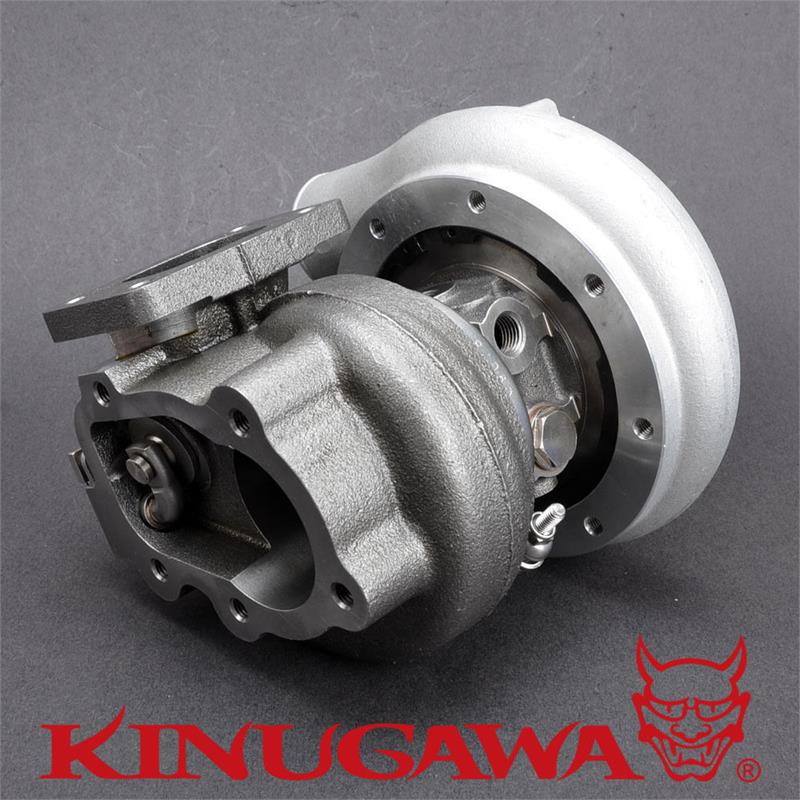

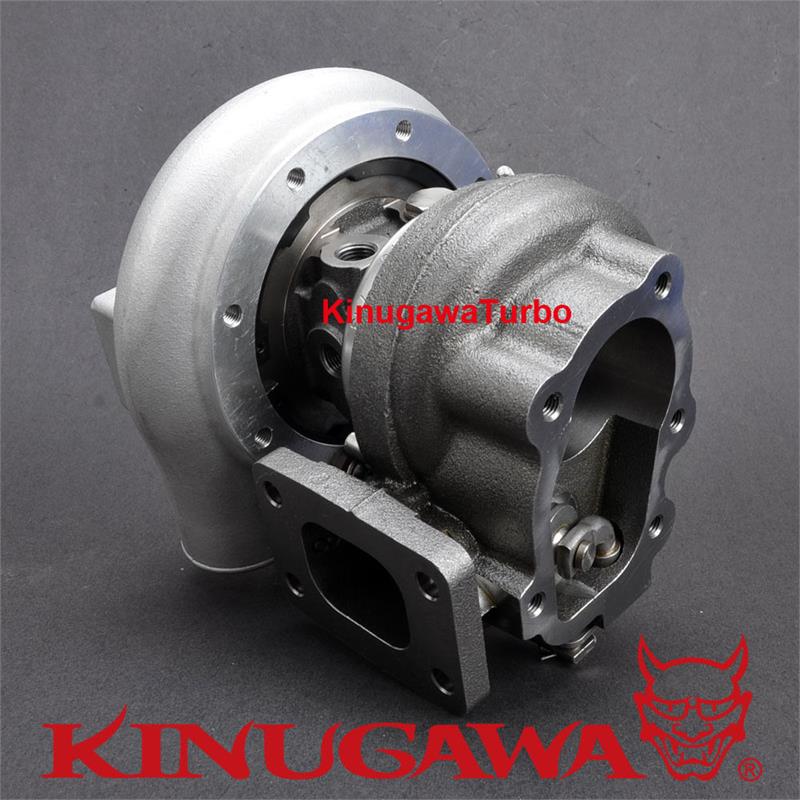

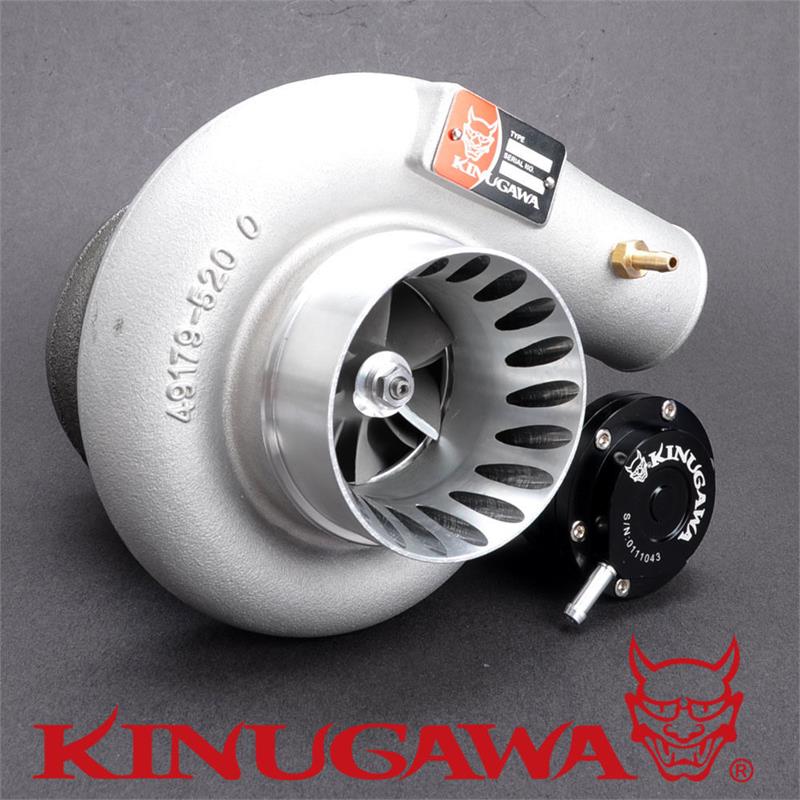

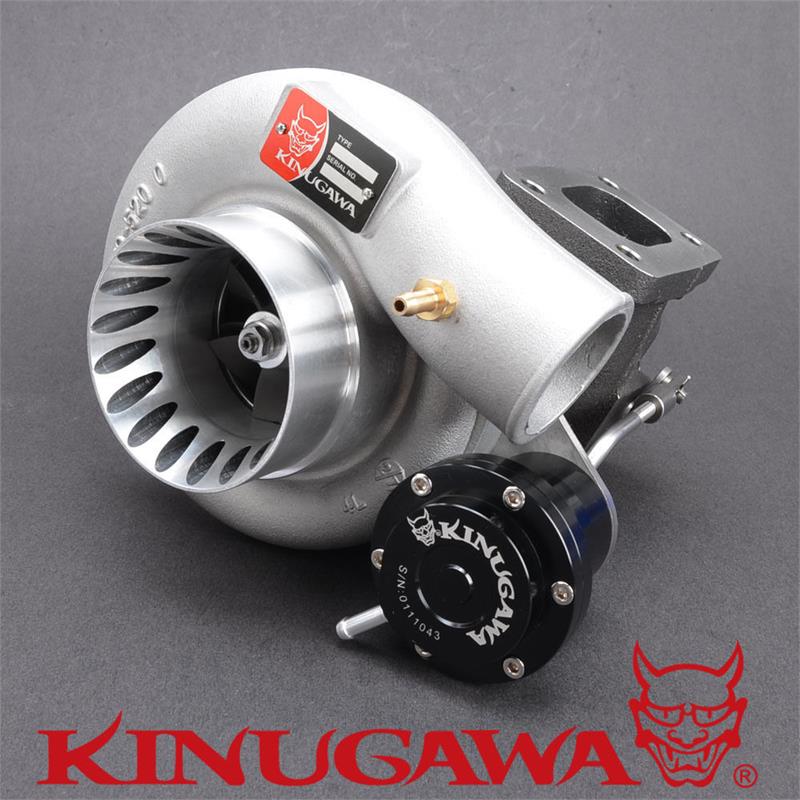

Kinugawa Turbocharger 3" Anti Surge SR20DET SILVIA S14 S15 TD05H-18G 8cm T25 Flg
|
Item Number: 301-02035-095
* Whole number only
|
|
|
Product Information
|
|
Item Name
|
NISSAN SILVIA SR20DET S14 S15 TD05H-18G Turbocharger with 3" Anti Surge Cover
|
|
Kando_Dynamic
P/N.
|
301-02035-095
|
|
Application
|
NISSAN SR20DET SILVIA S14 S15
|
|
Replace Turbo
|
Replace and upgrade stock Garrett T28 turbo direclty
|
|
CHRA Size:
|
TD05H-18G
|
|
Turbine Housing
AR
|
8 cm^2 Ported Turbine Housing
|
|
Flapper
|
33mm Larger Turbine Flapper
|
|
Bearing Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling Type
|
Oil and Water-Cooled
|
|
Actuato
Pressure
|
-1bar / 14~15 psi spring will go with this adjustable actuator.
- 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring is available on our ship.
|
|
Max Hp
|
350~420HP
|
|
Turbo Boost
Limit
|
2.8 Bar ( Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 Bar
|
|

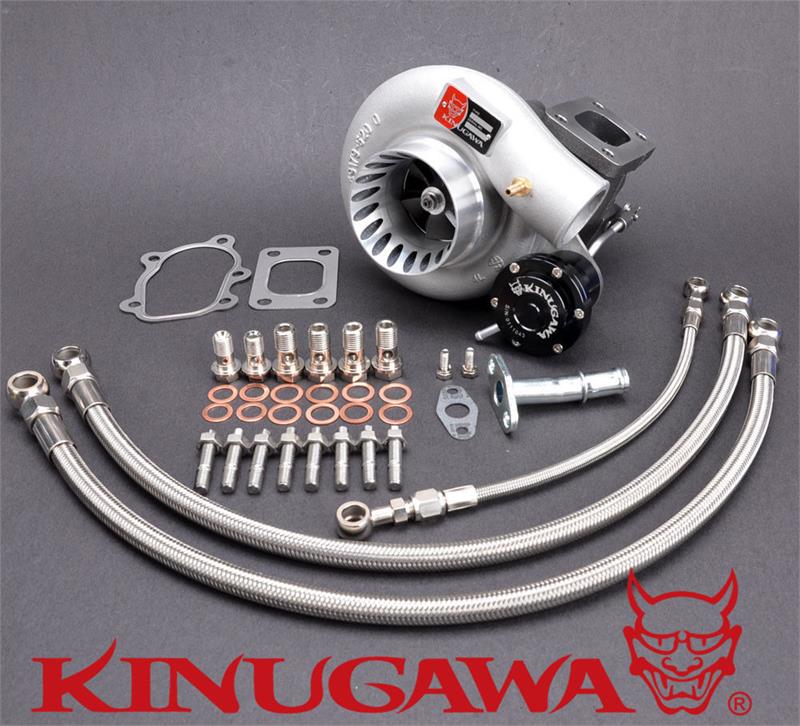

Kit Includes
|
Everything shown on fitst picture
|
|
Product
Situation
|
Brand new in box
|
|
Balance
|
150,000 RPM on VSR
|
|
Net Weight
|
8 KG
|
|
Supplier
|
Kando_Dynamic
|
|
Warranty
|
One year
|
|
|
|
|
