Kinugawa Turbocharger 3" Anti Surge TD05H-18G / 10cm T3 V-Band Internal Gate

Product Information

Item Name

Kinugawa 3” Anti Surge TD05H-18G Turbocharger with T3 10cm Internal Gate V-band Turbine Housing

P/N.

301-02001-276

Application

-       Universal Type

-       2000~3000cc

Wheel spec

-       Comp. wheel: 50.3/68 mm (18G Stage 3 Cast Wheel)

-       Turbine wheel: 49.2/56 mm (TD05H / 12 blade )

Compressor

Housing

-       A/R 60

-       Compressor Inlet : 80.5 mm / 3.25”

-       Compressor Outlet : 51mm / 2”

Turbine Housing

AR

-     10cm (A/R .73)

-    T3 Inle Flange

-   Internal Gate

Bearing Type

Journal Bearing

Cooling Type

Oil and Water-Cooled

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Actuator Pressure

-       1.0 bar spring will be pre-installed on this adjustable actuator.

-       0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar springs are available on our shop and we will combine shipping when we receive order.

Product

Situation

Brand New

Kit Includes

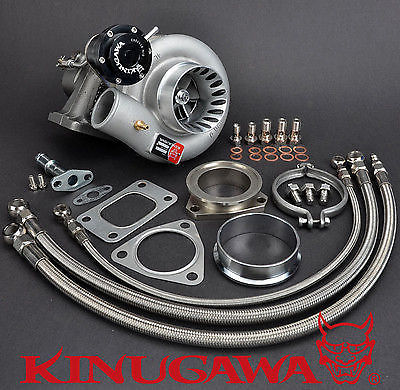

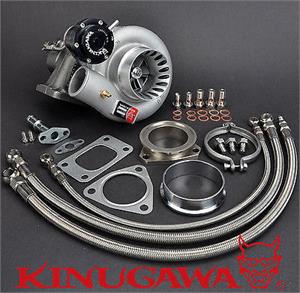

Everything shown on picture is included

Made By

Kinugawa Turbo

Warranty

One Year
