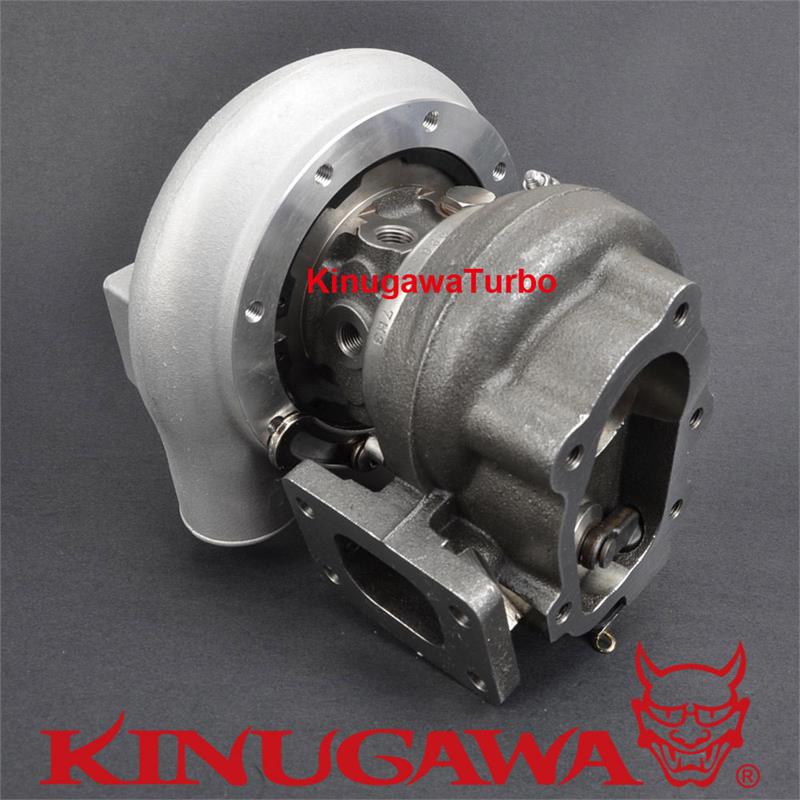

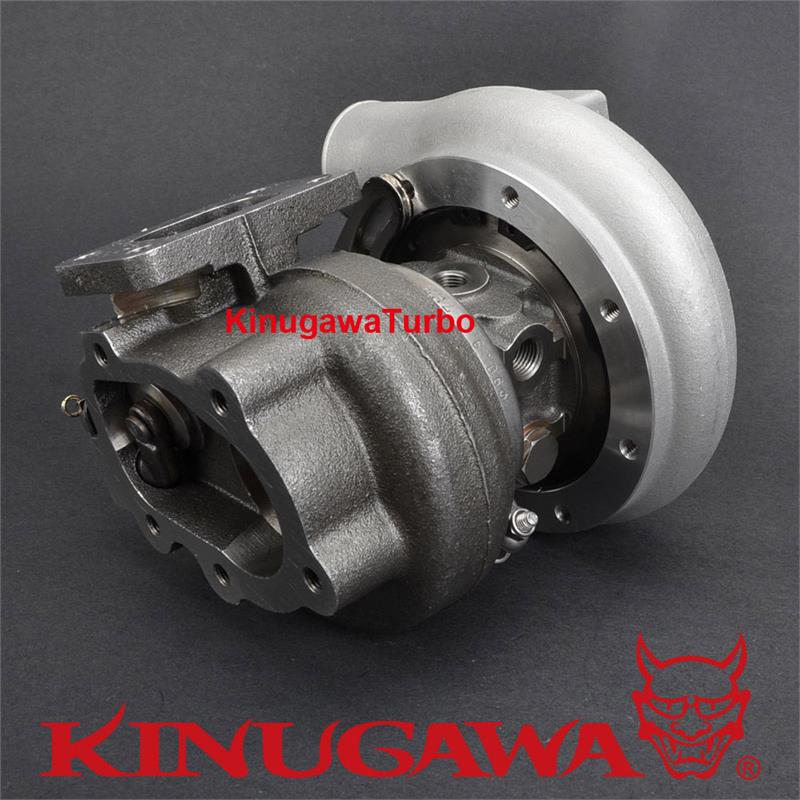

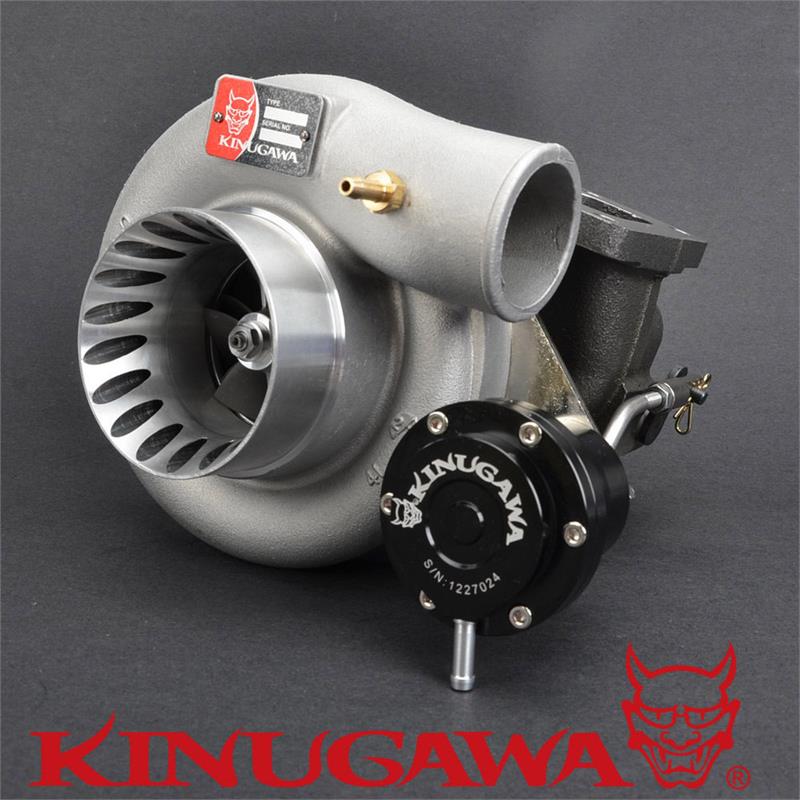

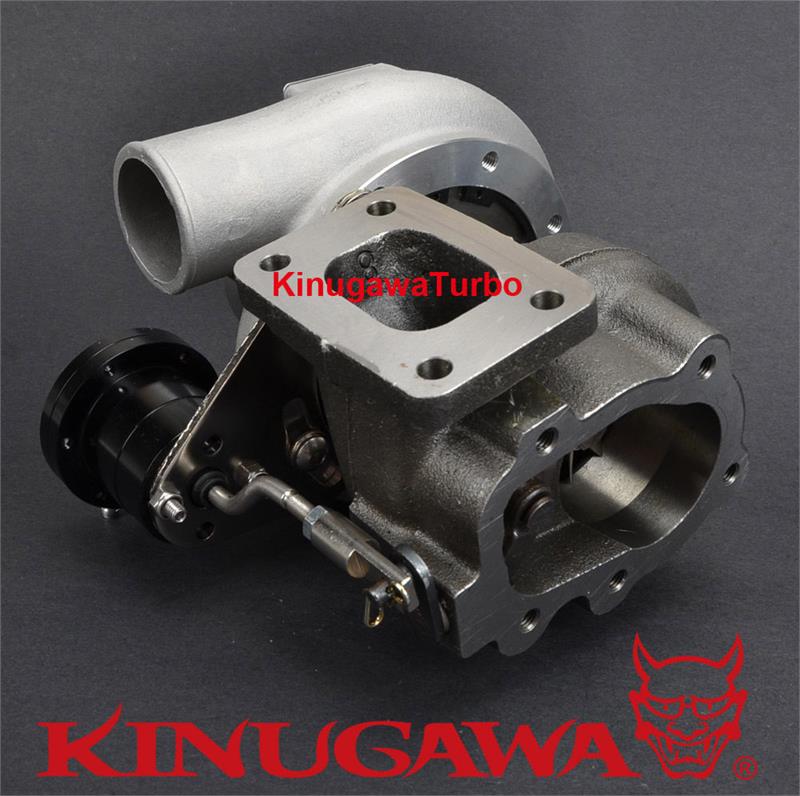

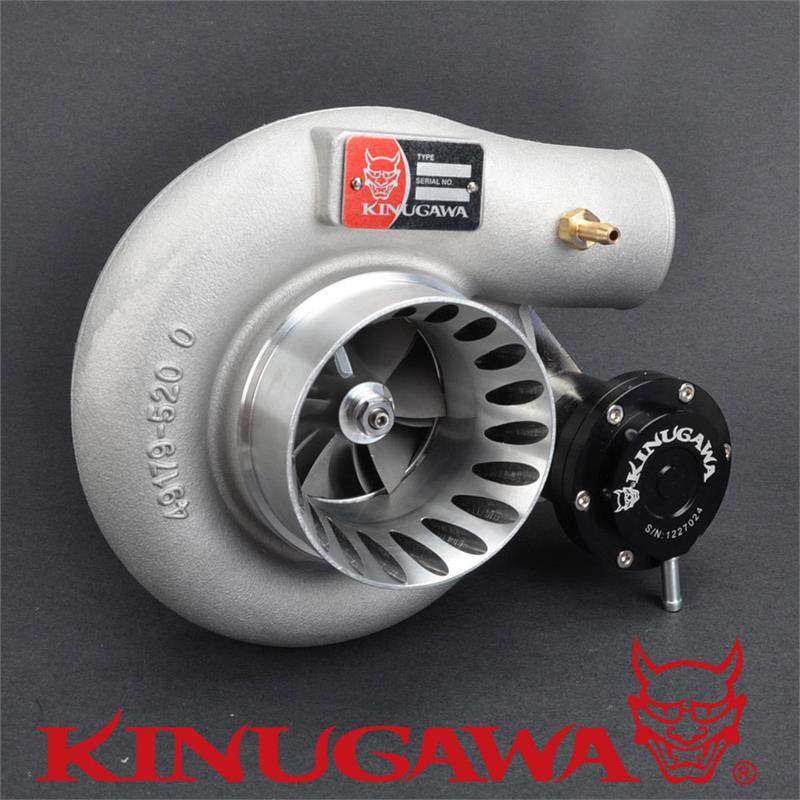

Kinugawa Turbocharger 3" Anti Surge TD05H-18G / T25 Flange / 8cm / Internal Gate

Product Infromation

Item Name

Kinugawa 3” Anti Surge TD05H-18G Turbocharger with 8cm T25 Internal Gate turbine housing and adjustable actuator

P/N.

 301-02001-180

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-       TD05H-18G

Wheel spec

Compressor wheel: 50.3 / 68 mm (18G Wheel)

Turbine wheel: 55.8 / 49.1 mm (TD05H Inconel Wheel)

Turbine Housing

AR

8cm / AR57 T25 Flanged turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

Actuator

Pressure

-       1 Bar / 15 psi Spring is installed on this adjustable actuator.

-       0.3Bar, 0.5bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available on our shop.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~400HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

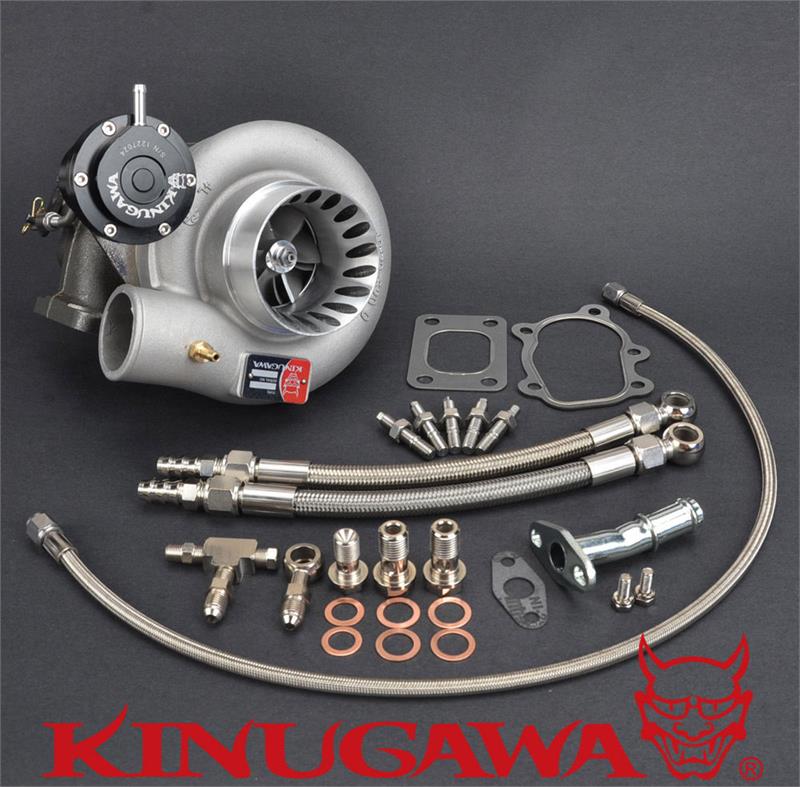

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Turbine Gasket ( Inlet + Outlet )

Upgraded By

Kinugawa Turbo

Warranty

One Year
