Kinugawa Turbocharger 3" Anti Surge TD06H-25G w/ T3 / 8cm / V-Band Internal gate

Product Information

Item Name

Kinugawa 3” Anti Surge TD06H-25G w/ T3 8cm V-Band Internal Gate Turbine Housing.

P/N.

Application

-  Universal Type

- 2000~3000cc

CHRA Size:

- TD06H with 25G compressor wheel.

Wheel spec

Compressor wheel: 60.46 / 77.96 mm (Inducer/Exducer Dia)

Turbine wheel: 58.8 / 67.2 mm (TD06H4 / 11 Blades of Inconel Wheel)

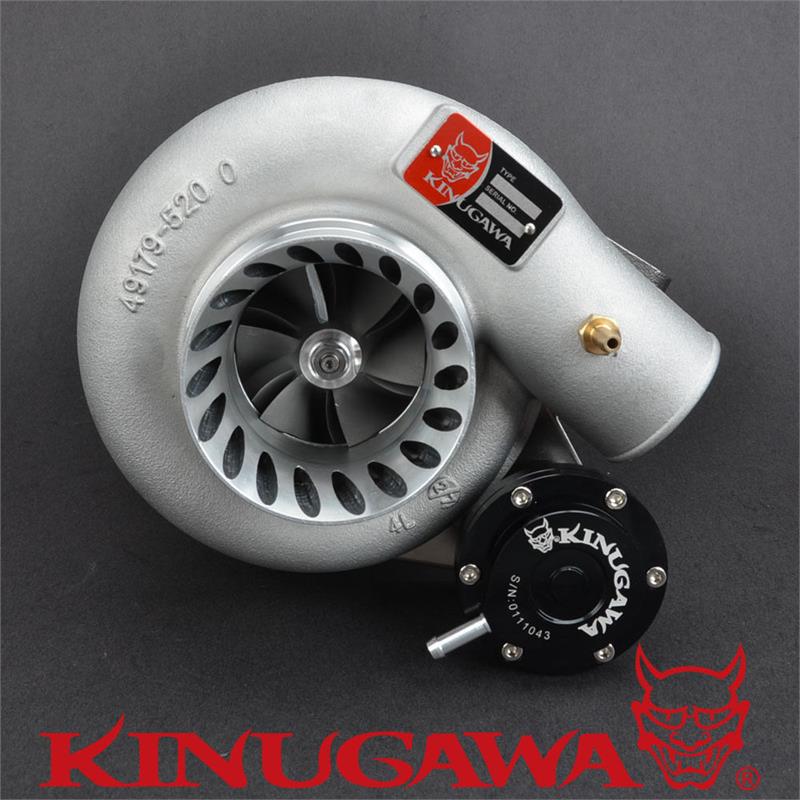

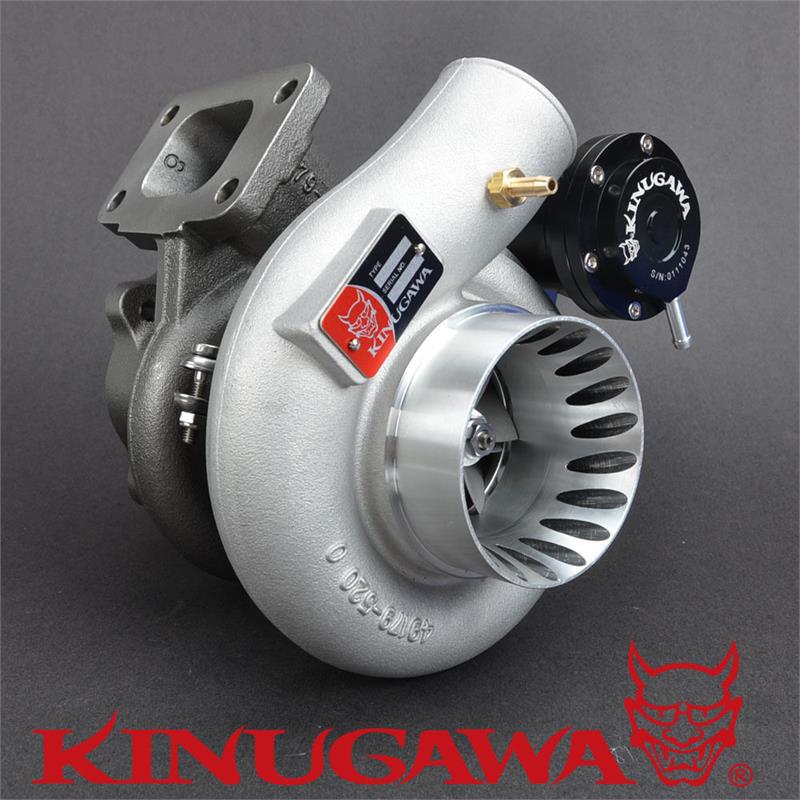

Compressor

Housing

- A/R 60

- Compressor Inlet : 76mm / 3”

- Compressor Outlet : 51mm / 2”

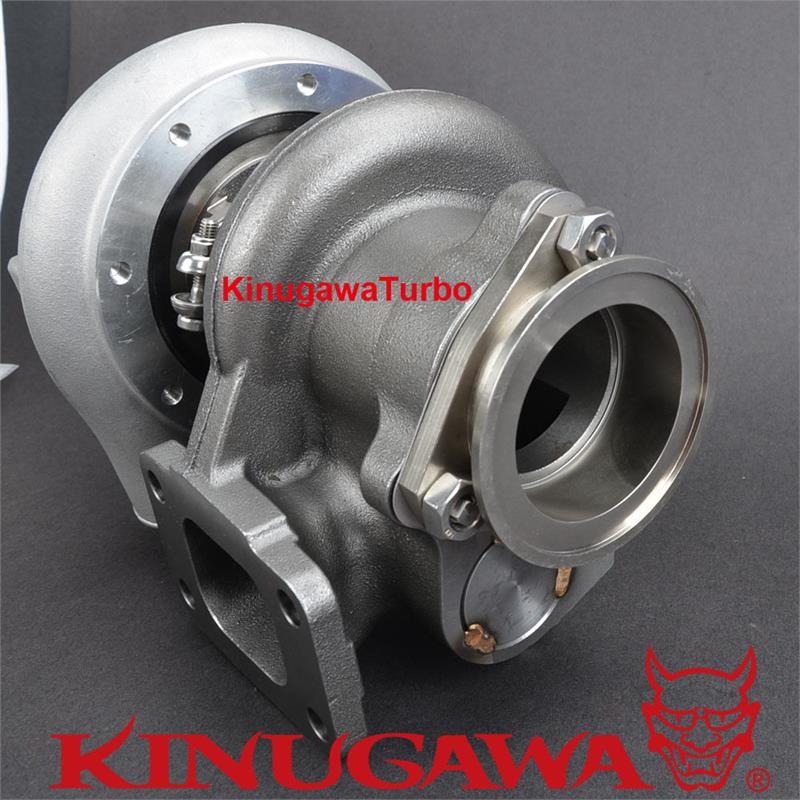

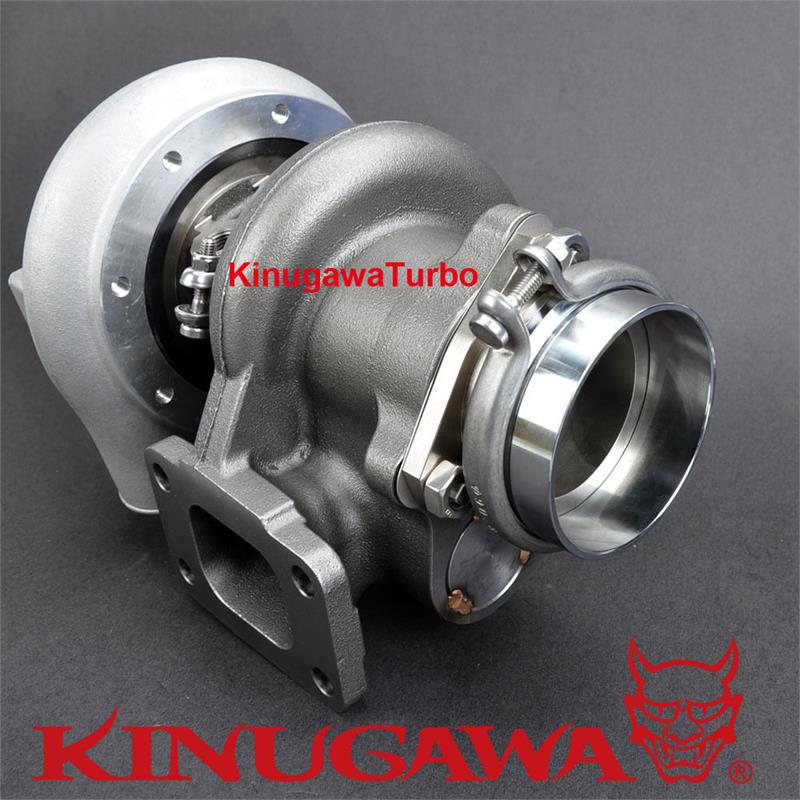

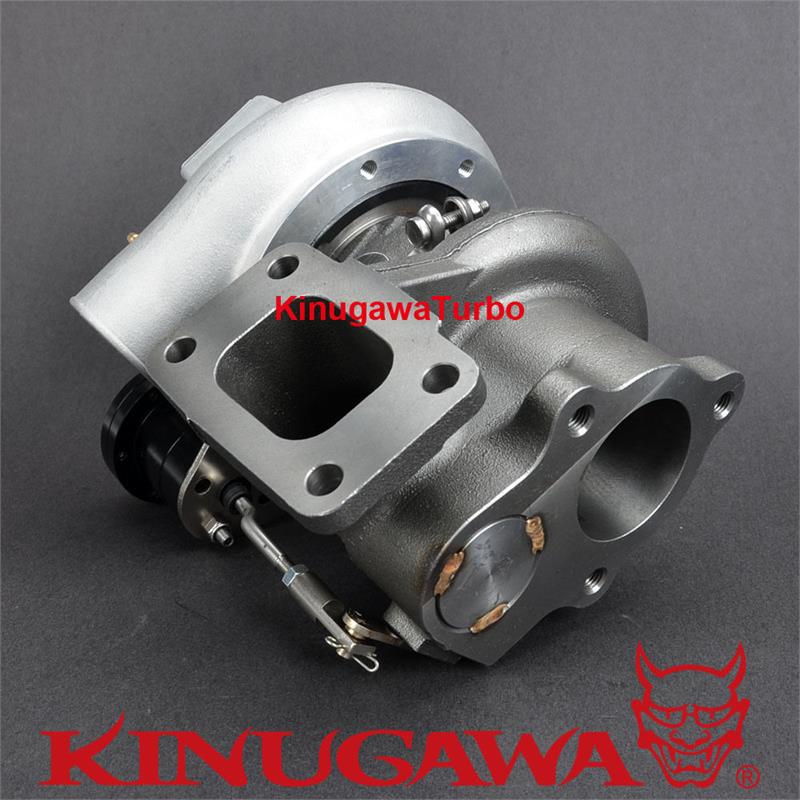

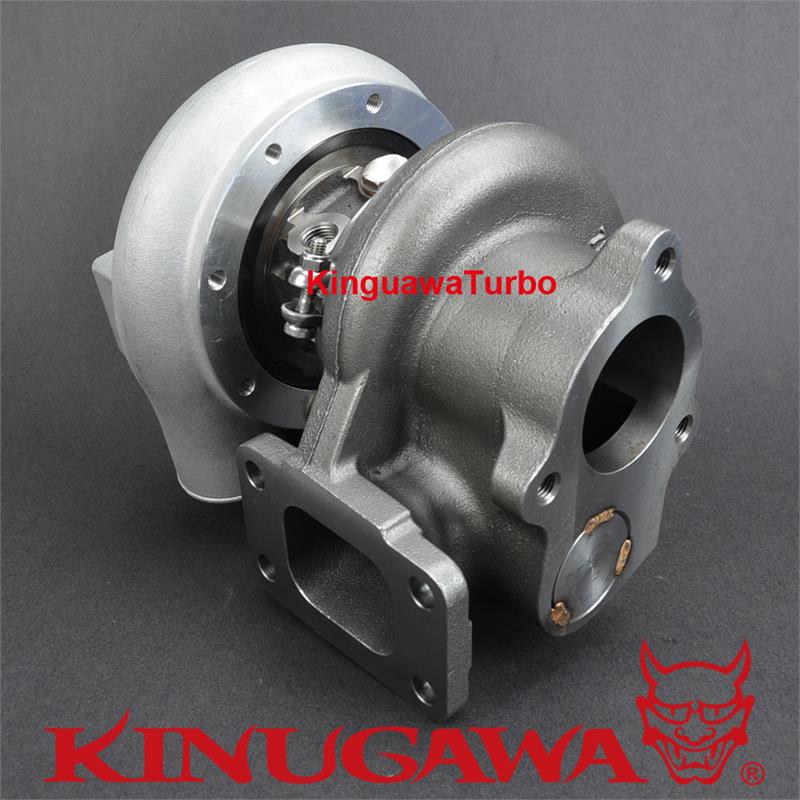

Turbine Housing

- 8cm / AR 57

- T3 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

- Oil and Water-Cooled

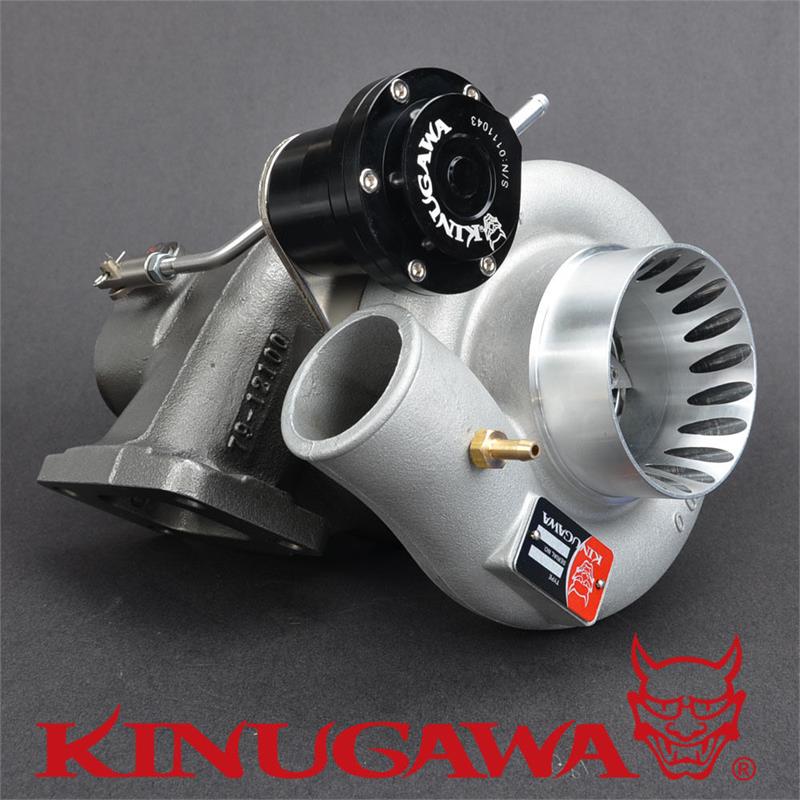

Watergate Actuator

- 1.0 Bar / 15 psi

-     0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-    Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

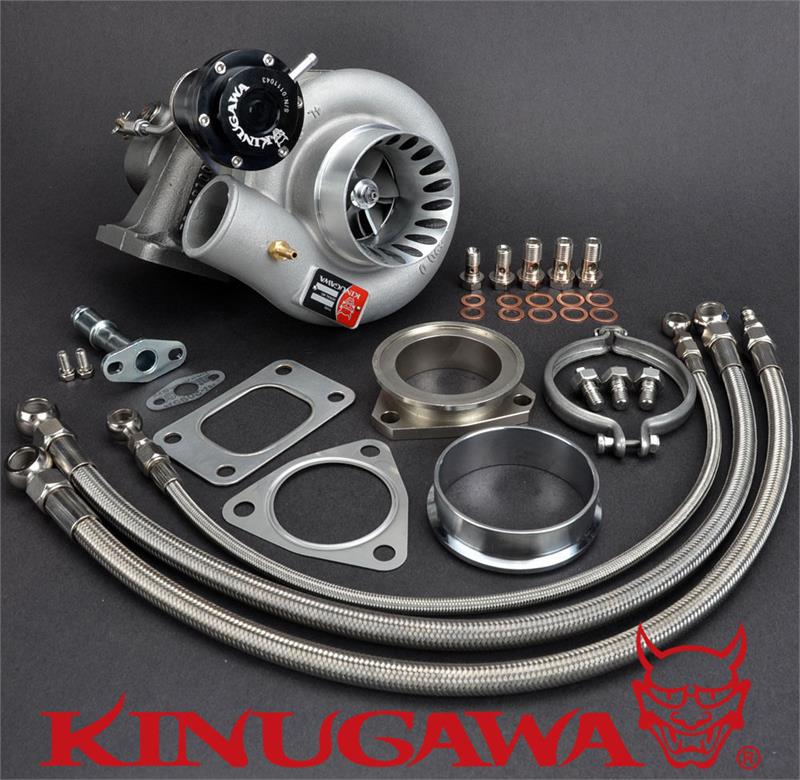

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

1 x V-Band Adapter

Upgraded By

Kinugawa Turbo, Japan

Warranty

One Year
