Kinugawa Turbocharger 3" Anti Surge TD06H w/ 60-1 & 10cm T3 V-Band Internal Gate

Product information

Item Name

Kinugawa 3” Anti Surge TD06H Turbocharger with Garrett 60-1 Compressor Wheel and 10cm T3 V-band Internal Gate Turbine Housing

P/N.

 301-02001-285

Application

-       Universal Type

-       2000~3000cc

CHRA Size:

-       TD06H-601

Wheel spec

-       Comp. wheel: 60/76 mm (Garrett 60-1 Cast Wheel)

-       Turbine wheel: 58.8 / 67.2 mm (TD06H / 11 Blades high Flow Inconel Wheel)

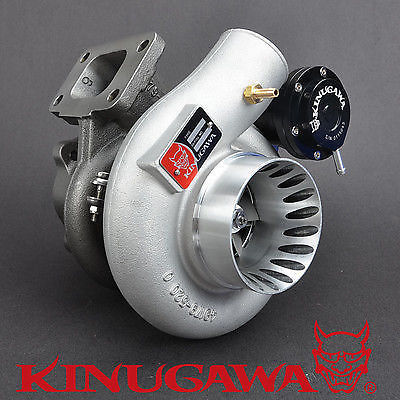

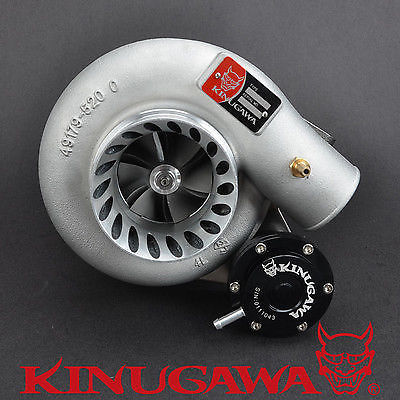

Compressor

Housing

-       A/R 60

-       Compressor Inlet : 80.5mm / 3.25”

-       Compressor Outlet : 51mm / 2”

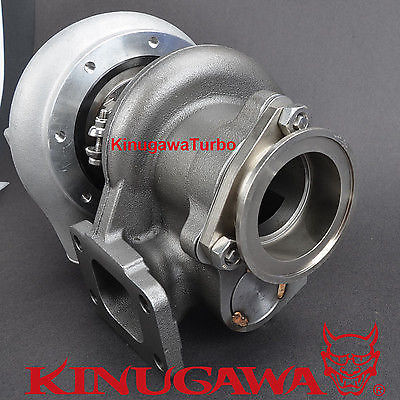

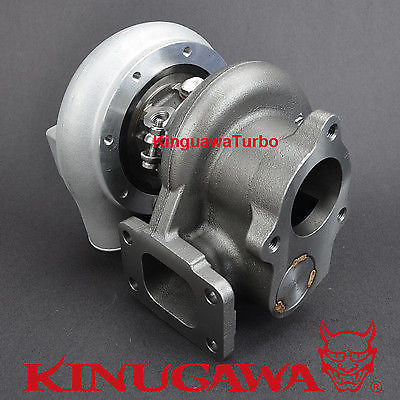

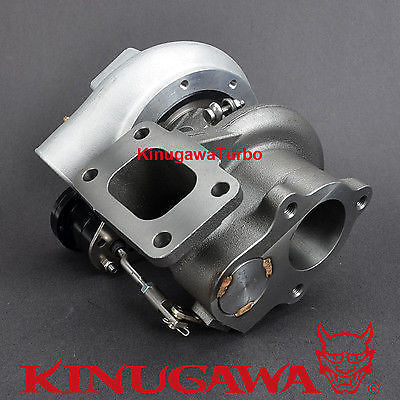

Turbine Housing

-       10cm / A/R .73

-       T3 Inlet Flange

-       Internal Gate

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil and Water-Cooled

Watergate

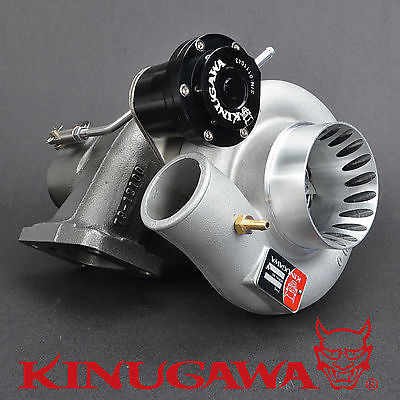

Actuator

-       1.0 Bar / 15 psi spring installed.

-       0.5Bar, 0.8Bar, 1.0Bar, 1.2Bar, 1.5bar, 1.7bar and 2.0bar spring are available on our ebay shop, we will combine shipping when we receive buyer order.

-       Actuator position can be 360 Degree rotated easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar

Suggested

Boost

1.5 Bar / 22 Psi

Product

Situation

Brand New

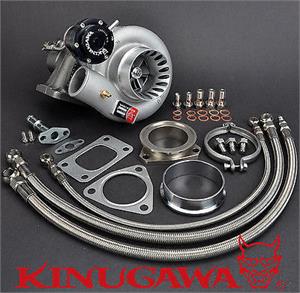

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Coolant line Kit (24cm 6AN Line)

2 x Turbine Gasket ( Inlet + Outlet )

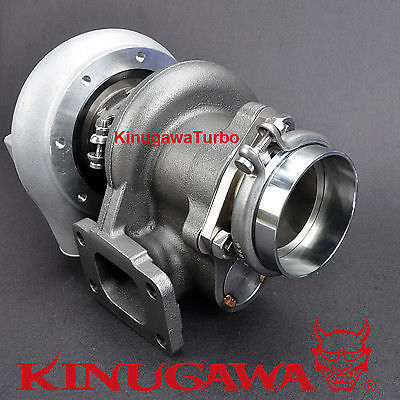

1 x V-Band Adapter

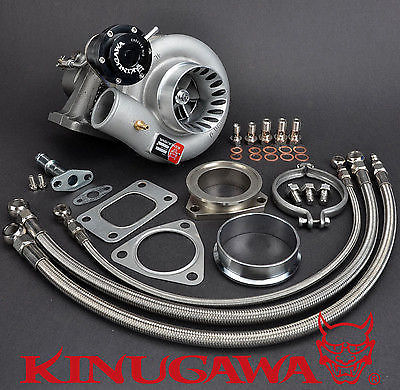

Everything shown on picture is included.

Upgraded By

Kinugawa Turbo

Warranty

One Year
