Kinugawa Turbocharger 3" Anti Surge TD06H w/ Garrett 60-1 Wheel & T3 8cm Hsg

Product Information

Item Name

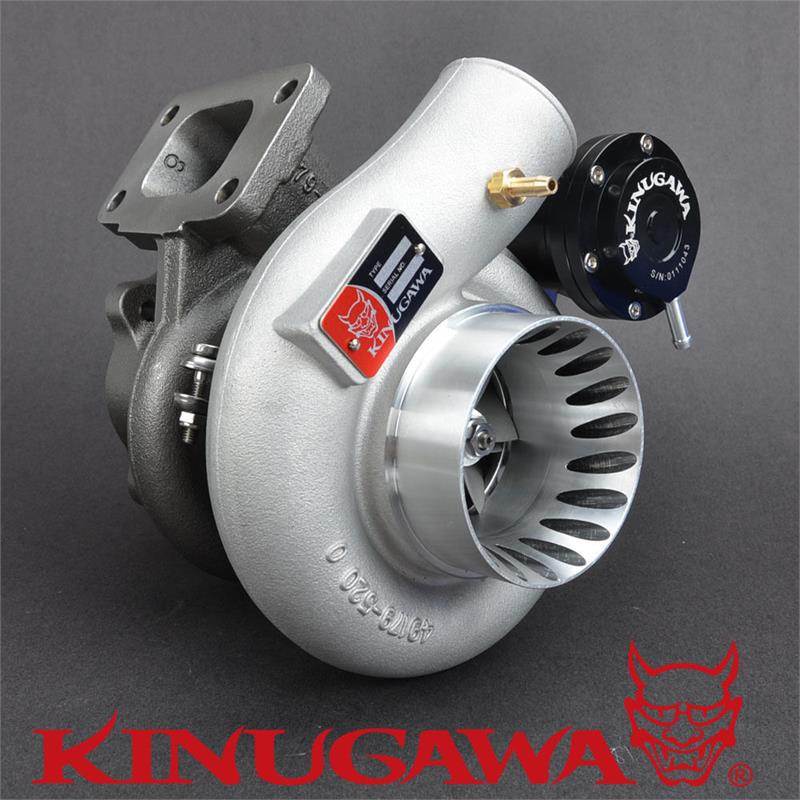

Kinugawa 3” Anti Surge TD06H Turbocharger with Garrett 60-1 Compressor wheel and 8cm T3 Internal Gate Turbine Housing

P/N.

 301-02001-326

Application

- Universal Type

- 2000~3000cc

CHRA Size:

TD06H with Garrett 60-1 Wheel

Wheel spec

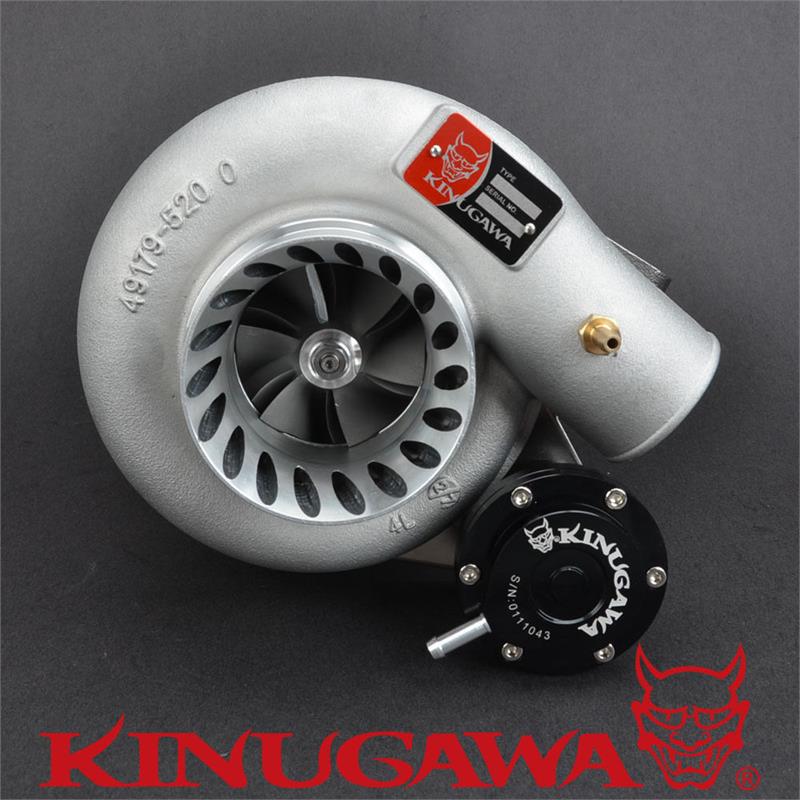

Compressor wheel: 60 / 76 mm (GT 60-1 Wheel)

Turbine wheel: 58.8 / 67.2 mm (TD06H4 / 11 Blades of Inconel Wheel)

Compressor

Housing

A/R 60

Compressor Inlet : 76mm / 3”

Compressor Outlet : 51mm / 2”

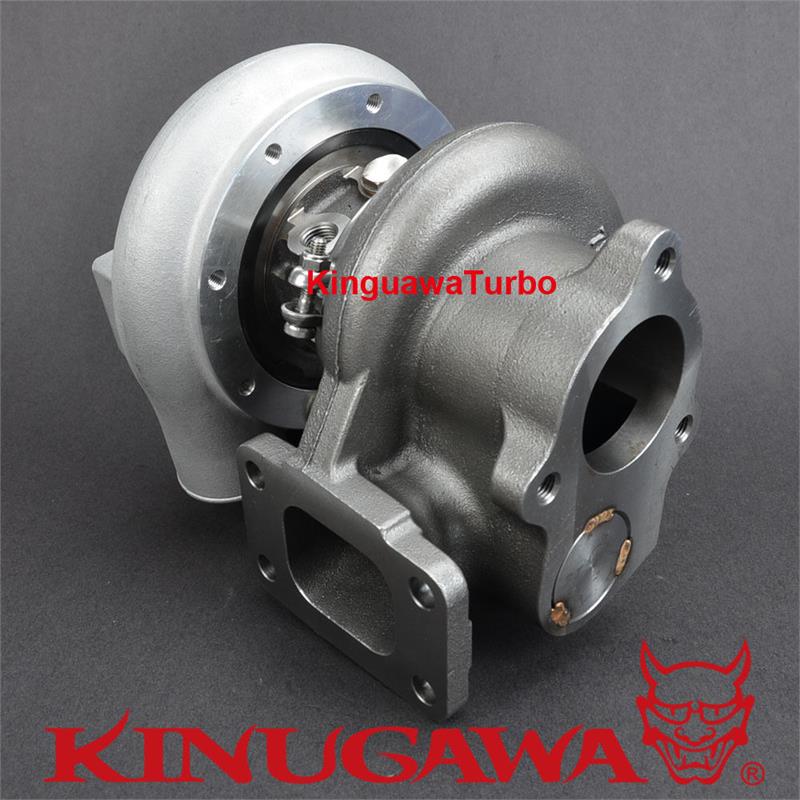

Turbine Housing

- 8cm / AR 57

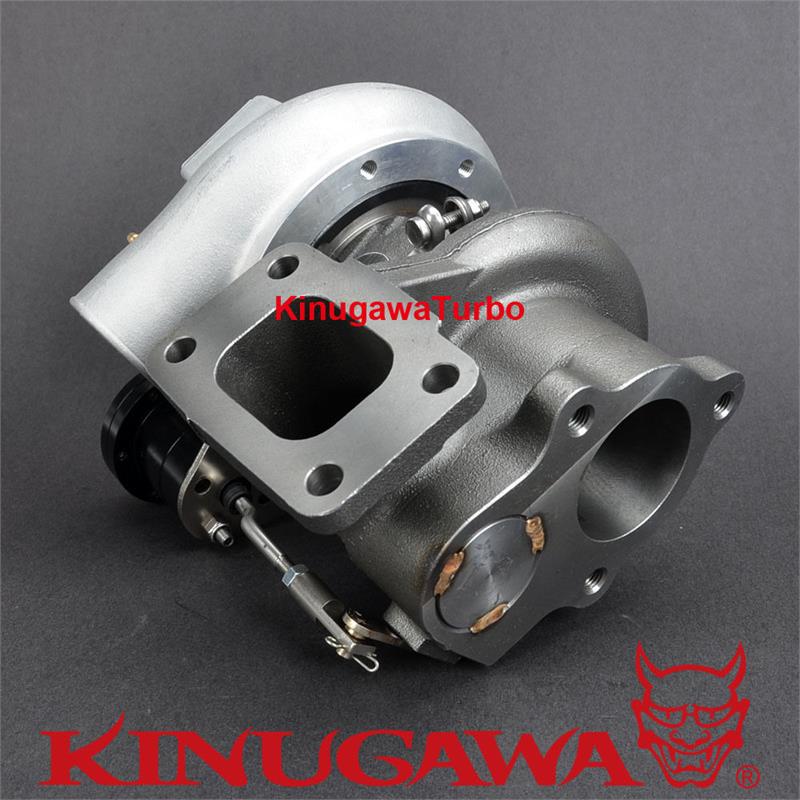

- T3 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

- Oil and Water-Cooled

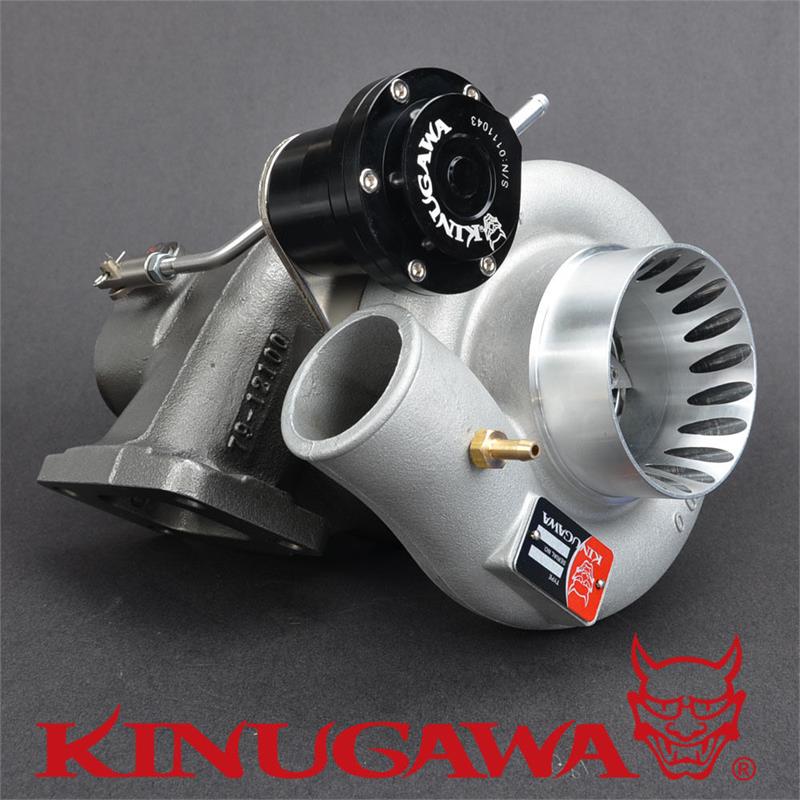

Watergate Actuator

- 1.0 Bar / 15 psi Spring will be installed on this adjustable actuator.

-    0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar , 1.8bar and 2.0bar spring is are available on our ship.

-   Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

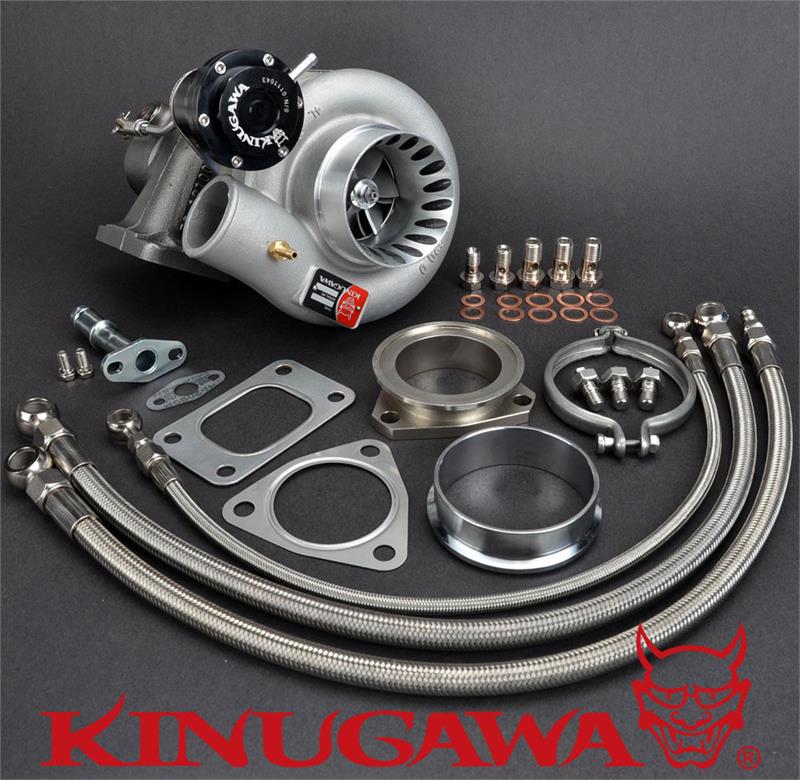

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

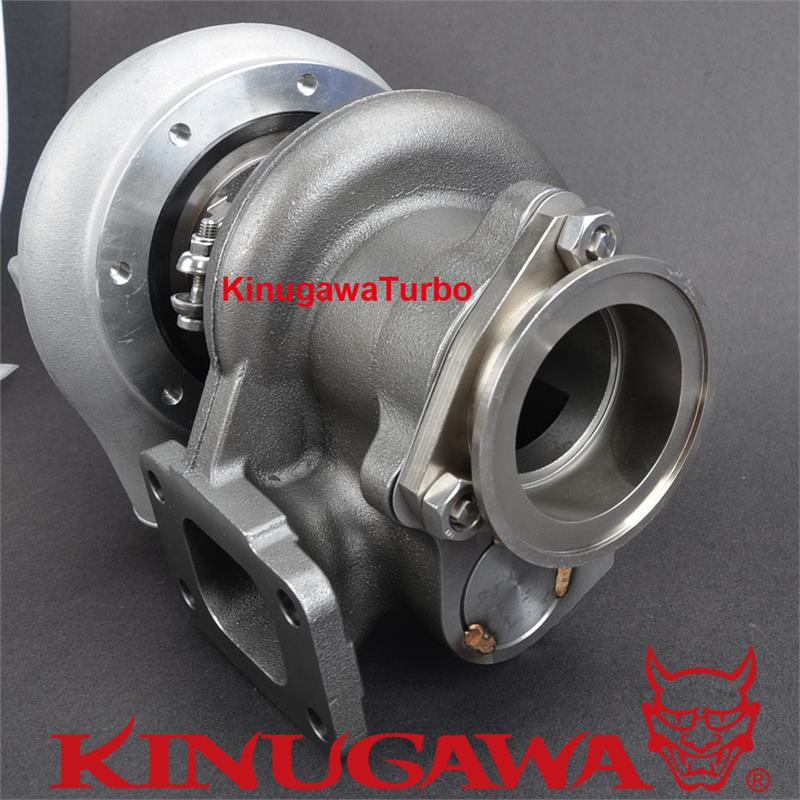

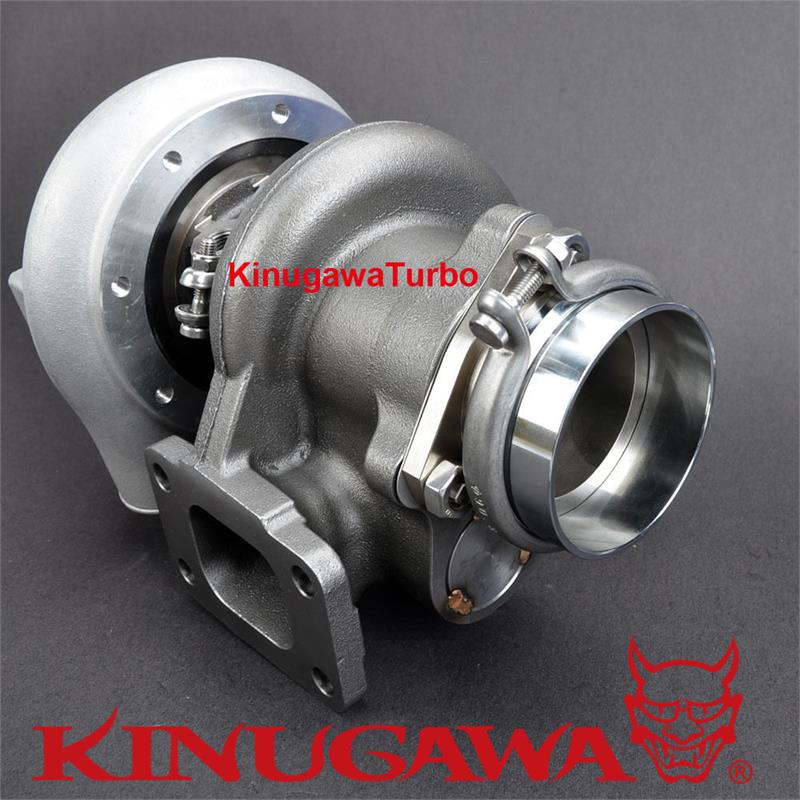

1 x V-Band Adapter

Upgraded By

Kinugawa Turbo

Warranty

One Yea
