Kinugawa Turbocharger 3" Cover / 10cm A/R 73 TD05H-18G / Diesel 4L-6L

Kinugawa TD05H-18G Turbocharger with 3” Cover & 10cm  Turbine Housing

PART NO.

 0100-821-202 (301-02034-027)

Item Name

Kinugawa TD05H-18G Turbocharger with 3” Cover & 10cm Turbine Housing

Product Situation

-       Brand New

Application

-       4L~6L diesel engine

-       2L~3.5L gasoline engine

CHRA Spec

-       Compressor wheel : 50.5 / 68 mm (18G)

-       Turbine wheel : 49.2 / 56 mm (TD05H)

Compressor

Housing

-       A/R 60

-       Cover Inlet Dia. : 76mm / 3”

-       Cover Outlet Dia : 50mm / 2”

Turbine Housing

-       10cm ( A/R 73 )

Bearing system

-       Journal Bearing

-       Performance thrust bearing installed.

Cooling System

-       Oil and Water cooled system

Actuator

-       1 bar / 14.7 Psi actuator will go with turbo if buyer doesn’t contact us to change it.

-       0.5bar, 0.8bar, 1.0bar, 1.2 bar, 1.5 bar actuator is available. Please contact us if you need to change it.

Install Kit

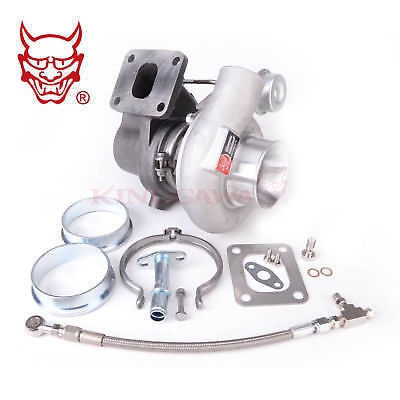

Everything on picture is included.

Made By

Kinugawa Turbo

Warranty

One Year
