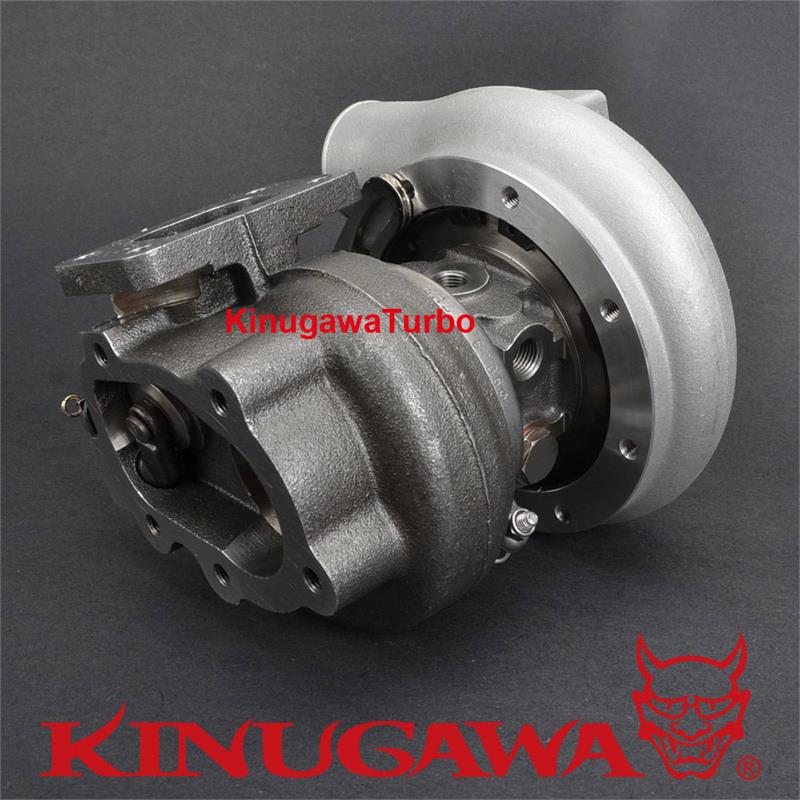

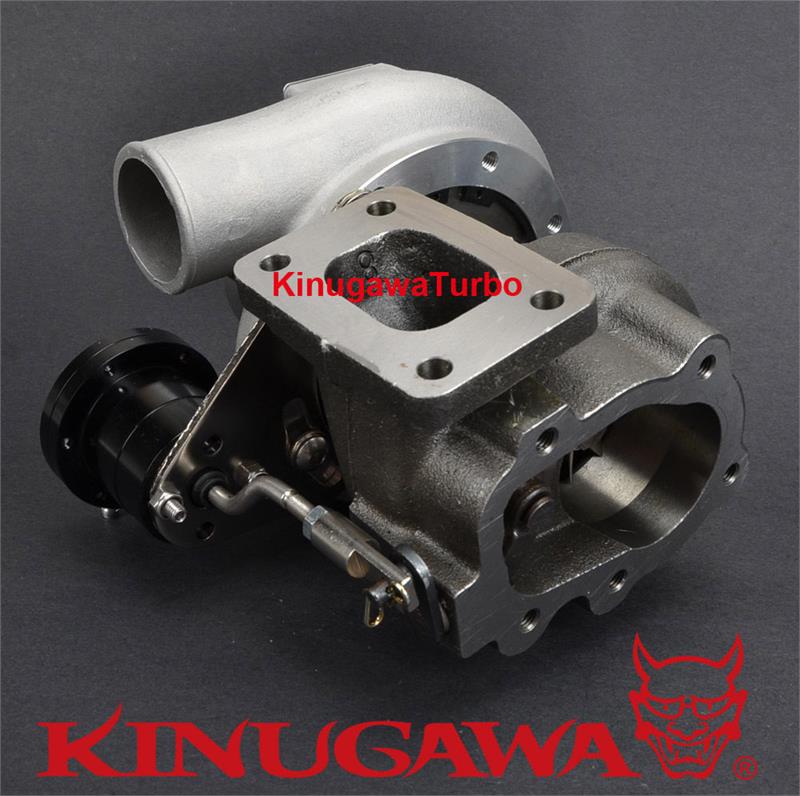

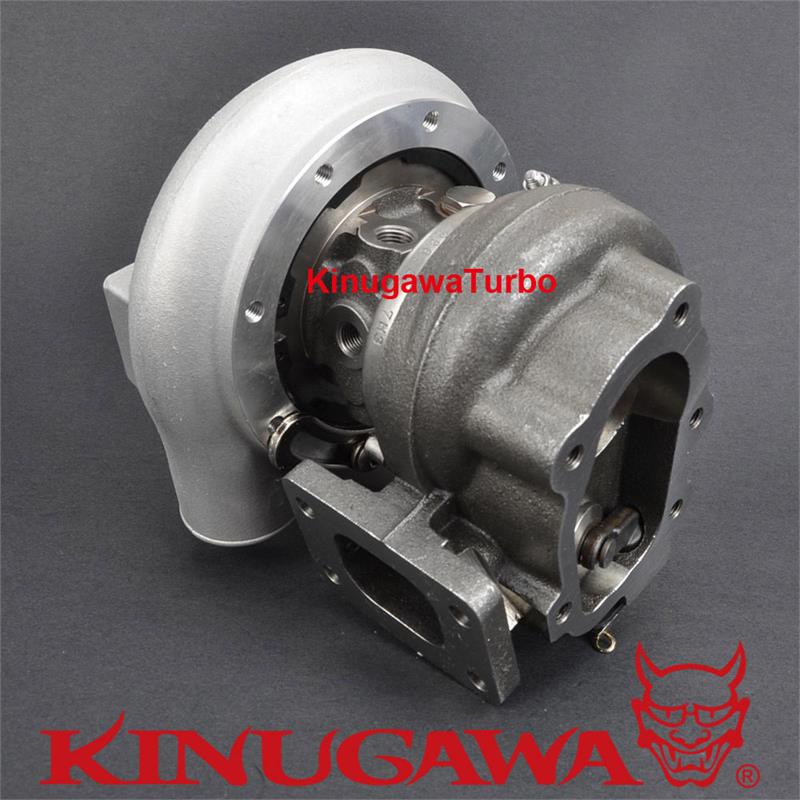

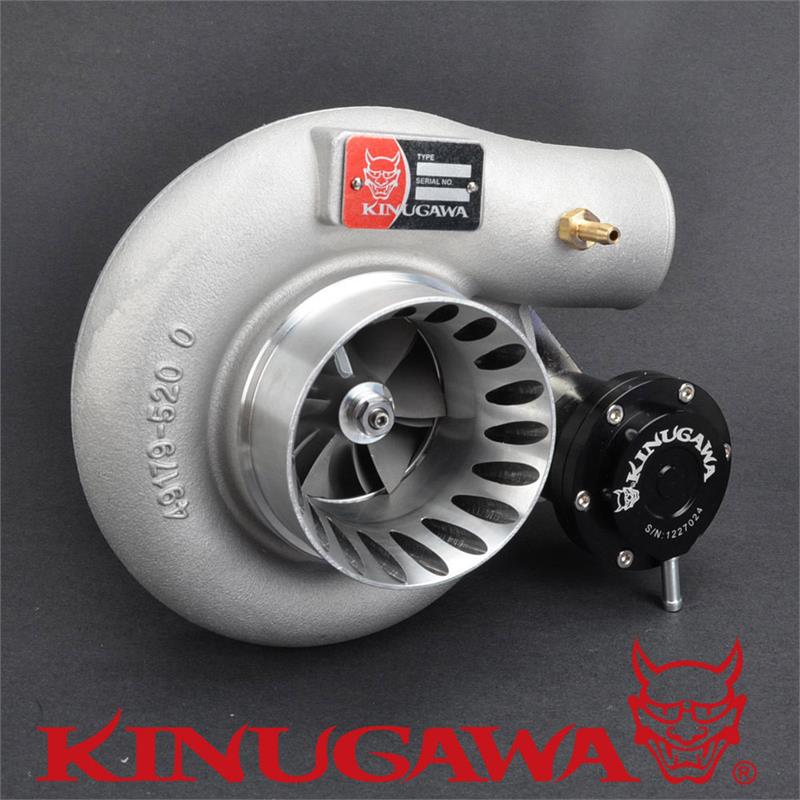

Kinugawa Turbocharger 3" Cover TD05H-16G6 / T25 Flange/ 8cm/ 5 bolt Internal Hsg

Kinugawa 3” Cover / T25 Flange Turbocharger

TD05H-16G6 with 8cm Turbine Housing

Item Name

Kinugawa 3” Anti Suege TD05H-16G6 Turbocharger with 8cm T25 turbine housing and Adjustable Actuator.

P/N.

 301-02001-182

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-       TD05H-16G6

Wheel spec

Compressor wheel: 48.3 / 68 mm (EVO3 -16G Wheel)

Turbine wheel: 55.8 / 49.1 mm (TD05H Inconel Wheel)

Turbine Housing

AR

8cm / AR57 T25 Flanged turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

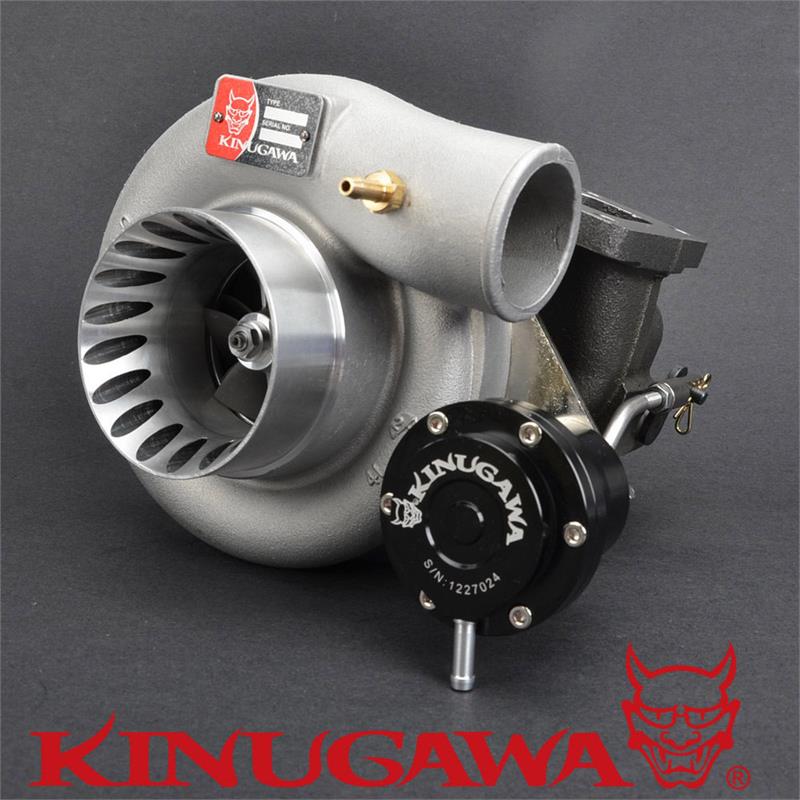

Actuator

Pressure

-       1.0 Bar / 15 psi Spring will be installed on this adjustable actuator.

-       0.3bar, 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available on our ebay shop.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~400HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

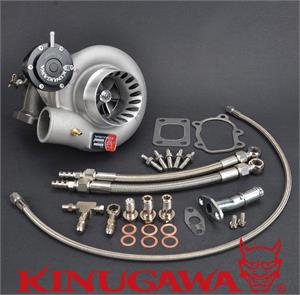

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Turbine Gasket ( Inlet + Outlet )

Made By

Kinugawa Turbo

Warranty

One Year
