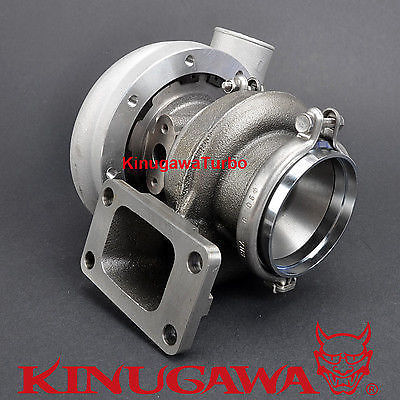

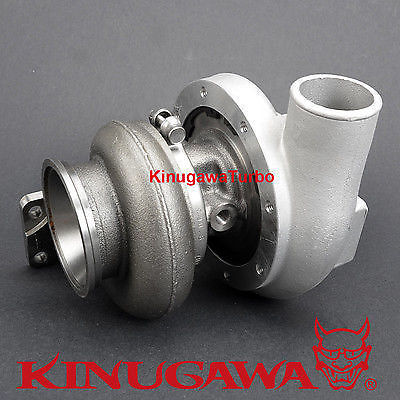

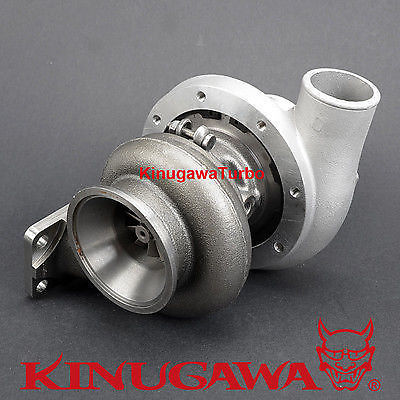

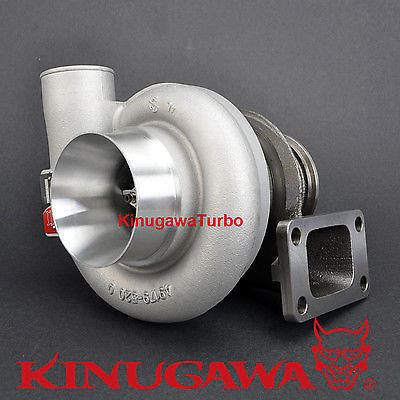

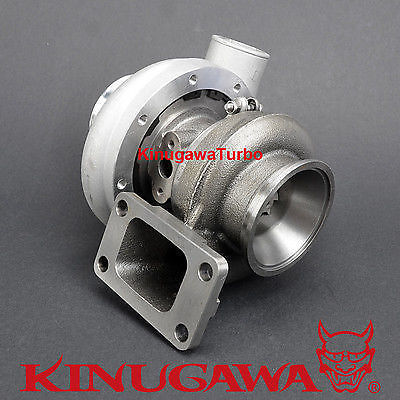

Kinugawa Turbocharger 3" Non Anti-Surge TD06SL2-20G 8cm /T3 Oil-Cooled /V-Band

Kinugawa TD06SL2-20G Turbocharger

(3” Cover Non Anti-Surge / 8cm T3 Turbine Housing / Oil-Cooled)

Item Name

Kinugawa TD06SL2-20G Oil-Cooled Turbocharger with 3” Non Anti-Surge Cover and 8cm / T3 Turbine Housing

P/N.

Application

-       Universal Type

-       1800~3000cc

Wheel spec

-       Compressor wheel: 52.5/68 mm (25G Wheel)

-       Turbine wheel: 54.1/61 mm (TD06SL2 / 11 Blades Inconel Wheel)

Turbine Housing

AR

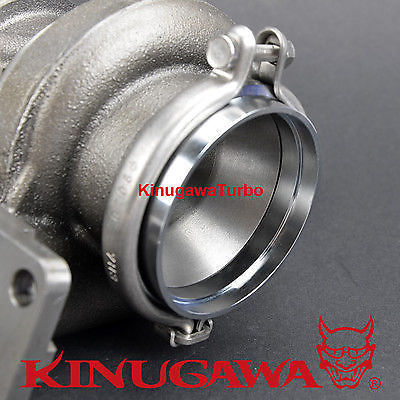

-     8cm / T3 Flanged / V-Band Turbine Housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil-Cooled

Max Hp

-      350~500 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

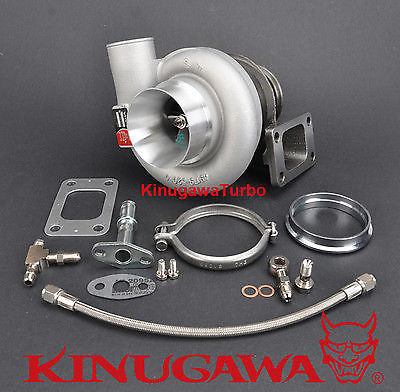

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

1 x Turbine V-Band Adapter V-band Pipe Kit

Made By

Kinugawa Turbo, Japan

Warranty

One Year
