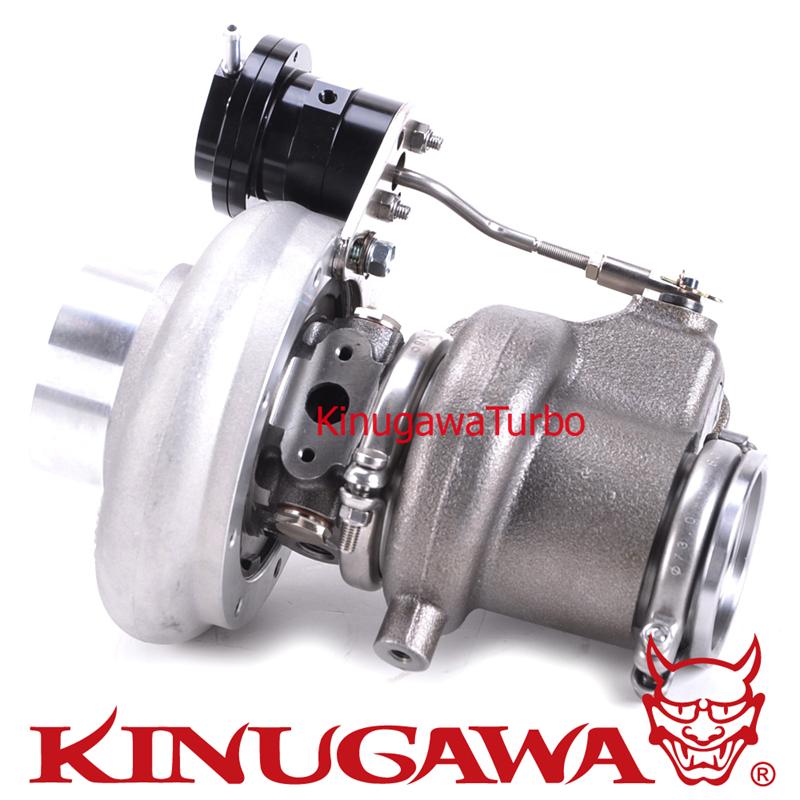

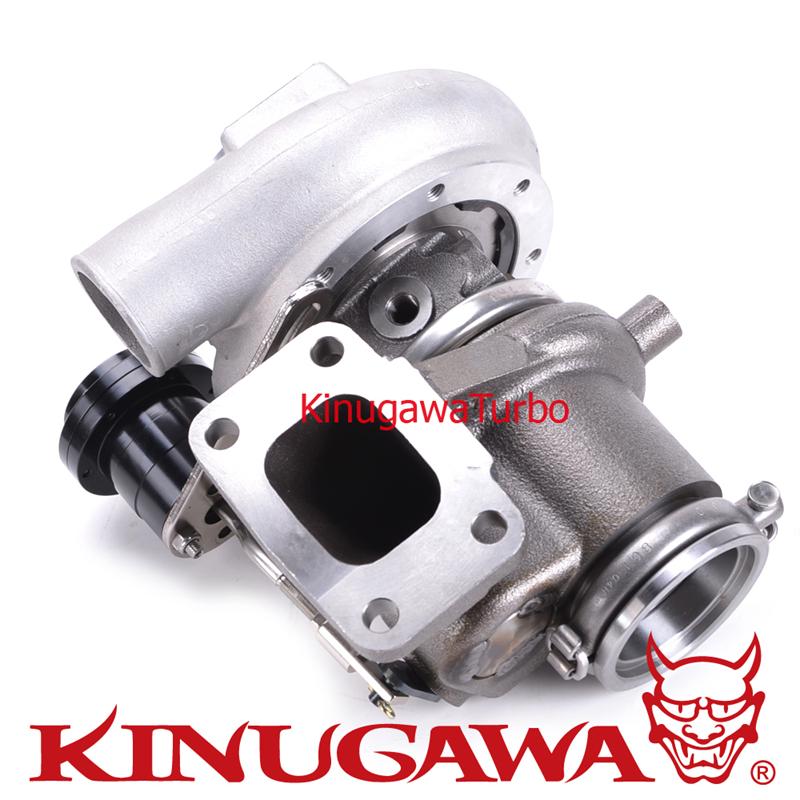

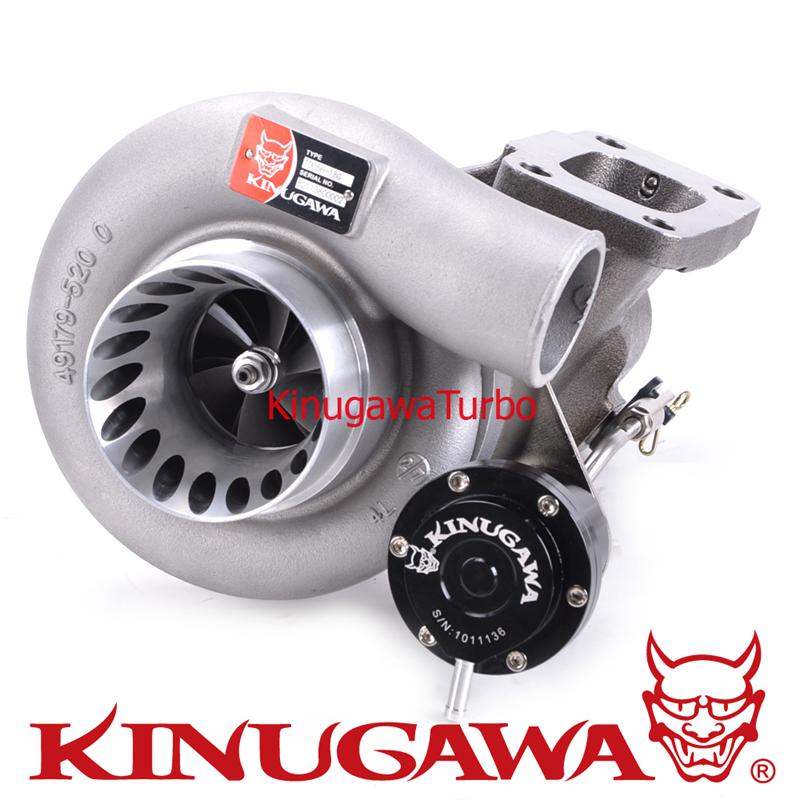

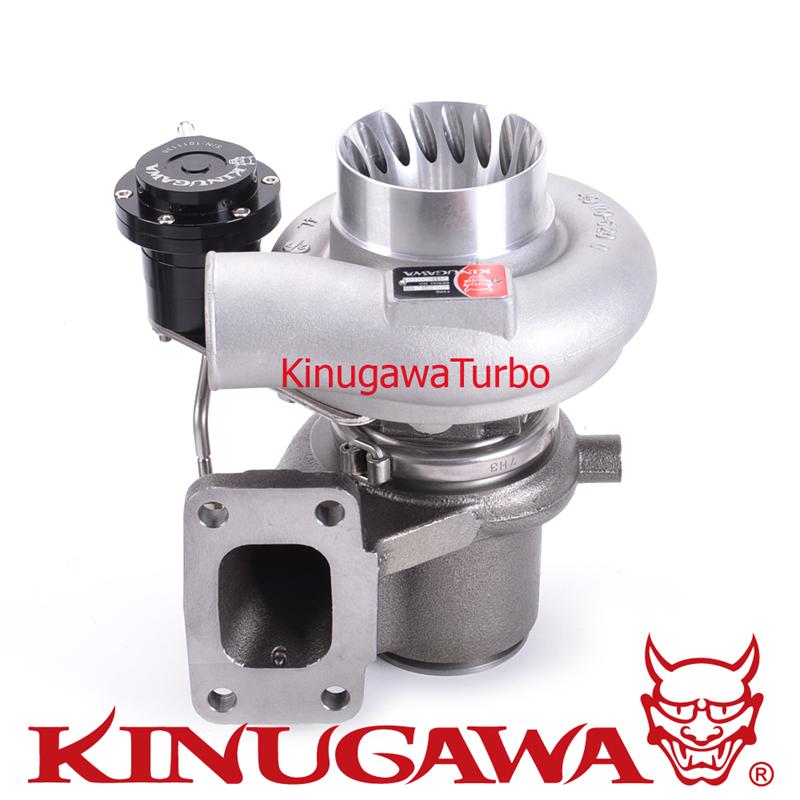

Kinugawa Turbocharger 3" TD05H-16G 4M41T / 1KZ-TE Diesel w/ 6cm T3 Fast Spool
Kinugawa Turbocharger 3" TD05H-16G 4M41T / 1KZ-TE Diesel w/ 6cm T3 Fast Spool
Price:
From $899.00 to $1,079.00
Manufacturer:
Kinugawa
Product Options
Compressor wheel:
Select Compressor wheel
Cast Wheel
Billet Wheel
Turbine Wheel:
Select Turbine Wheel
9 Blades Wheel
12 Blades Wheel
Quantity:
* Whole number only
Email this page to a friend
Application
- Universal Type
- 1500~2000cc gasoline
- 3000~0000cc diesel engine.
Bearing Type
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
Cooling System
Water cooled
Compressor Housing
- A/R 60
- Compressor Inlet : 76mm / 3”
- Compressor Outlet : 51mm / 2”
- No Anti-surge cover inlet.
Compressor Wheel
48.3 / 68 mm (EVO3-16G Wheel)
Turbine Wheel
49.2 / 56mm
(TD05H / 12 blade )
T
urbine Housing
- 6cm / AR 41
- T3 Inlet Flange
- Internal Gate
Wastegate Actuator
- 1.0 Bar / 15 psi
- 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.
- Actuator position can be 360 Deg moved easily.
Turbo Boost Limit
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

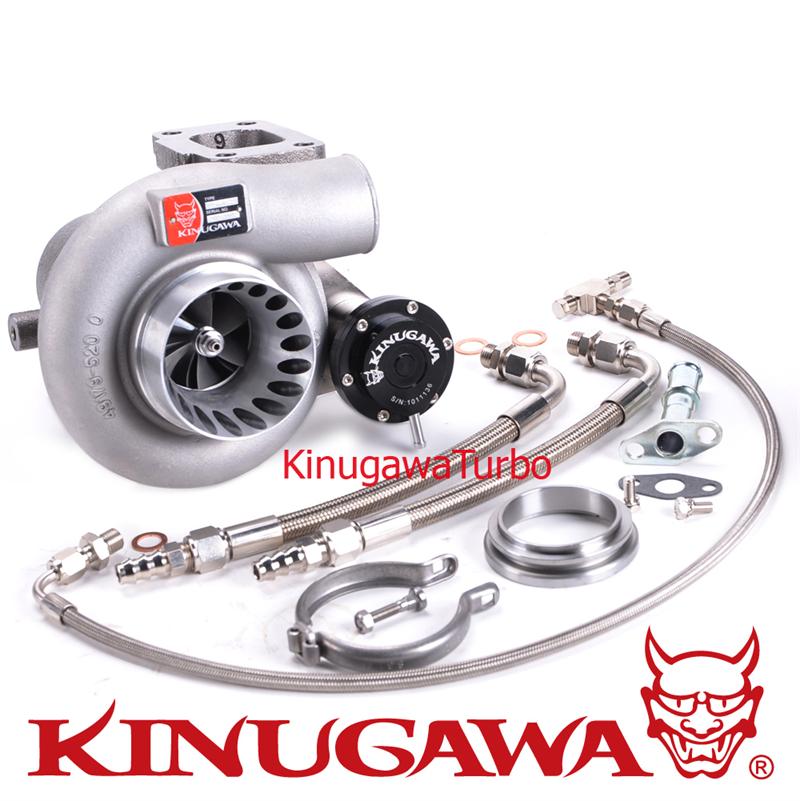

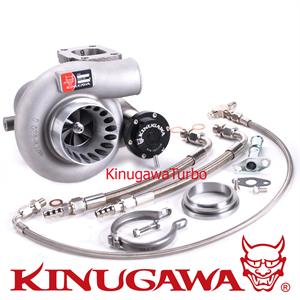

Kit Incl.
- 1 x Oil feed line kit
- 1 x Oil drain pipe kit
- 2 x Coolant line Kit
- 2 x Turbine Gasket ( Inlet + Outlet )
- 1 x V-Band Adapter
Everything shown on picture is included.
Condition
Brand New
Warranty
1 year
