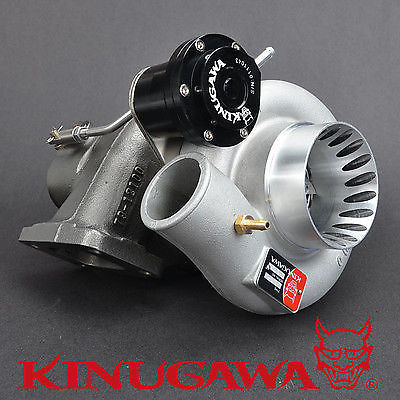

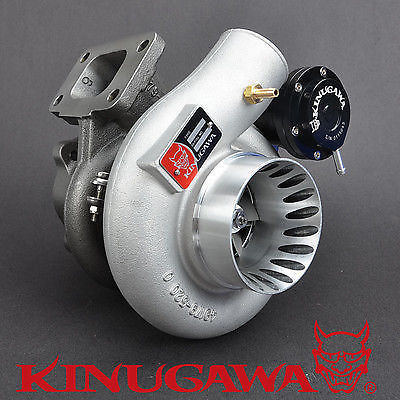

Kinugawa Turbocharger 3" TD05H-18G Anti Surge w/ T3 8cm V-Band Internal Gate Hsg

Product Information

Item Name

Kinugawa 3” Anti Surge TD06H-18G with 8cm T3 Internal Gate turbine housing

P/N.

0100-821-048 (301-02001-029)

Application

- Universal Type

- 2000~3000cc

CHRA Size:

- TD05H-18G

Wheel spec

Compressor wheel: 50.3 / 68 mm (18G Wheel)

Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

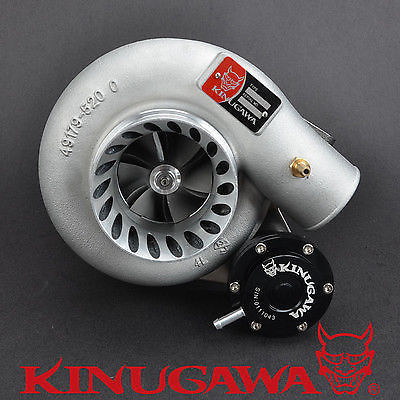

Compressor

Housing

- A/R 60

- Compressor Inlet : 76mm / 3”

- Compressor Outlet : 51mm / 2”

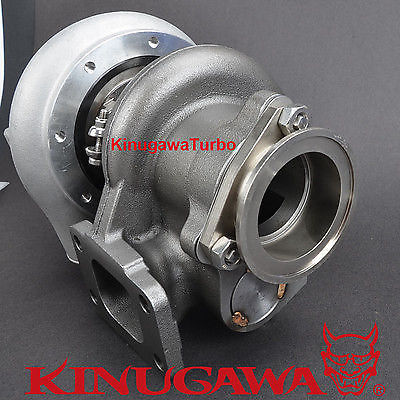

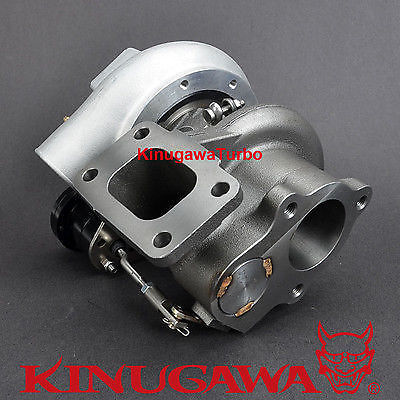

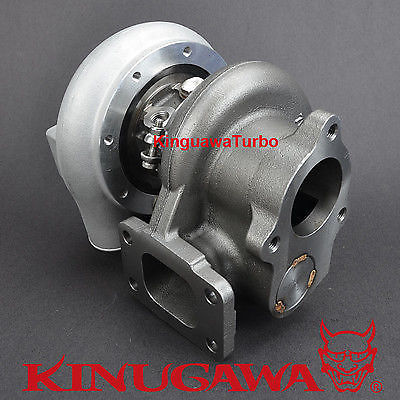

Turbine Housing

- 8cm / AR 57

- T3 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

Watergate Actuator

- 1.0 Bar / 15 psi wil be installed on this adjustable actuator.

- 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar, 1.8bar and 2.0bar spring is available on our ebay shop.

- Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

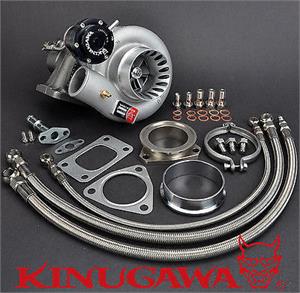

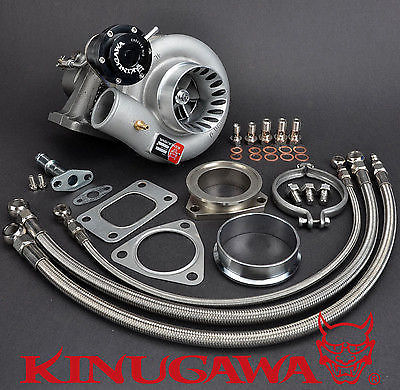

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

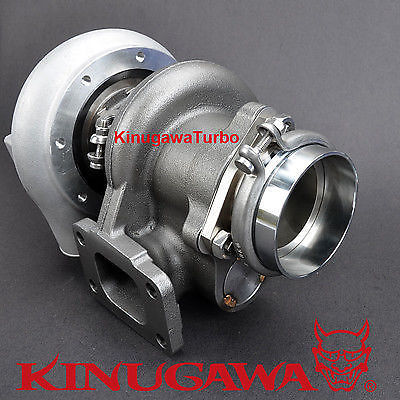

1 x V-Band Adapter

Upgraded By

Kinugawa Turbo, Japan

Warranty

One Year
