Kinugawa Turbocharger 3" TD05H-20G Nissan TB42 TB45 w/ 6cm T3 Super Fast Spool

Kinugawa 3” Cover TD05H-20 Turbocharger with 6cm Internal Gated / V-Band Turbine Housing For Fastest Spool Nissan TB45 / TB42 Patrol Diesel

Item Name

Kinugawa Nissan TB42 / TB45 Patrol TD05H-20G Turbocharger with 3" Cover and 6cm V-Band Turbine Housing.

P/N.

Application

- Universal Type

- 2000~3000cc gasoline

- 3800~6000cc diesel engine.

CHRA Size:

- TD05H-20G

Wheel spec

Compressor wheel: 52.5 / 68 mm (20G Wheel)

Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

Compressor

Housing

- A/R 60

- Compressor Inlet : 76mm / 3”

- Compressor Outlet : 51mm / 2”

-      No Anti-surge cover inlet.

Turbine Housing

- 6cm / AR 41

- T3 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

- Oil and Water-Cooled

Watergate Actuator

- 1.0 Bar / 15 psi

- 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

- Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

- Brand New

- This turbo is designed to add huge torque instead of

  top end HP. if you need turbo for higher end, please

  choose similar with larger turbine housing such as

  8cm or 10cm we have.

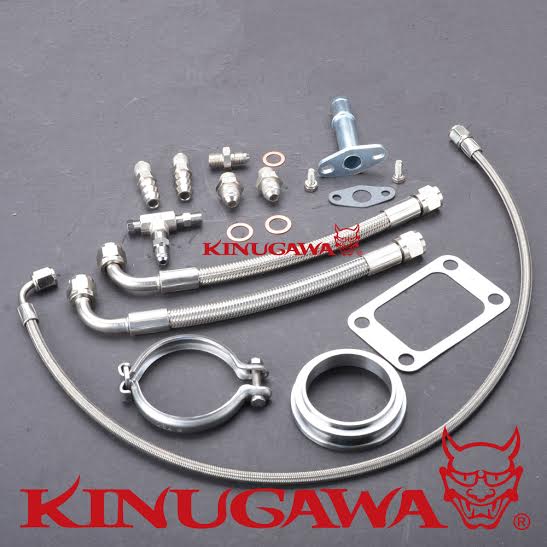

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

1 x V-Band Adapter

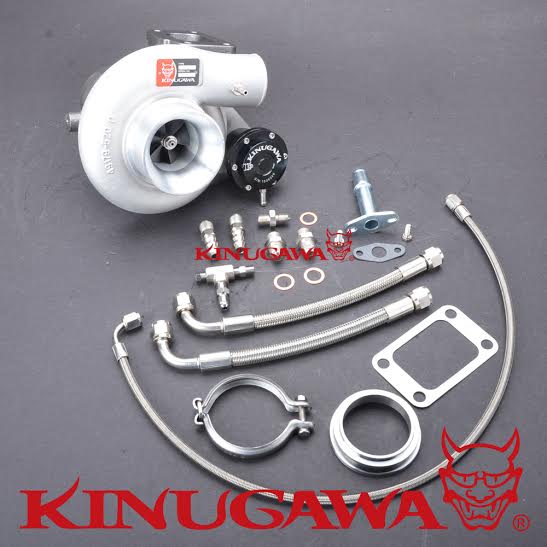

Everything shown on picture is included.

Made By

Kinugawa Turbo

Warranty

One Year
