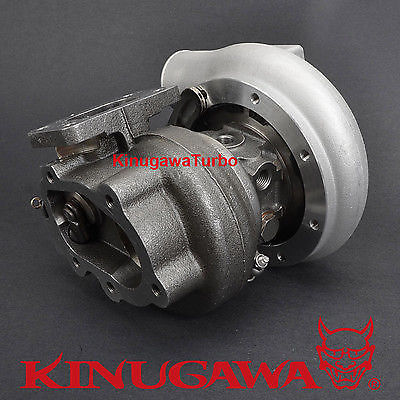

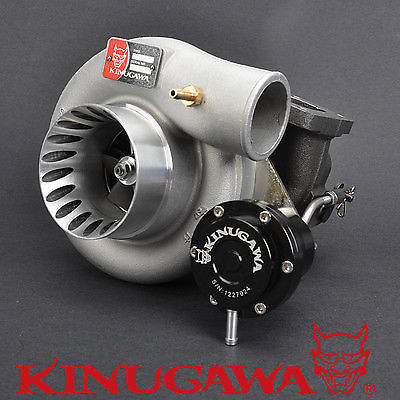

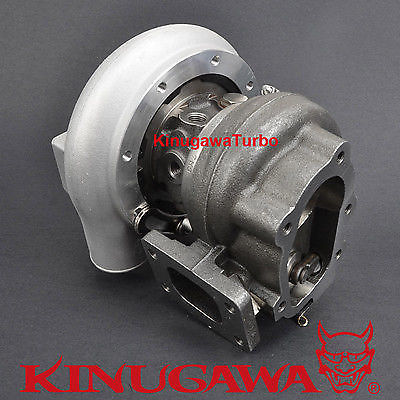

Kinugawa Turbocharger 3" TD05H & Garrett 60-1 wheel T25 Flange / 5 Bolt 8cm Hsg

Product Information

Item Name

Kinugawa 3” Anti Surge TD05H Turbocharger with Garrett 60-1 Comp. Wheel, 8cm tubine housing and Billet Adjustable Actuator

P/N.

 301-02001-243

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-     TD05H turbine wheel with Garrett 60-1 Comp. Wheel

Wheel spec

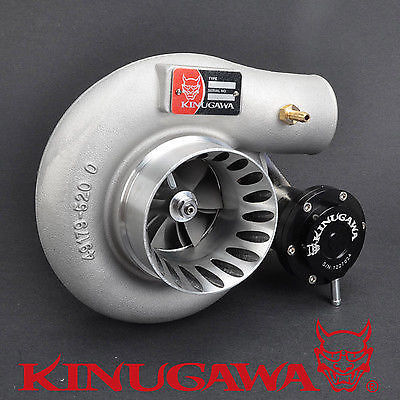

Compressor wheel: 60 / 76 mm (GT 60-1 Wheel)

Turbine wheel: 49.2 / 56 mm (TD05H Inconel Wheel)

Turbine Housing

AR

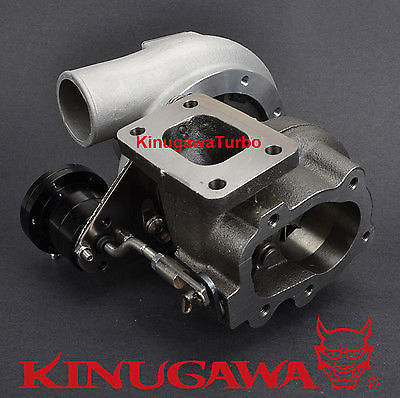

8cm / AR57 T25 Flanged turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

Actuator

Pressure

-       1.0 Bar / 15 psi

-       0.3bar, 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

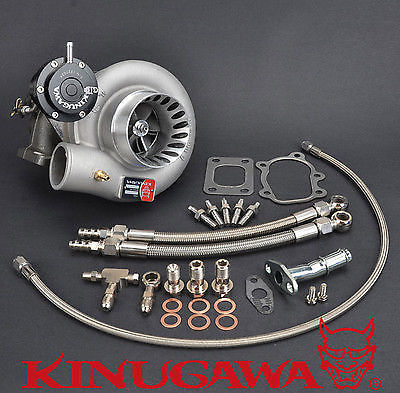

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Turbine Gasket ( Inlet + Outlet )

Upgraded By

Kinugawa Turbo

Warranty

One Year
