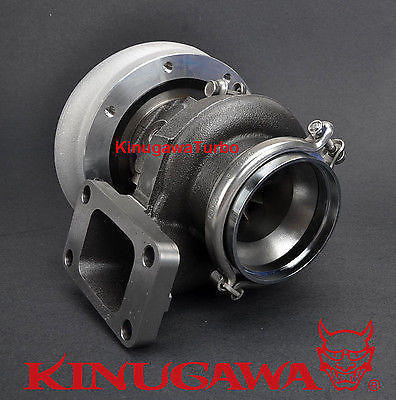

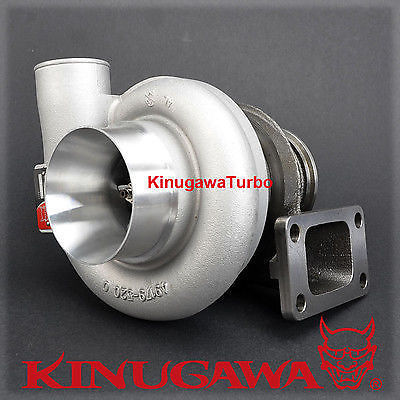

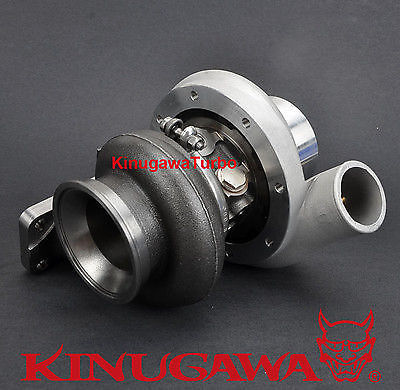

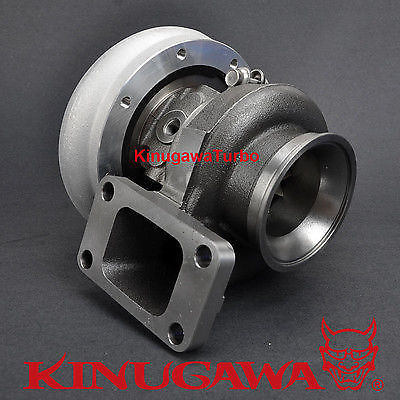

Kinugawa Turbocharger 3" TD06H-20G w/ T3/10cm/V-Band Hsg Non Anti-Surge Inlet

Kinugawa TD06SL2-20G Turbocharger with

3” A/R 60 Cover ( NO ANTI SURGE INLET) / T3 Flanged 8cm Turbine Housing

Item Name

Kinugawa TD06H-20G Turbocharger with 3” Non Anti-Surge cover and 10cm V-Band Turbine Housing

P/N.

301-02001-092

Application

- Universal Type

- 1800~2500cc

CHRA Size:

- TD06H-20G

Wheel spec

Compressor wheel: 52.5 / 68 mm (20G Wheel)

Turbine wheel: 58.8 / 67.2 mm (TD06H / 11 Blades Inconel Wheel)

Compressor

Housing

AR60 / 3” Non Anti-Surge Inlet / 2” Outlet

Turbine Housing

AR

10cm / AR73 T3 Flanged External Gated turbine housing

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil & Water-Cooled

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

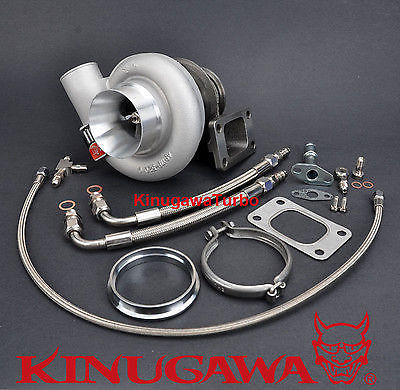

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil drain pipe kit

1 x T3 Turbine Inlet Gasket

2 x 20cm 6AN Water Line Kit

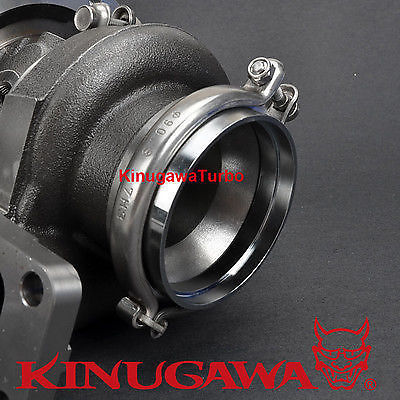

1 x V-Band Pipe Adapter

(Everything shown on picture included)

Upgraded By

Kinugawa Turbo

Warranty

One Year
