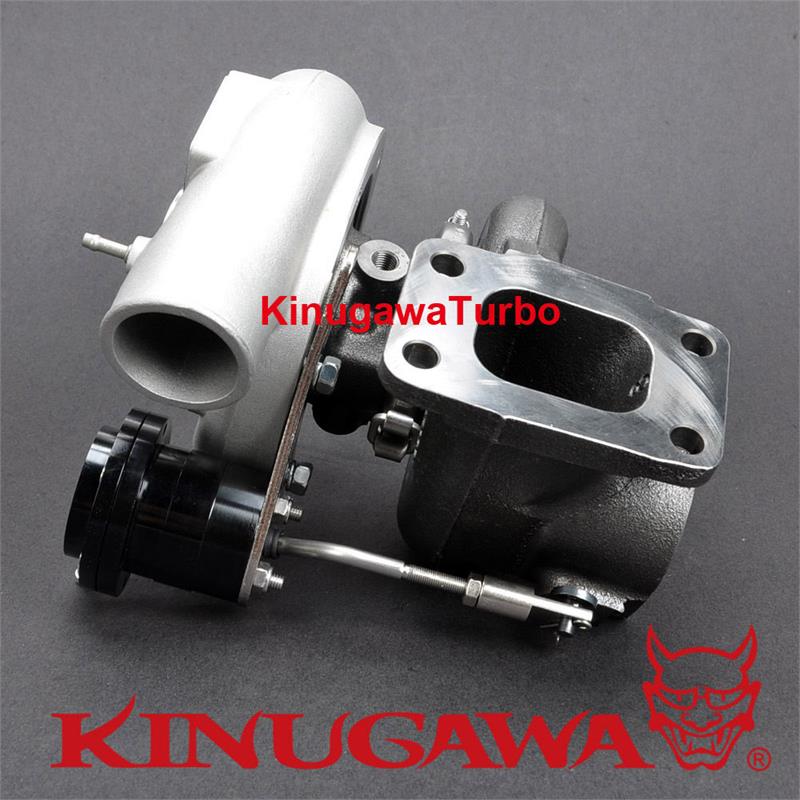

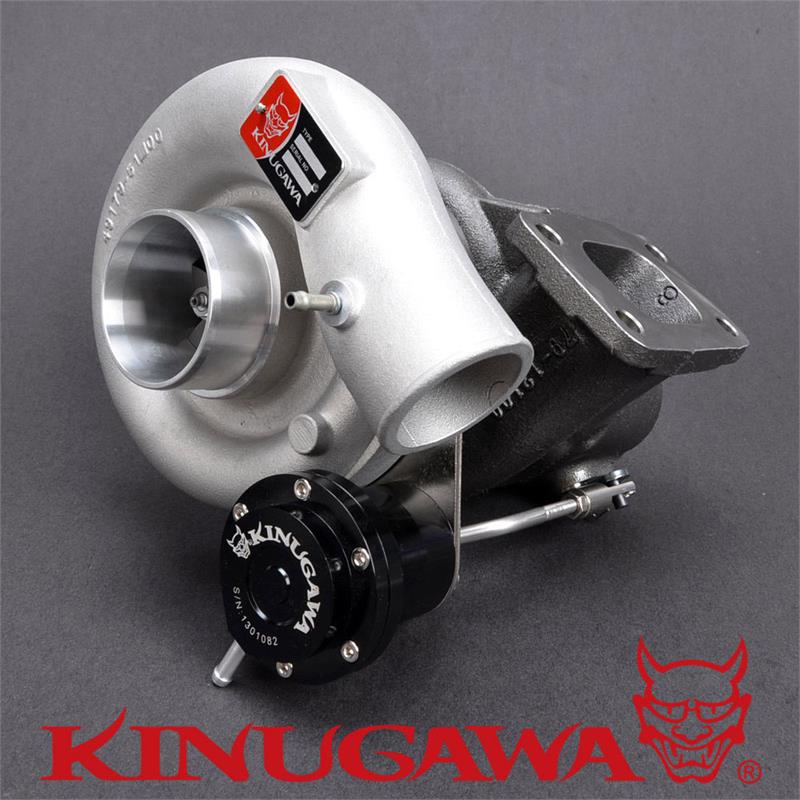

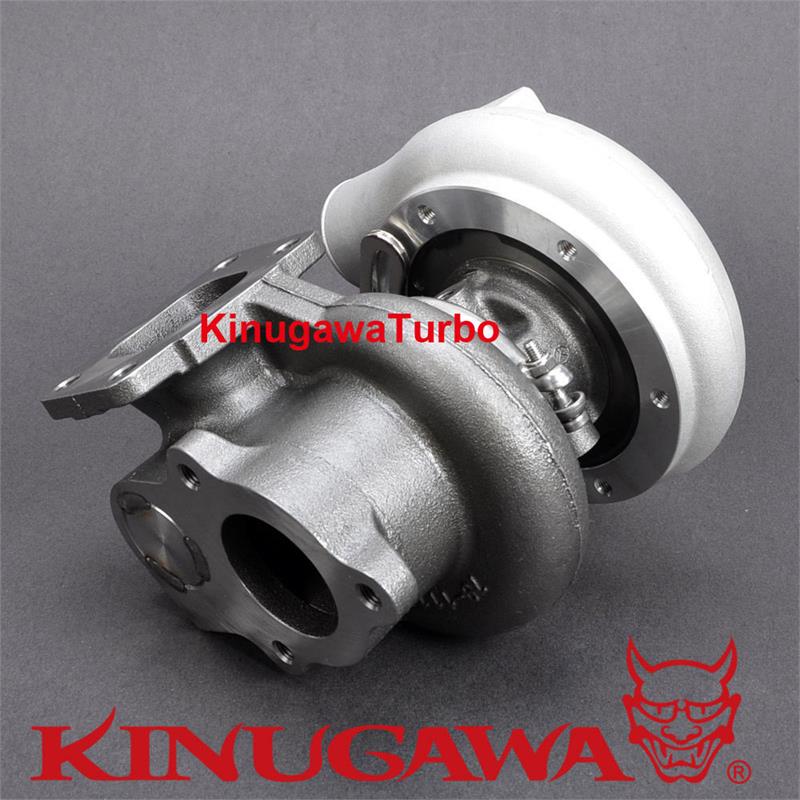

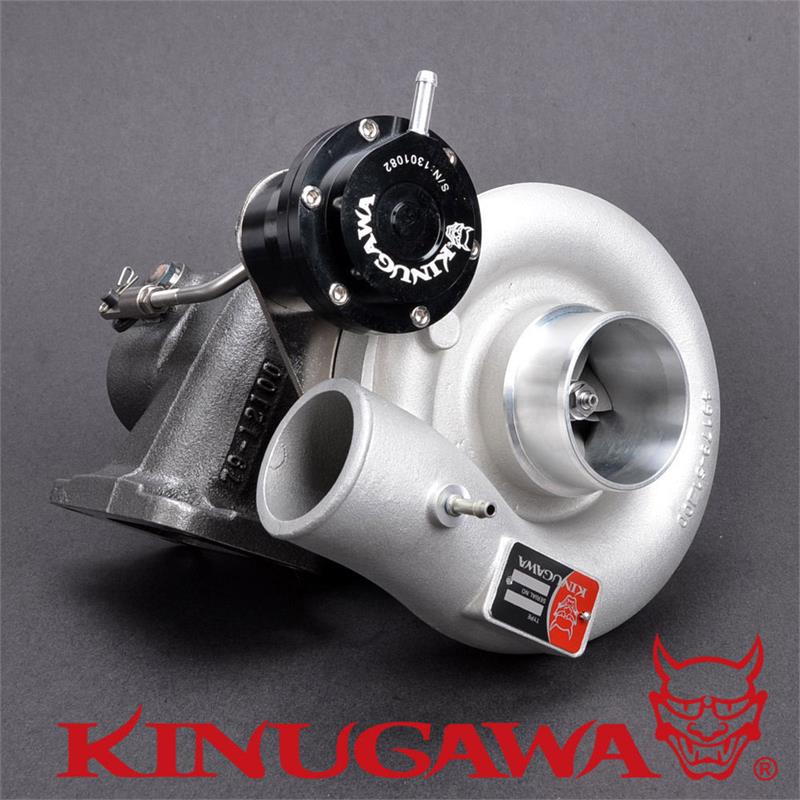

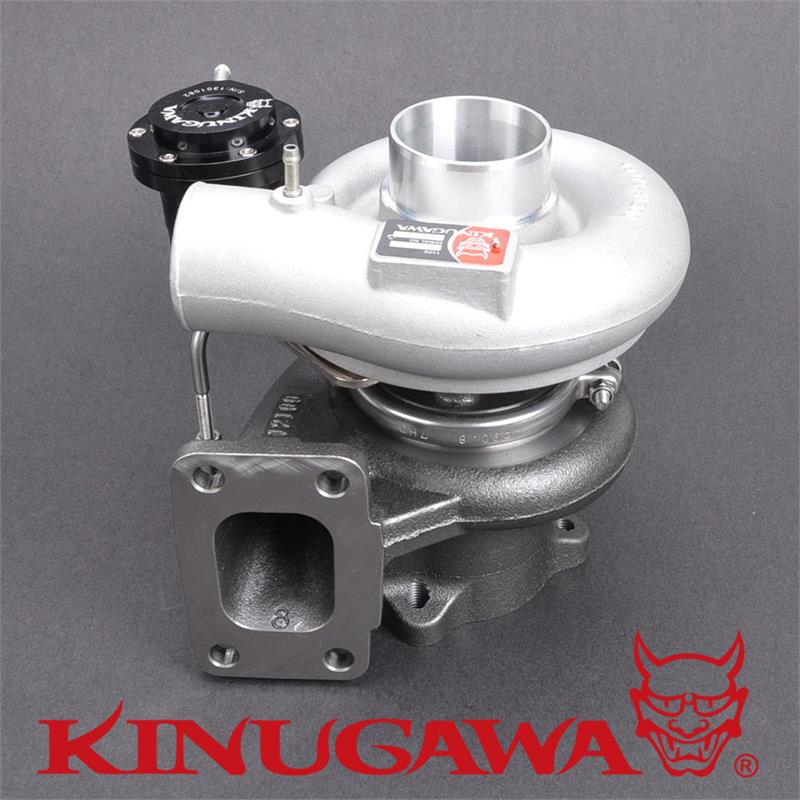

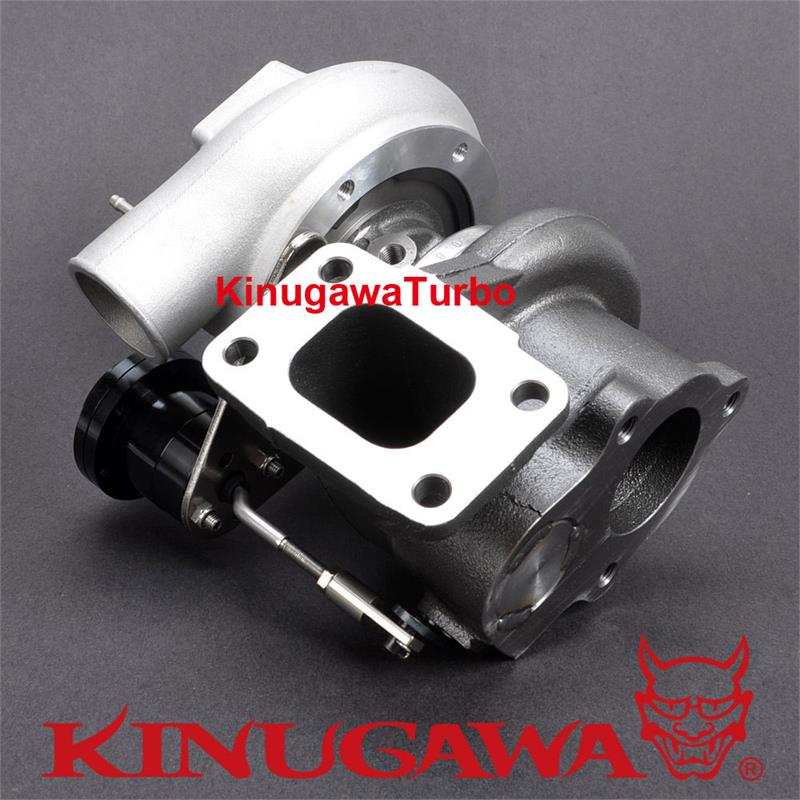

Kinugawa Turbocharger 49178-54700 / 49178-05030 TD05H-16G 8cm T3 Internal Gate
|
* Whole number only
|
|
|
Product Information
|
|
PART NO.
|
|
|
Item Name
|
Kinugawa Turbocharger TD05H-16G with 8cm T3 Internal Gate Turbine Housing (Replace 49178-54700 / 49178-05060)
|
|
Product
Situation
|
Brand New
|
|
Application
|
- Upgrade and Replace 49178-54700 / 49178-05030 / 49178-05060…Turbocharger.
- Diesel 3.5~5L Diesel Engine
- 2L ~3L gasoline engine
|
|
CHRA Spec
|
- Compressor wheel : 48.3 / 68 mm (16G)
- Turbine wheel : 49.2 / 56 mm (TD05H)
|
|
Compressor
Housing
|
- A/R 60
- Cover Inlet Dia. : 60mm / 2.4”
- Cover Outlet Dia : 50mm / 2”
|
|
Turbine Housing
|
- 8cm ( A/R 57 )
|
|
Bearing system
|
- Journal Bearing
- KAMAK Performance thrust bearing Kit installed.
|
|
Cooling System
|
- Oil-Cooled
|
|
Balance
|
Complete CHRA was balanced SCHENCK MBRS 110 Germany.
|
|
Actuator
|
- 1 bar / 14.7 Psi spring will be installed on this adjustable actuator.
- 0.5bar, 0.8bar, 1.0bar, 1.2 bar, 1.5 bar, 1.8bar, and 2.0bar spring are available on our shop.
|
|
Install Kit
|

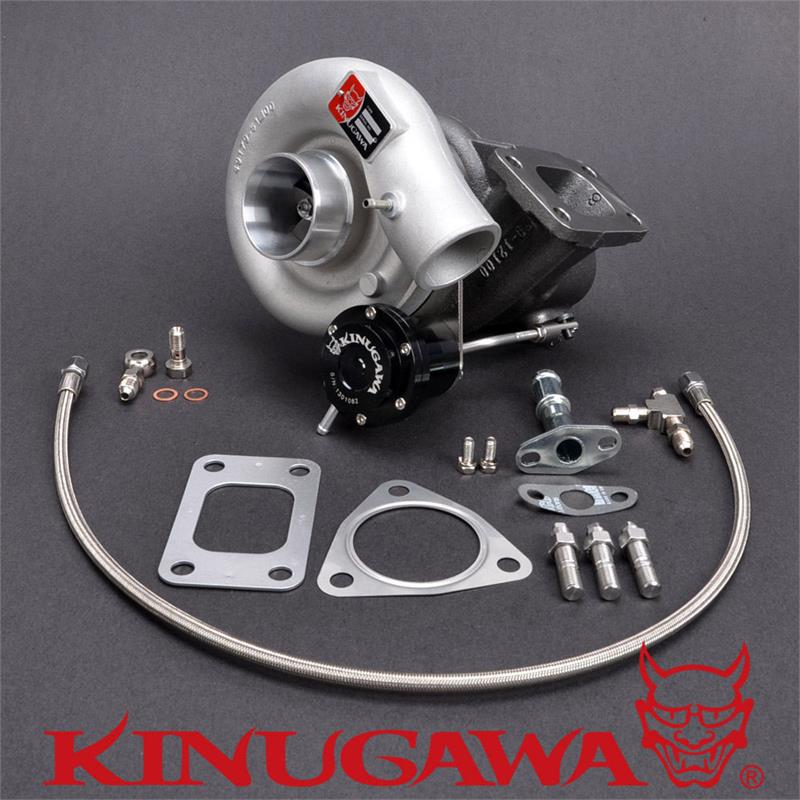

Everything shown on picture is included.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
