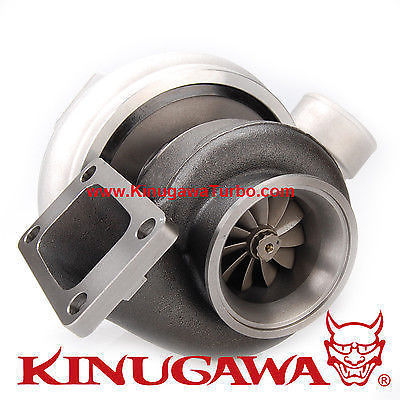

Kinugawa Turbocharger 4" Anti-Surge TD06H-25G 12cm A/R .89 T3 V-band Turbine Hsg

Kinugawa TD06H-25G Turbocharger

(4” TD06 Cover / 12cm A/R .89 T3 V-band Turbine Housing)

Item Name

Kinugawa TD06H-25G Turbocharger with 4” Cover and T3 / 12cm V-band Turbine Housing

P/N.

Application

- Universal Type

- 2500~3000cc

Wheel spec

- Compressor wheel: 60.5/78 mm (25G Wheel)

- Turbine wheel: 58.8/67.2 mm (TD06H / 11 Blades Inconel Wheel (TD06H4)

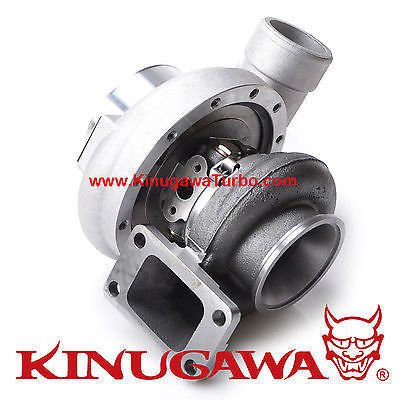

Turbine Housing

AR

- 12cm / A/R .89 T3 Flanged turbine housing

Bearing Type

- Journal Bearing

- 360 Deg Performance Thrust Bearing Kit

Cooling Type

-  Oil And Water-Cooled

Max Hp

- 450~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

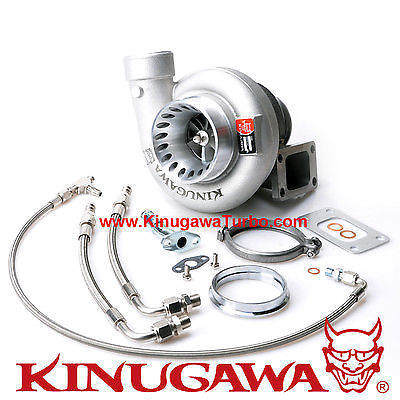

Kit Includes

1 x Oil feed line kit ( 100cm Braided Line )

1 x Oil Return Pipe Kit

2 x 24cm 6AN Water Line Kit

1 x Turbine Gasket Inlet Gasket

Made By

Kinugawa Turbo

Warranty

One Year
